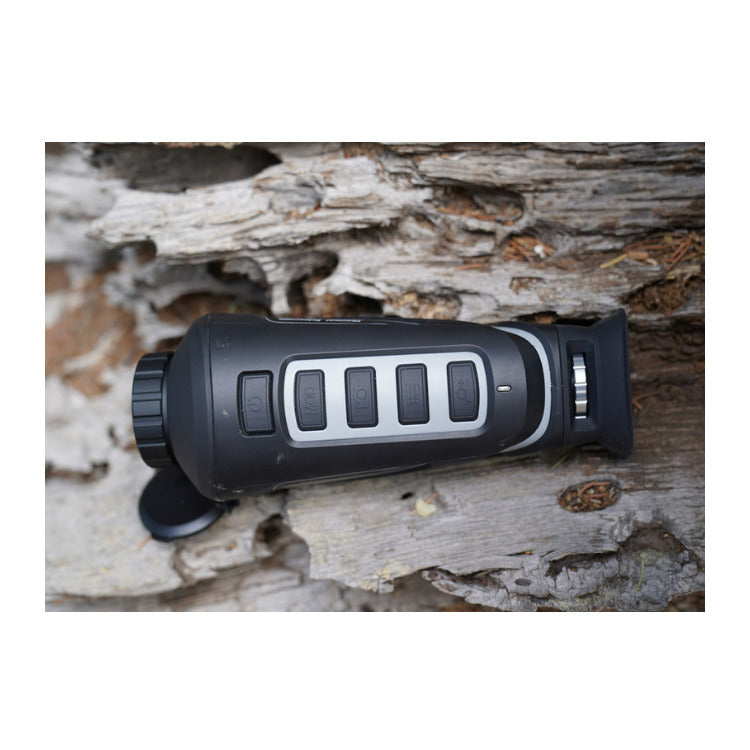

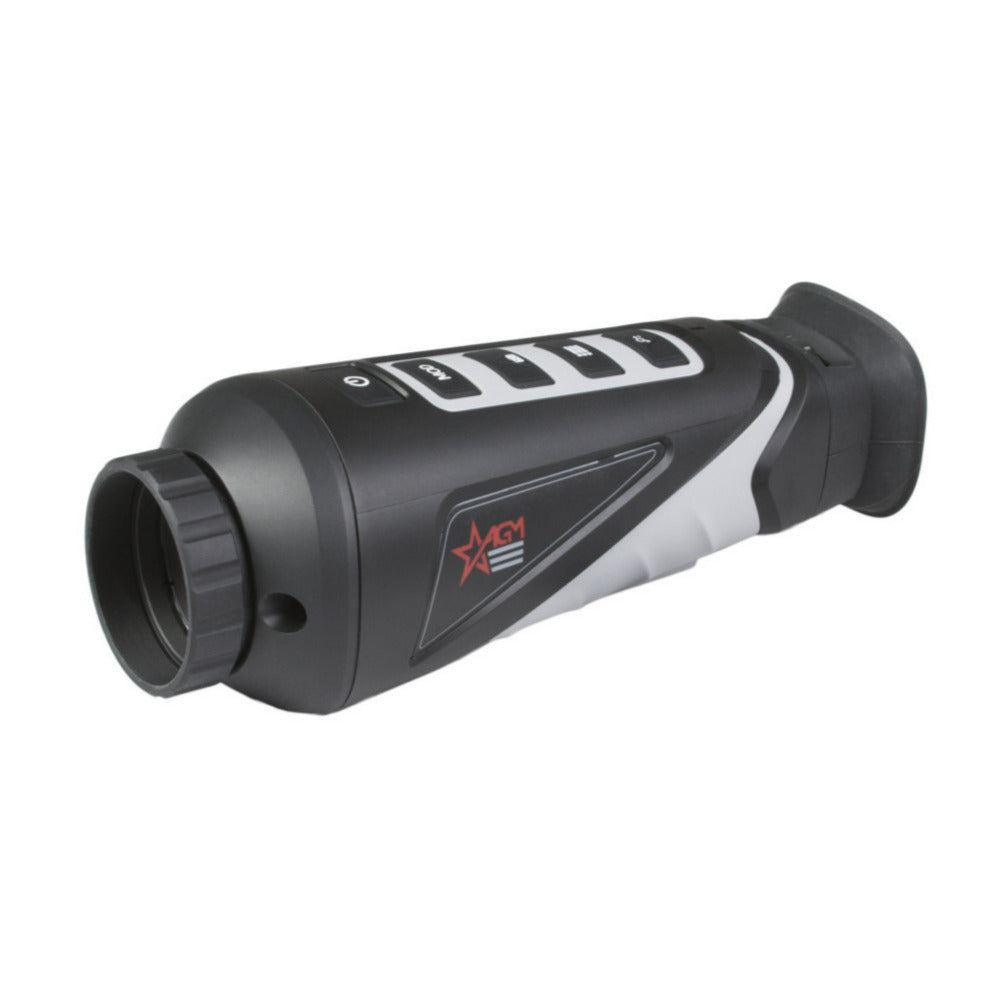

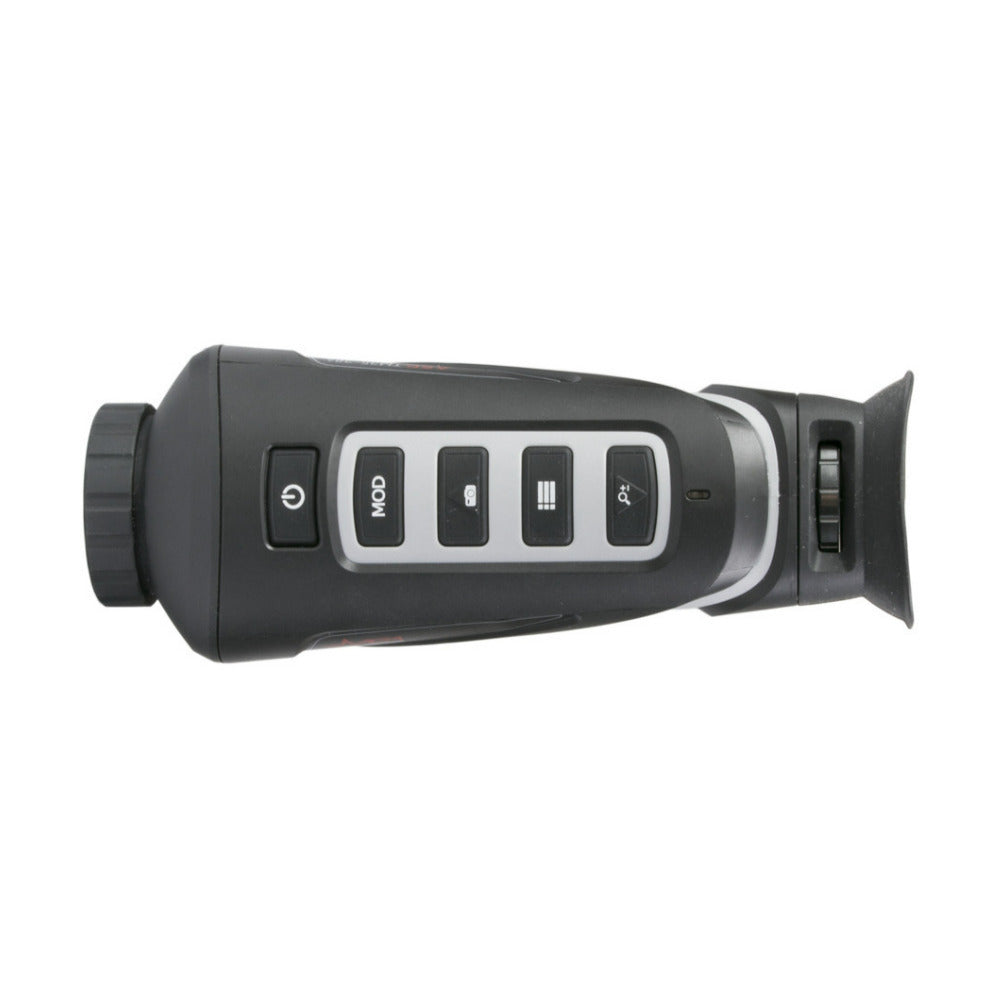

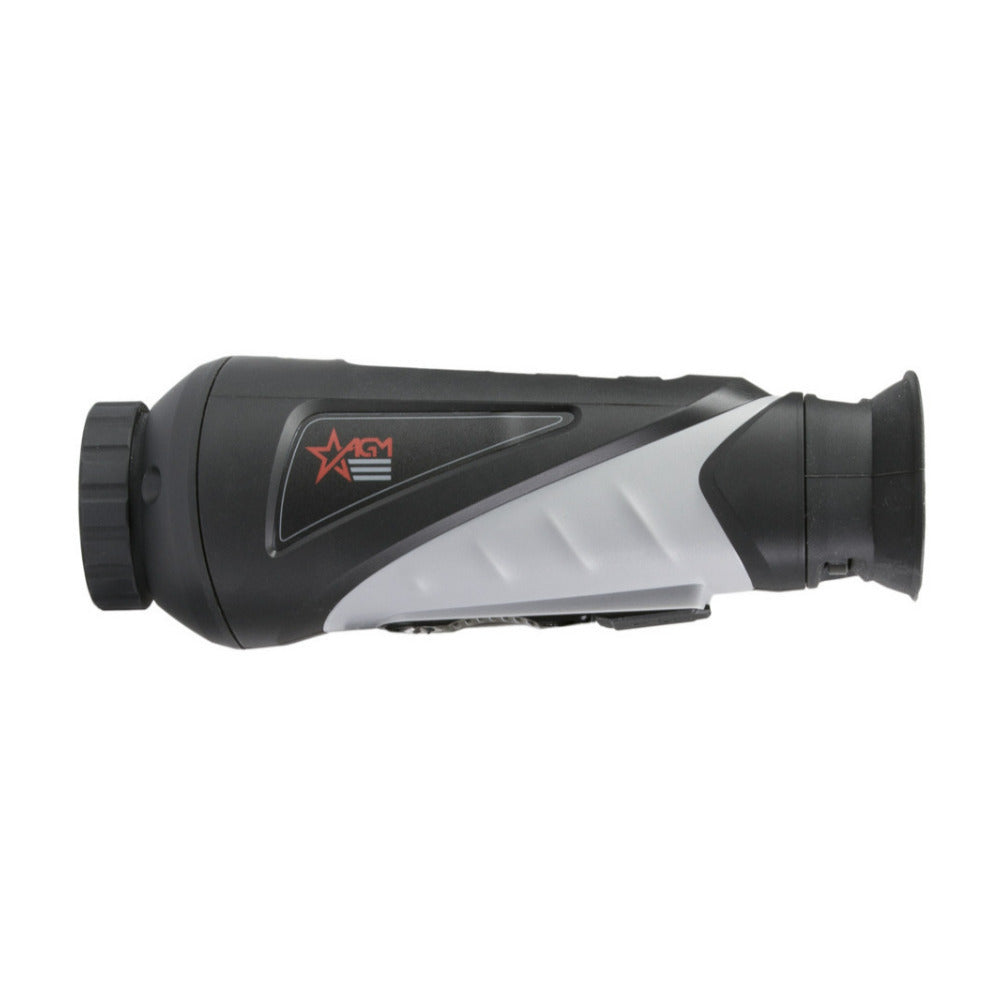

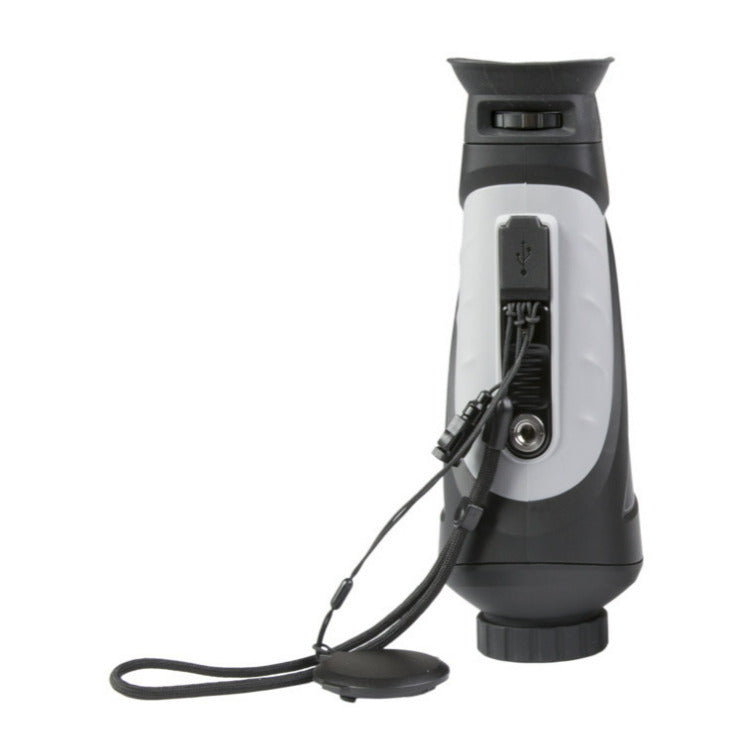

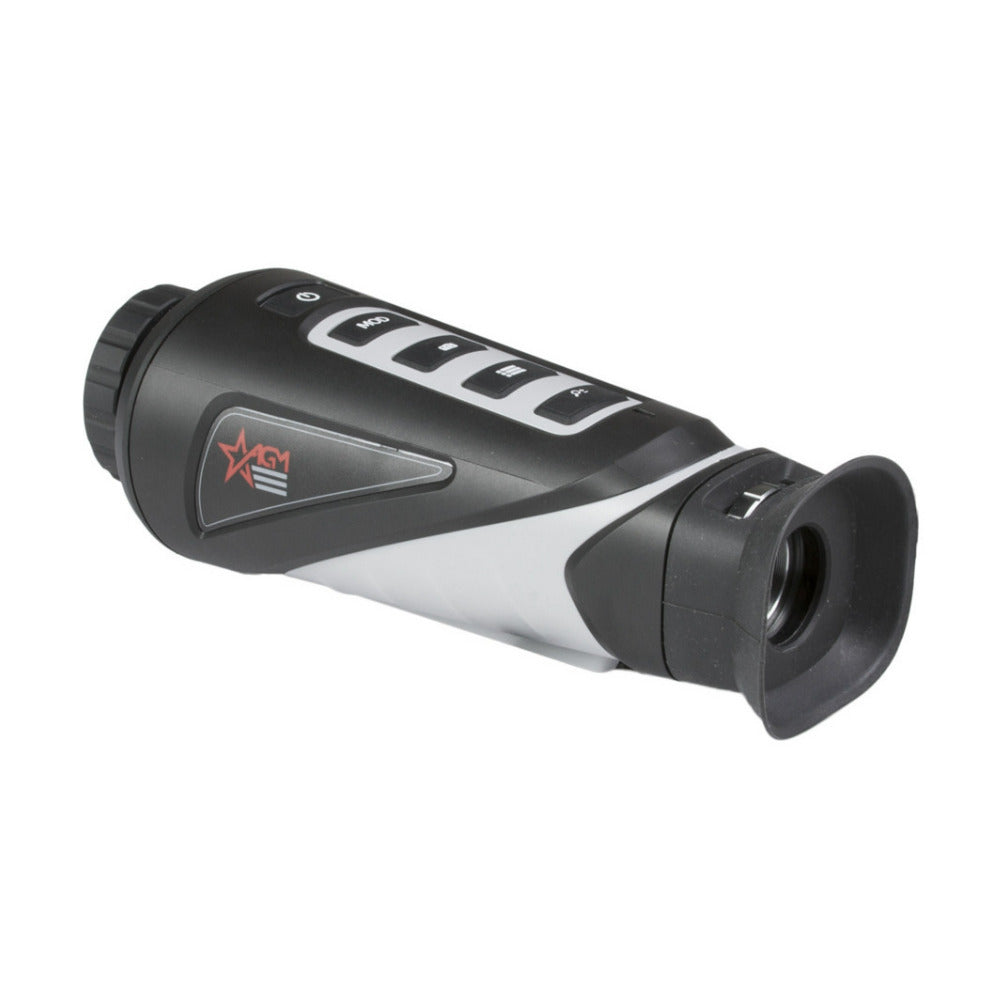

AGM Global Vision ASP TM35-640 Thermal Imaging Monocular (640 x 512)
Couldn't load pickup availability
Product highlights
Product highlights
In the box
In the box
Free standard shipping
Free standard shipping
*Orders placed before 1 PM EST Mon - Thur will ship the same day. Orders placed beyond these hours will be shipped the next business day. Exclusions apply. See shipping policy
Free Local Pickup
Free Local Pickup
Please call for store stock availability. Requests made before 2:30 PM EST can be available for next-day pickup. Learn more
The ASP handheld observational thermal monocular is equipped with a 640 x 512 infrared detector and a 1024 x 768 OLED display. The high-sensitivity built-in thermal detector provides you with a clear view even in total darkness. It supports functions of observation, hot spot tracking, distance measurement, Wi-Fi hotspot, and so on. The monocular is mainly applied to scenarios such as patrolling, law enforcement, searching and rescuing, drug enforcement, anti-smuggling, criminal seizing, hiking, travel, hunting, etc.
Distance Measurement
The device realizes the distance measurement function after marking the top and bottom of the target and inputting the target height.
Hot Spot Mark
The device detects and marks the hot spot of the highest temperature.
Wi-Fi and Hot Spot
The device can capture snapshots, record videos, and set parameters via the APP after being connected to your phone.
Mode Switch
The monocular supports pallet switch and distance measurement.
Storage
The built-in memory module supports video recording/snapshot capturing.
Digital Zoom
The monocular supports 2x and 4x digital zoom.
Camera
| Internal Storage | 16 GB |
Performance
| Maximum Magnification | 1.4x |
| Field of View | 17.7 Degree x 14.2 Degree |
AGM Global Vision ASP TM35-640 Thermal Imaging Monocular
| Detector type | Vanadium Oxide Uncooled Focal Plane Arrays |
| Resolution | 640 x 512 |
| Refresh rate sensor | 50 Hz / OLED 50 Hz |
| Recognition range | (Vehicles: 1.4 x 4.0m) - 789m (Humans: 1.8 x 0.5m) - 257m |
| Detection range | (Vehicles: 1.4 x 4.0m) - 3157m (Humans: 1.8 x 0.5m) - 1029m |
| Identification range | (Vehicles: 1.4 x 4.0m) - 395m (Humans: 1.8 x 0.5m) - 129m |
| Diopter adjustment | -5 to +3 DPT |
| Detector pitch | 17μm |
| Response wavelength | 8μm to 14μm |
| NETD | < 35mk (at 25-degrees-C, F number= 1.0) |
| Lens focal length | 35mm |
| Field of view | 17.7-degrees x 14.2-degrees-F-number1.0 |
| Optical magnification | 1.4x |
| Digital zoom | 1x, 2x, 4x, 8x |
| FFC (Flat Field Correction) | Auto, Manual, External Correction |
| Palettes | Black hot, White hot, Red hot, Fusion |
| Monitor | 0.39-inch, OLED, 1024 x 768 |
| Hot track | Yes |
| Storage | Built-in memory module (16GB) |
| Record video | Support on-board video recording |
| Capture snapshot | Yes |
| Wi-Fi | Yes, Hotspot |
| Battery | Built-in rechargeable lithium battery |
| Battery operating time | Up to 5 hours of continuous running |
| Battery capacity display | Yes |
| Power | 5V DC/2A, 2W |
| Working temperature | -30-degrees-C to 55-degrees-C (-22-degrees-F to 131-degrees-F) |
| Protection level | IP67 |
| Dimensions | 7.9 x 2.9 x 2.6 inch (202 x 74 x 66 mm) |
| Weight | 16.9 oz (480 g) |
