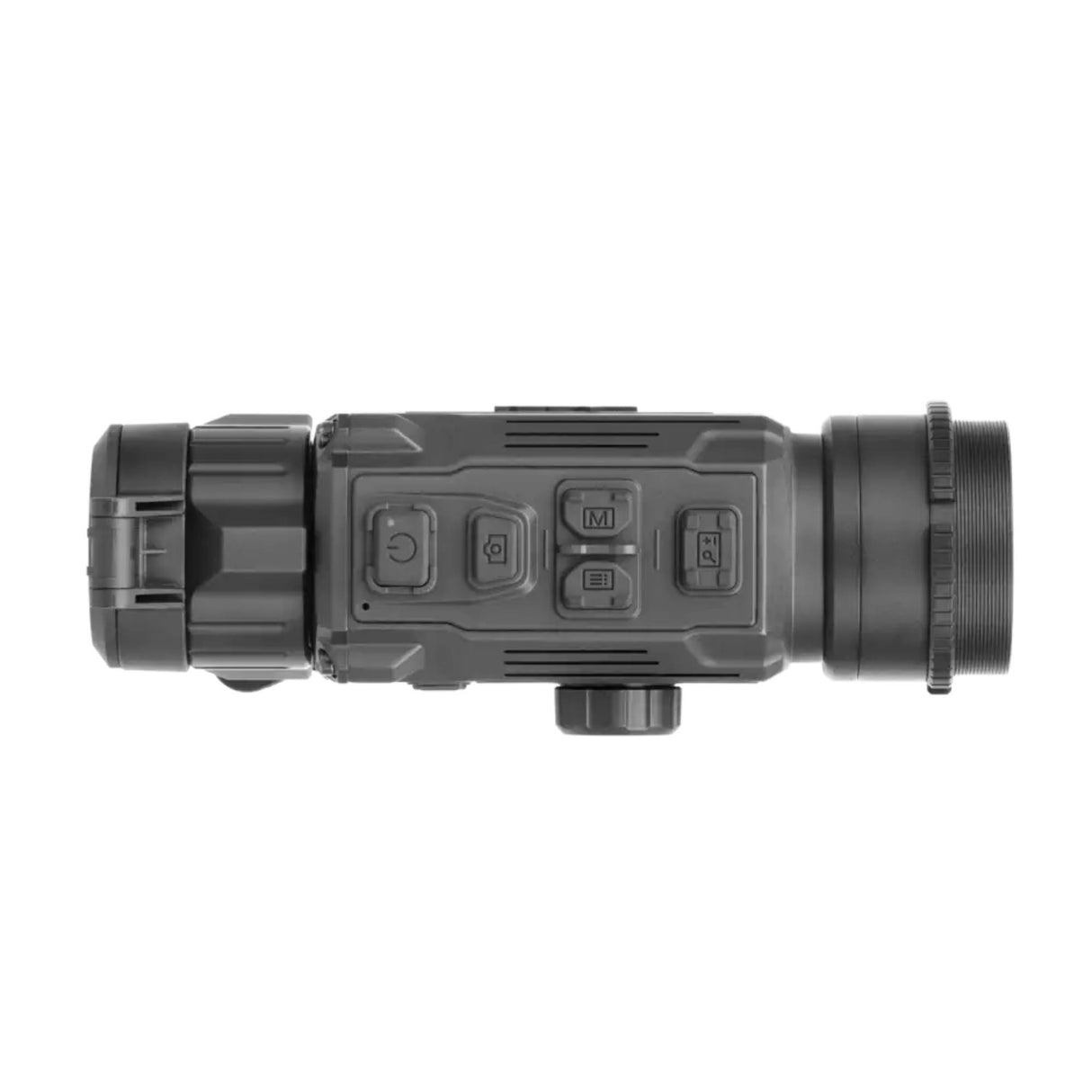

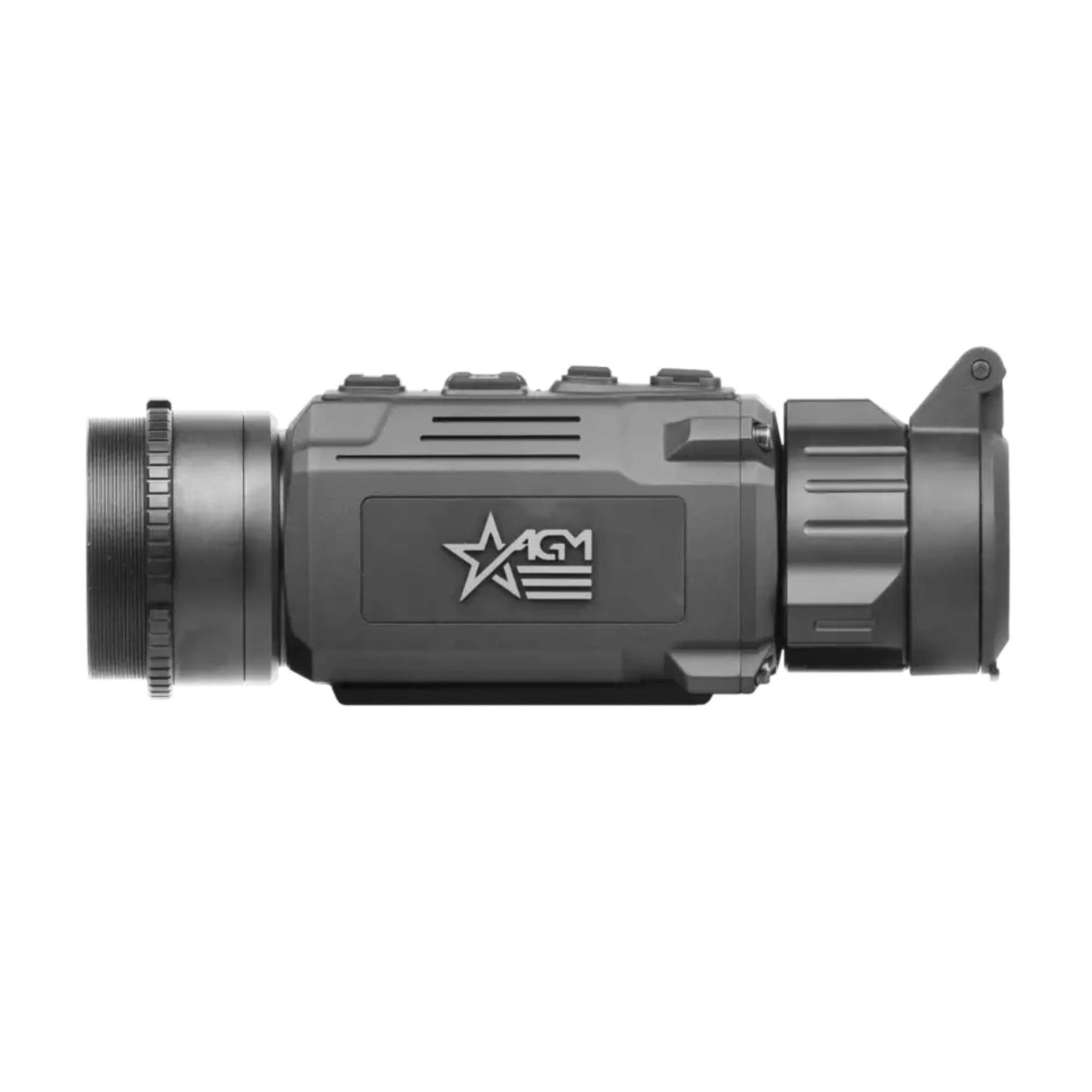

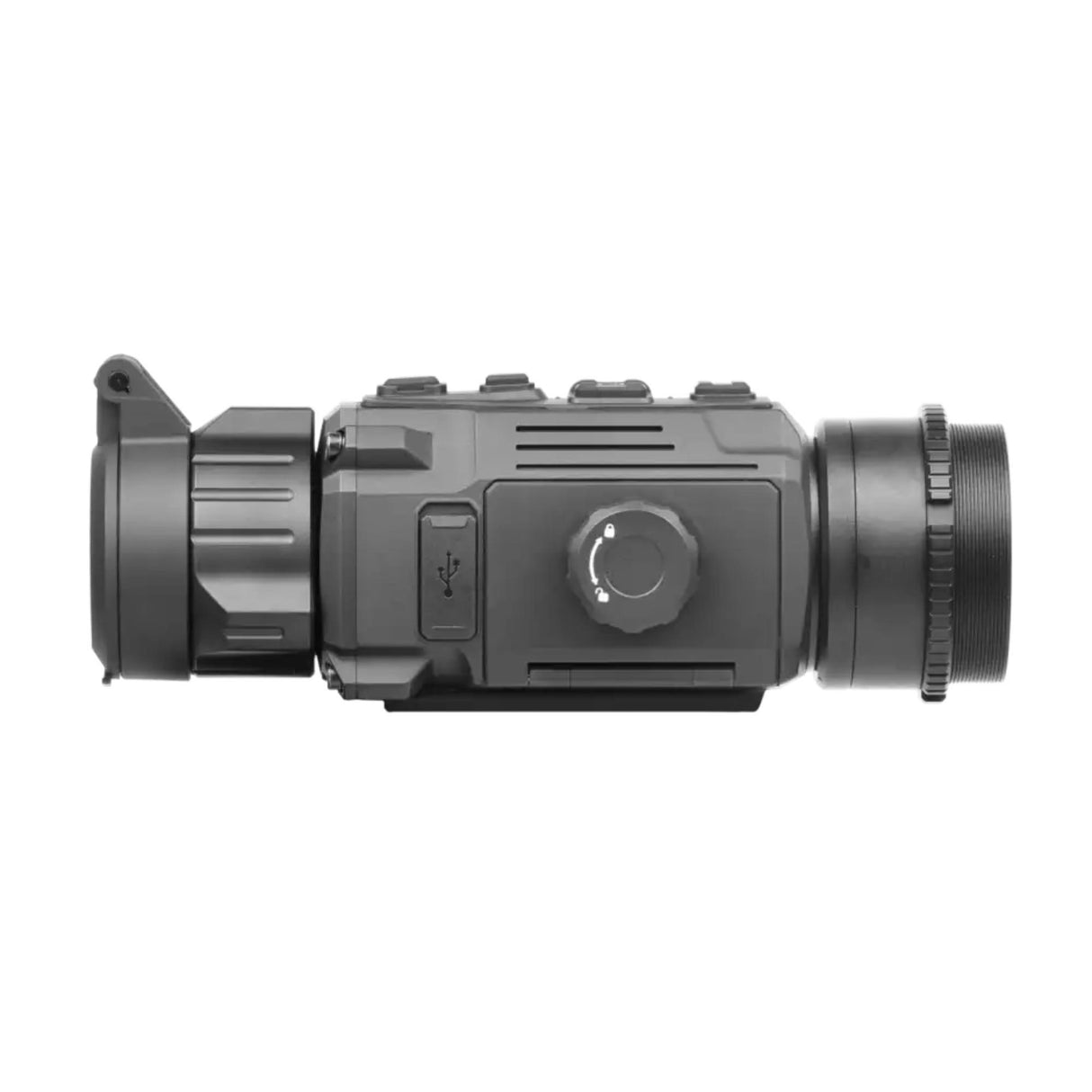

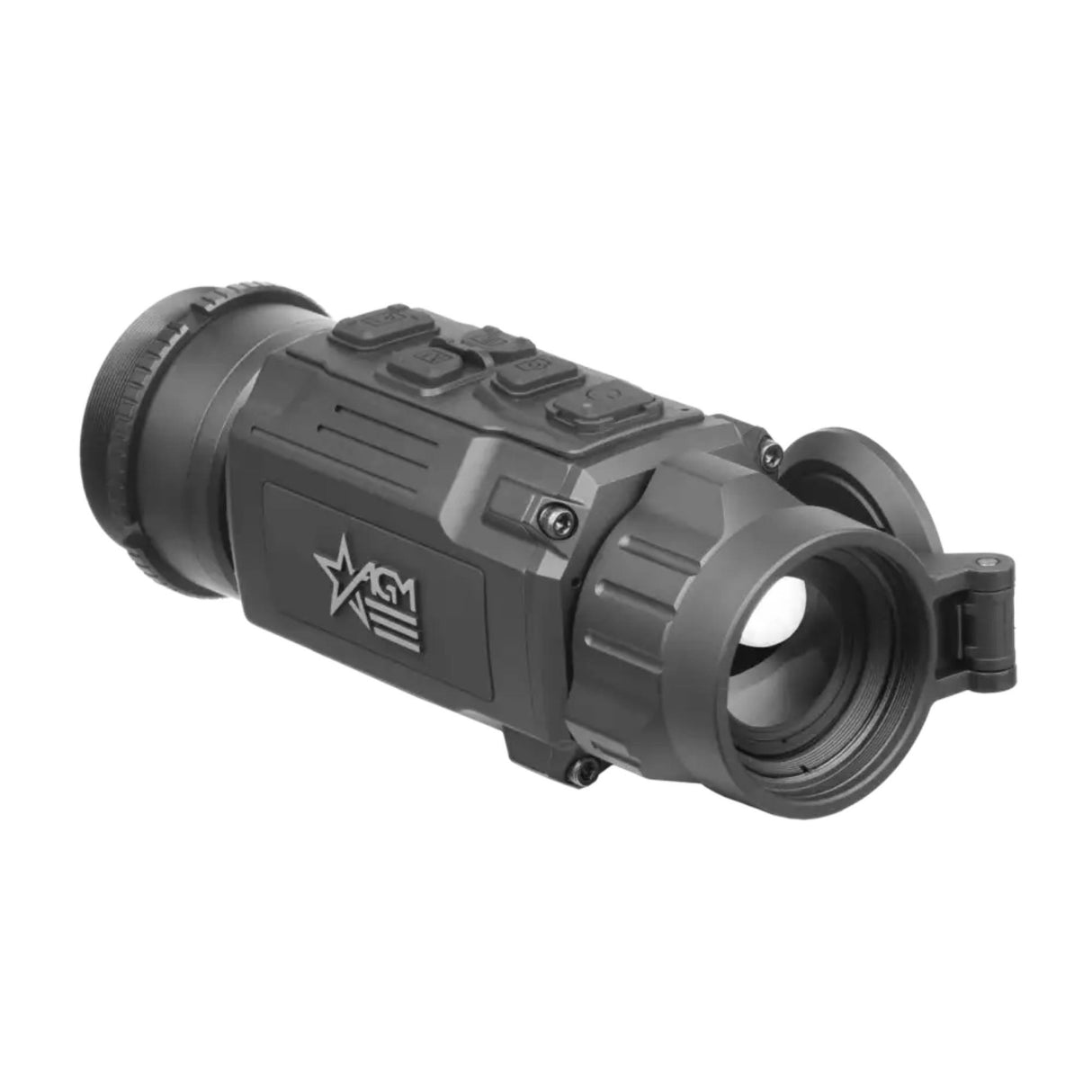

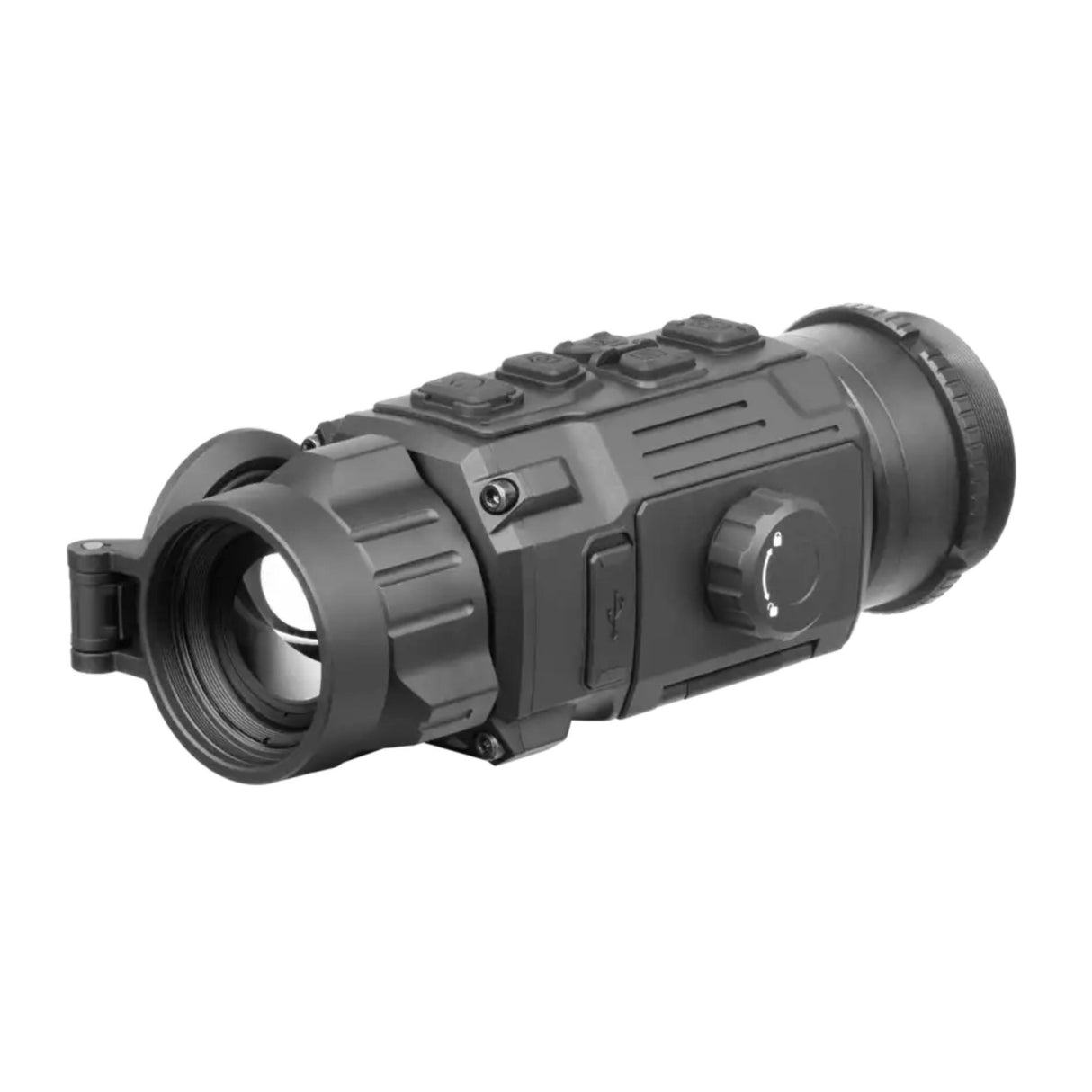

AGM Rattler-C V2 35-384 Thermal Imaging Clip-On 35mm Lens 384x288(50Hz) with Video Recording (Black)
Couldn't load pickup availability
Product highlights
Product highlights
In the box
In the box
Free standard shipping
Free standard shipping
*Orders placed before 1 PM EST Mon - Thur will ship the same day. Orders placed beyond these hours will be shipped the next business day. Exclusions apply. See shipping policy
Free Local Pickup
Free Local Pickup
Please call for store stock availability. Requests made before 2:30 PM EST can be available for next-day pickup. Learn more
AGM Rattler-C V2 35-384 Thermal Imaging Clip-On 35mm Lens 384x288(5...
AGM Rattler-C V2 35-384 Thermal Imaging Clip-On 35mm 384x288 Resolution (50Hz) with WiFi and Video Recording (Black)
The new AGM Rattler-C V2 35-384 thermal clip-on boasts a industry-leading 12 micron, high-sensitivity sub-20mk thermal detectors. These physical attributes provide users with some of the best image quality AGM has produced to date with potential detection ranges up to 1800 yards. The Rattler-C V2 thermal clip-ons provide clear image under harsh environment conditions like darkness, fog, smoke, dust, rain, snow, wood, camouflage, etc.
The Rattler-C V2 clip-on can easily be attached in front of day scopes to quickly convert a day optic into a thermal imaging device without any special tools or equipment required. Powered replaceable and rechargeable Li-ion battery the AGM Rattler-C V2 35-384 provide up to 11 hours of continuous battery life on a single charge (2 batteries included). An external 5V power bank (battery pack) can be easily connected via a USB-C connector for a significant increase of operating time. Onboard Wi-Fi module is also available for live video streaming and video/images recording via mobile application.
Features
- Quick conversion of daytime optics into thermal imaging scope
- 12 micrometer high-sensitivity thermal detector, NETD < 20mK
- Fast 50Hz imaging
- High resolution OLED display
- Adjustable color palettes
- On-board video/audio recording and image capture
- Built-in EMMC storage (16 GB)
- Shot Activated Recording (SAR)
- Wi-Fi data transmission
- Stadiametric rangefinder
- Standby mode
- 11 hours battery life
- External power supply compatibility
- Waterproof and shockproof
Camera
| Internal Storage | 16 GB |
General
| WiFi | Yes |
| Power Source | Battery |
| Water-Resistant | Yes |
| Weight | 1.19 lbs. (0.54 kg) |
Performance
| Lens Configuration | 35mm |
| Maximum Magnification | 1x |
| Field of View | 7.5 x 5.6 Degree |
| Refresh Rate | 50 Hz |
AGM Rattler-C V2 35-384 Thermal Imaging Clip-On 35mm 384x288 Resolution (50Hz) with WiFi and Video Recording (Black)
Resolution
| 384 × 288 |
Detector
| 12 micrometer VOx Uncooled Focal Plane Array |
NETD
| Less than 20 mK (25 degrees Celsius, F# = 1.0) |
Refresh Rate
| 50 Hz |
Lens System
| 35 mm; F/1.0 |
Optical Magnification
| 1x |
Field of View
| 7.5 degrees × 5.6 degrees |
Focus Range
| 2 m to infinity |
Exit Pupil
| 22 mm |
Eye Relief
| 10 mm |
Detection Range (6’ object)
| 1800 m/yd |
Display
| 0.39-inch, OLED, 1024×768 |
Palettes
| Black hot, White hot, Red hot, Fusion |
Flat Field Correction
| Auto, Manual, External Correction |
Scene Mode
| Cold, Warm |
Video/Audio Recording
| Yes |
Image Capture
| Yes |
Standby Mode
| Yes |
Storage
| Built-in EMMC (16 GB) |
Defective Pixel Correction
| Yes |
WiFi Hotspot
| Yes |
Hot Track
| Yes (Stadiametric) |
Shot Activated Recording (SAR)
| Yes |
Battery Type
| 4400mAh Replaceable and Rechargeable Li-ion Battery |
Battery Life (Operating, 20 degrees Celsius)
| 11 h (25 degrees Celsius, with hotspot off) |
External Power Supply
| 5 VDC, 2 A, USB Type-C |
Operating Temperature Range
| -22 degrees Fahrenheit to 131 degrees Fahrenheit (-30 degrees Celsius to +55 degrees Celsius) |
Protection Level
| IP67 |
Max Recoil
| 1000 g/0.4 ms |
Weight (w/o mount and battery)
| 1.19 lbs. (0.54 kg) |
Dimensions (w/o mount)
| 7.2 in. × 2.7 in. × 2.6 in. (184 mm × 68 mm × 67 mm) |
