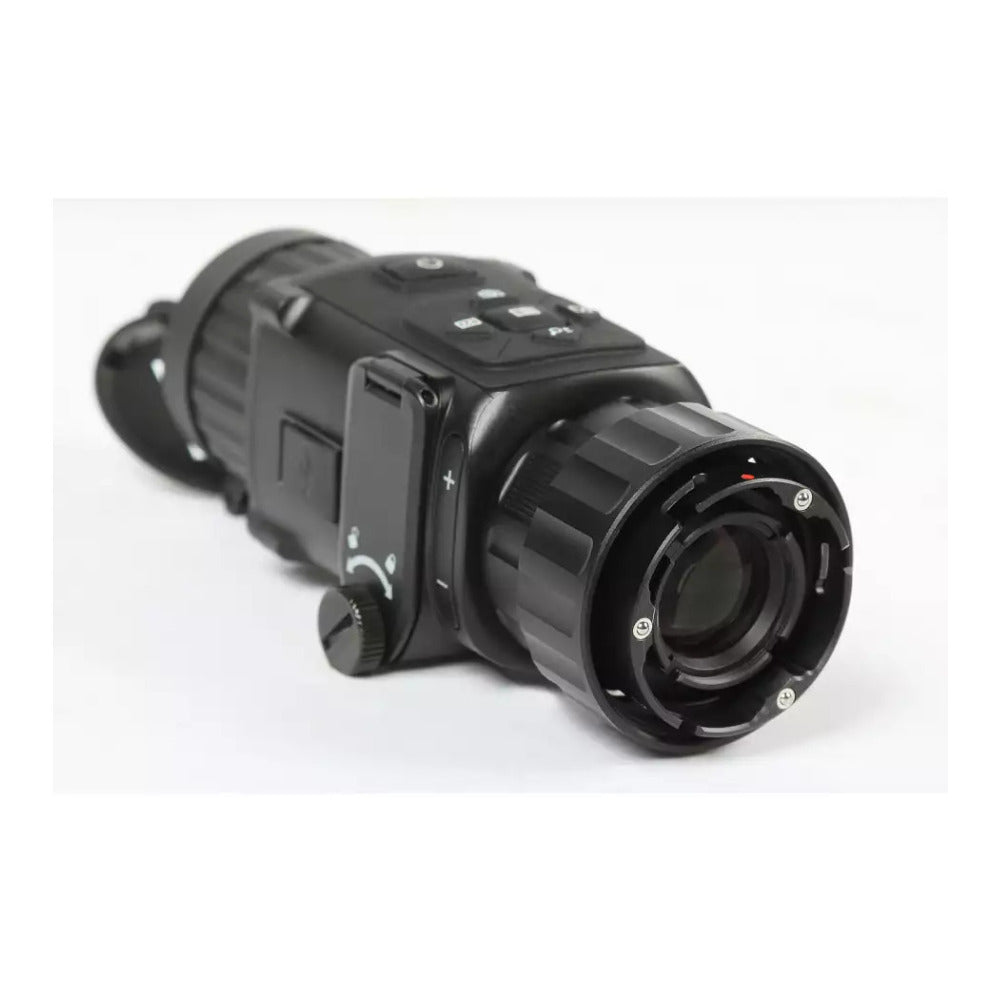

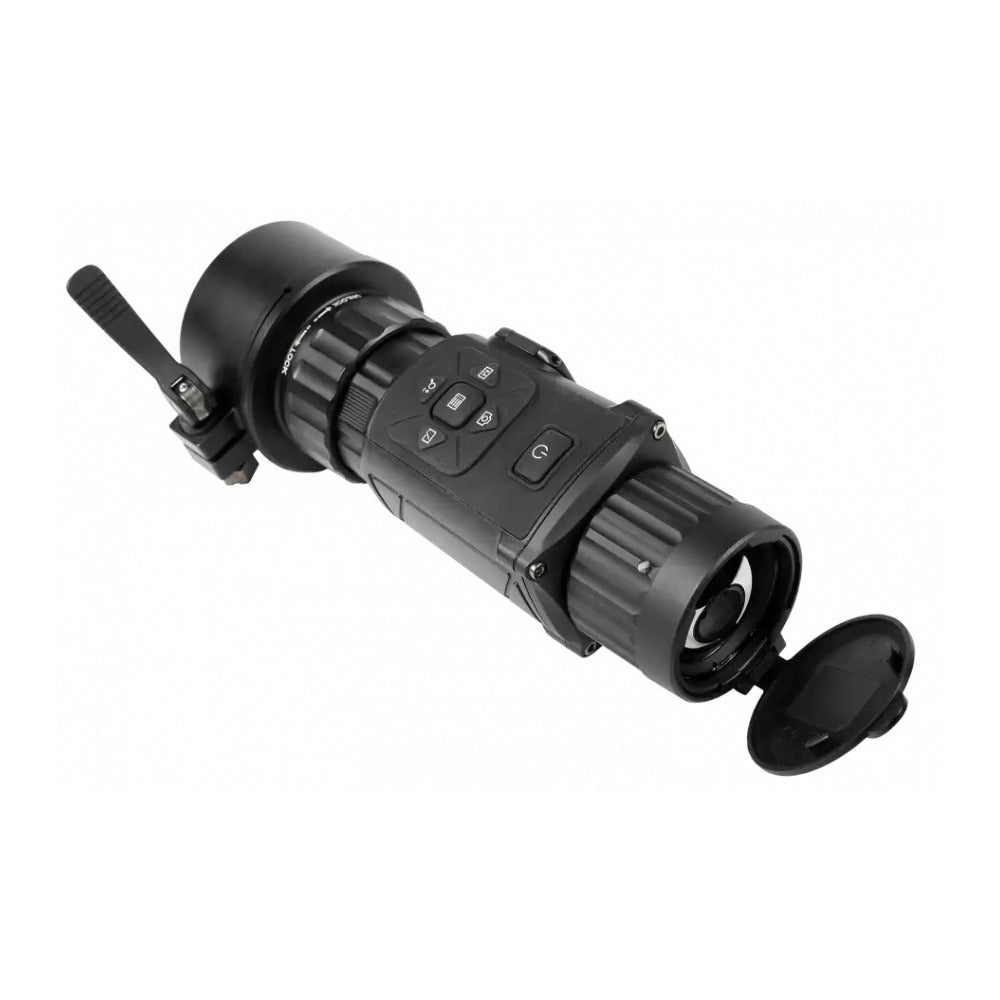

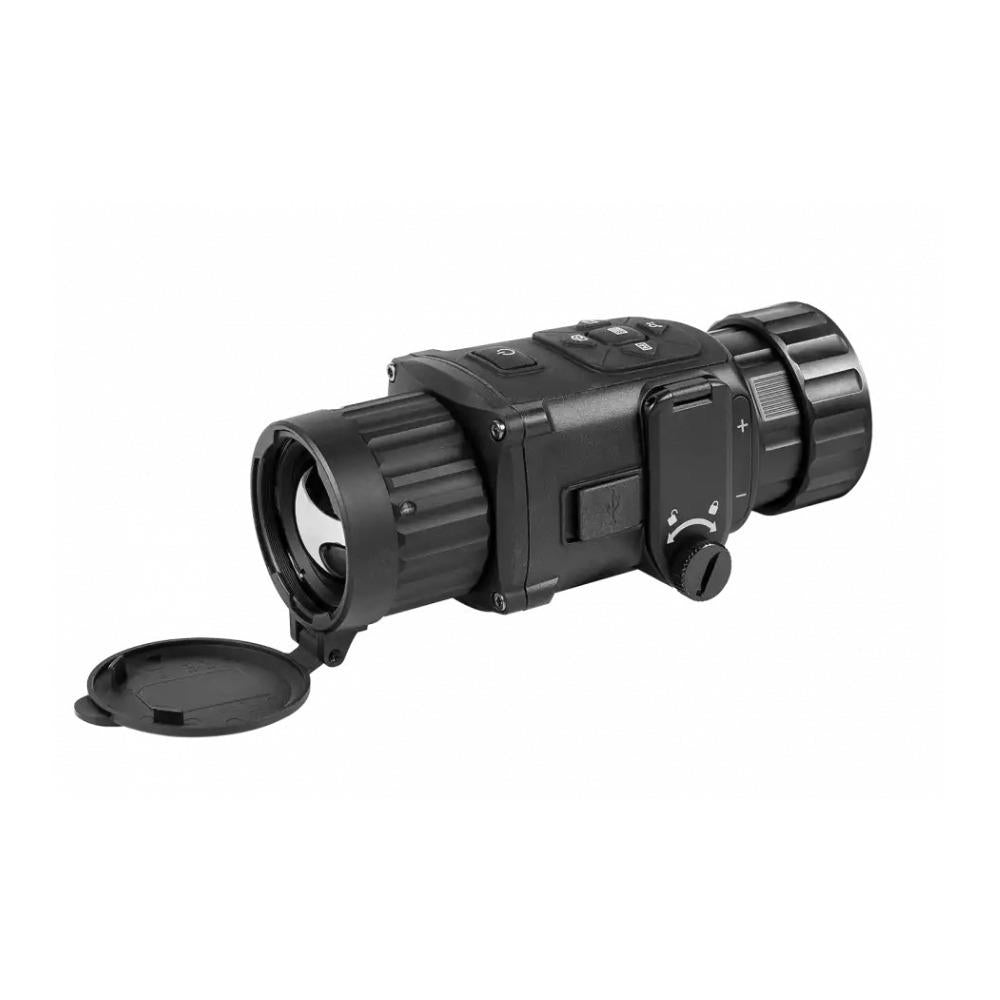

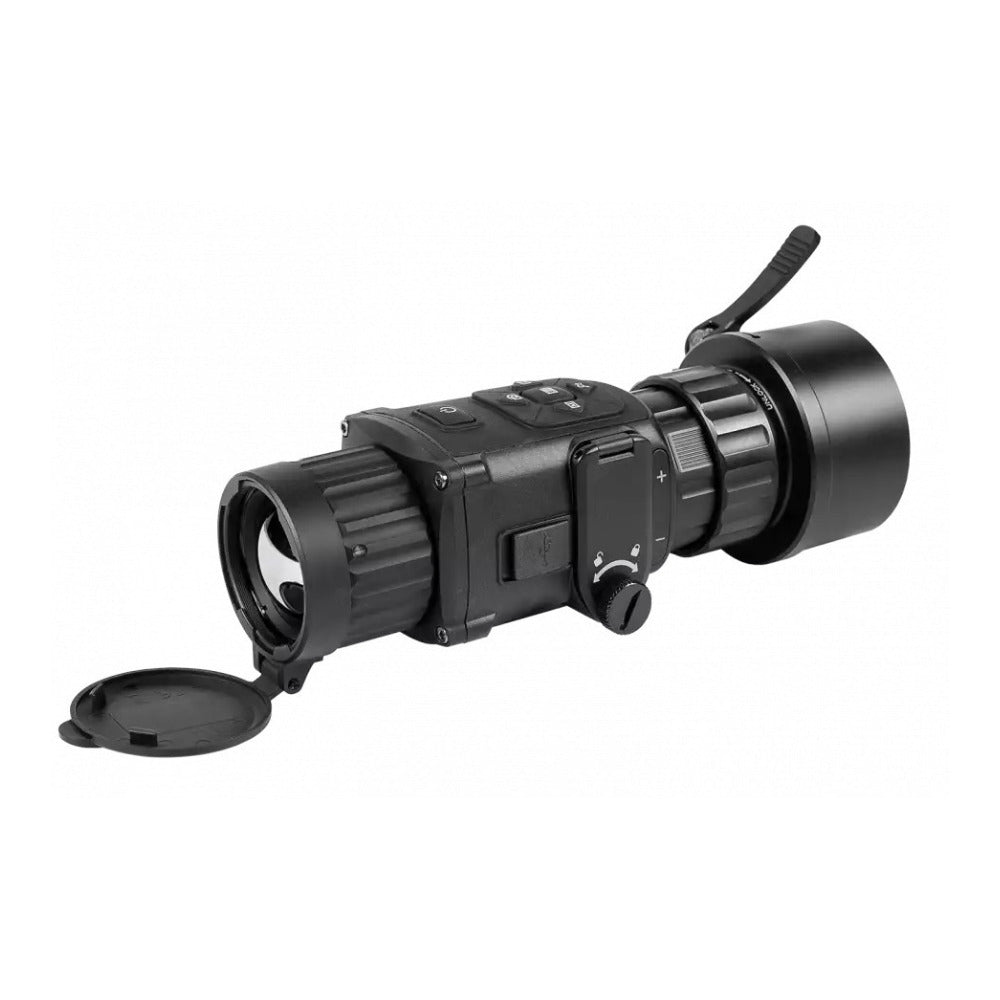

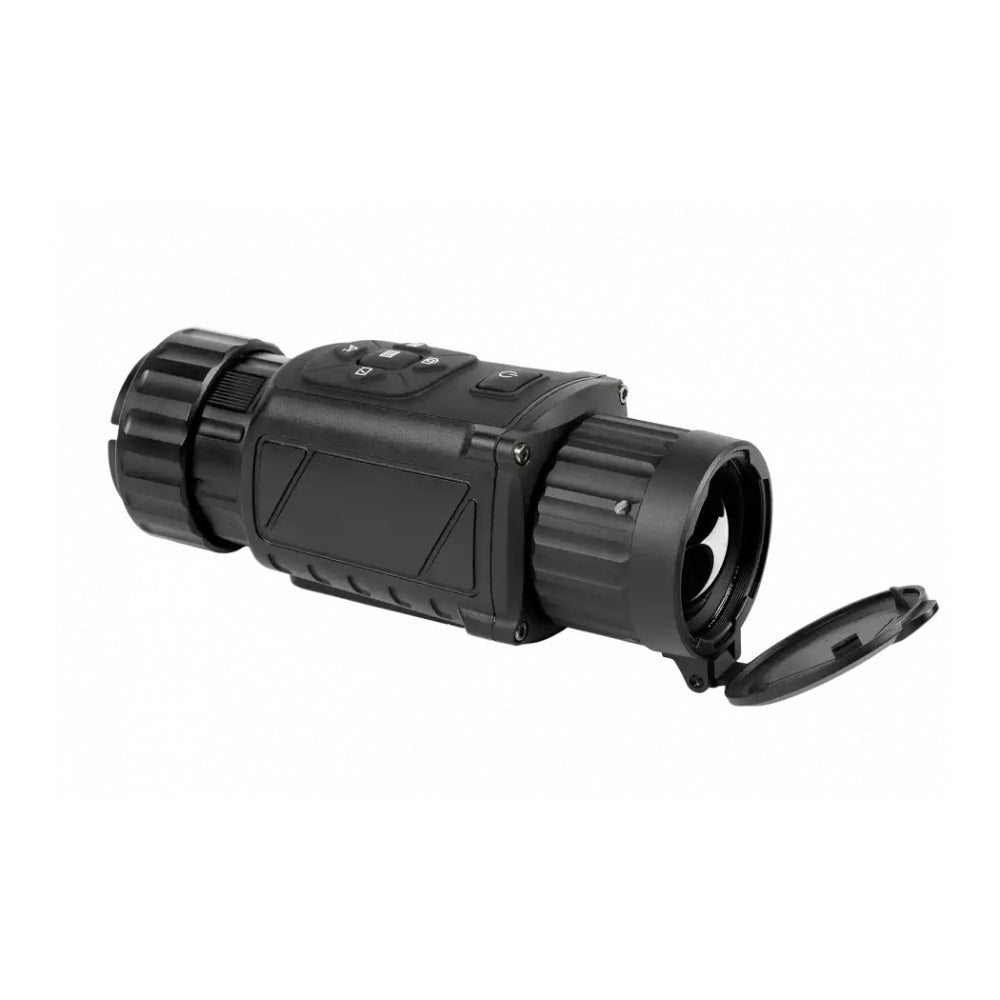

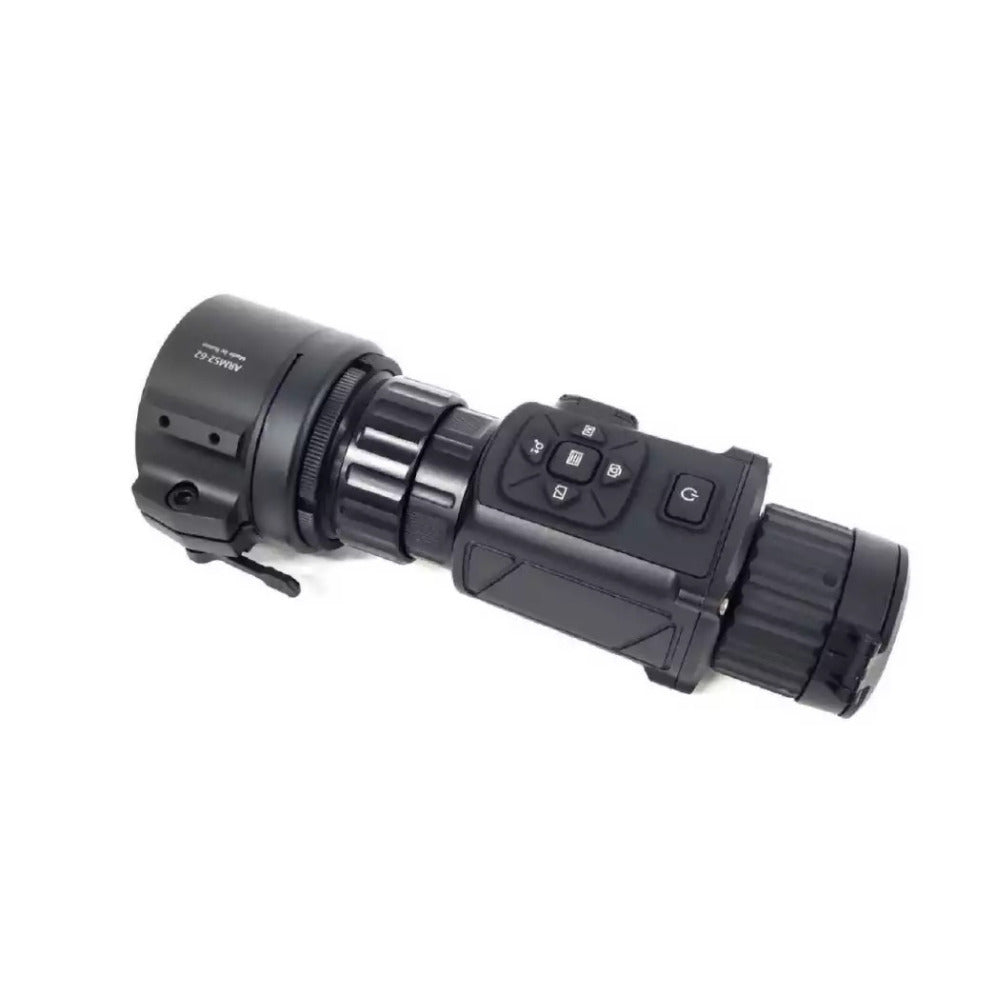

AGM Rattler TC35-384 Compact Medium Range Thermal Imaging Clip-On System
Couldn't load pickup availability
Product highlights
Product highlights
In the box
In the box
Free standard shipping
Free standard shipping
*Orders placed before 1 PM EST Mon - Thur will ship the same day. Orders placed beyond these hours will be shipped the next business day. Exclusions apply. See shipping policy
Free Local Pickup
Free Local Pickup
Please call for store stock availability. Requests made before 2:30 PM EST can be available for next-day pickup. Learn more
The AGM Rattler TC35-384 is a compact thermal imaging clip-on system that allows quick transformation of the day optics into thermal imaging device without any special tools or equipment. Rattler TC35-384 has 384x288 thermal detector and 748x561 OLED monitor, which provides clear image under harsh environment conditions like darkness, fog, smoke, dust, rain, snow, wood, camouflage, etc. The product is mainly applied to scenarios such as patrolling, hunting, etc. The Rattler TC35-384 can easily be attached in front of rifle scopes with magnification up to 8x for medium range use. Onboard Wi-Fi module for live video streaming and video/images recording via application are also available. This unit also comes packed with all the features that many Rattler users have come to expect, which include: built-in recording and picture capture capabilities, Wi-Fi hotspot, AGM Connect app compatibility for storing and sharing images and videos, 16 GB on-board storage, 4.5 hours of battery life on two CR123 batteries, external power capability through the unit’s USB-C plug and a high-quality American Defense Manufacturing quick detach mount.
ITAR Compliance: Export of this product outside of the United States of America is not allowed and is controlled by the US Department of State.
General
| Power Source | Battery |
| Water-Resistant | Yes |
| Weight | 0.42 kg (0.93 lb) |
Performance
| Lens Configuration | 35mm |
| Maximum Magnification | 1x |
| Field of View | 10 x 8 Degree |
| Refresh Rate | 50 Hz |
AGM Rattler TC35-384 Compact Medium Range Thermal Imaging Clip-On System
| Detector | 17μm, Uncooled, 50Hz |
| Resolution | 384x288 |
| Lens system | 35 mm; F/1.0 |
| Optical magnification | 1x |
| Field of view | 10.0 x 8.0 degrees |
| Exit pupil | 22mm |
| Observation distance | Max. 1235 m |
| Display | 0.39-inch, OLED, 748×561 |
| Hotspot | Yes |
| Distance measurement | Yes |
| Scene mode | Jungle, Recognition |
| Palettes | Black Hot, White Hot, Red Hot, Fusion |
| Electronic accuracy correction step | 0.25 mil / 0.87 MOA / 2.49 cm at 100 m |
| Highest temperature spot tracking | Yes |
| Standby mode | Yes |
| Video recording | Yes |
| Picture snapshot | Yes |
| DPC | Yes |
| PIP | Yes |
| Uniformity correction | Auto, Manual, External Correction |
| Image processing technology | Adaptive AGC, DDE, 3D DNR |
| Storage | Built-in EMMC (16 GB) |
| Battery type | Two CR123A (3V) lithium or two RCR123 (up to 4.2V) rechargeable batteries |
| Battery life (operating) | Up to 4.5 hours |
| External power supply | 5V USB |
| Operating temperature range | -20 degree C to +55 degree C (-4 degree F to +131 degree F) |
| Degree of protection | IP67 |
| Shock and vibration | 750 g/ms |
| Mounting | Optional Front Quick Release Adapters for different front lens diameter or Quick Release Mount for Picatinny/Weaver rail |
| Weight (w/o mount) | 0.42 kg (0.93 lb) |
| Overall dimensions (w/o mount) | 153.2 x 62.5 x 59.2mm (6.03 x 2.46 x 2.33 inch) |
