AGM StingIR-384 12 Micron Multi-Purpose Thermal Imaging Monocular
Couldn't load pickup availability
Product highlights
Product highlights
In the box
In the box
Free standard shipping
Free standard shipping
*Orders placed before 1 PM EST Mon - Thur will ship the same day. Orders placed beyond these hours will be shipped the next business day. Exclusions apply. See shipping policy
Free Local Pickup
Free Local Pickup
Please call for store stock availability. Requests made before 2:30 PM EST can be available for next-day pickup. Learn more

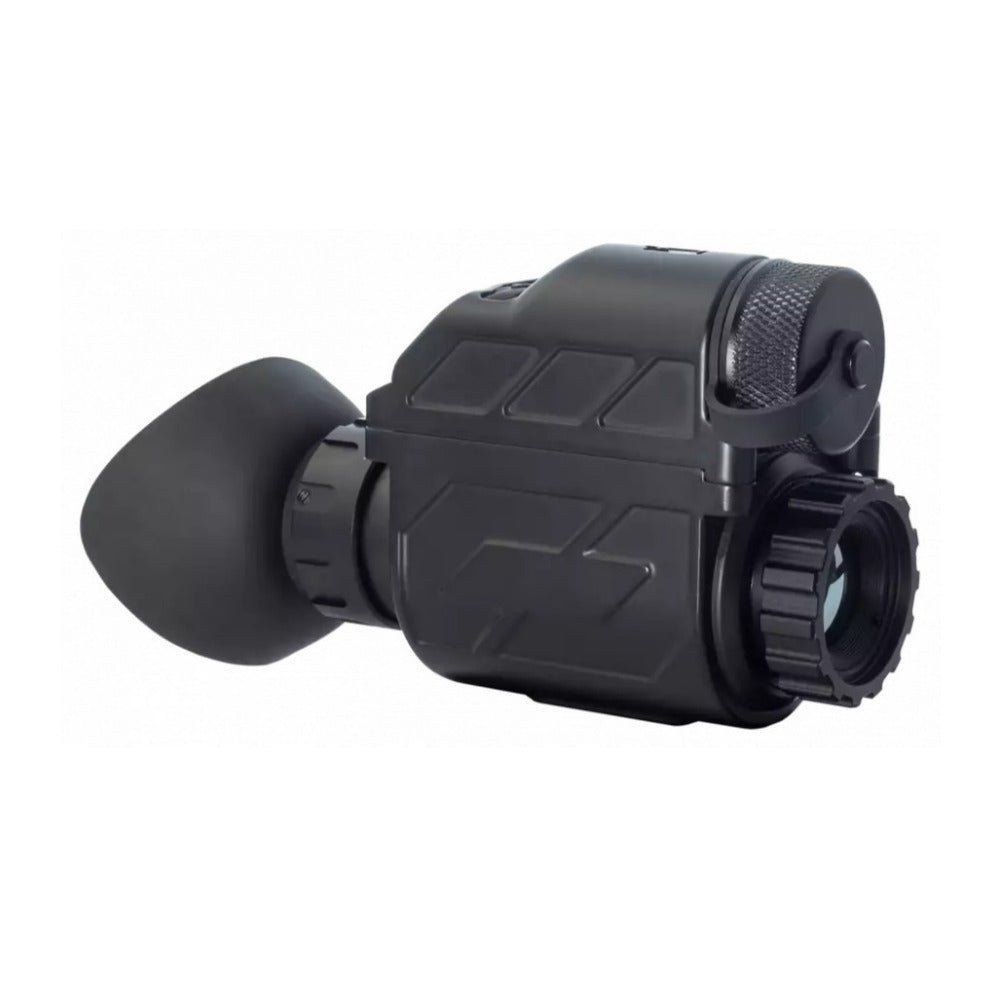

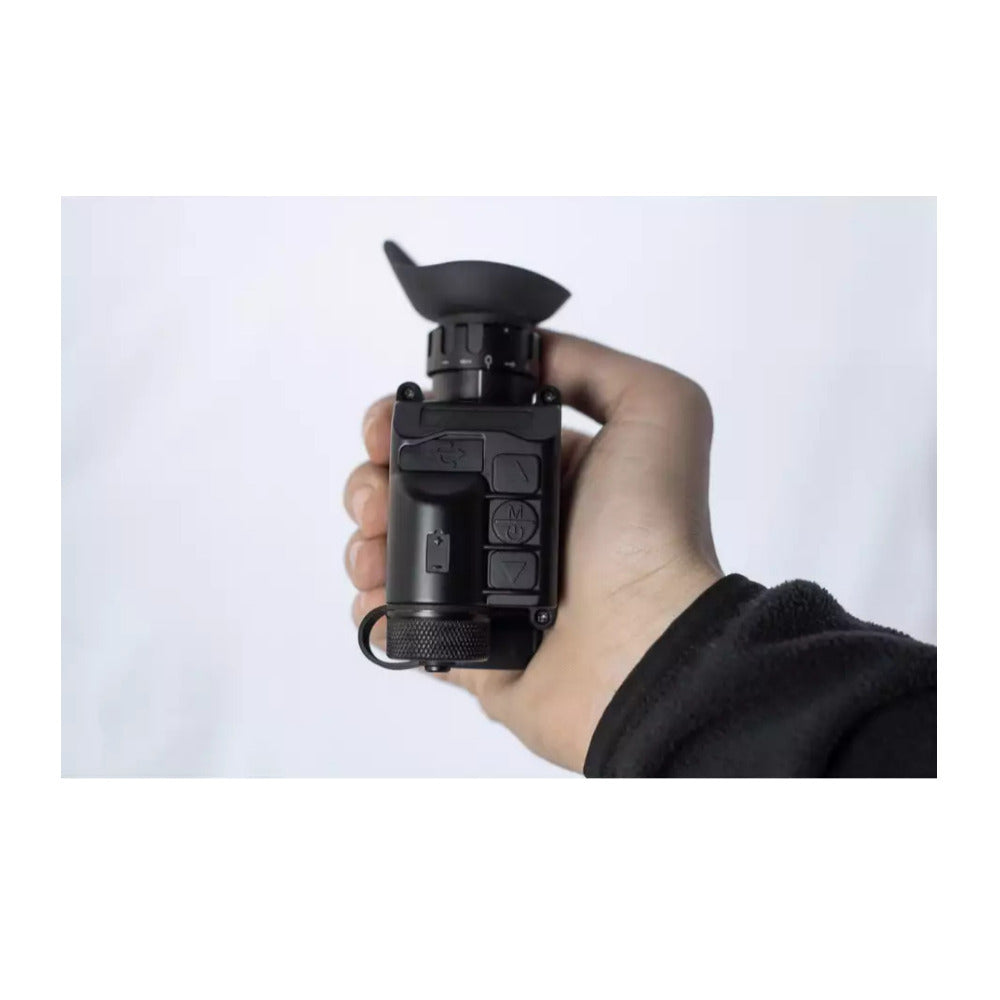

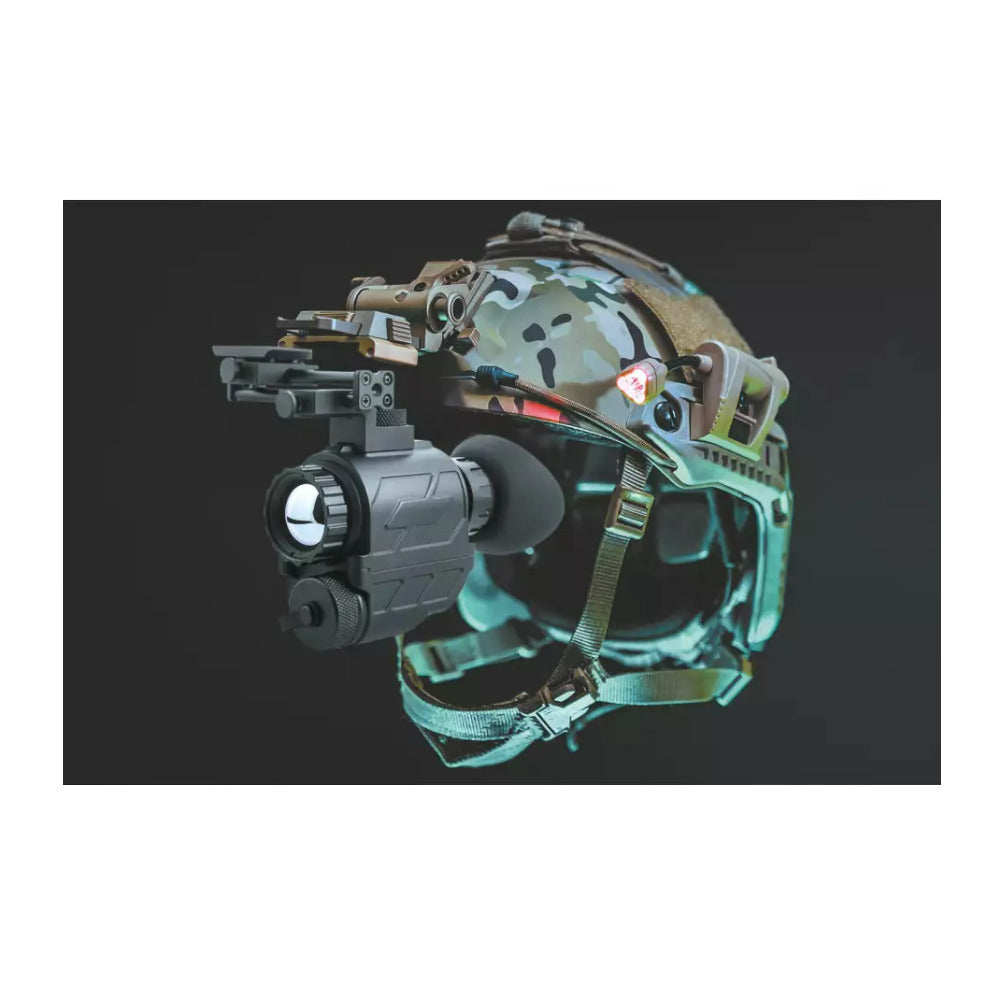

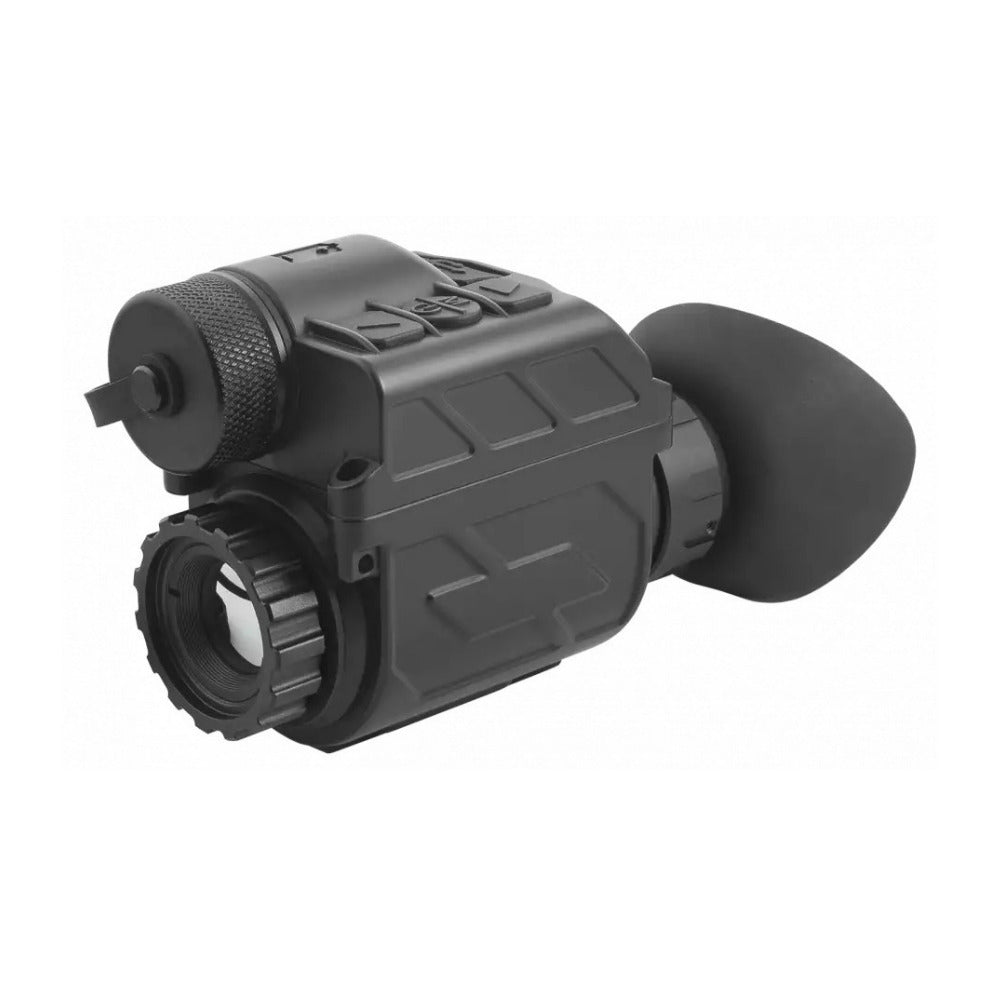

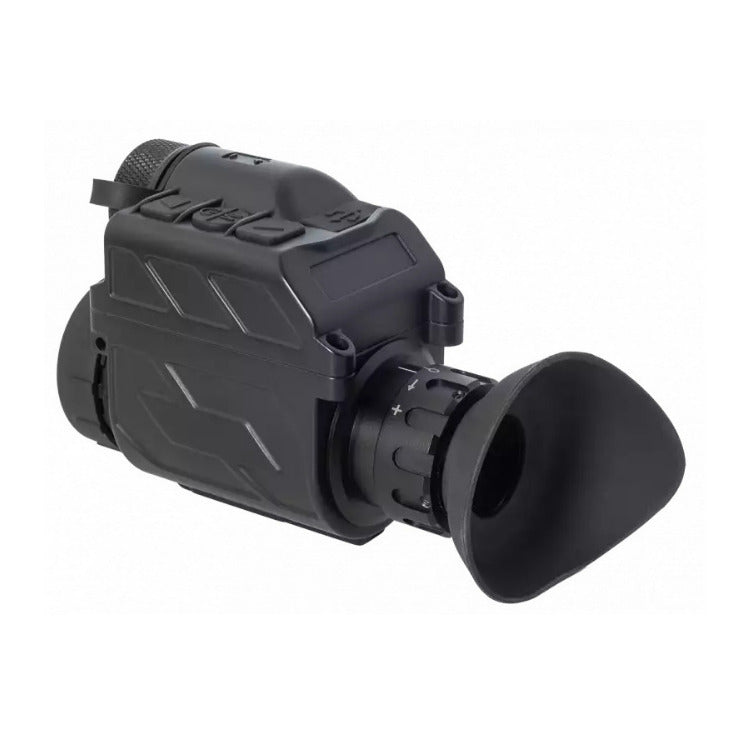

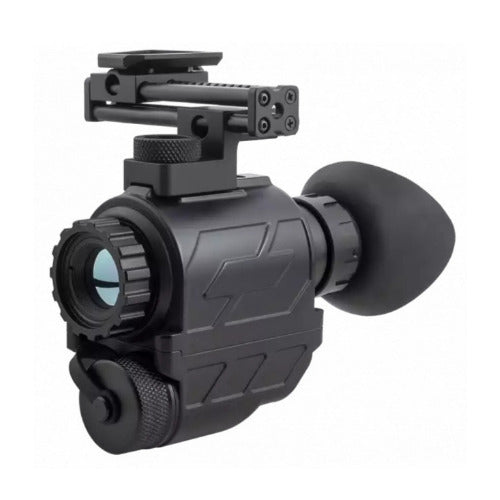

The AGM StingIR miniature handheld observational thermal monocular is equipped with a 384 x 288 12 micrometer high-sensitivity infrared detector and a high-resolution OLED display. It supports functions of observation, digital compass, inclinometer, and so on. The high-sensitivity built-in thermal detector provides you with a clear view even in total darkness. The AGM StingIR is a full-featured unit, weighing less than 7 ounces/200 grams. The monocular can be used as a handheld device or mounted on the head harness or helmets for hands-free operations. The monocular is suitable for security enforcement, outdoor hunting, wilderness exploration, search and rescue, and other fields.
Performance
| Maximum Magnification | 1x |
- CR123A: Up to 3 hours
- RCR123: Up to 2 hours
- 18650: Up to 5 hours
AGM StingIR-384 12 Micron Multi-Purpose Thermal Imaging Monocular
| Detector | Type 12 Uncooled VOx Microbolometer |
| Resolution | 384 x 288 |
| Refresh rate | 50 Hz 50 Hz |
| Lens (Focal Length) | 16 mm |
| Aperture | F1.3 |
| Field of view (H x V) | 16.3 x 12.3 degree |
| Magnification | 1x |
| Detection range (Human Target) | 730 m |
| Exit pupil diameter | 12 mm |
| Exit pupil distance | 20 mm |
| Diopter adjustment range -5 to +2 dpt | |
| Digital zoom | 1x, 2x, 3x, 4x |
| Monitor | 1024 x 768 OLED |
| Palettes | WhiteHot, BlackHot, OrangeHot, Rainbow |
| Application scenarios | Default, Outdoor, Arctic, or Rainforest |
| FFC (flat field correction) | Auto (1 to 10 min. interval) or Manual |
| Digital compass | Yes |
| Digital inclinometer | Yes (Pitch angle and Roll angle) |
| PIP | Yes |
| Crosshair | Display On/Off; Position adjustment; Selection of White, Black, or Green color |
| Analog video output | PAL video output via USB port |
| Battery type | One CR123A(3V) or RCR123(3.7V) or 18650(4.2V) |
| Battery operating time (20-degree Celcius) | |
| USB Type-C Interface | Power input / USB-RS232 / PAL video output |
| External power | 5 VDC/2 A, 1.5 W |
| Working temperature | -10 to 60-degree-Celcius |
| Protection level | IP67 |
| Dimension | 5.5 x 2.7 x 2.0 inch |
| Weight | 7.0 oz |
