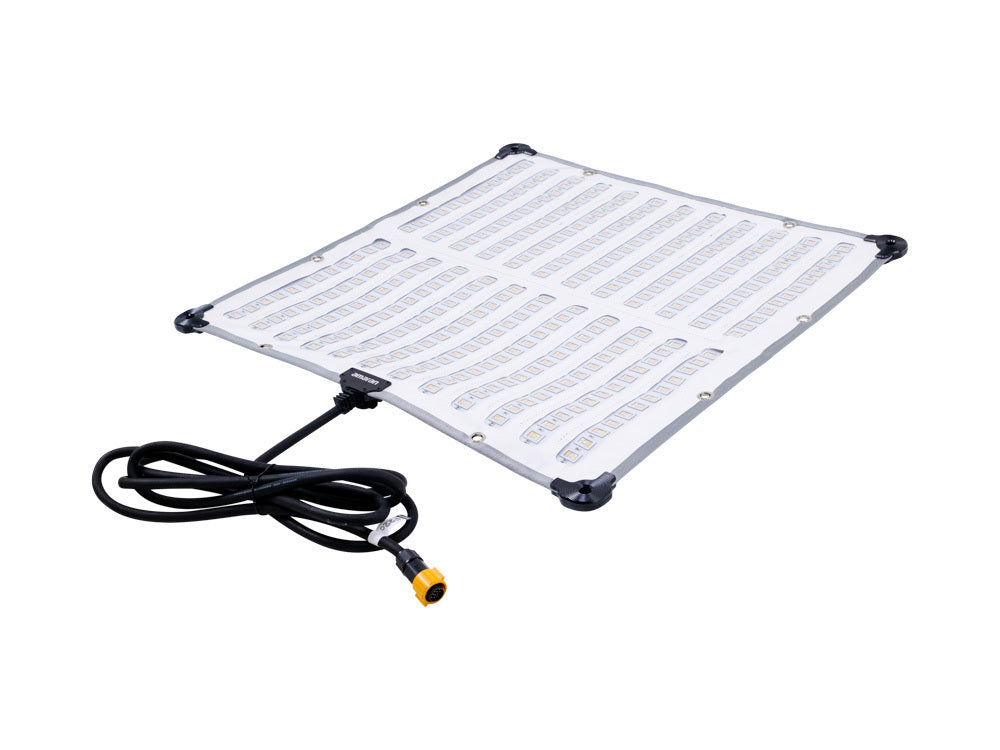

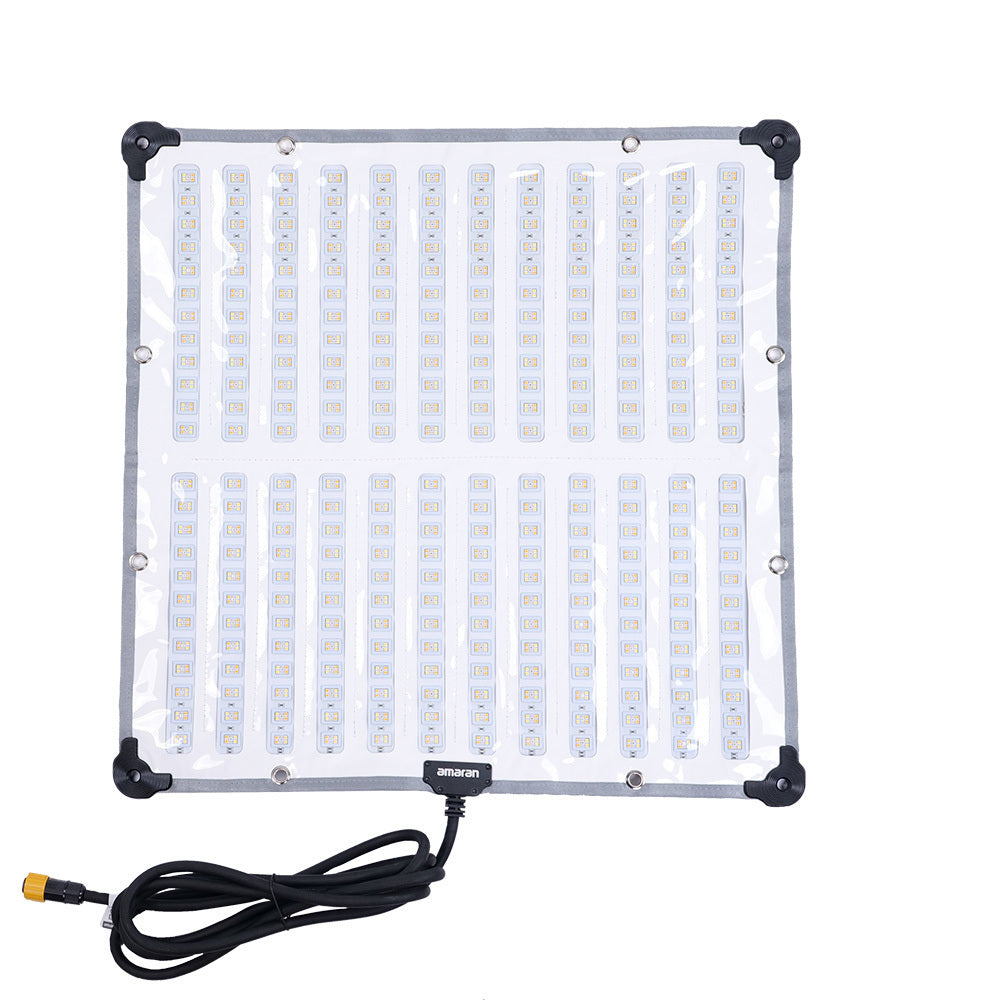

Introducing the amaran F22c, a high-output, full-color flexible LED mat that offers superb performance and versatility for a variety of users — from filmmakers to videographers, content creators, and even photographers. With 200W of output power, this ultra-lightweight 2x2-feet fixture is capable of outputting 6,420 plus lux at 1 meter (5600K), surpassing anything else in its class. Install the included foldable softbox and instantly turn this flexible mat into an ultra-thin soft light that will make any subject shine with stellar CRI and TLCI scores of 95plus and 97plus. And with stepless dimming from 0 to 100percent, you can achieve the perfect light level every time. The F22c features RGBWW LEDs for complete color control, as well as tunable CCT from 2,500K to 7,500K, providing endless possibilities for creative lighting decisions through 360° HSI control, 46 color gel presets, or even up to 15 unique lighting effects. Additionally, with the F22c’s Sidus Link app control, you can be sure to always dial in your lighting design.

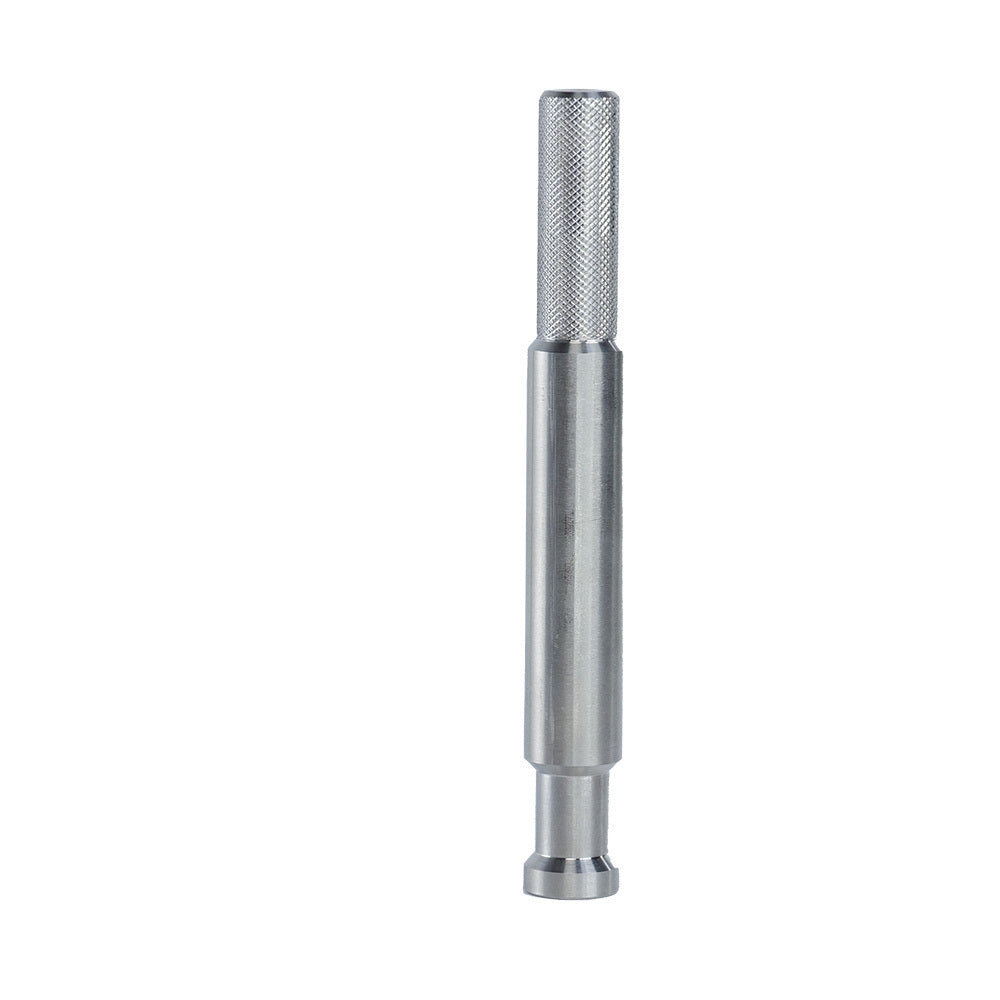

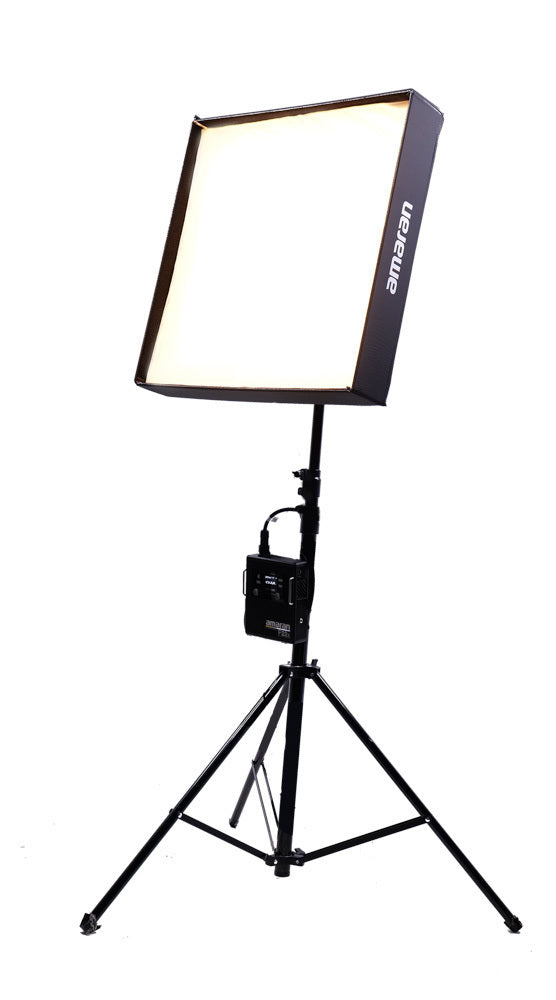

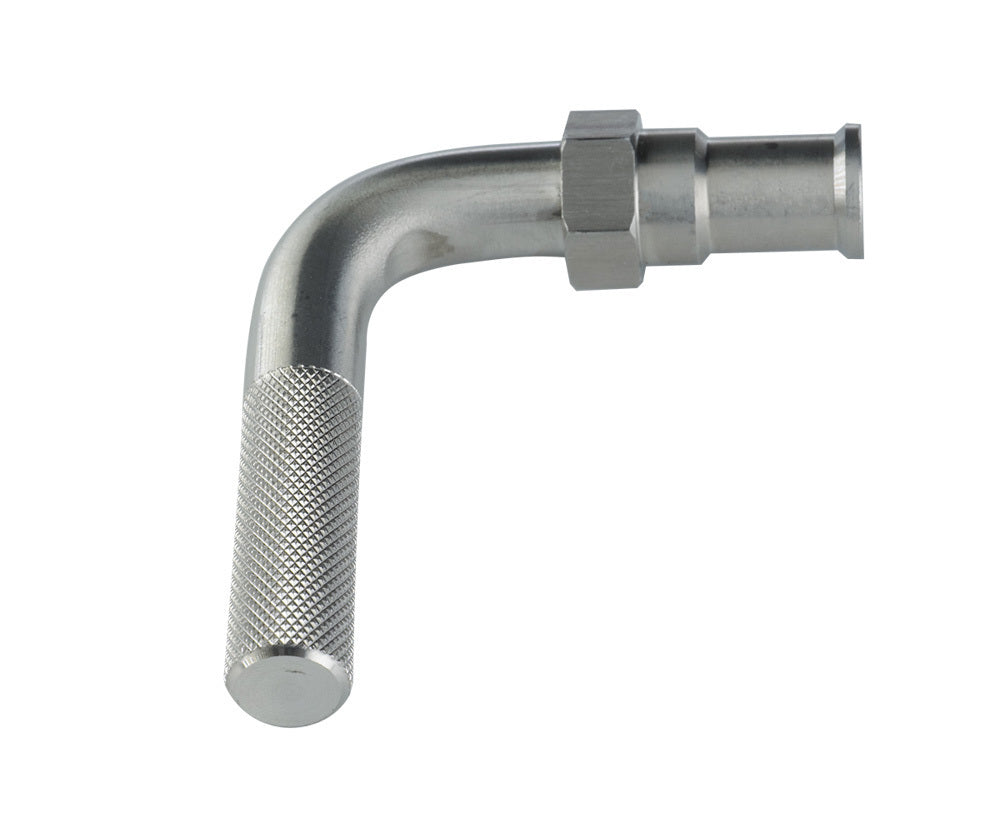

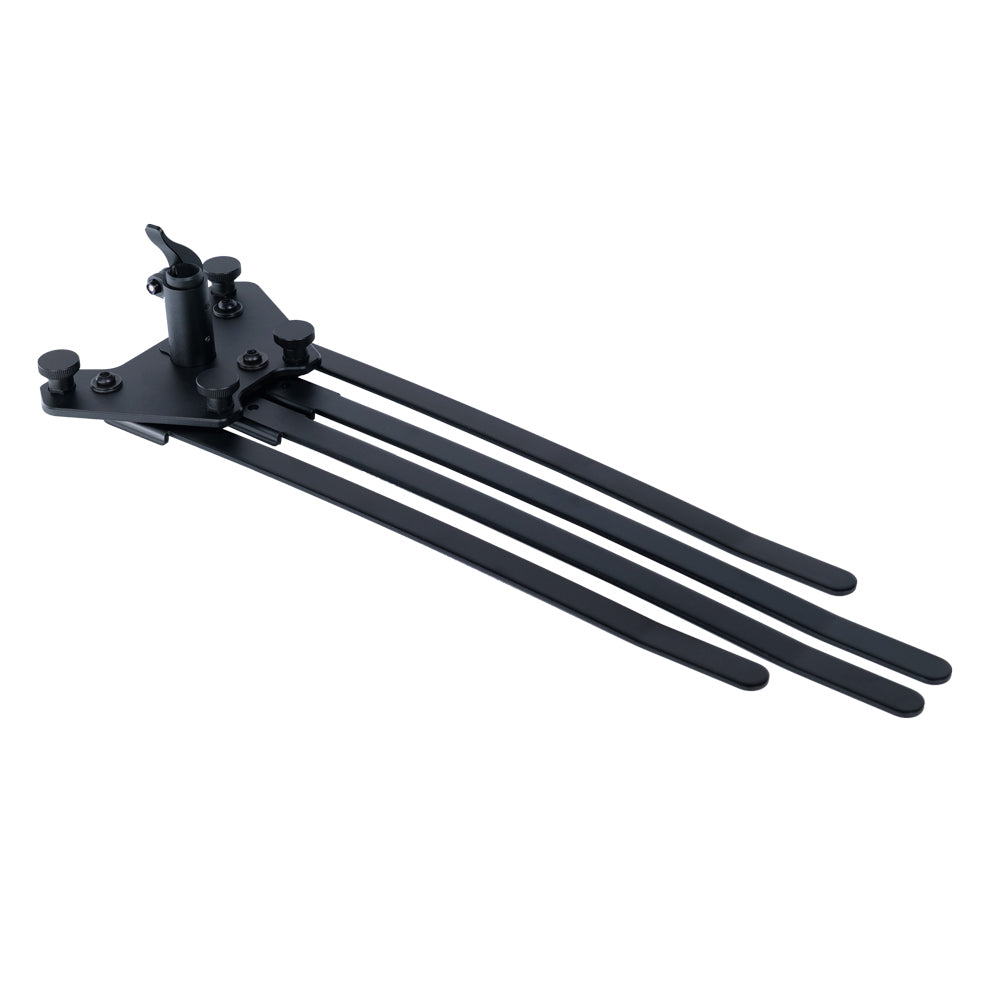

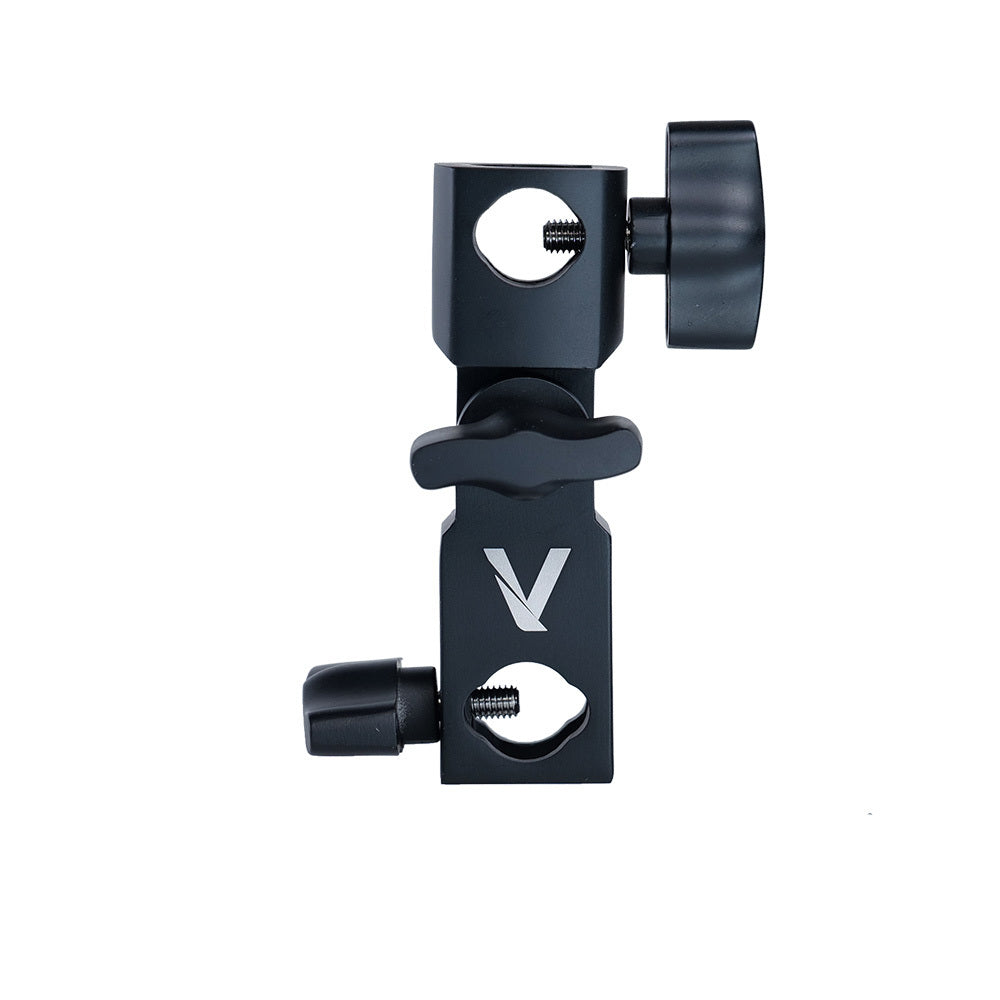

Building the F22c is quick and convenient with the compact, folding X-Frame that stretches out the F22c into a rigid panel. This frame can be attached directly to a C-Stand grip head using the Straight Baby Pin adapter or onto any standard light stand with the included Right Angle Baby Pin and tilting stand mount, providing an ideal option for all types of filmmakers and creators.

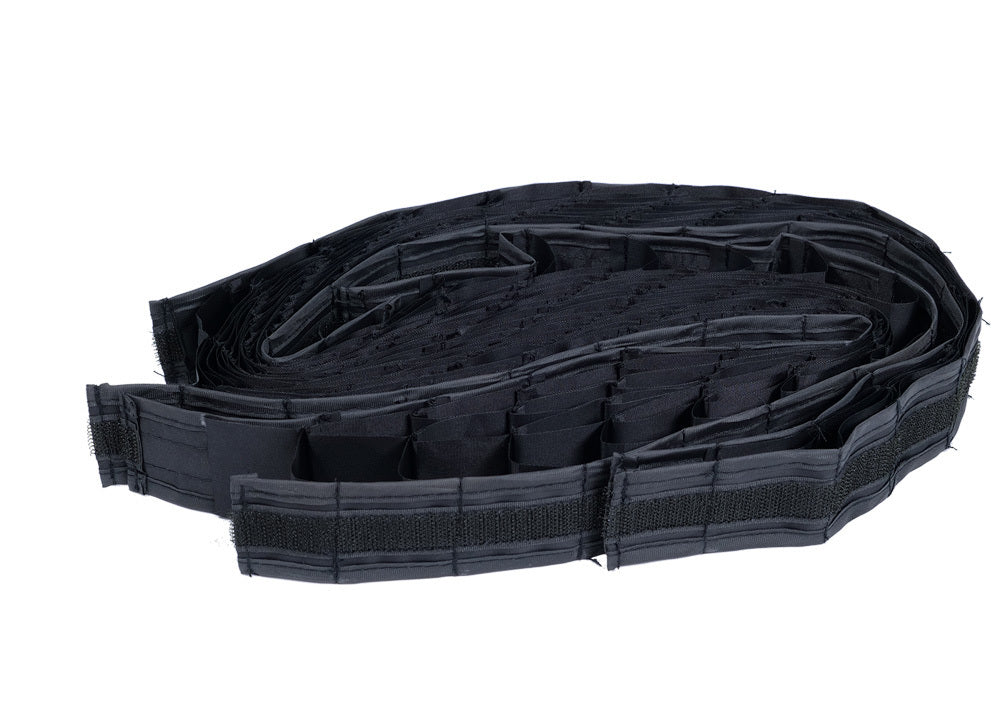

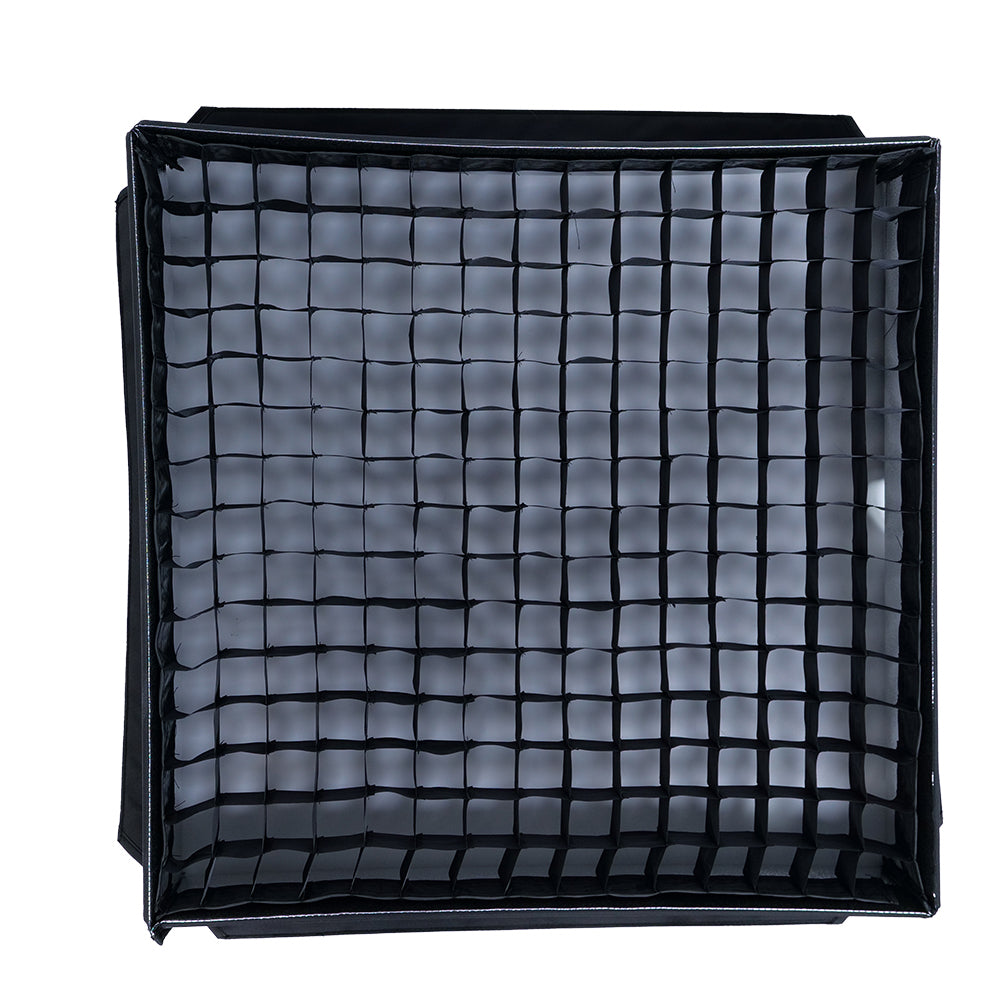

Attach the included softbox, one of two strengths of diffusion, and the fabric grid using the integrated hook-and-loop fabric to further finesse your lighting design and add a beautifully controlled soft light to your scene.
You can also swap out the softbox for an amaran F22 lantern modifier*, allowing you to replicate a volumetric lantern or pancake light with an ultra-light full-color fixture.

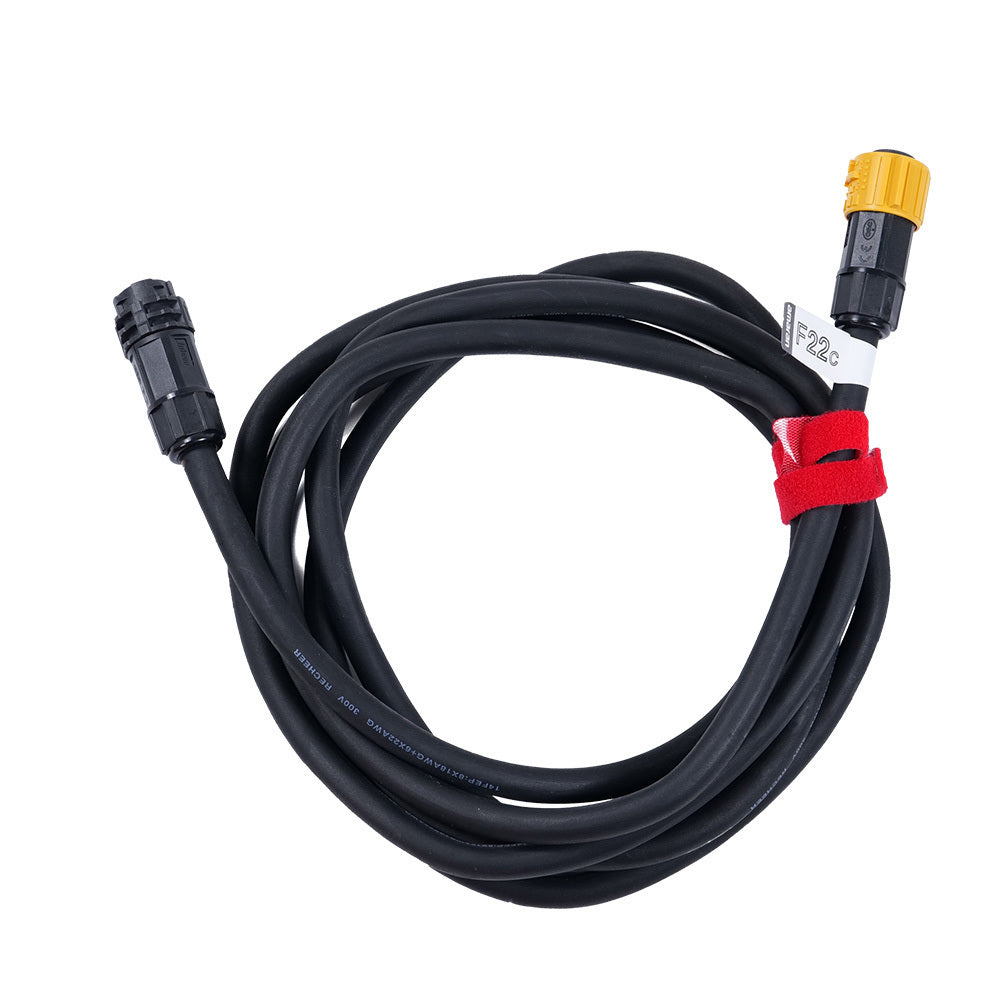

With an integrated 3-meter long head cable and the included 3-meter long extension, the F22c can reach out 6 meters away from its compact control box. Engineered from the ground up for the perfect balance of size, weight, and intensity, the F22c’s LED and heat dissipation design results in a heavy-weight punch from a flexible feather-weight design.

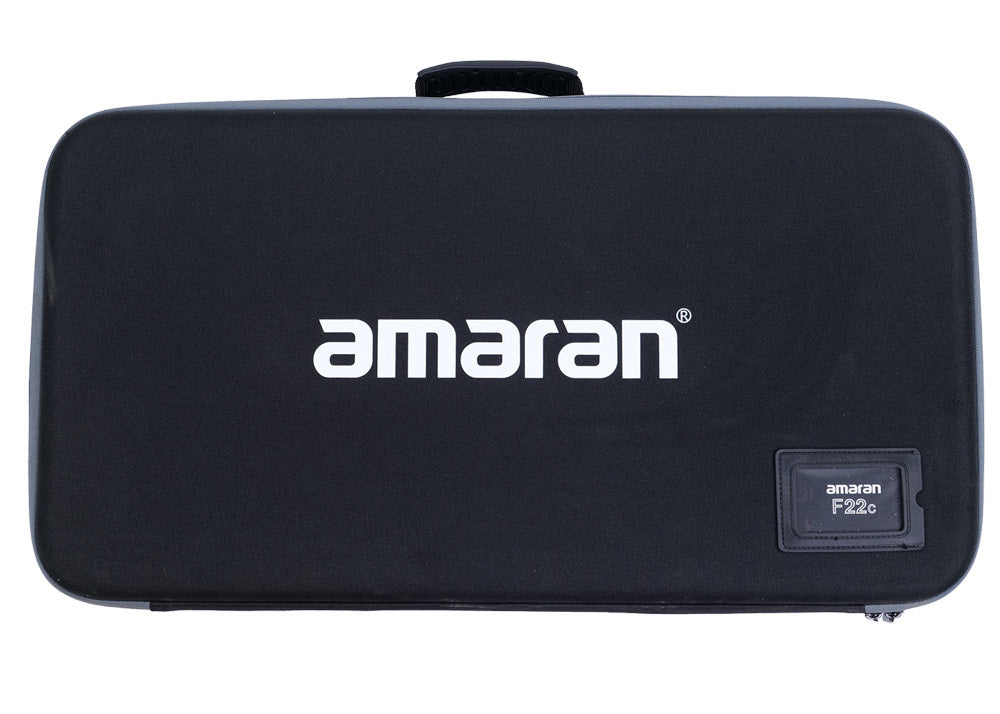

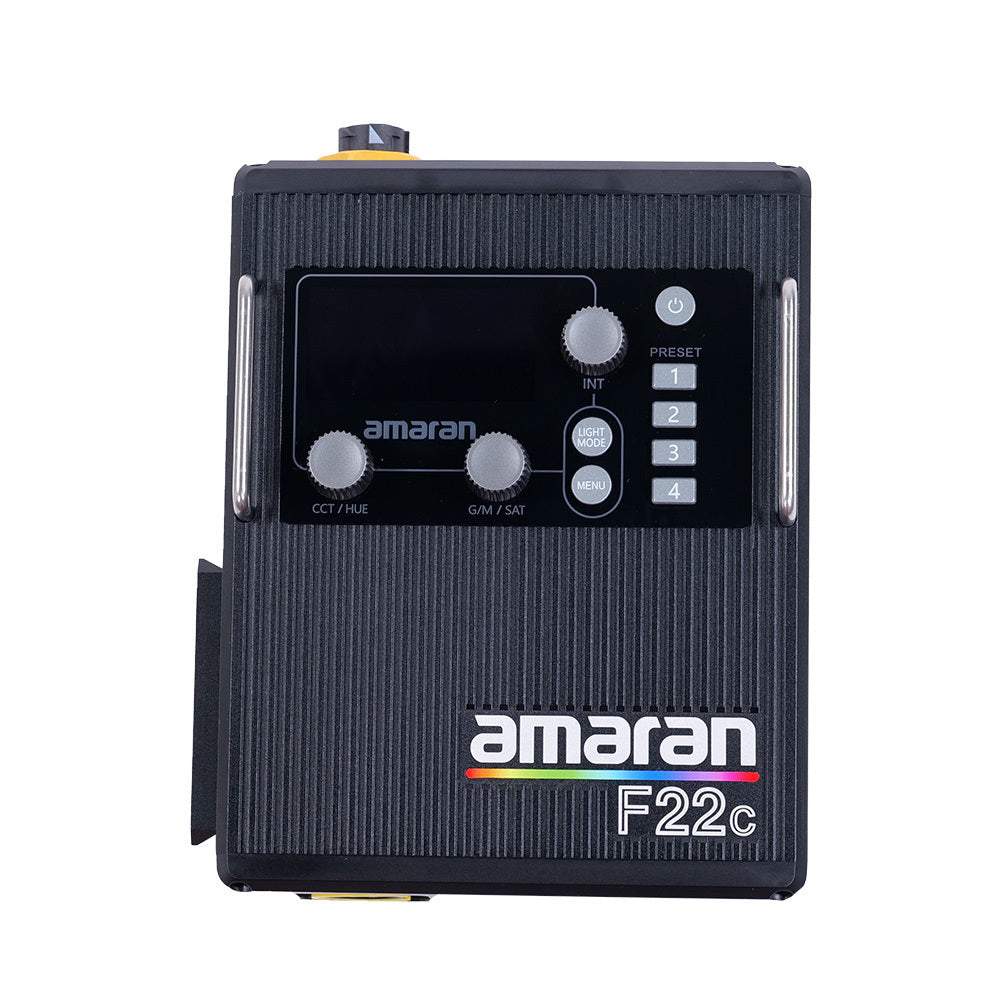

Each control box is also outfitted with a multi-voltage battery plate so you can use a capable 14.4V battery to achieve half power, or max out the intensity with full power when using compatible 26V or 28.8V batteries. You can also achieve full output when using the AC power supply, each of which comes with a specially designed battery plate bracket for a seamless user experience. And when combined with the F22c’s soft carrying case, the F22c becomes a portable light that you can take anywhere for any production.
The Sidus Link app unlocks tools unique to the Aputure and amaran ecosystems, such as Source Match, Color Picker, and Custom FX, all from your phone or tablet. And unique to the newest fixtures in the amaran product line, you can control the F22c using DMX with a special USB-C to 5-Pin DMX512 In and Out Adapter Cable, granting professional-level control to your new favorite flex light.
*Lantern modifier sold separately
Power
| Power Source | Phantom & Battery |
| Power Consumption | 50 W |
| AC Input Power | 24V |
Battery
| Battery Type | Lithium-Ion |
General
| Weight | 3.04kg / 6.7lbs |
Light Fixture
| Display Type | LED |
| Color Temperature | Bi-Color |
| Color Modes | Red/Green/Blue/Amber/White/Ultraviolet |
| Color Accuracy Standard | CRI 95 |
| Cooling System | Passive |
| Fixture Dimensions | No Accessory: 60 x 30 x 0.5cm / 23.6 x 11.8 x .2in With Soft Box: 62.5 x 32 x 10.5cm / 24.6 x 12.6 x 4.13in |
| Fixture Weight | No Accessory: 0.44kg / .9lbs With Softbox: 1.98kg / 4.37lbs Control Grid: 72g / 0.16lbs |
| Mount Type | A-Mount |
- Operating Voltage
- AC Power Supply: 48V DC
- 3-Pin XLR DC: 48V/2.5A DC
- V/Gold-Mount Battery
- Half Output:
- 12 ~ 16.8V (14.4V/10A)
- 22V ~ 33.6V (26V/6A, 28.8V/5A)
- Full Output:
- 22V ~ 33.6V (26V/11A, 28.8V/10A)
- Cooling Method
- Lamp Head: Passive Cooling
- Control Box: Active Cooling
- Dimensions
- Fixture:
- No Accessory: 60 x 60 x 0.5cm / 23.6 x 23.6 x .2in
- With Soft Box: 62.5 x 62.5 x 10.5cm / 24.6 x 24.6 x 4.13in
- Aperture: 52 x 51cm / 20.4 x 20in
- Control Box: 19 x 15 x 7cm / 7.4 x 5.9 x 2.7in
- Carrying Case: 66 x 35 x 10.5cm / 25.9 x 13.7 x 4.1in
- Weight
- Fixture:
- No Accessory: 0.88kg / 1.9lbs
- With Softbox: 2.83kg / 6.25lbs
- Control Grid: 116g / 0.26lbs
- Control Box: 1.2kg / 2.6lbs
- Power Supply: 1.1kg / 2.4lbs
- Mounting Bracket: 0.66kg / 1.4lbs
- Total: 7.92kg / 17.45lbs
Aputure amaran F22c - 2'x2' RGBWW LED Mat (Gold Mount)
| CCT | 2500K ~ 7500K |
| CRI | ≥95 |
| TLCI | ≥97 |
| CQS | ≥96 |
| TM-30 RF (Average) | 94 |
| TM-30 RG (Average) | 102 |
| SSI (Tungsten) | ≥83 |
| SSI (D56) | ≥73 |
| Color Chipset | Red, Green, Blue, Warm White, Cool White |
| Beam Angle (Half-Peak Angle) | Control Grid: 45° |
| Max Power Output | ≤200W |
| Max Power Consumption | ≤240W |
| Operating Current | 5A |
| DC Input | 48V 3-Pin XLR |

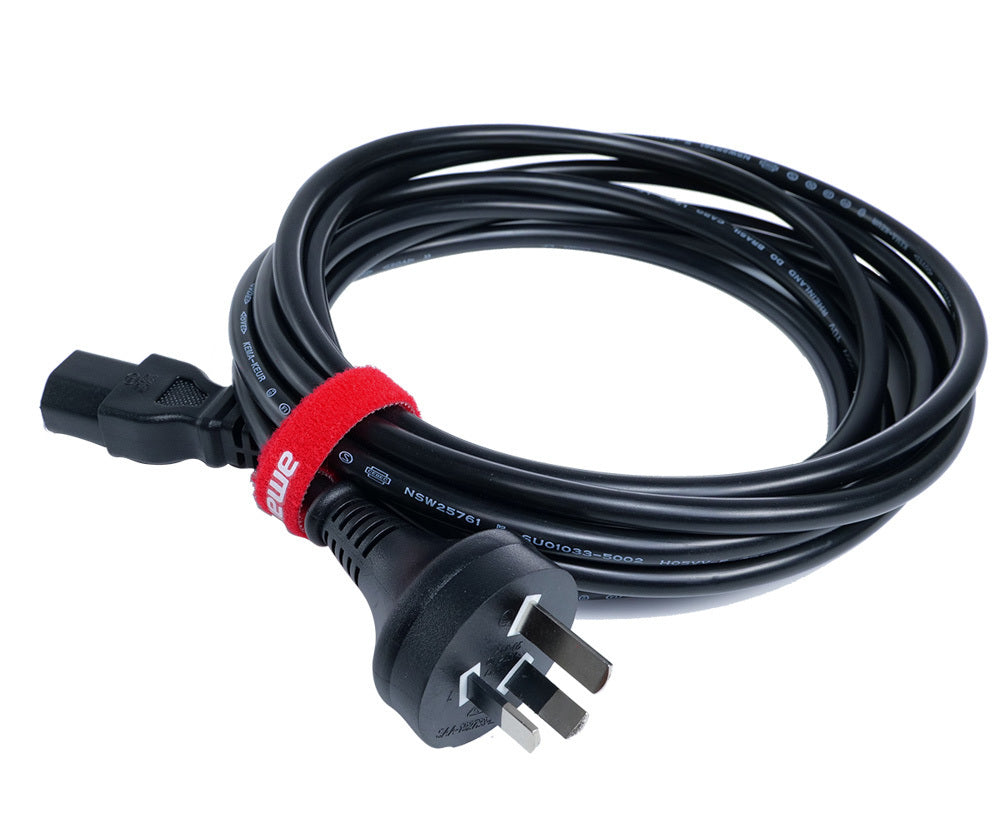

| AC Power Cable | IEC C13 AC Power Cable (4m) |
| Operating Temperature | -10°C ~ 40°C / -4°F ~ 113°F |
| Control Methods | On-board, Sidus Link App, DMX via USB-C to 5-Pin DMX512 In & Out Adapter Cable |
| Connectivity | Bluetooth 5.0 (Sidus Mesh) |
| Bluetooth Operating Range | ≥80m / 262.5ft |
| Firmware Upgradeable | Sidus Link OTA |
| Display Type | OLED |
| Mounting | Tilting Mounting Support, Right-Angle Baby Pin Adapter (16mm), Straight Baby Pin Adapter (16mm) |
| Estimated LED Lifetime (L70) | 50,000 Hours |
| Estimated Color Shift Over Lifetime | (CCT) 2% over 6,000 Hours |
| Certifications | CE, FCC, cTUVus, KC, NCC, ROHS |
| Estimated LED Lifetime (L70) | 50,000 Hours |
