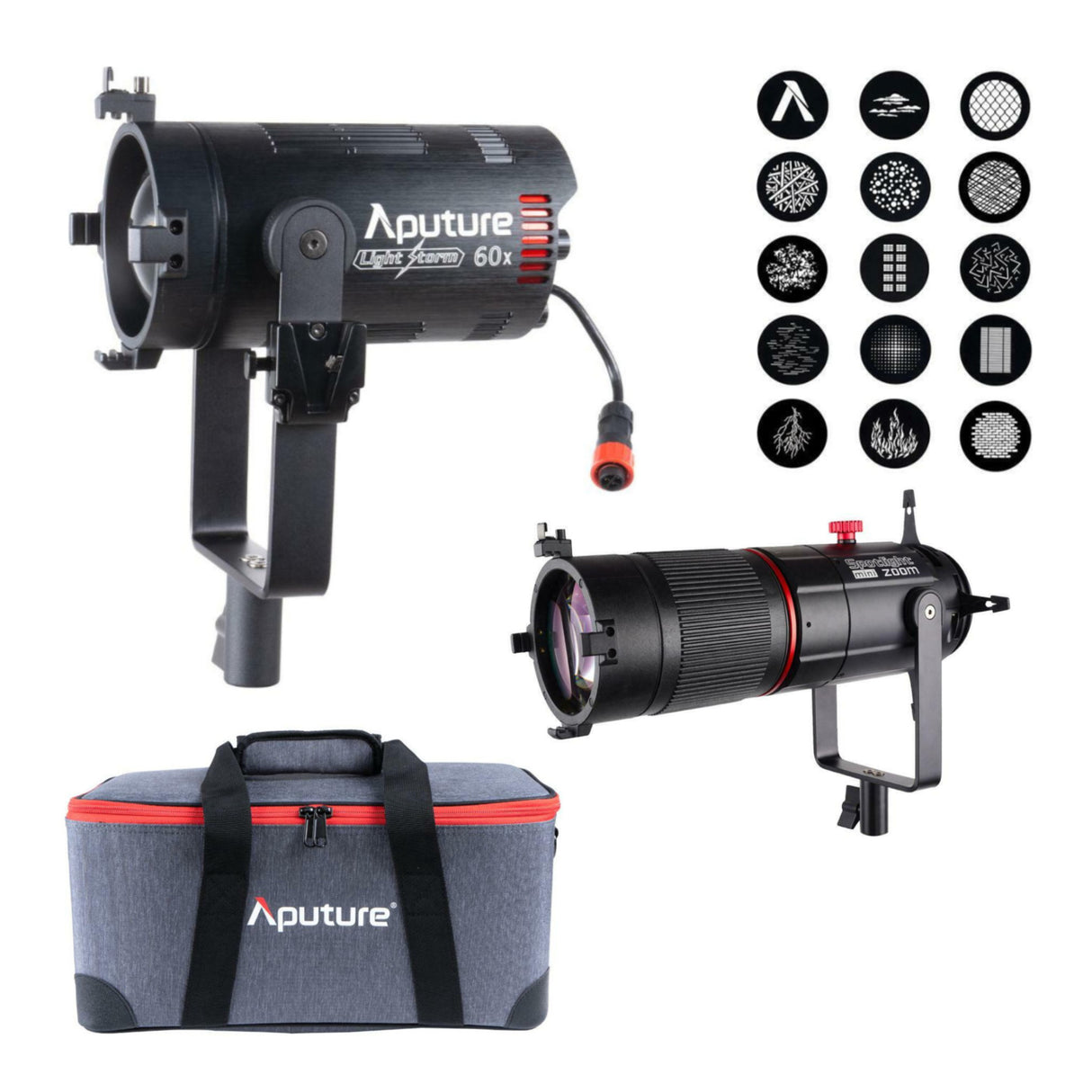

Aputure LS 60X Bi-Color Focusing LED with Spotlight Mini Zoom for LS 60d and 60x LED Lights Bundle
Couldn't load pickup availability
Product highlights
Product highlights
In the box
In the box
Free standard shipping
Free standard shipping
*Orders placed before 1 PM EST Mon - Thur will ship the same day. Orders placed beyond these hours will be shipped the next business day. Exclusions apply. See shipping policy
Free Local Pickup
Free Local Pickup
Please call for store stock availability. Requests made before 2:30 PM EST can be available for next-day pickup. Learn more
Aputure Spotlight Mini Zoom for LS 60d and 60x LED Lights
The Spotlight Mini Zoom brings you an adjustable beam angle projection lens designed for the LS 60d and LS 60x Focusing LEDs. Mount your LS 60d OR 60x onto the Spotlight Mini Zoom, when combined you can adjust and redefine the shape of your lighting.
2x Optical Zoom
The Spotlight Mini Zoom can adjust between a 15 to 30-degree beam spread, giving you an effective 2x zoom range. It also has an illumination circle with a diameter of 1.4m to 2.8m from 5m away.
Flawless Clarity
Thanks to custom-designed Aputure precision optics, the Spotlight Mini Zoom can display spotless image quality with minimal color fringing and over an eighty-percent edge-to-edge homogenous light distribution.
Sharp Light Control
Each blade of the Spotlight Mini Zoom's 4-lead shutter design helps filmmakers achieve accurate cuts and light shaping
15 GOBOS
The Spotlight Mini Zoom is compatible with the M-Size Gobos and includes a Gobo holder with 15 gobo patterns. This gives you the optimum flexibility and creativity in your light design.
18 Leaf Iris
An 18-leaf Iris is an essential addition to the Spotlight Mini Zoom that allows users to further control the size of the illumination circle and tighten the beam spread with incredible ease.
Smart Travel
The Spotlight Mini Zoom and all its included accessories is packed inside a durable soft carrying case. Making it easy to travel with to any film set.

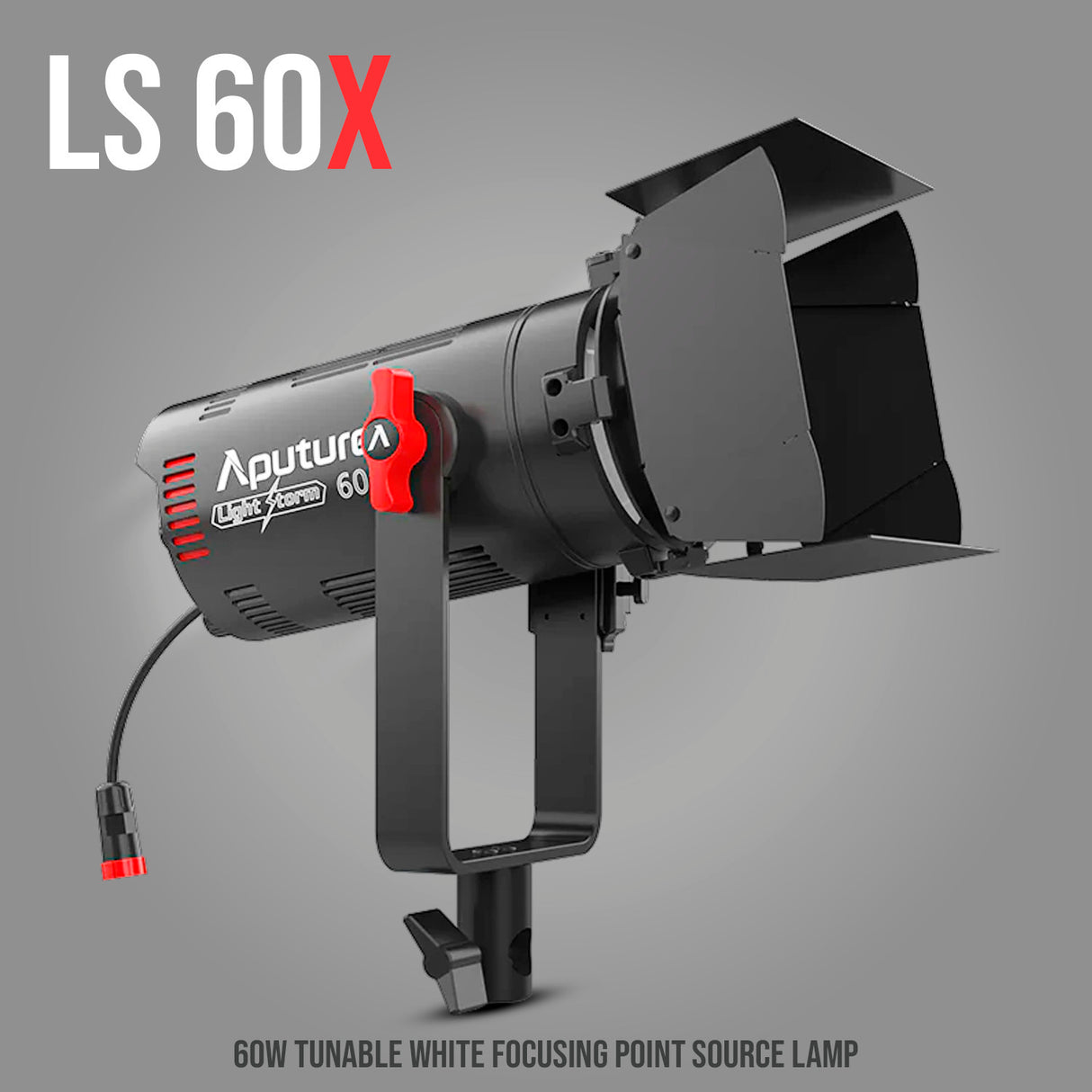

LS 60X Bi-Color Focusing LED

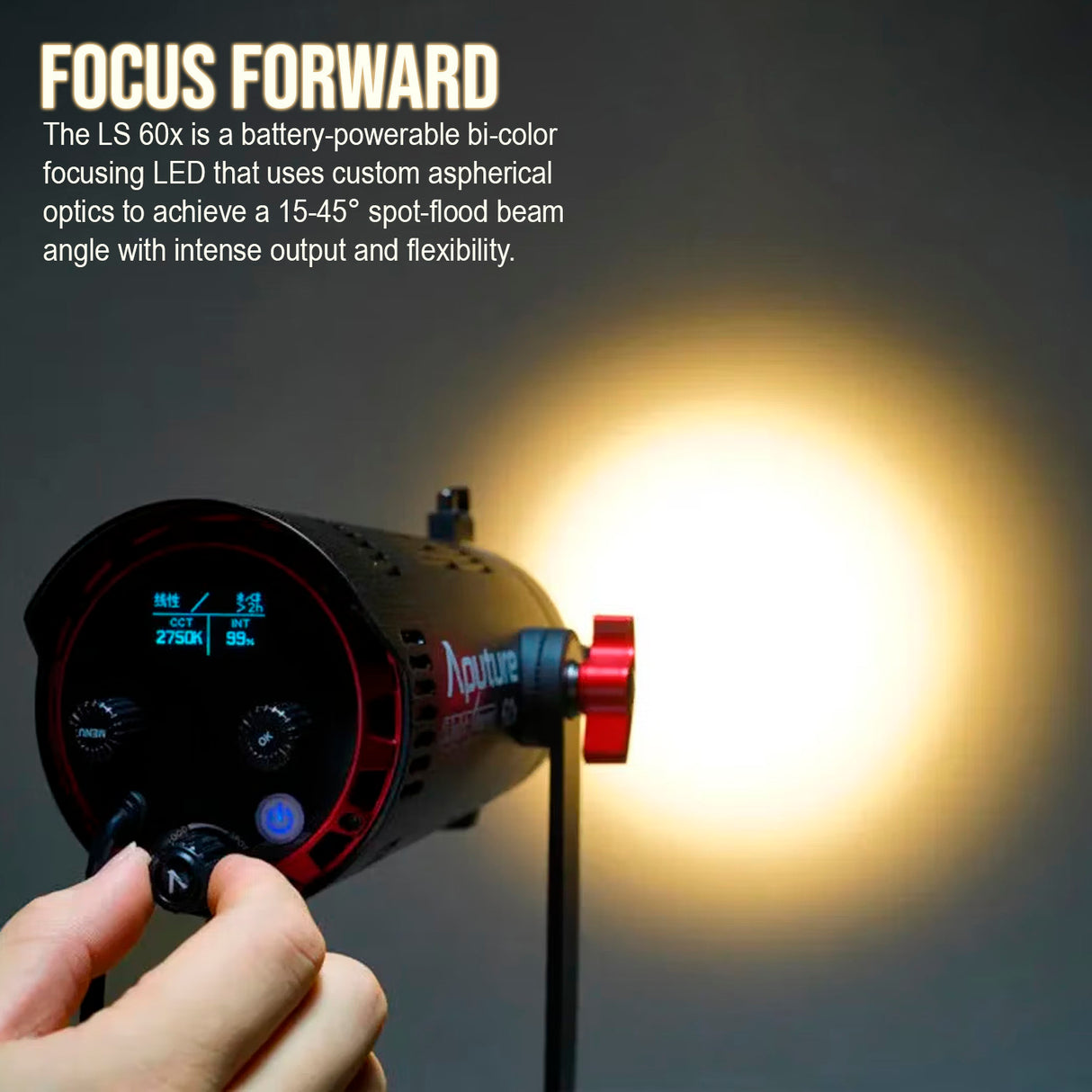

The LS 60x is a battery-powerable bi-color focusing LED that uses custom aspherical optics to achieve a 15-45° spot-flood beam angle with intense output and flexibility.
Enhanced Output
The LS 60x punches way above its weight class as a 60W Expanded Bi-Color Focusing LED fixture that outclasses the output of a 300W tungsten Fresnel and outpaces comparable LED lights. With its custom, Aputure aspherical optics, the LS 60x (@ 5600K) can output 30,000+ lux in full spot, or 5,200+ lux in flood mode.

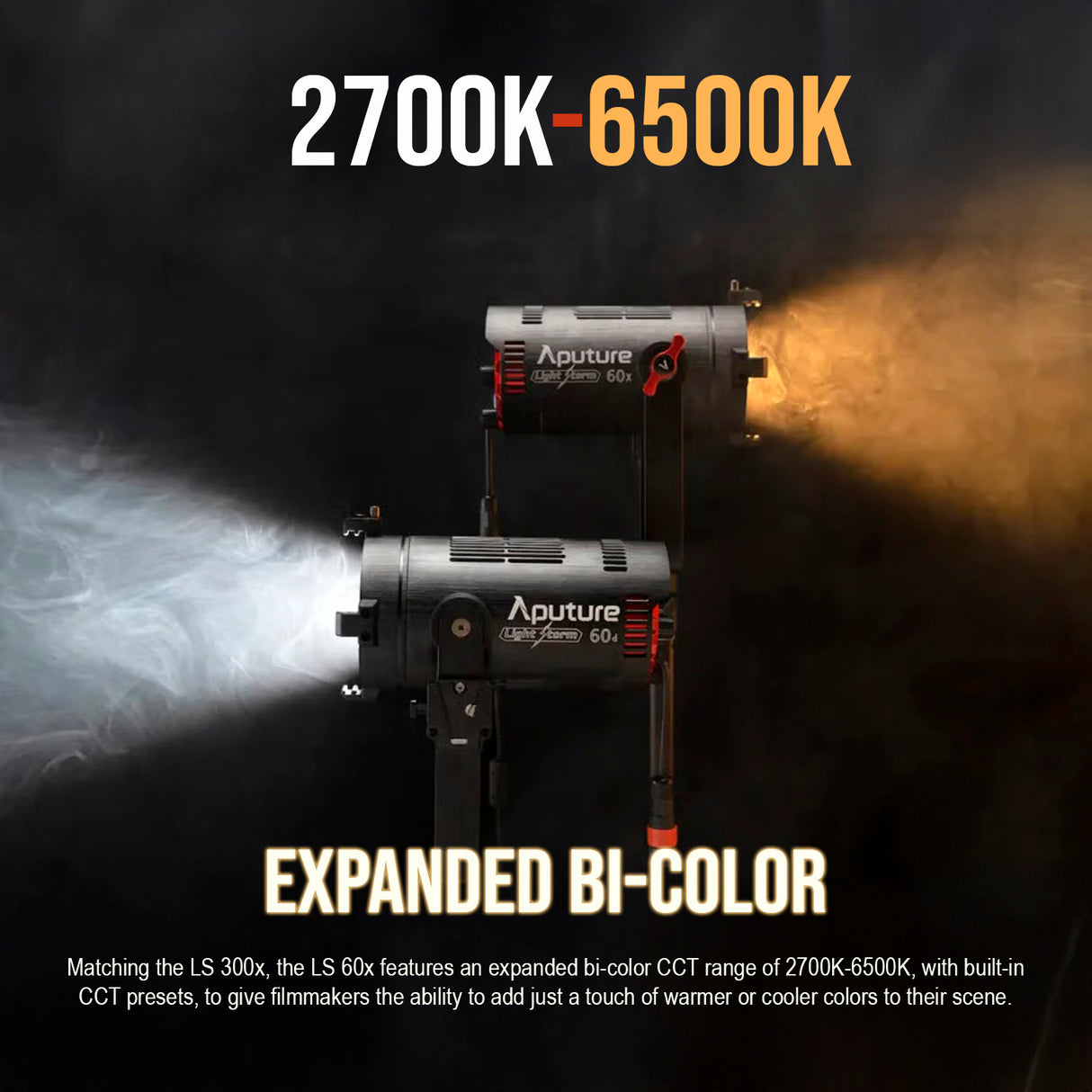

Expanded Bi-Color
Matching the LS 300x, the LS 60x features an expanded bi-color CCT range of 2700K-6500K, with built-in CCT presets, to give filmmakers the ability to add just a touch of warmer or cooler colors to their scene.
Power
| AC Input Power | 100 to 240 VAC, 50 / 60 Hz |
Light Fixture
| Material | Aluminum |
| Color Accuracy Standard | CRI 95 |
| Cooling System | Fan |
| Number of LEDs | 1 |
| Mount Type | V-Mount |
| Auto Zoom Head | No |
- Distance / CCT / Beam Angle / Beam Diameter (cm) / Brightness
- 1m / 5600K / 30 degrees / 60 / 3,250 lux / 302 fc
- 1m / 5600K / 15 degrees / 30 / 14,400 lux / 1,338 fc
- 3m / 5600K / 30 degrees / 170 / 430 lux / 40 fc
- 3m / 5600K / 15 degrees / 85 / 1,660 lux / 154 fc
- 5m / 5600K / 30 degrees / 280 / 160 lux / 15 fc
- 5m / 5600K / 15 degrees / 140 / 610 lux / 57 fc
- Distance / CCT / Beam Angle / Beam Diameter (cm) / Brightness
- 1m / 2700K / 30 degrees / 60 / 1,780 lux / 165 fc
- 1m / 2700K / 15 degrees / 30 / 7,860 lux / 730 fc
- 1m / 3200K / 30 degrees / 60 / 2,200 lux / 204 fc
- 1m / 3200K / 15 degrees / 30 / 9,690 lux / 900 fc
- 1m / 4300K / 30 degrees / 60 / 2,280 lux / 212 fc
- 1m / 4300K / 15 degrees / 30 / 10,030 lux / 932 fc
- 1m / 5600K / 30 degrees / 60 / 2,420 lux / 225 fc
- 1m / 5600K / 15 degrees / 30 / 10,640 lux / 988 fc
- 1m / 6500K / 30 degrees / 60 / 2,350 lux / 218 fc
- 1m / 6500K / 15 degrees / 30 / 10,330 lux / 960 fc
- 3m / 2700K / 30 degrees / 170 / 240 lux / 22 fc
- 3m / 2700K / 15 degrees / 85 / 910 lux / 85 fc
- 3m / 3200K / 30 degrees / 170 / 300 lux / 28 fc
- 3m / 3200K / 15 degrees / 85 / 1,125 lux / 105 fc
- 3m / 4300K / 30 degrees / 170 / 310 lux / 29 fc
- 3m / 4300K / 15 degrees / 85 / 1,170 lux / 109 fc
- 3m / 5600K / 30 degrees / 170 / 330 lux / 31 fc
- 3m / 5600K / 15 degrees / 85 / 1,240 lux / 115 fc
- 3m / 6500K / 30 degrees / 170 / 320 lux / 30 fc
- 3m / 6500K / 15 degrees / 85 / 1,200 lux / 111fc
- 5m / 2700K / 30 degrees / 280 / 90 lux / 8 fc
- 5m / 2700K / 15 degrees / 140 / 335 lux / 31 fc
- 5m / 3200K / 30 degrees / 280 / 110 lux / 26 fc
- 5m / 3200K / 15 degrees / 140 / 415 lux / 39 fc
- 5m / 4300K / 30 degrees / 280 / 115 lux / 11 fc
- 5m / 4300K / 15 degrees / 140 / 430 lux / 40 fc
- 5m / 5600K / 30 degrees / 280 / 120 lux / 11 fc
- 5m / 5600K / 15 degrees / 140 / 460 lux / 43 fc
- 5m / 6500K / 30 degrees / 280 / 120 lux / 11 fc
- 5m / 6500K / 15 degrees / 140 / 440 lux / 41 fc
Aputure Spotlight Mini Zoom for LS 60d and 60x LED Lights
Aputure Spotlight Mini Zoom for LS 60d and 60x LED Lights
Specifications
| Beam Angle | 15-30 |
| Optical Zoom Range | 2X |
| Gobo Size | M-Size |
| Iris Slot Dimensions | 10*87.5*103mm / 0.4*3.4*4.1in |
| Accessory Slot Diameter | 106mm / 4.2in |
| Gel Slot Diameter | 123.5mm / 4.9in |
| Construction Material | Aluminum Alloy |
Dimensions
| Spotlight Mini Zoom w/o Yoke | 163.5*163.5*378mm / 6.4*6.4*14.9in |
| Spotlight Mini Zoom with Yoke | 170*285*378mm / 6.7*11.2*14.9in |
| Spotlight Mini Zoom Iris | 126*87*8.7mm / 5*3.4*0.4in |
| Total with Carrying Case | 475*295*255mm / 18.7*11.6*10in |
Weight
| Spotlight Mini Zoom w/o Yoke | 4095g / 9lbs |
| Spotlight Mini Zoom with Yoke | 4400g / 9.7lbs |
| Spotlight Mini Zoom Iris | 77g / 0.2lbs |
| Total with Carrying Case | 6580g / 14.5lbs |
Photometrics
| LS 60d | |
| LS 60x |
LS 60X Bi-Color Focusing LED
| Expanded bi-color CCT range | 2700K-6500K |
| Built-in lighting | 9 |
| Compatibility | LS 60 Softbox, Spotlight Mini Zoom |
