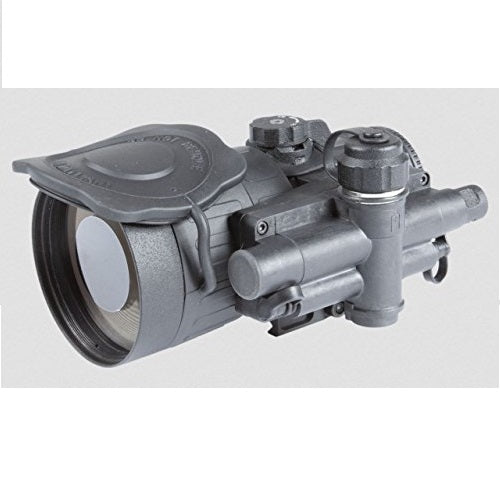

Armasight CO-Mini GEN 3 Alpha Day / Night Vision Clip-On System
Couldn't load pickup availability
Product highlights
Product highlights
In the box
In the box
Free standard shipping
Free standard shipping
*Orders placed before 1 PM EST Mon - Thur will ship the same day. Orders placed beyond these hours will be shipped the next business day. Exclusions apply. See shipping policy
Free Local Pickup
Free Local Pickup
Please call for store stock availability. Requests made before 2:30 PM EST can be available for next-day pickup. Learn more
The Armasight CO-MINI-HD is a clip on scope, known for its small size and lightweight design. It will easily mount in front of your existing day time scope and be ready to use immediately; the easy setup, the lightweight design, and its surprisingly rugged build quality are all reasons that people choose to use the Armasight CO-MINI-HD as it is a great scope to add to your existing repertoire, if you want to add great night vision imaging to what you do.
If you need a lot of long term, night time observation then this is a smart clip on system to invest in - thanks to its lightweight, easy to mount design, you can easily set this up in front of your existing daytime scope for long sessions without a problem. It can easily be mounted and just as easily be dismounted when necessary, and it comes standard with a Quick Release Mount; what the Quick Release Mount truly means is that it can be set into a locking position (so you don’t have to worry about the CO-MINI-HD accidentally coming detached), and then quickly released from the locking position when you need your day scope back in action. This functionality makes switching back and forth between day and night scopes easy and streamlined, which makes a big difference in the field.
No matter what your night vision work is, the Armasight CO-MINI-HD will serve you well - you can use it for varmint hunting, or you can use it as a Law Enforcement agent who needs a ready night vision setup that is very quick and effective. This is a smart choice because it doesn’t waste any time - which, in tactical time sensitive situations, is very important.
On the technical side, the Armasight CO-MINI-HD offers an ALPHA Grade image intensifier tube with a resolution of 62/72 lp/mm. This is a Generation 3 model, meaning that is truly the top of line in light amplification night vision imaging; with an incredible resolution like this you will be truly amazed at how easy your job is. This model, with a magnification of 1x, also has a Field of View of 12 degrees.
Main
| Configuration | Core |
| Min Power (Variable) | 1x |
| Application | Rifles |
| Color | Black |
| Intensifier Tube | N/A |
| Resolution | 62-72 lp/mm |
| Magnification | 1x (recommended to use with up to 10x daytime optics) |
| Angle of View | 12° |
| Lens System | F1: 1.44, 38 mm |
| Exit Pupil | 1.08" (27.5 mm) |
| Eye Relief | N/A |
| Maximum Windage/Elevation Correction | N/A |
| Dioptric Correction | No |
| Weatherproofing | Waterproof |
| Infrared Illuminator | Detachable long range IR illuminator |
| Bright Light Cut-off | Yes |
| Controls | Yes |
| Range of Focus | 32.80' to infinity (10 m to infinity) |
| Power Source | 1x 1.5 V AA type battery or 1x 3 V CR123A type battery |
| Runtime | 50 hr (CR123) or 46 hr (AA) |
| Operating Temperature | -59.8 to 120.2˚F (-51 to 49˚C) |
| Storage Temperature | -59.8 to 120.2˚F (-51 to 49˚C) |
| Waterproofing | Waterproof |
| Dimensions | L x W x H: 4.9 x 2.7 x 2.2" (124 x 69 x 56 mm) |
| Item Weight | 1.06 lb / 0.48 kg |
