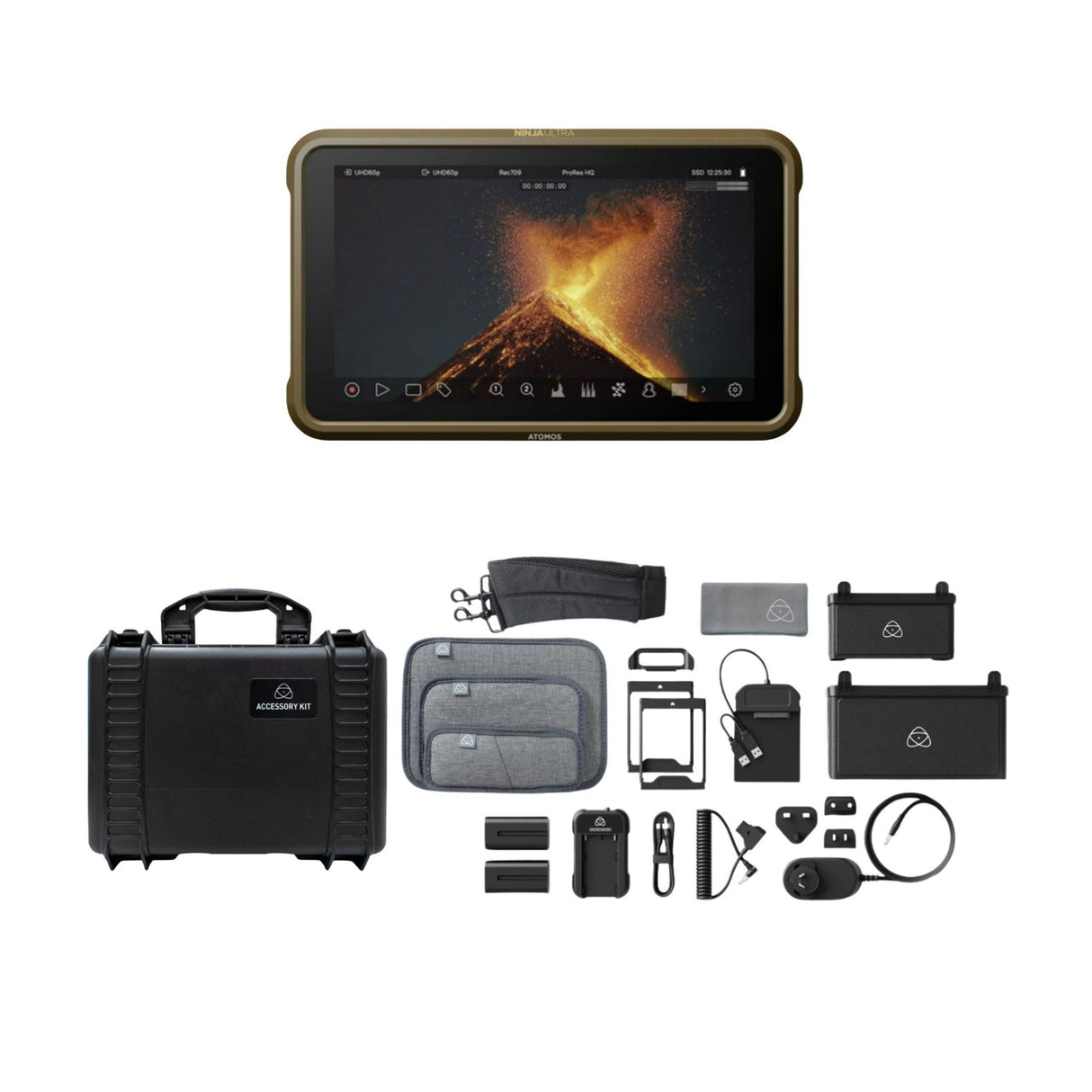

Atomos Ninja Ultra 5.2-inch, 1000nit HDR Monitor-Recorder for Mirrorless and Cinematic Cameras
The Atomos Ninja Ultra is a compact, high-performance 5.2-inch 1000nit HDR monitor-recorder designed for mirrorless, DSLR, and cinematic cameras. It supports ProRes and ProRes RAW, delivering crystal-clear HDR images and advanced monitoring tools in a rugged, lightweight body.
With the Atomos Connect module, unlock powerful cloud-based workflows like Camera to Cloud (C2C), dual ProRes RAW/H.265 recording, RemoteView monitoring, and 4Kp60 H.265 uploads for fast turnaround. The Ninja Ultra supports over 55 RAW-capable cameras and works seamlessly with major brands like Canon, Sony, RED, ARRI, and more.
Built on the all-new AtomOS 11, it offers improved UI, enhanced tools like Focus Peaking, False Color, EL Zone, and real-time HDR previewing. With SDI Cine integration, file names and timecodes auto-sync with top-tier SDI cameras for flawless post workflows.
For creators seeking maximum versatility, speed, and image quality, Ninja Ultra delivers—on set, on location, or in the cloud.

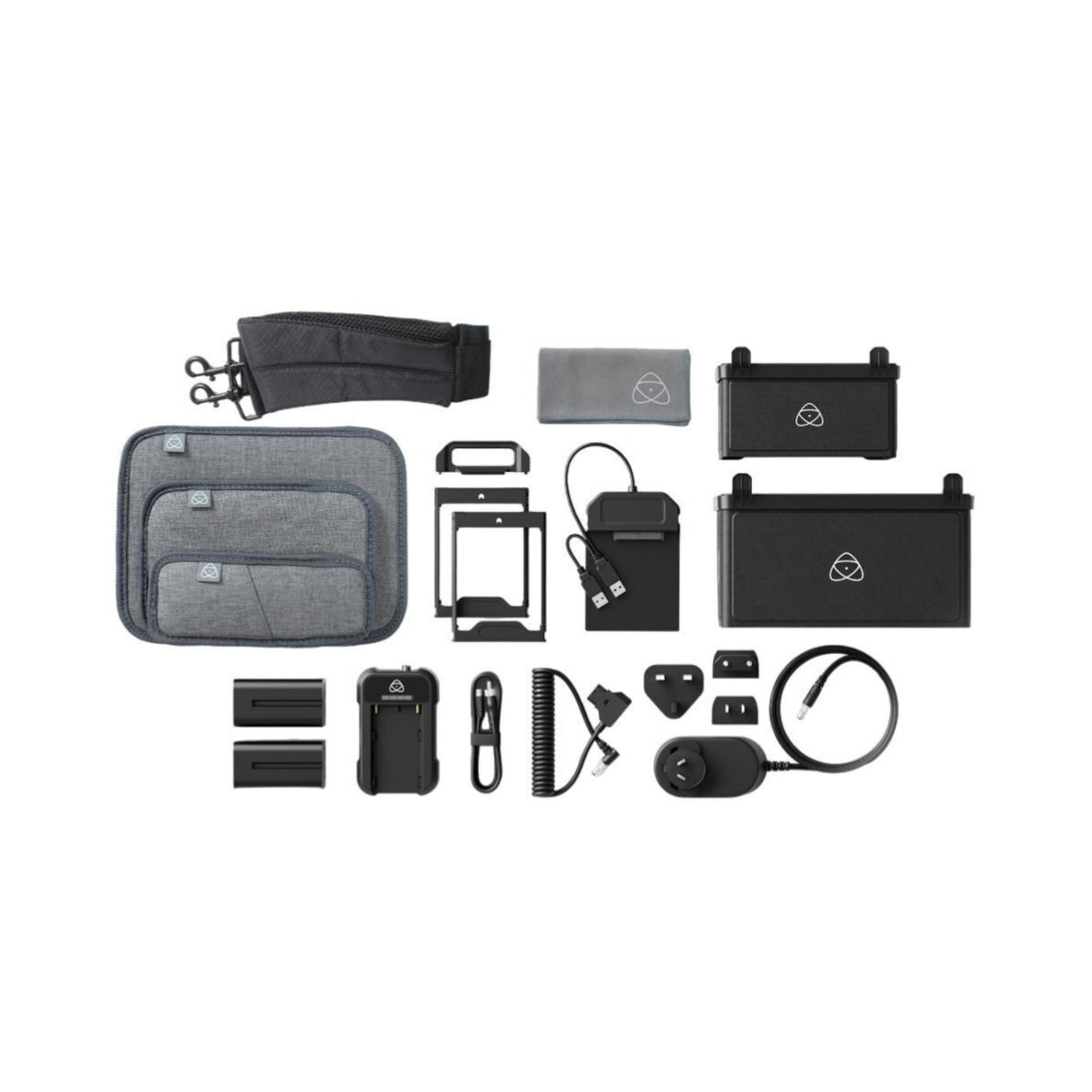

Atomos Universal Accessory Kit for 5-Inch and 7-Inch Monitors and Recorders

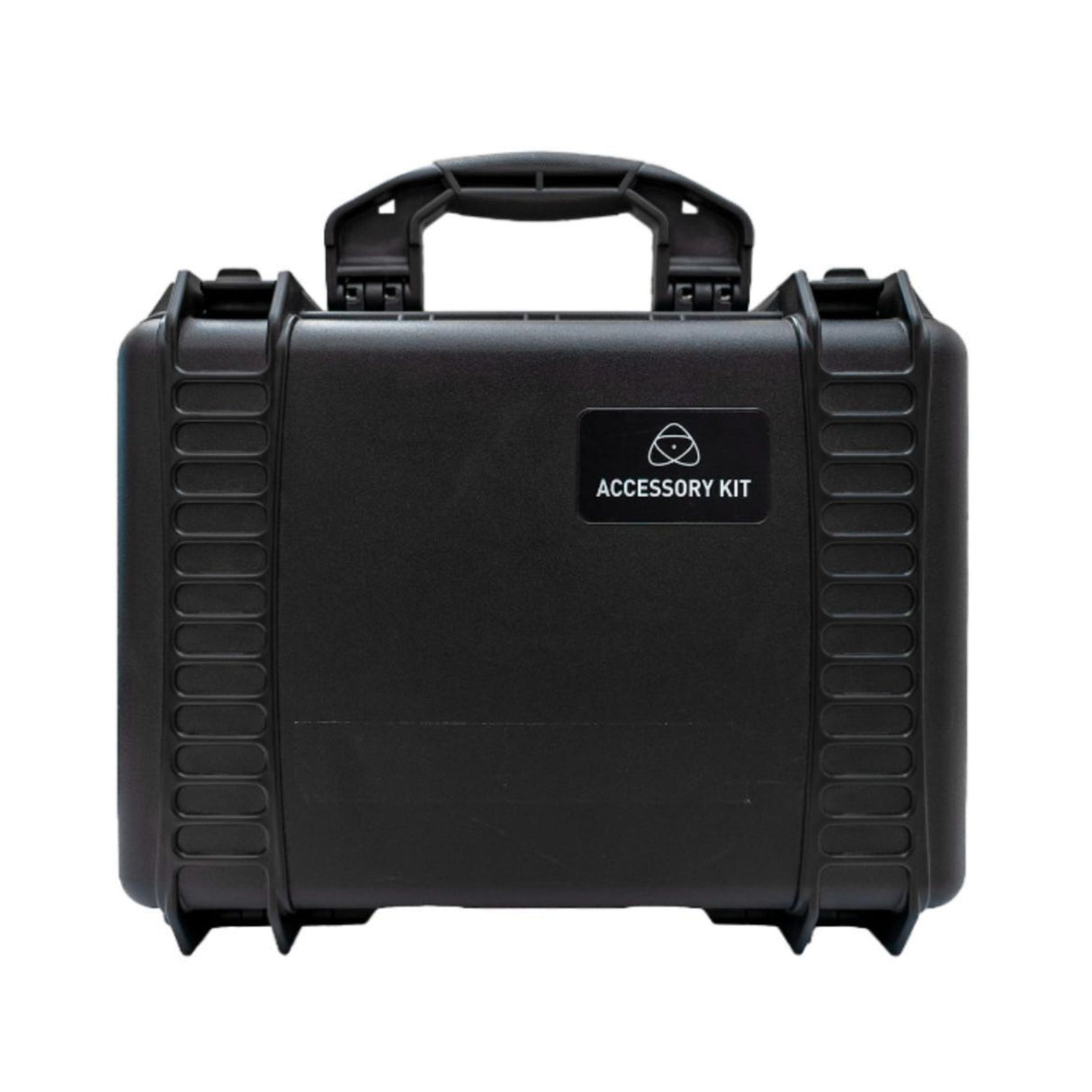

Elevate your gear organization with the Atomos Universal Accessory Kit which has a versatile hard case designed to cater to your every need. With multiple power options available, you can ensure your devices stay charged and ready for action wherever you go. Safely store and transport your SSD accessories in one secure location, keeping them protected and easily accessible. The included 5-inch and 7-inch sun hoods provide enhanced visibility in bright conditions, allowing you to capture the perfect shot with ease. The durable hard case offers a robust solution for all your storage and transportation requirements, making it the ideal companion for professionals and enthusiasts alike.
Main
| Screen Size | 5.2" |
| Screen Resolution | 1920 x 1080 (Full HD) |
| Supported Resolutions | 1920 x 1080 |
| Configuration | Bundle 1 |
- 5200mAh - up to 2hrs (monitor and record 4K 60p)
- 7800mAh - up to 3hrs (monitor and record 4K 60p)
- Sony SLog / SLog2 / SLog3, Canon CLog / CLog2 / Clog3,
- Arri Log CEI160 / LogCEI200 / LogCEI250 / LogCEI320
- / LogCEI400 / LogCEI500 / LogCEI640 / LogCEI800 /
- LogCEI1000 / LogCEI1280 / LogCEI1600, Panasonic Vlog,
- JVC JLog1, Red LogFilm / Log3G10 / Log3G12, FujiFilm
- Flog, PQ (HDR10), HLG, Nikon N-Log
- Bt2020, DCI P3, PDCI p3 65
- Sony SGamut / SGamut3 / SGamut3.cine /
- Canon Cinema / DCI P3 / DCI P3+ / BT2020
- Panasonic V Gamut
- Arri Alexa Wide Gamut
- Rec709
- JVC LS300
- Red DragonColor / DragonColor2 / RedColor2 /
- RedColor3 / RedColor4 / RedWideGamut
- 3D LU+A76T Display: .Cube Format
- 3D LUT Down Stream: Loop out
- 3DLUT 50/50: Yes
- Monitoring Modes: Native / HLG / PQ / 3D LUT
- HDR output Conversion: Log / HDR to HLG / PQ / Dolby Vision
- Colour selected / threshold setting / colour
- / Mono / edges only
- 24/25/30pSF > 24/25/30p (2:2 pulldown)
- 60i > 24p (3:2 pulldown)
- Auto HDMI Trigger, Supported Protocols - Canon, Sony,
- Atomos Open Standard
- LANC control and calibration via optional USB to serial cable
Atomos Ninja Ultra: 5-inch, 1000nit HDR Monitor-Recorder for Mirrorless and Cinematic Cameras
Physical Specifications
| Dimensions (W x H x D mm) | : 151 x 91.5 x 31mm |
| Weight | 360g / 12.7oz |

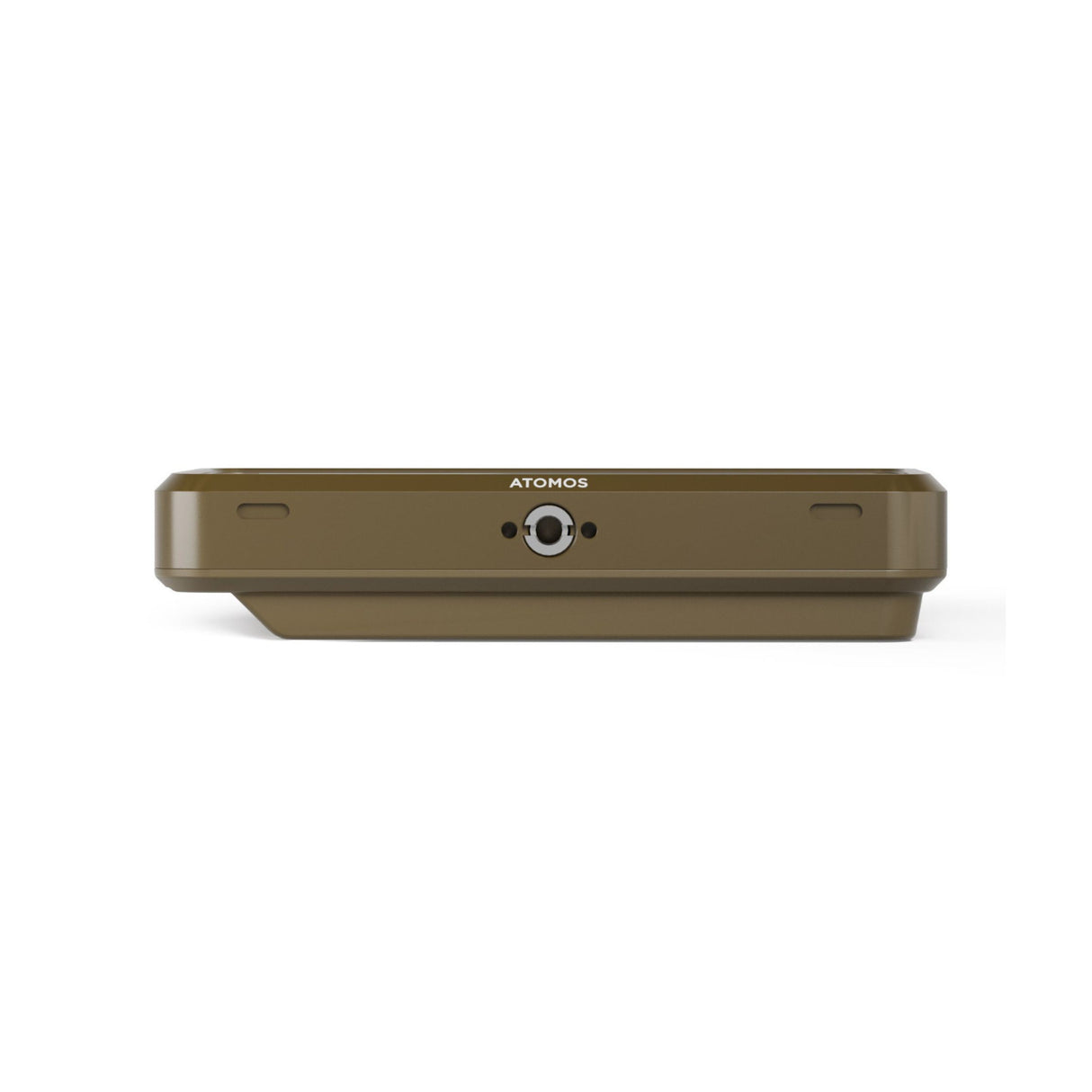

| Mount points | 1 x anti-rotation 1/4-inch / 3/8-inch top and bottom |
Environmental
| Ambient operating temperature | Up to 40 degrees Celsius |
Construction and Control
| Body | Aluminium with ABS plastic |
| Cooling | Actively controlled fan and heat sink |
| Tally light | Rear and front |
| Multi-function button | Power / lock screen |
| AtomXpansion slot | Yes |
Power

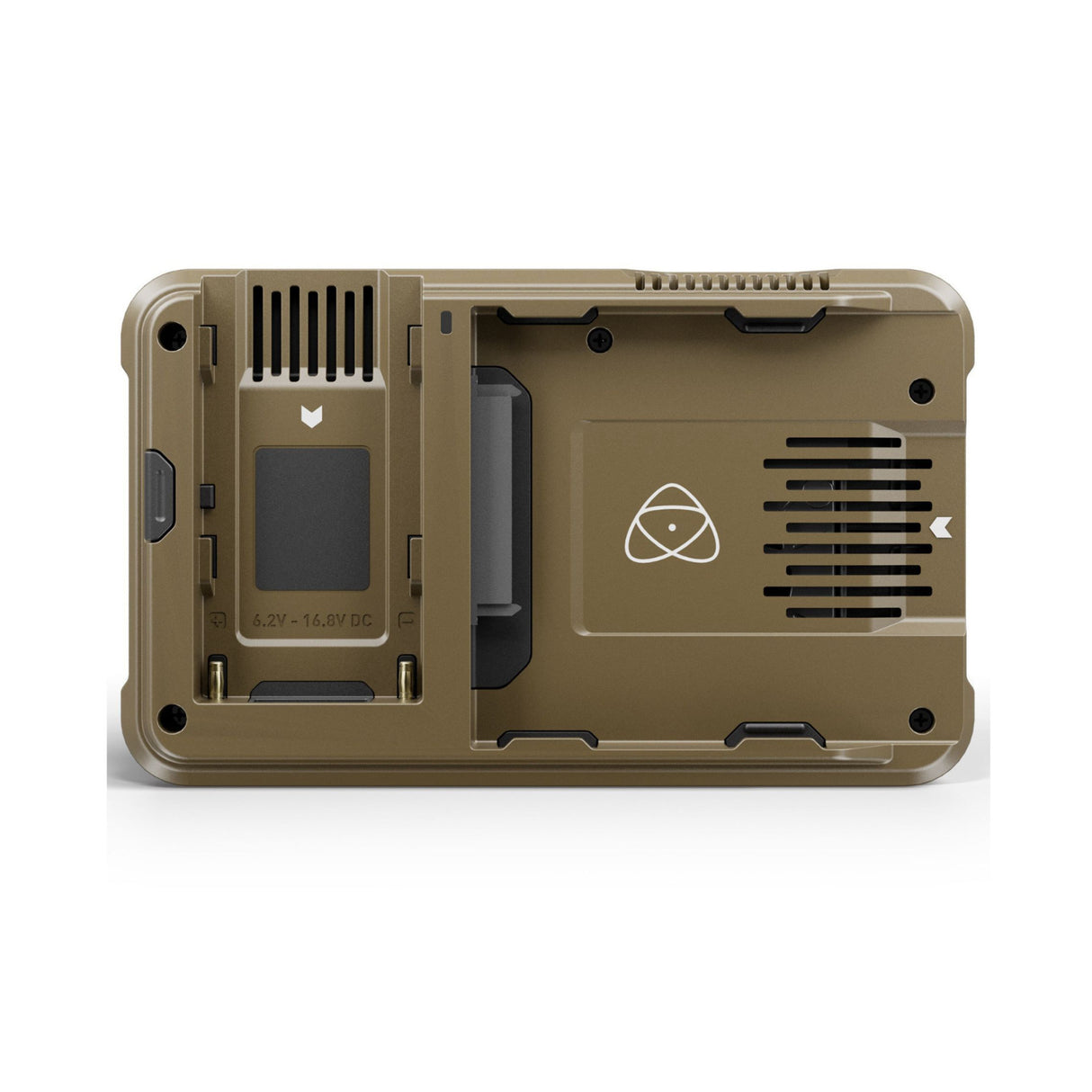

| Input voltage | 6.2V to 16.8V |
| Operating power | 5.8-7.2v (Battery) or min 30W via USB C PD cable |
| Compatible batteries | NPF L series |
| Built in battery | No |
| Battery run time Record | |
| DC in connector | Via DC jack on battery eliminator |
| DTAP | Via battery eliminator and optional DTap to DC cable |

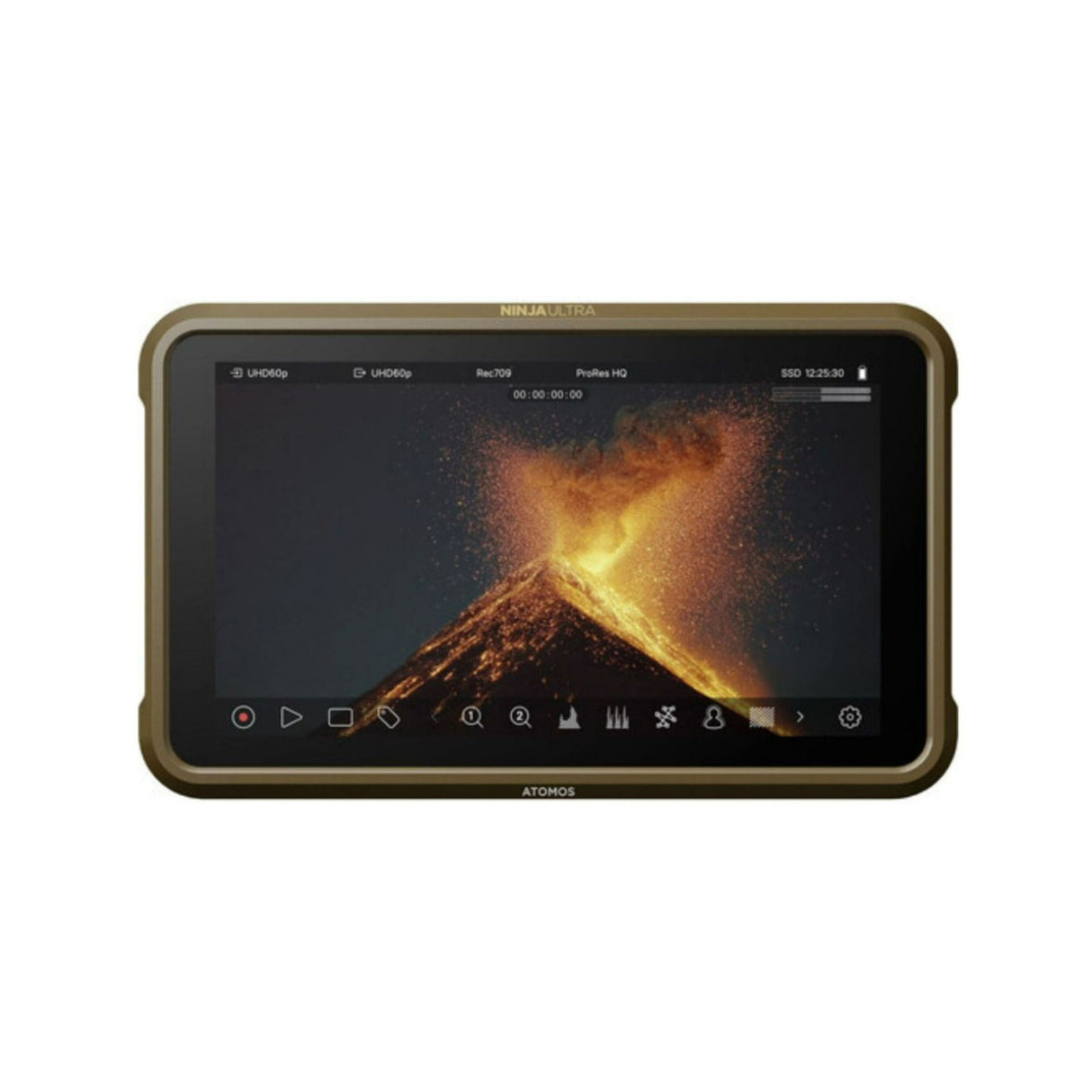

Display
| Touchscreen | SuperAtom IPS panel (capacitive touch) |
| Size | 5.2-inch |
| Resolution | 1920 x 1080 |
| PPI | 427 |
| Bit depth | 10-bit (8+2 FRC) |
| Backlight Type | Edge lit |
| Brightness (cdm2 / Nits) | 1000 |
| Aspect ratio | 16:09 |
| Color Gamut | Rec.709 |
| Calibration support | Atomos Calibrator with Calibrite ColorChecker Display Pro and ColorChecker Display Plus |
| Black Level (cdm2 / Nits) |
Color Pipeline
| Gamma | |
| Gamut |
Video Input

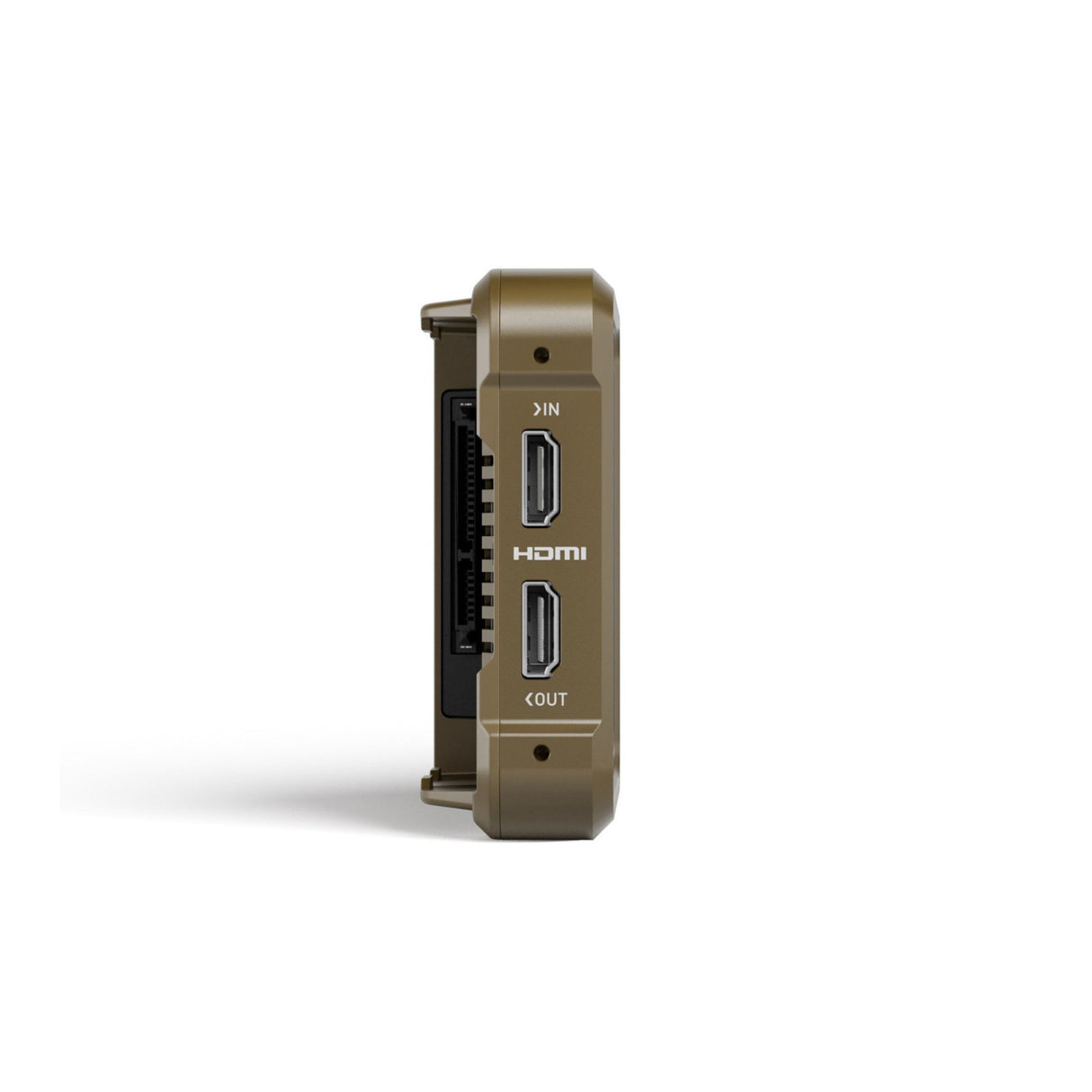

| HDMI | 1 x HDMI (2.0) 4Kp60 |
| HDMI RAW | Apples ProRes RAW up to 6K with compatible cameras |
| SDI | Optional Via Atomos Connect module |
| SDI RAW | Optional Via Atomos Connect module |
| Bit Depth | 8/10-bit video / RAW up to 16-bit |
| Video Chroma Subsampling | 4:2:2 |
| HDCP copy protection | Not supported |
Metadata
| HDMI | RAW - white balance, exposure index, shutter speed/angle, Iris F stop, ISO, gamma, gamut |
| SDI File Naming from ARRI, RED, Sony and Canon cameras |
Video Output
| HDMI | 1 x HDMI (2.0) 4Kp60 |
| RJ45 / GigE | Optional Via Atomos Connect module |
| Wi-Fi 6 | Optional Via Atomos Connect module |
| Video Chroma Subsampling | 4:2:2 |
| Bit Depth | 10-bit video |
Web Streaming
| USB UVC | Optional Via Atomos Nexus 4K or AtomX Cast |
| RJ45 / GigE | Optional Via Atomos Connect module |
| RTMP / S | Optional Via Atomos Connect module |
Video Signal Conversion
| HDMI to SDI | Optional Via Atomos Connect module |
| SDI to HDMI | Optional Via Atomos Connect module |
Audio In/Out
| Audio Quality | 24/48kHz |
| Audio Codec | PCM |
| HDMI | 8ch 24-bit, input dependent |
| SDI | 12ch 24-bit, input dependent |

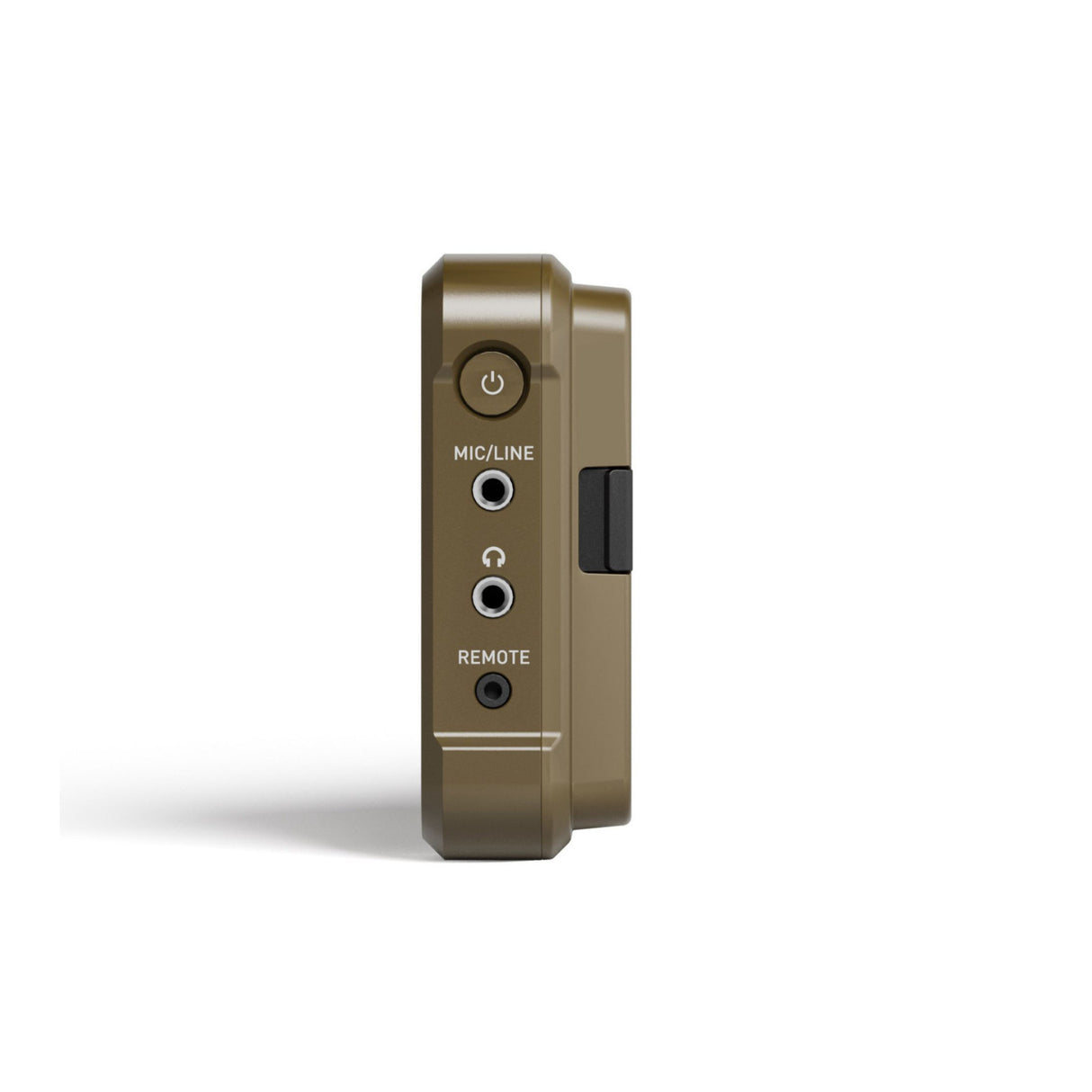

| Analogue Audio in | 3.5mm 2ch. |
| Headphone out | 3.5mm 2ch. |
| Audio input delay | User definable from menu |
Timecode / Sync / Control
| Embedded | HDMI and SDI |
| Time of day | Yes, Time and Date |
| LTC | Optional Via Atomos Connect module |
| Genlock | Optional Via Atomos Connect module |
| Wireless AirGlu RF Server and Client | Optional Via Atomos Connect module |
| Wireless AirGlu BT Server | Optional Via Atomos Connect module |
Resolution and Frame Rates (Record, Monitor and Playback)
| 6K | RAW Only up to 30p via HDMI |
| 4K DCI | 23.98/24/25/29.9/30/50/59.94/60p |
| 4K UHD | 23.98/24/25/29.9/30/50/59.94/60p |
| 2K DCI 2046 x 1080 | Optional via AtomX SDI module |
| Anamorphic | 3.5k: RAW up to 60p (from supported cameras only) |
| FHD 1920 x 1080 Progressive | 23.98/24/25/29.9/30/50/59.94/60/100/120p |
| FHD 1920 x 1080 PsF | converted to P and looped out PsF |
| FHD 1920 x 1080 Interlaced | 23.98/24/25/29.9/30/50/59.94/60i |
| 1280 x 720p | 50/59.94/60p |
| Supported base resolution and FPS |
Recording CODEC
| Apple ProRes Raw | ProRes RAW, HQ |
| Apple ProRes | LT, 422, 422HQ |
| Avid DNxHD | DNxHD 220x,220,145,36 |
| Avid DNxHR | LB, SQ, HQ, HQX. |
| H.265 | LQ,MQ,HQ,XQ in 8/10Bit, 4 2 2 and 4 2 0 |
Playback
| Playlist | Yes, Create customer playlists from full or sub clips |
| Loop | Yes, with user customizable in / out markers |
| Apple ProRes Raw | Yes, recorded clips |
| Apple ProRes | Yes, with Linear PCM audio |
| Avid DNx | Yes, with Linear PCM audio |
| H.265 | Yes |
Recording functions
| Pre-roll record | Yes (HD 8s, 4K 2s) - Not available in RAW |
| Timelapse | Yes |
| Simultaneous proxy record | Yes |
Multi Input / Switching

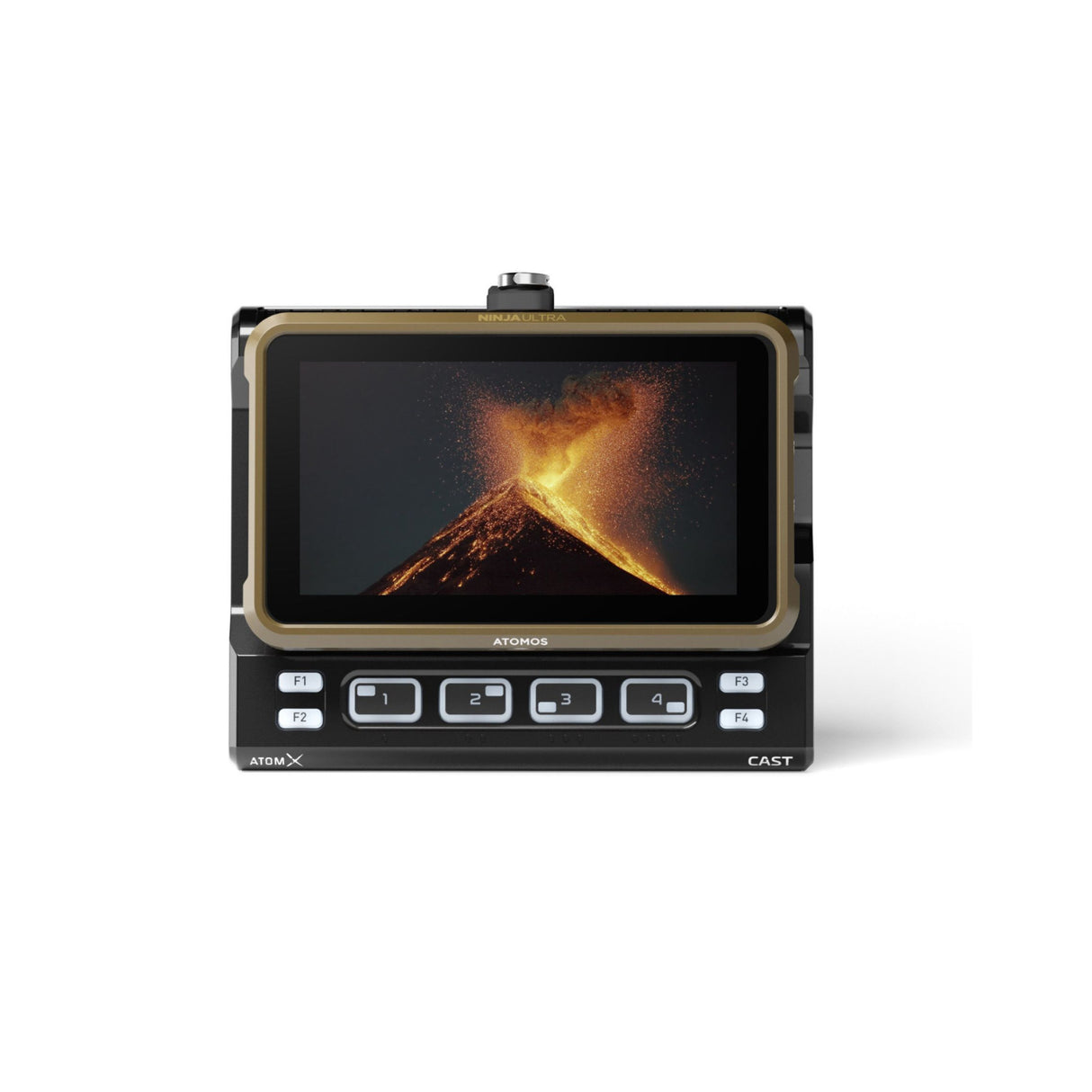

| Multiple HDMI input | Optional via AtomX Cast |
| Multiview Display | Optional via AtomX Cast |
| Multiview Ouput | Optional via AtomX Cast |
| Picture in Picture (PIP) | Optional via AtomX Cast |
| Graphic overlays | Optional via AtomX Cast |
| Input transitions | Optional via AtomX Cast |
Supported media
| Master Caddy I | Not compatible |
| Master Caddy II | For 2.5-inch hard drives in MasterCaddy II |
| Master Caddy III | For 2.5-inch hard drives in MasterCaddy III (needed for Atomos Connect) |
| SSDmini | Native size and fit |
| CFAST II | With supported cards via optional SSDmini CFAST II Adaptor |
| File Naming | Unit Name - Scene/Shot/Take |
| File System | ExFAT |
On screen tools
| Waveform | Yes, 3 size / Position |
| RGB parade | Yes, 3 size / Position |
| Vector scope | Yes, 2 size / Position |
| 1 x Zoom | Yes. 1:1 Pixel mapping for 4K |
| 2 x Zoom | Yes |
| Focus peaking | |
| Atomos False color | Yes, with Scale |
| ARRI False color | Yes |
| EL Zone | Yes |
| Zebra | Yes, Adjustable |
| Isolate color channel | Blue Only |
| Cine Frame Guides | 2.4:1, 2.35:1, 1.9:1, 1.85:1, 4:3 |
| Social Frame guides | 9:16, 1:1, 191:1, 4:5 |
| Onion Skin | Yes |
| Safe areas | Action and Graphic |
| Grid markers | 9 grid |
| Anamorphic desqueeze | 1.25x, 1.33x, 1.5x, 1.6x, 1.65x, 1.79x, 1.8x, 2x |
| Display Flip | Vertical Only |
Onboard Signal Processing
| Pulldown removal | |
| 4K UHD downscale for HD | Loop out - 4K UHD to FHD |
| DCI Crop | Loop out - 17:9 to 16:9 Crop |
Remote Control
| HDMI | |
| SDI | SDI trigger camera selectable with Atomos Connect |
| Serial 2.5mm Jack | |
| AirGlu BT | Optional Via Atomos Connect module |
| AirGlu RF | Optional Via Atomos Connect module |
External Device Control
| Serial 2.5mm Jack | Camera control for supported cameras via Optional USB to Serial Cable |
| Bluetooth LE | Optional Via Atomos Connect module |
| Wireless RF | Optional Via Atomos Connect module |
Supported Applications
| XML | Cut tag EDL in FCPX XML |
| Apple ProRes Raw | Apple FCPX, Adobe Premiere, After Effects, Avid Media Composer, GrassValley Edius, Assimilate Scratch, Baselight Film Light. |
| Video Codecs | All Applications with support for Apple ProRes and Avid DNx in .MOV wrapper |
Warranty
| Standard | 1 year. Extended to 2 years on product registration. Atomos Care360 available as subscription |
