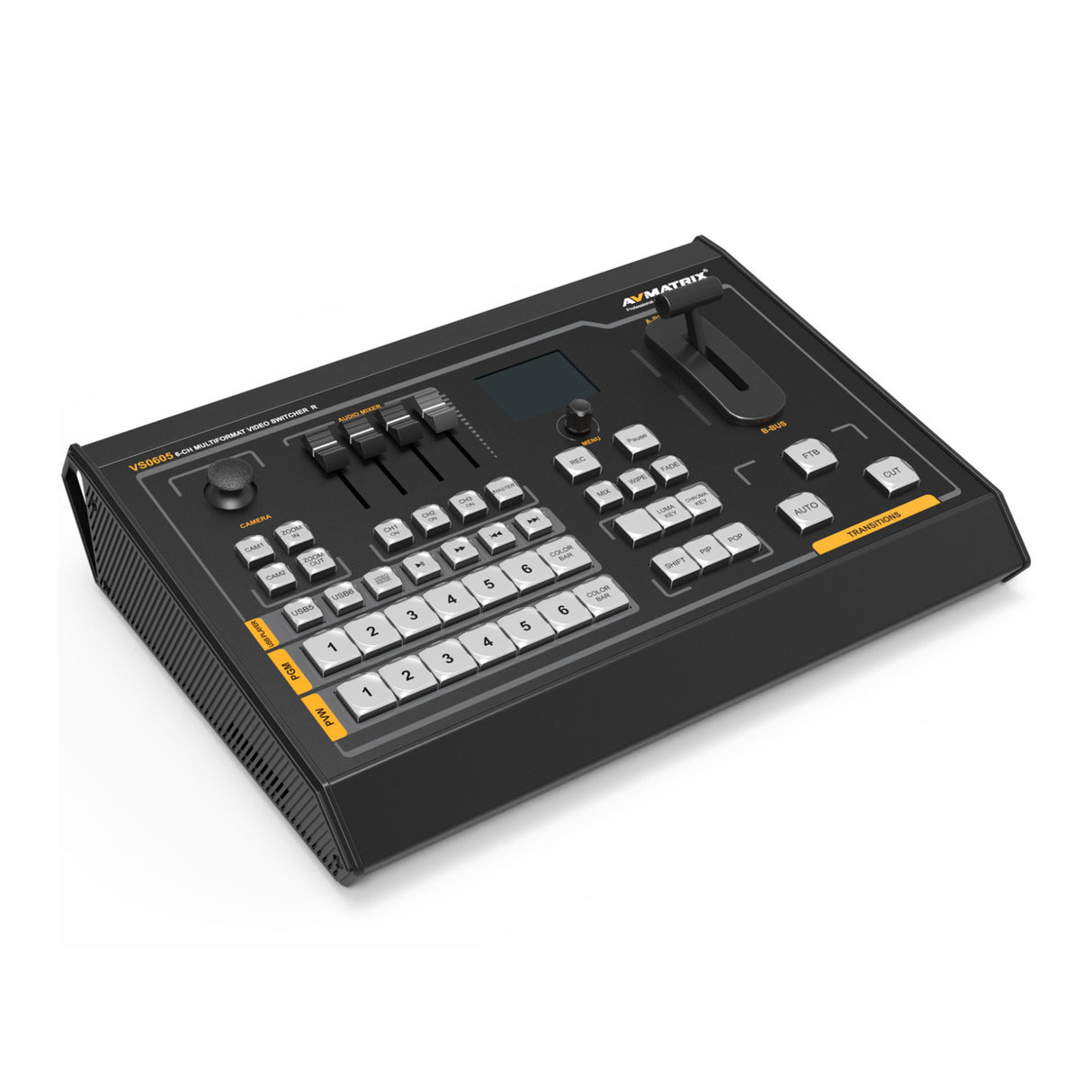

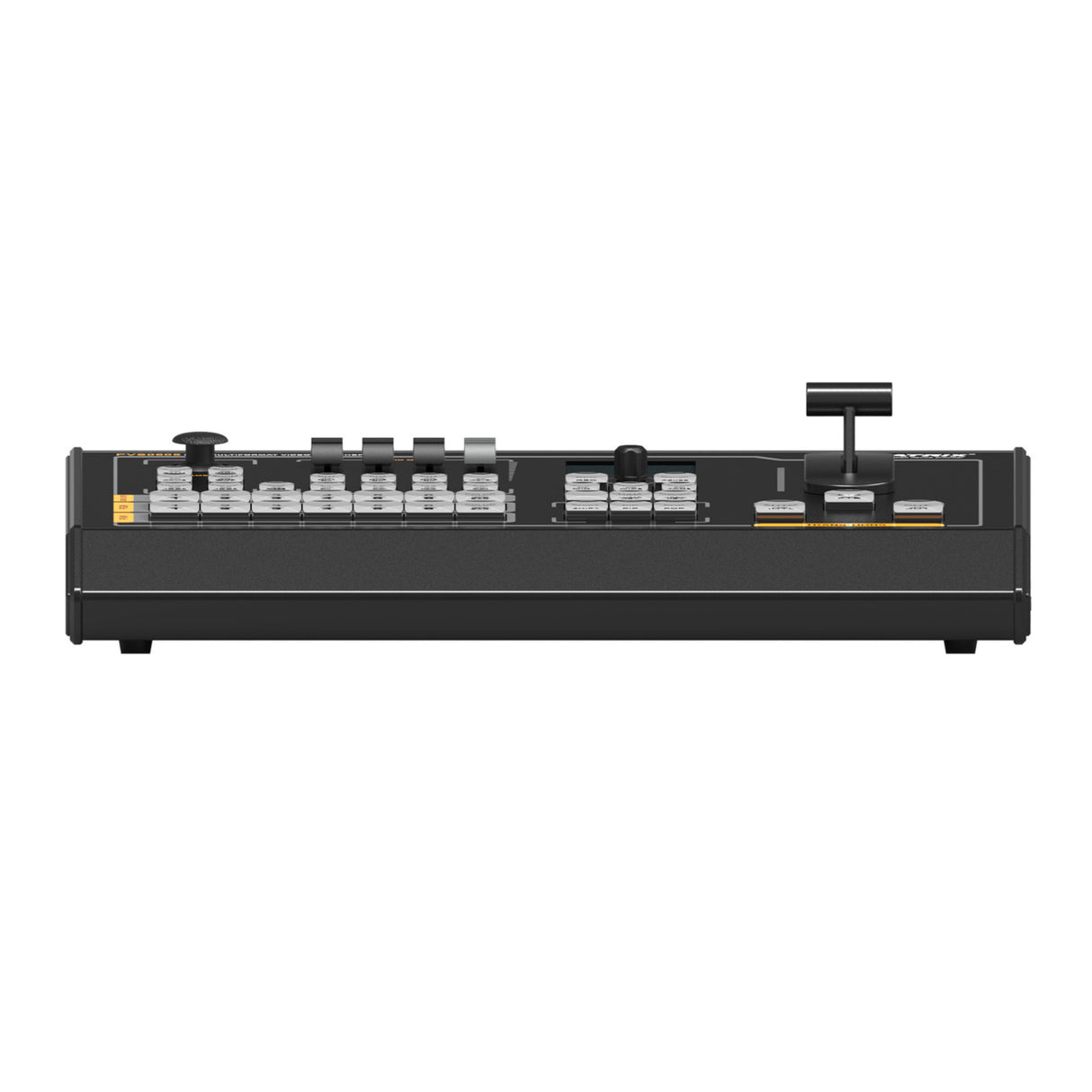

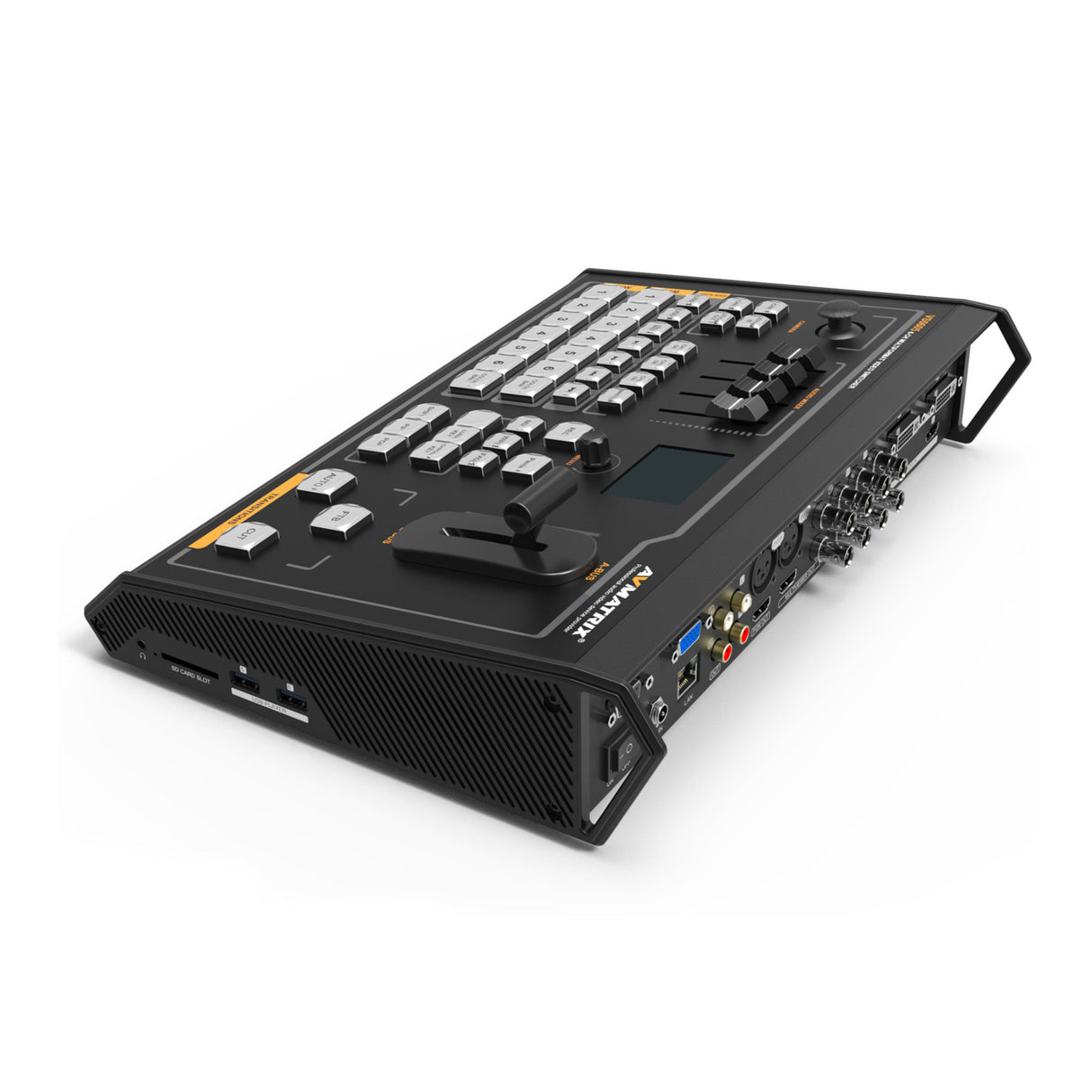

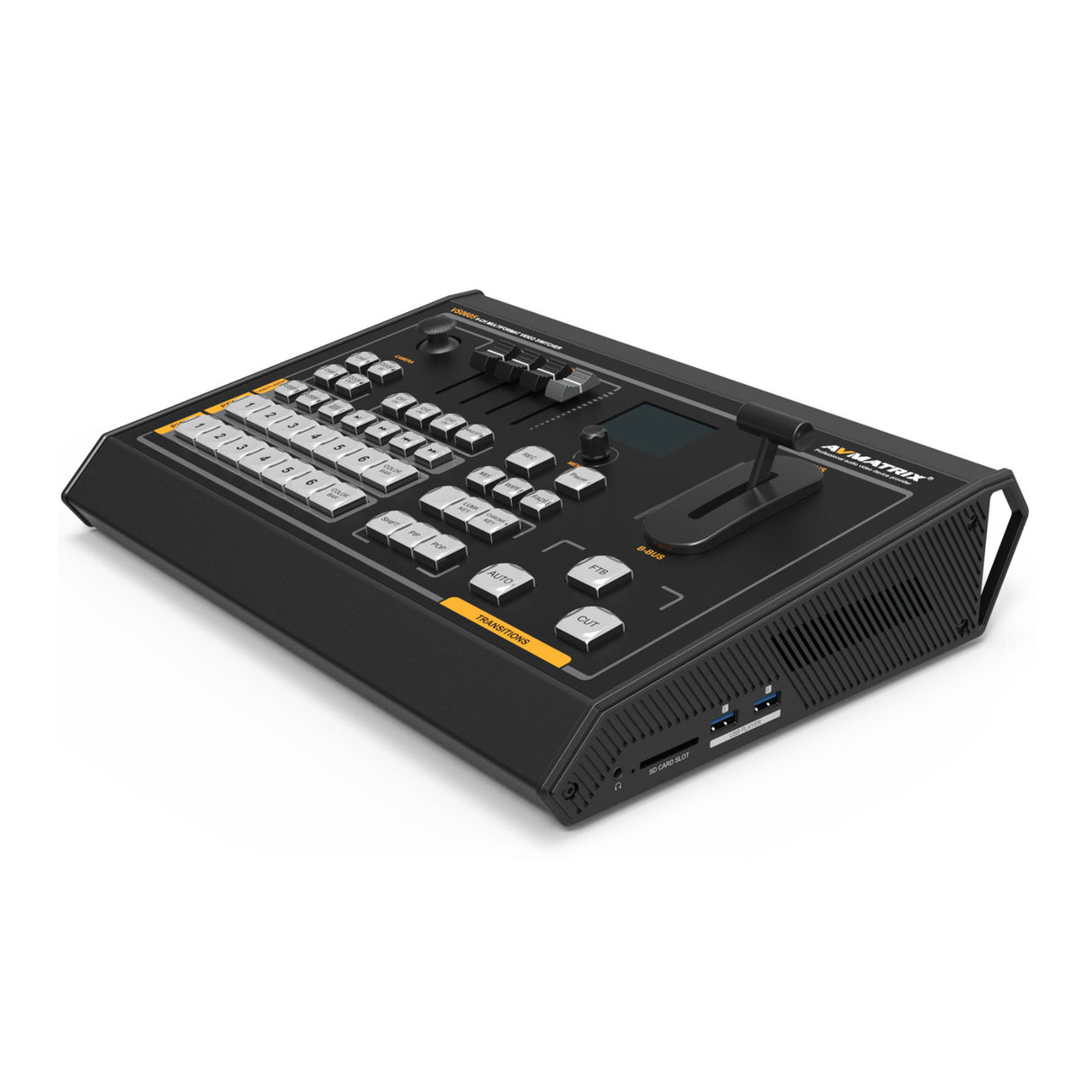

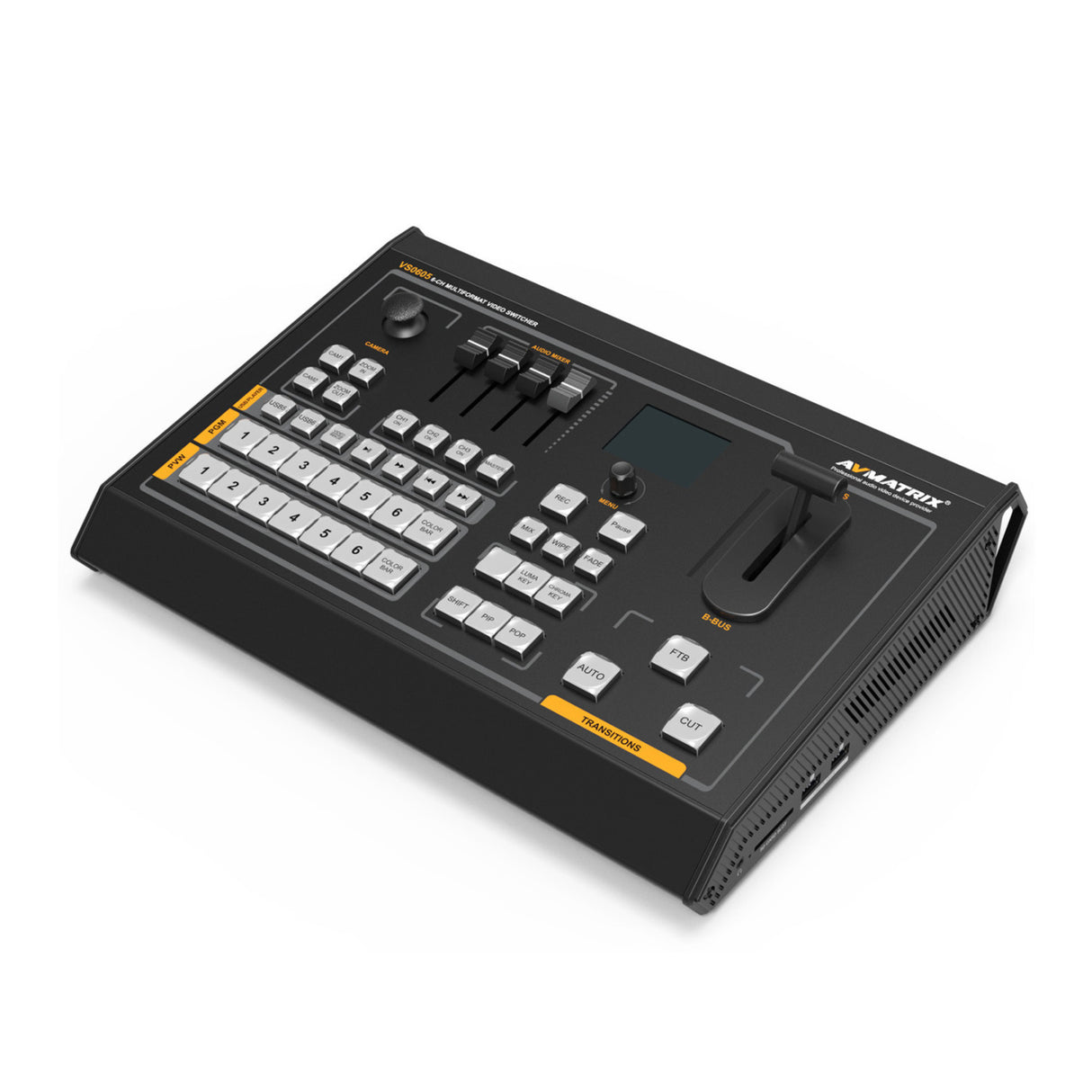

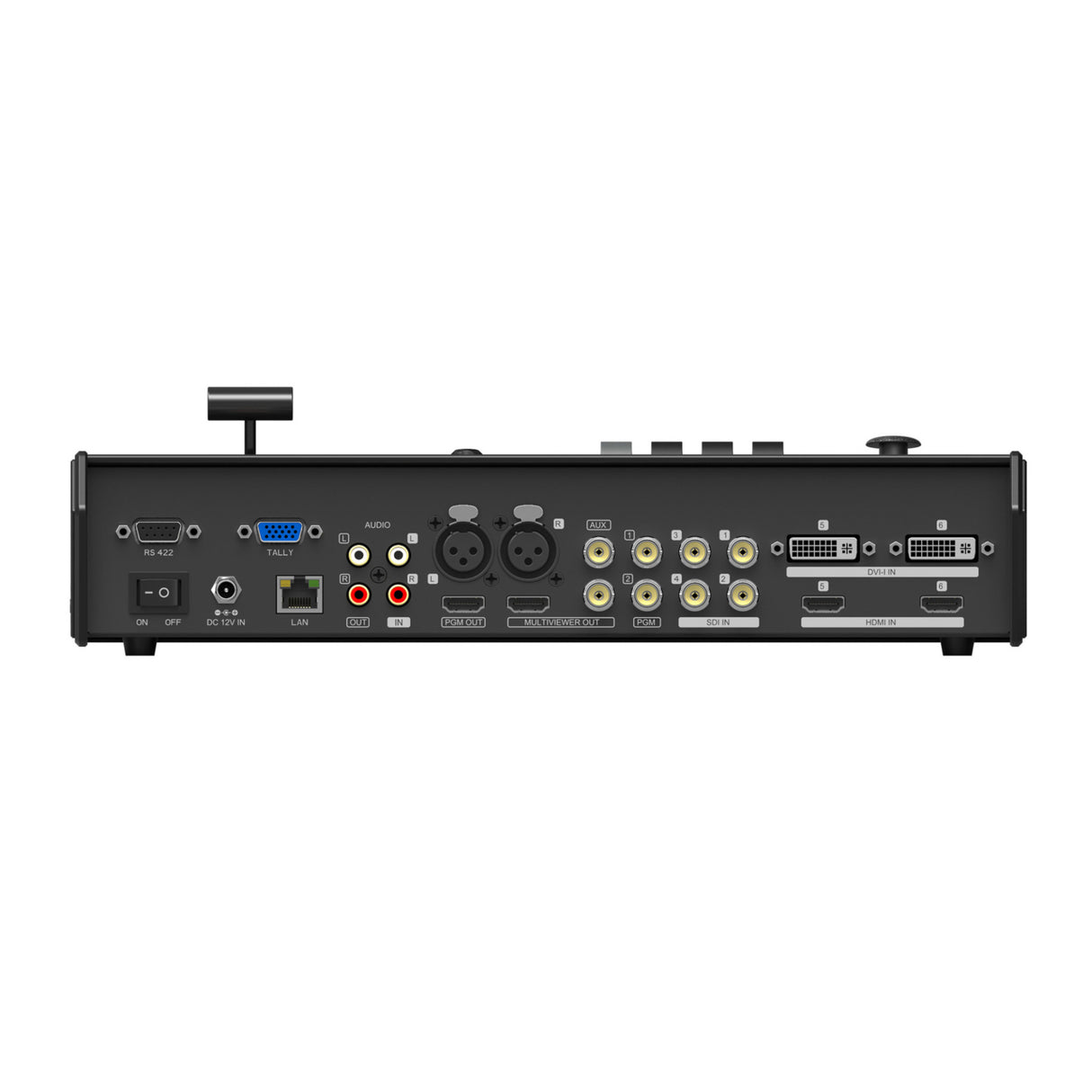

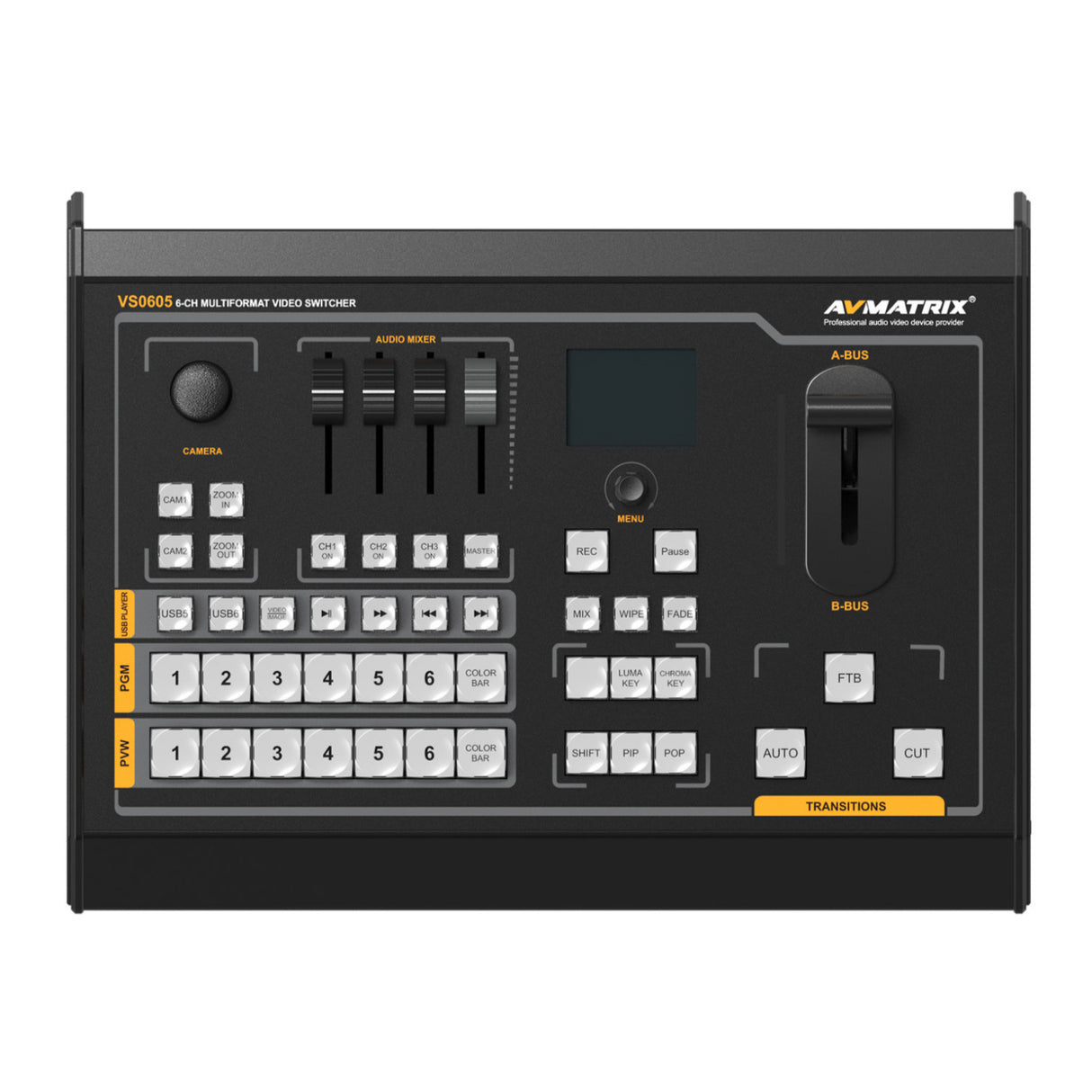

The AV Matrix VS0605 is a 6-channel video switcher supporting SD, HD, and FHD multi-format inputs. It features four SDI and two DVI-I/HDMI/VGA/USB player inputs, along with three SDI/HDMI PGM, SDI AUX, and two SDI/HDMI multiview outputs. The AV Matrix VS0605 Video Switcher supports T-Bar/Auto/Cut transitions with Mix/Fade/Wipe effects.
Multiview Monitoring
The multiview output makes it easy to monitor 6-channel sources as well as PVW and PGM simultaneously on one display. Besides a real time clock and menu list are located in the lower right corner of the multiview.
Multi-Format and Scaler
Six different SD and HD format video sources can be detected and displayed at the same time. The PGM output can be up or down scaled including 1080i and 1080p.
PiP/PoP
Use the PiP and PoP functions to insert a second picture into or outside the main picture. Simply adjust the image’s size and position, then push program.
Chroma/Luma Key
Support real-time background matting, user can use Chroma key to cutout PVW green or blue background. Use the Luma Key to control cutout black background.
Transition Effects
The switcher allows for transition between PVW and PGM with Wipe/Mix/Fade effects through T-Bar and Auto transition. It offers three transition rates for Auto transition.
Audio Mixer
A built-in audio mixer can mix two external stereo XLR and RCA audio and six channels of embedded audio. It’s easy to control three stereo channels individually through the faders and corresponding buttons.

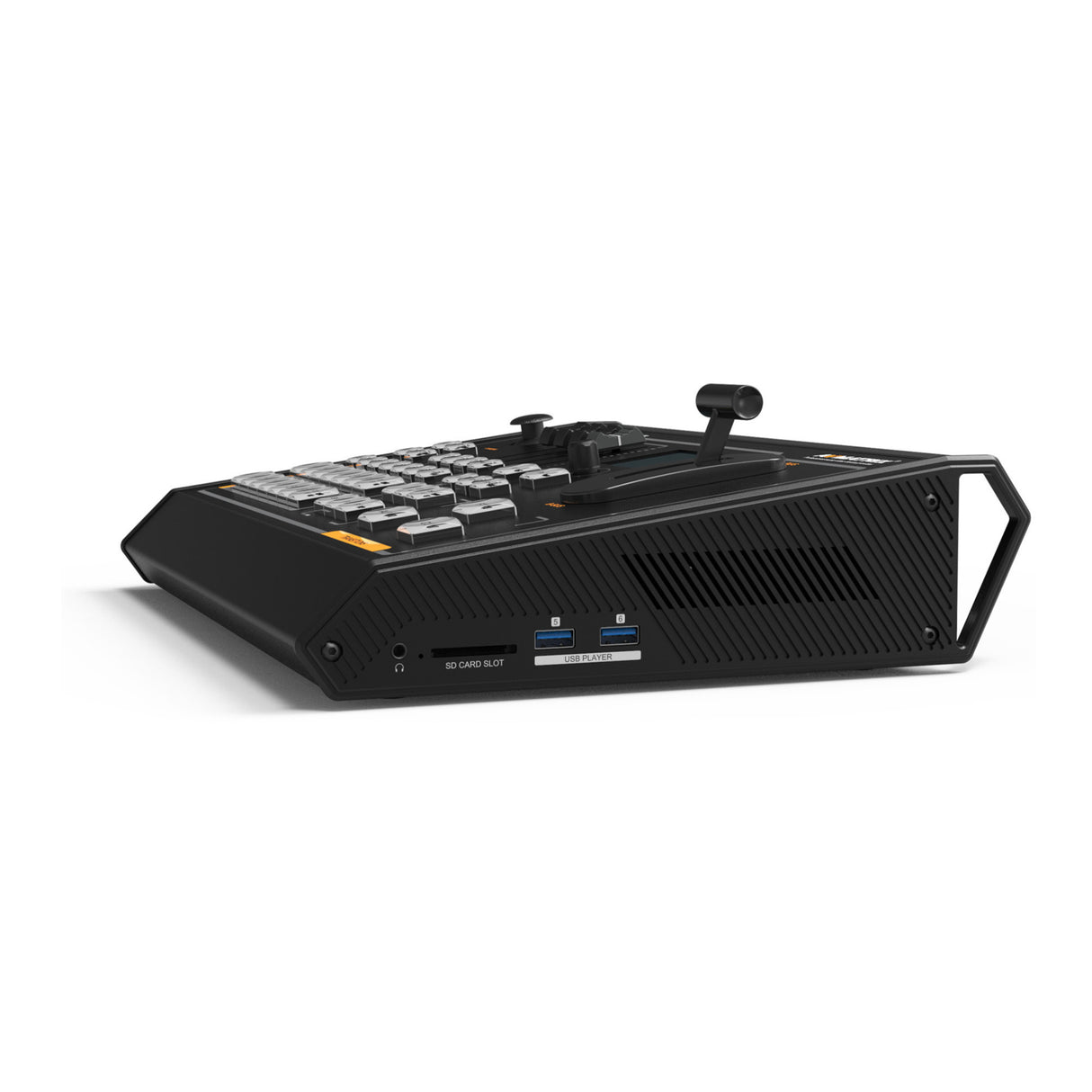

SD Card Recording
No external recorder needed, because the switcher has a built-in SD card slot for PGM recording. It’s simple to have an immediate high-quality (up to FHD 1080p60) recording of the event from this switcher.
USB Media Player
The channel 5 and 6 can be easily connected to a USB media player for both videos and images.
PTZ Camera Control
The switcher also has a PTZ control feature. Two cameras’ pan, tilt, zoom function can be controlled by a joystick and buttons through RS-422/RS-485 port. Visca and Pelco D/P protocols can be selected from the menu for cameras’ address and settings.
Widespread Application
The all-in-one 6-channel video switcher can be widely used in various field events, such as live sports, virtual studio, education, concert, and more.
General
| Weight | 3.5 kg |
| Color | Black |
Connections
| HDMI Inputs | 2 |
- 4 x SD/HD/3G-SDI (75 Ohms)
- 2 x HDMI2.0 type-A (100 Ohms)
- 2 x DVI-I (VGA-compatible)
- 2 x HD/3G-SDI (75 Ohms)
- 2 x HDMI type-A (100 Ohms)
- 1080p 60/59.94/50/30/29.97/25/24/23.98
- 1080psF 30/29.97/25/24/23.98
- 1080i 60/59.94/50
- 720p 60/59.94/50/30/29.97/25/24/23.98
- 625i 50 PAL, 525i 59.94 NTSC
- 4K 60/50/30, 2K 60/50/30
- 1080p 60/59.94/50/30/29.97/25/24/23.98/23.976
- 1080i 50/59.94/60
- 720p 60/59.94/50/30/29.97/25/24/23.98
- 576i 50, 576p 50
AV Matrix VS0605 Portable 6-Channel 3G-SDI/HDMI Multi-Format Video Switcher
Functions
| Transitions manual | T-Bar/Auto/Cut |
| Transition effects | Wipe/Mix/Fade/FTB/Color Bar |
| Keys and layouts | Luma Key/Chroma Key/PiP/PoP/Multiview |
| Audio mixer | Following/Mixing |
| Record | SD card, H.264, record for PGM up to 1080p60 |

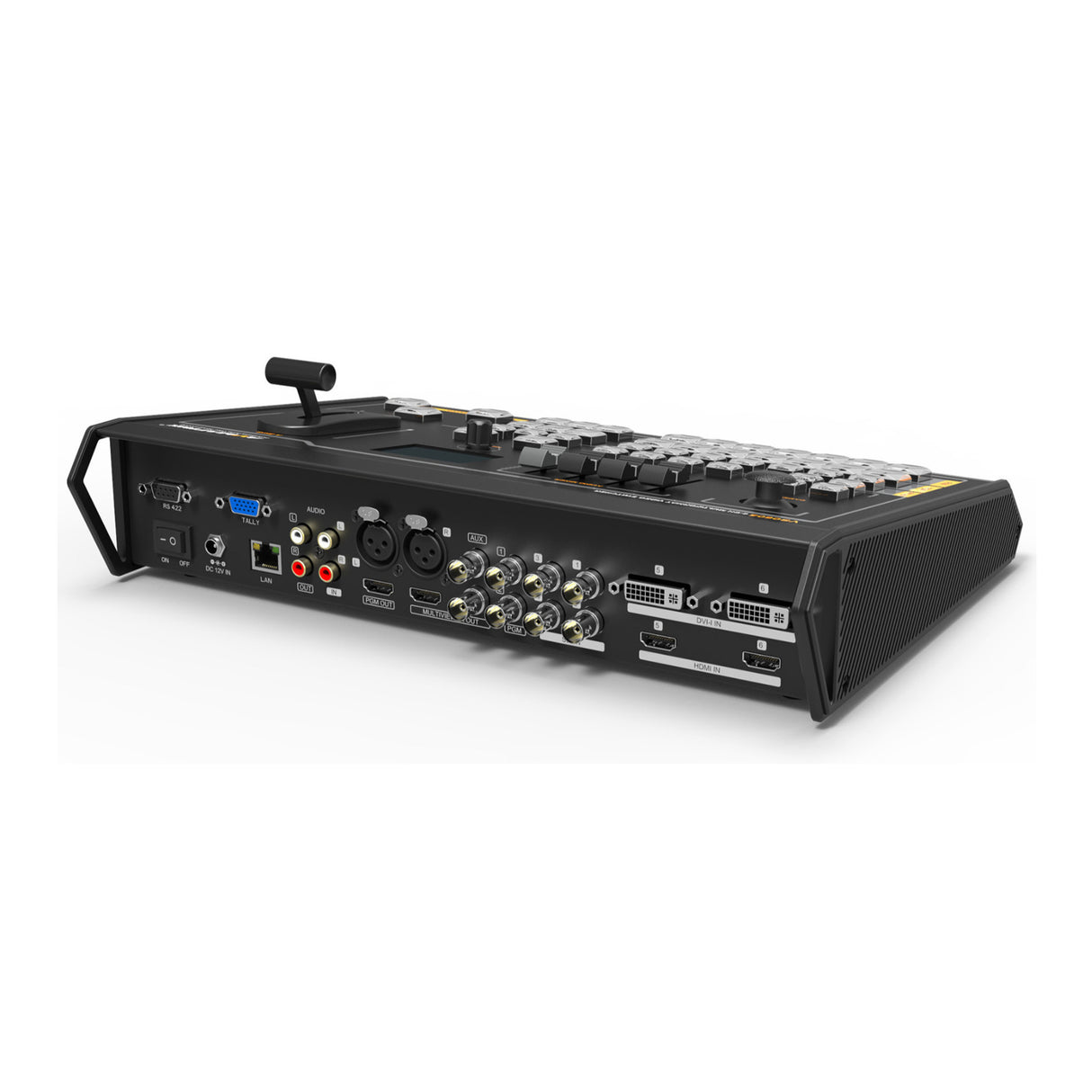

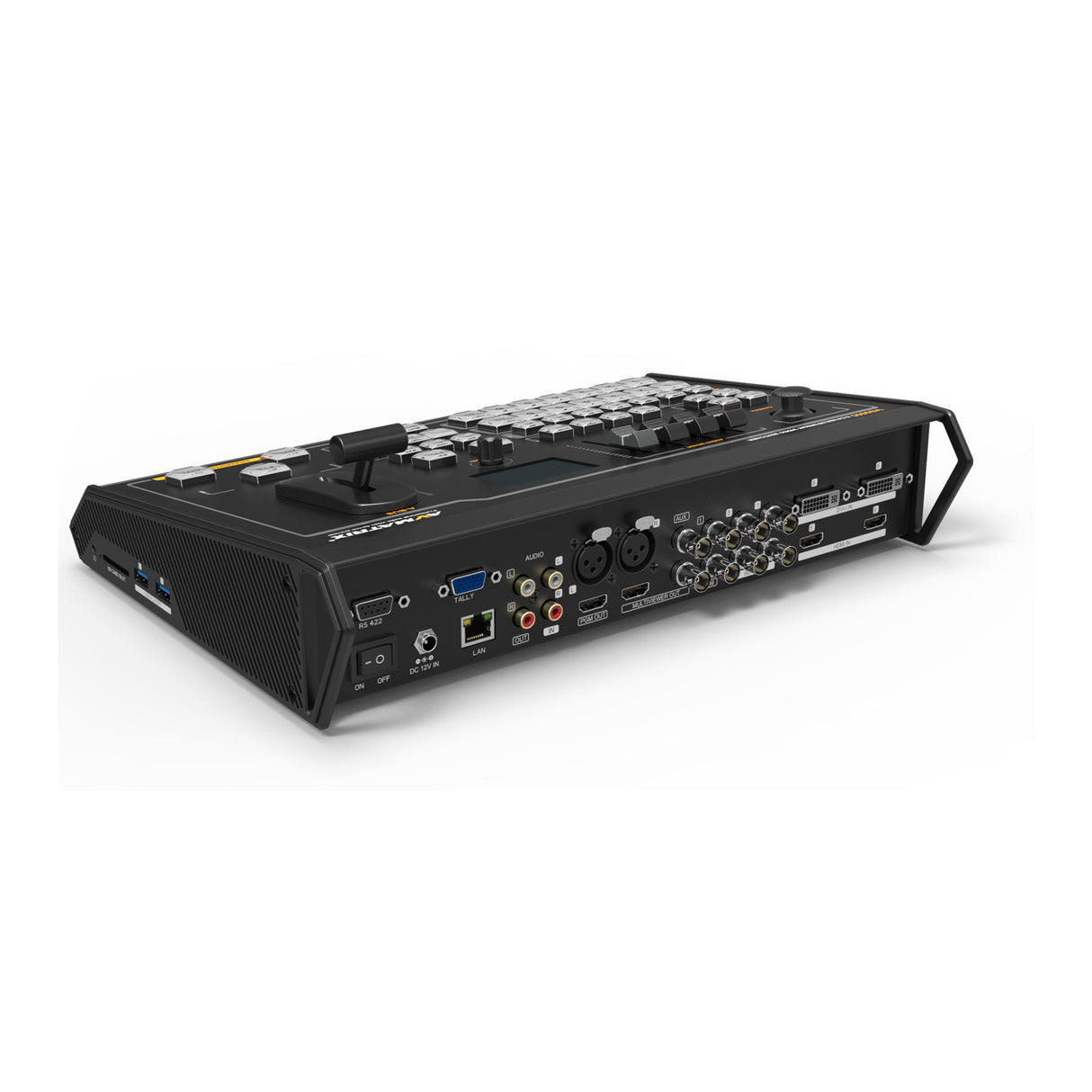

Inputs
| Video inputs | |
| USB media player | 2 x USB type-A |
| Analog audio inputs | XLR (balanced L/R), RCA (L/R) |
| LAN | RJ-45, Synchronize local time |
Outputs
| PGM outputs | |
| Multiview outputs | HDMI type-A, 3G-SDI (75 Ohms) |
| Analog audio output | RCA (L/R) |
| Remote camera control | RS-422 (Compatible RS-485) |
| Tally port | DB-15 |
Standards
| SDI input format support | |
| HDMI input format support | |
| PGM output format | 1080p 60/50/30/25/24, 1080i 60/50 |
| Multiview output format | 1080p 60 |
| SDI compliance | SMPTE 292M/ SMPTE 259M/ SMPTE 424M |
General
| Power supply | DC 12V 5A, 20W |
| Dimensions (L x W x D) | 310 x 180 x 70 mm |
| Weight | 3.5 kg |
