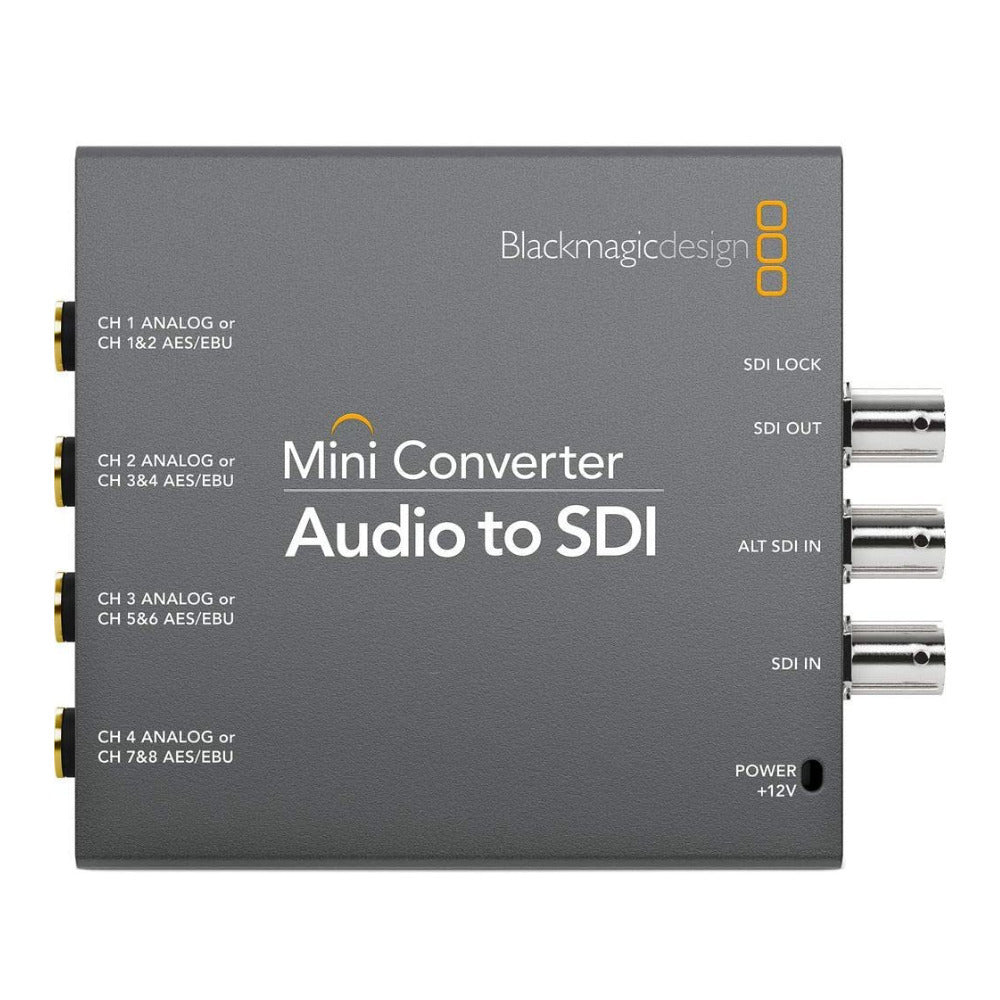

Blackmagic Design Audio to SDI Mini Converter
Embed audio into any SDI source in SD and HD formats up to 1080p60. Audio is input as balanced analog or AES/EBU using 1/4-inch connectors from equipment such as mixers and analog decks. Mini Converter Audio to SDI is the ideal SD/HD SDI audio embedder for when you don’t need the cost of the Ultra HD model.
General
| Weight | 7.58 oz |
| Color | Gray |
Blackmagic Design Audio to SDI Mini Converter
Connections
| SDI video inputs | 1 x SD, HD or 3G‑SDI. 1 x ALT SDI Input for automatic switch over if main input fails |
| SDI video outputs | 1 x embedded SDI output |
| Analog audio inputs | 4 channels of balanced analog audio |
| Digital audio inputs | 8 channels of balanced AES/EBU audio |
| SDI redundant input | Automatically switches over if main SDI input is lost |
| Multi rate support | Auto detection of SD, HD or 3G‑SDI |
| Updates and configuration | Via USB 2.0 high speed. (480 Mb/s) |
| Reclocking | Yes |
Standards
| SD video standards | 525i59.94 NTSC, 625i50 PAL |
| HD video standards | 720p50, 720p59.94, 720p60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30, 1080i50, 1080i59.94, 1080i60 |
| 2K video standards | 2K DCI 23.98p, 2K DCI 24p, 2K DCI 25p, 2K DCI 23.98PsF, 2K DCI 24PsF, 2K DCI 25PsF |
| SDI compliance | SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 424M‑B, SMPTE 425M, ITU‑R BT.656, ITU‑R BT.601, SMPTE ST‑2036 |
| SDI video rates | SDI video connections are switchable between standard definition and high definition |
| SDI video sampling | 4:2:2, 4:4:4 |
| SDI audio sampling | Television standard sample rate of 48 kHz and 24 bit |
| SDI color precision | 4:2:2, 4:4:4 |
| SDI color space | YUV, RGB |
| SDI auto switching | Automatically selects between SD, HD, and 3G‑SDI |
Software
| Software control | Mac and Windows software upgrade via USB |
| Internal software upgrade | Via included updater application |
Operating Systems
| Mac 10.14 Mojave, 10.15 Catalina or later | |
| Windows 8.1 and 10 |
Settings Control
| Mini Switches or USB software |
Power Requirements
| Power supply | +12V universal power supply included with international socket adapters for all countries. Cable tie point |
| Power consumption | 8.4 W |
| Operational voltage range | 12VDC |
Environmental Specifications
| Operating temperature | 0 to 40-degree-C (32 to 104-degree-F) |
| Storage temperature | -20 to 45-degree-C (-4 to 113-degree-F) |
| Relative humidity | 0 to 90% non-condensing |
Physical Specifications
| Dimensions | 4.52 x 3.63 x 0.9 inch |
| Weight | 7.58 oz |
