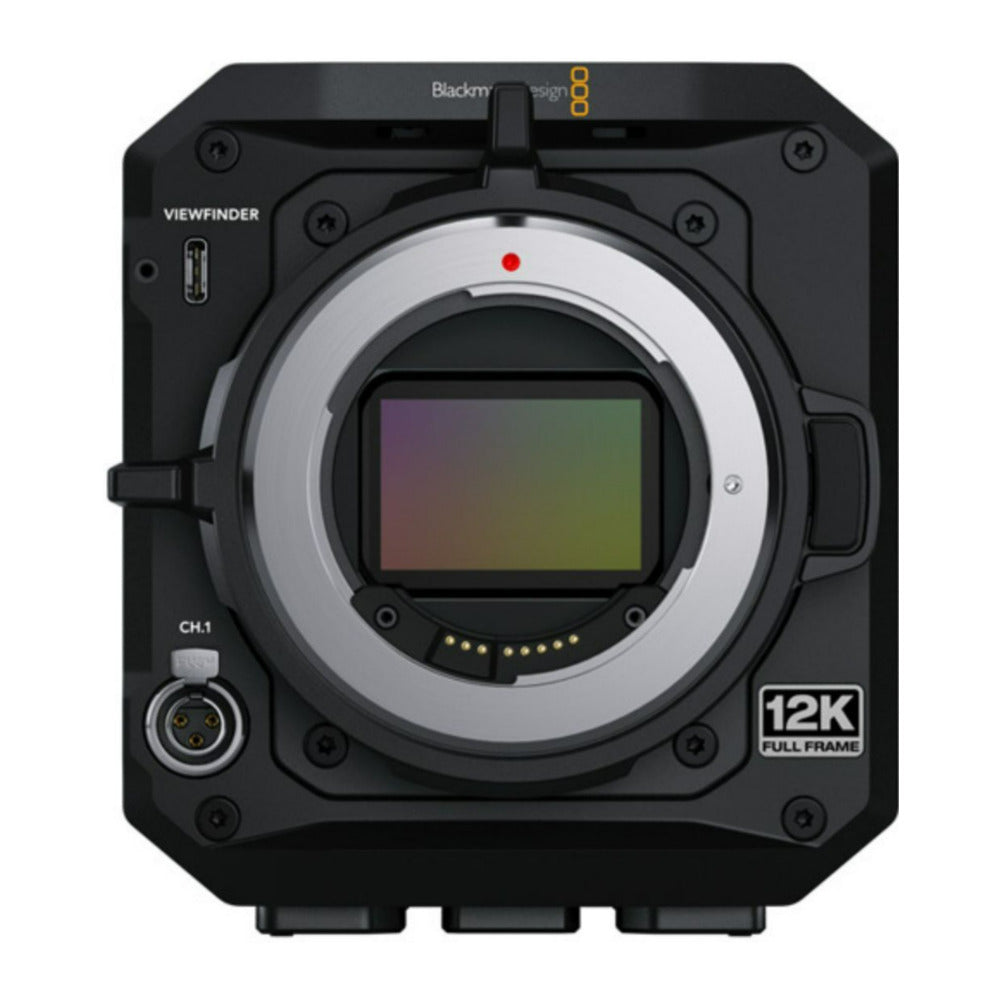

Blackmagic Design PYXIS 12K EF Full Frame Cinema Camera with 12K Resolution and EF Lens Mount
Couldn't load pickup availability
Product highlights
Product highlights
In the box
In the box
Free standard shipping
Free standard shipping
*Orders placed before 1 PM EST Mon - Thur will ship the same day. Orders placed beyond these hours will be shipped the next business day. Exclusions apply. See shipping policy
Free Local Pickup
Free Local Pickup
Please call for store stock availability. Requests made before 2:30 PM EST can be available for next-day pickup. Learn more
Blackmagic Design PYXIS 12K EF Full Frame RGBW Sensor Cinema Camera with 12K Resolution and EF Lens Mount
Blackmagic PYXIS 12K EF is an advanced digital film camera with an incredibly versatile design that lets you build the perfect camera rig for your production. This new model features a 12,288 x 8040 full frame RGBW sensor with built in optical low pass filter, 16 stops of dynamic range, dual CFexpress media slots, all in a customizable body with flexible mounting options and side plates. Blackmagic PYXIS 12K EF features a fixed locking EF mount that works with Canon-compatible photo and cine lenses.

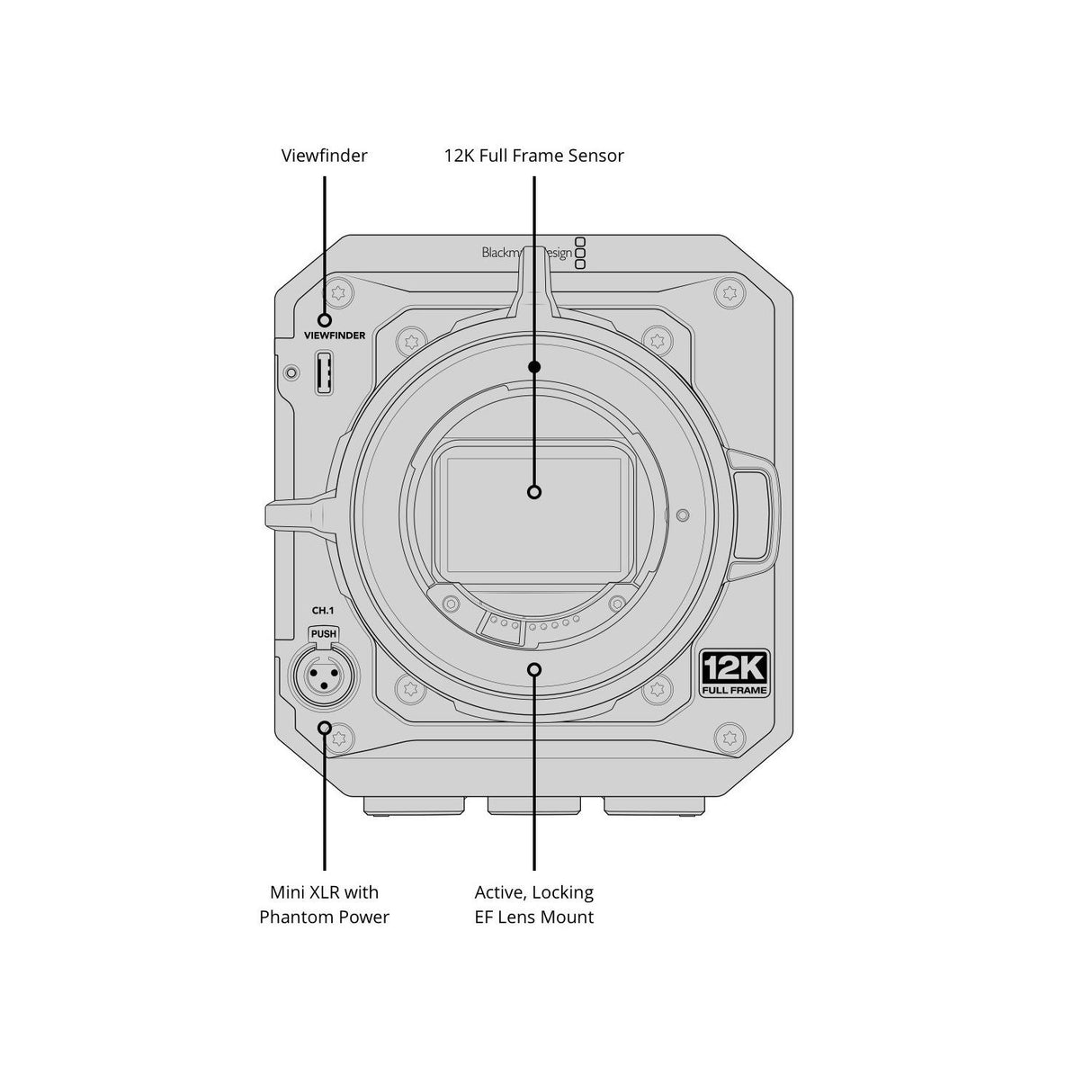

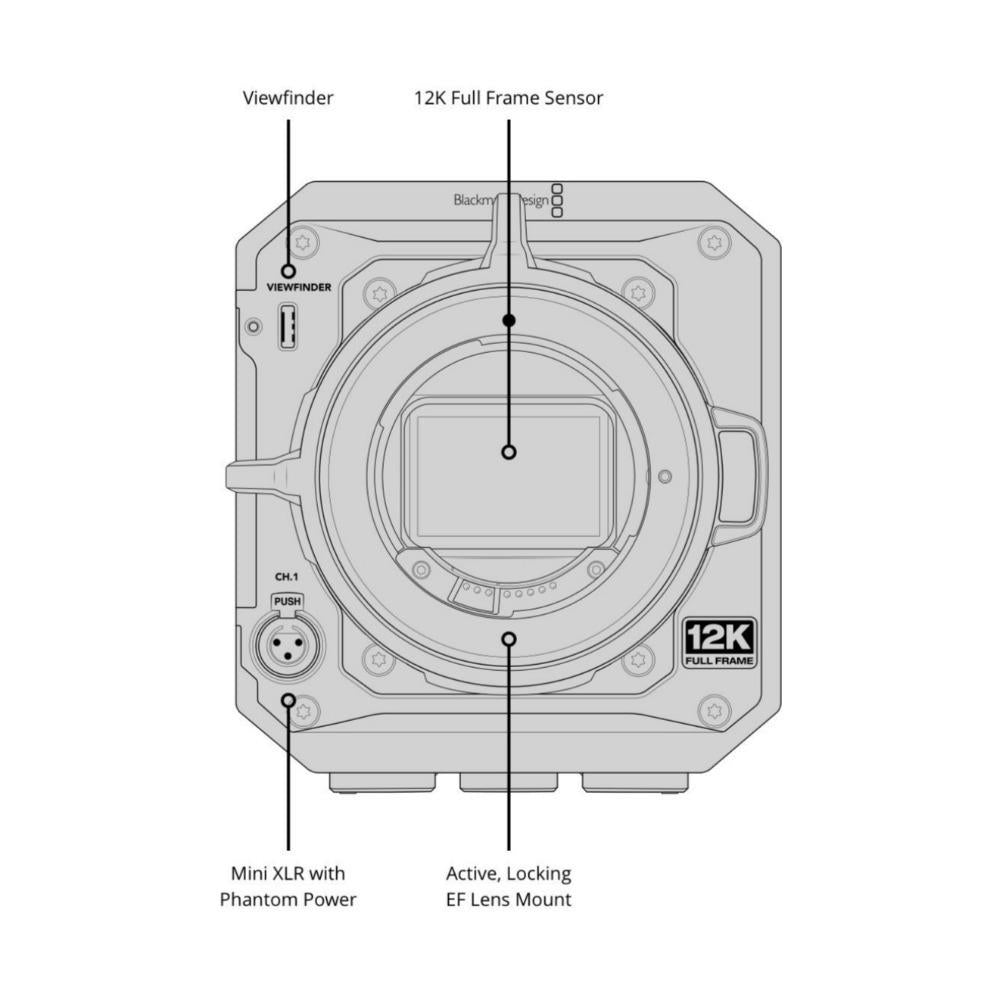

12K Full Frame Sensor
The camera uses a 12,288 x 8040 full frame RGBW sensor with wide format options including open gate and Super 35. This enables high-resolution capture suitable for film, visual effects, and reframing.

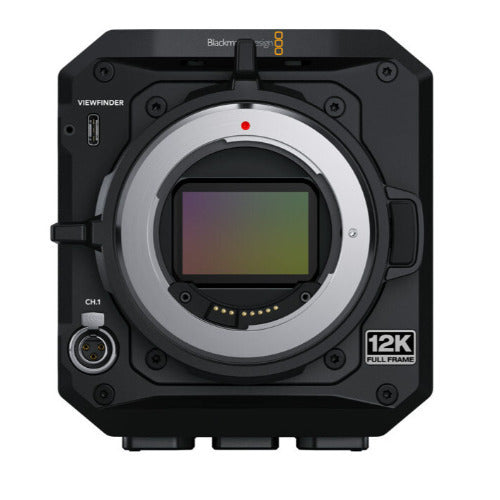

Canon EF Mount Support
The active locking EF mount supports Canon-compatible lenses, enabling access to a wide range of optics for different production scenarios. It is secure and reliable for both photo and cinema lenses.
Extended Dynamic Range
With 16 stops of dynamic range, the PYXIS 12K EF captures more image information across bright and dark areas. This supports better results in color correction and grading.
Dual CFexpress Media Slots
The camera features two CFexpress Type B card slots for high-speed media capture. These support long takes, high-bitrate formats, and efficient file management on set.
High Frame Rates Up to 112 fps
Capture up to 60 fps in 12K or up to 112 fps in 8K/4K. Ideal for cinematic slow motion or fast action scenes with no compromise in image quality.

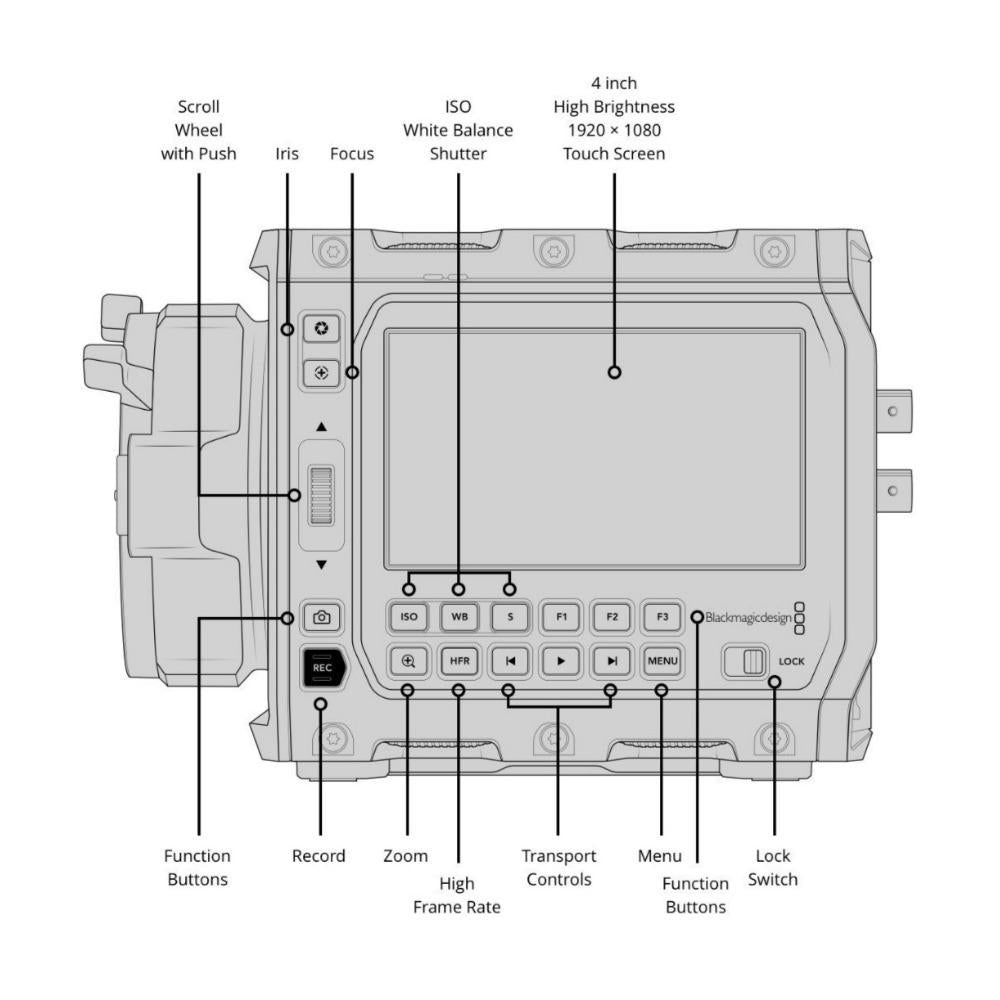

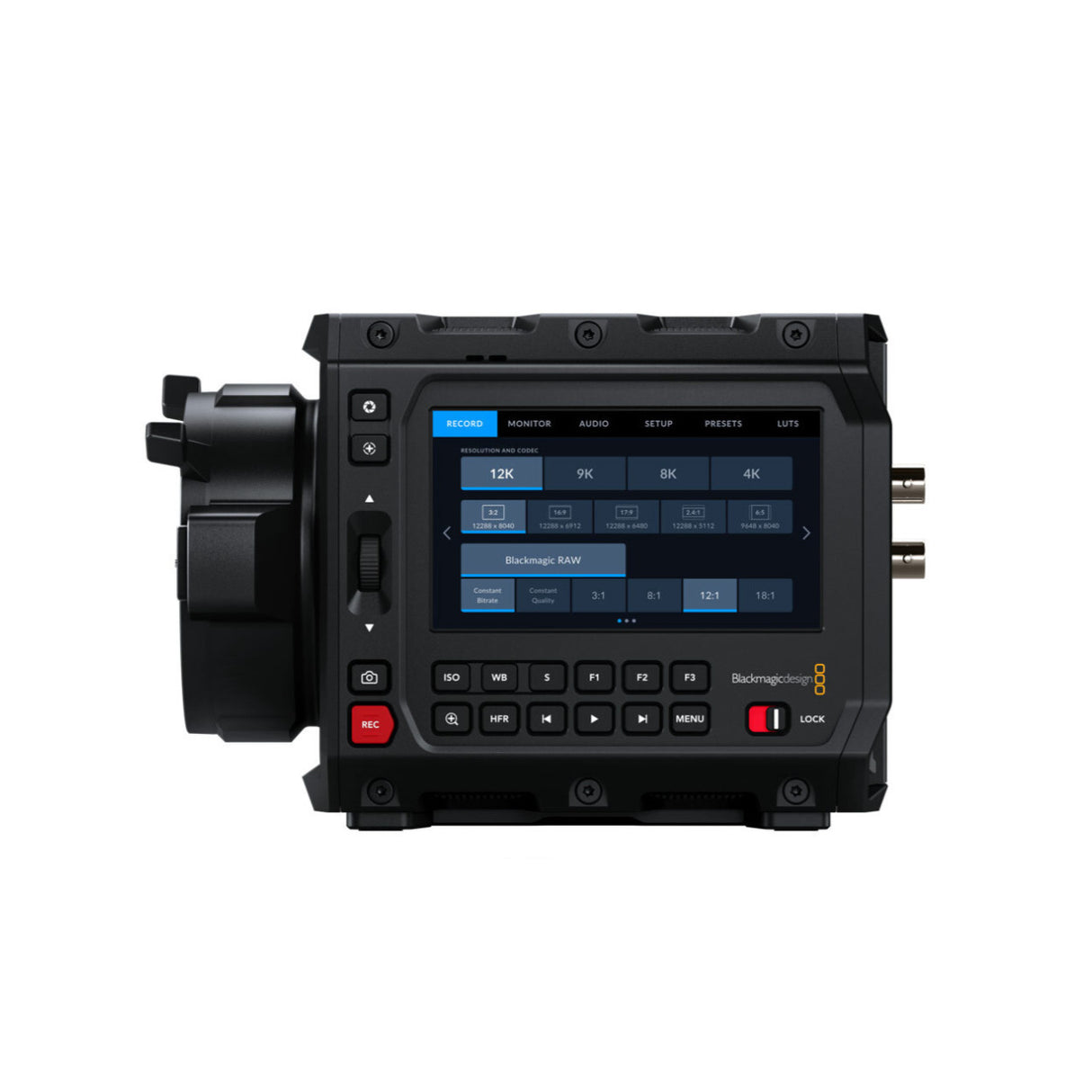

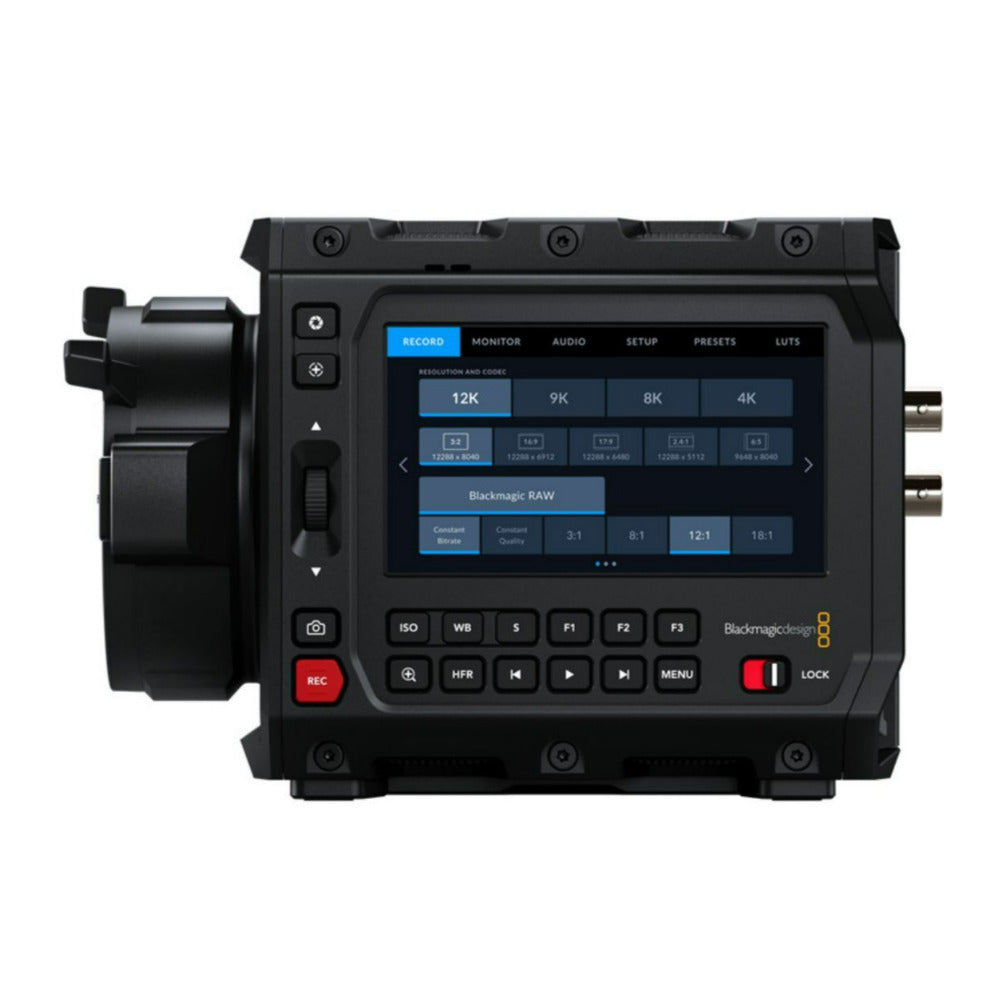

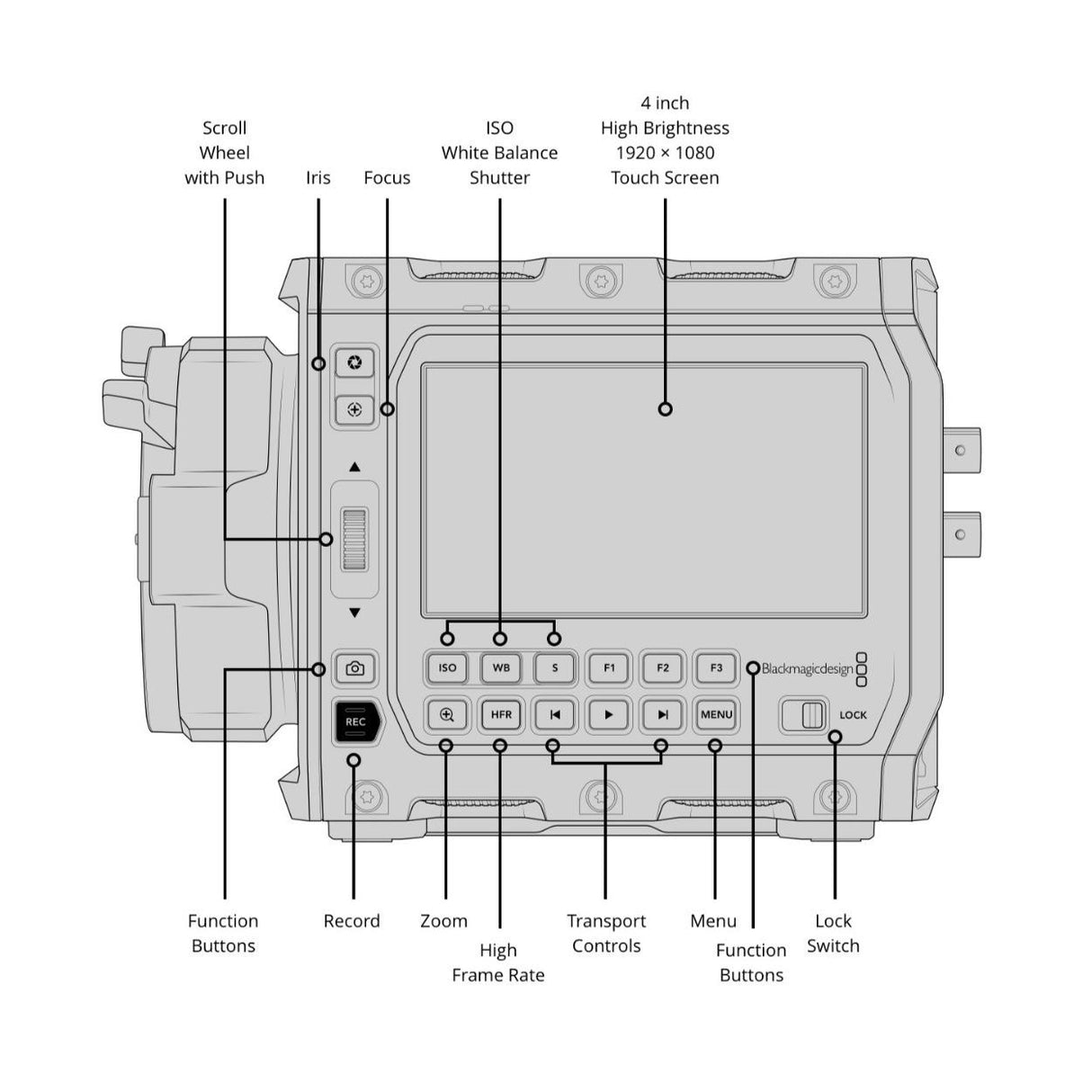

Integrated Touchscreen UI
The 4-inch touchscreen provides fast access to camera controls. Menu navigation, focus assist, and frame guides are available directly on-screen, streamlining the shooting process.

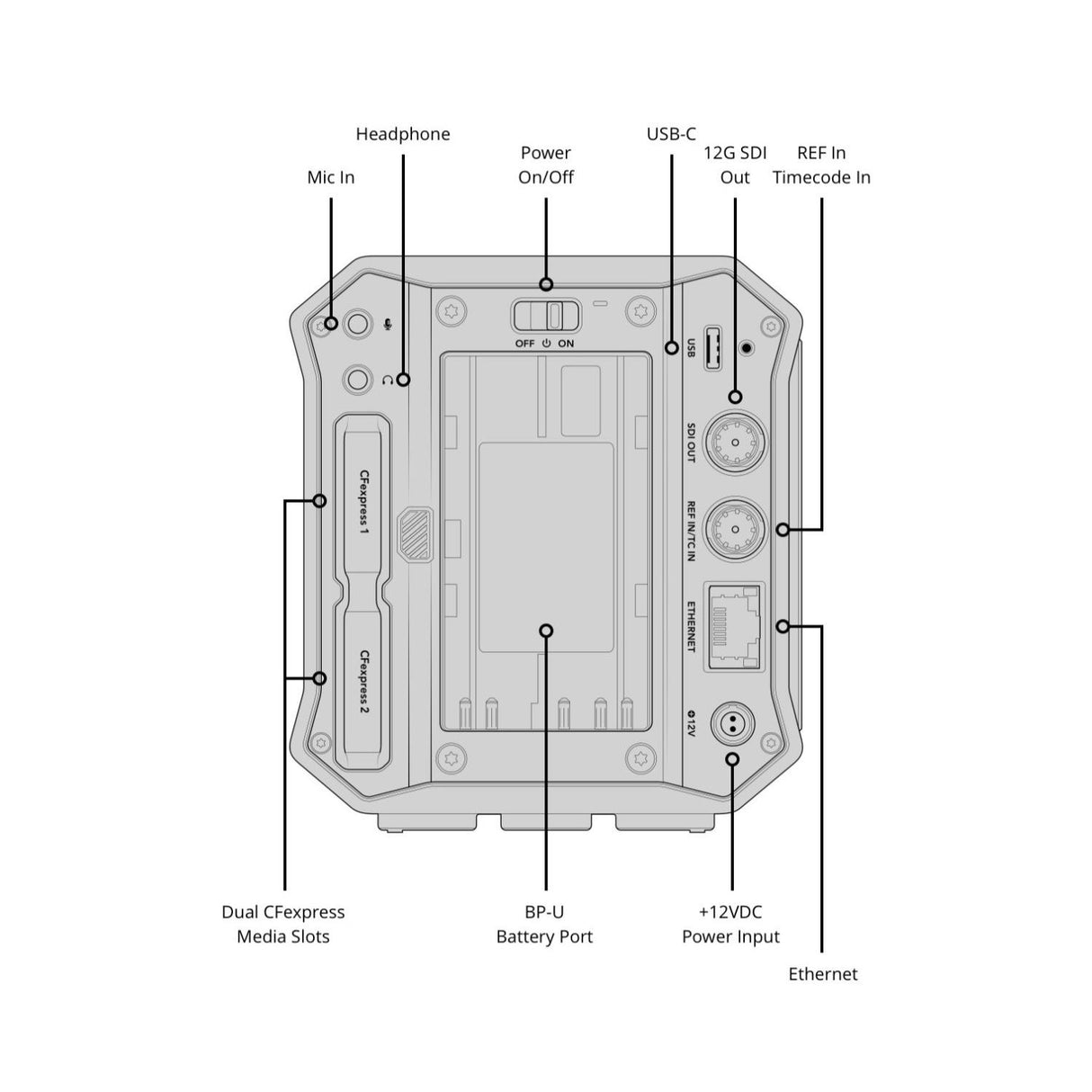

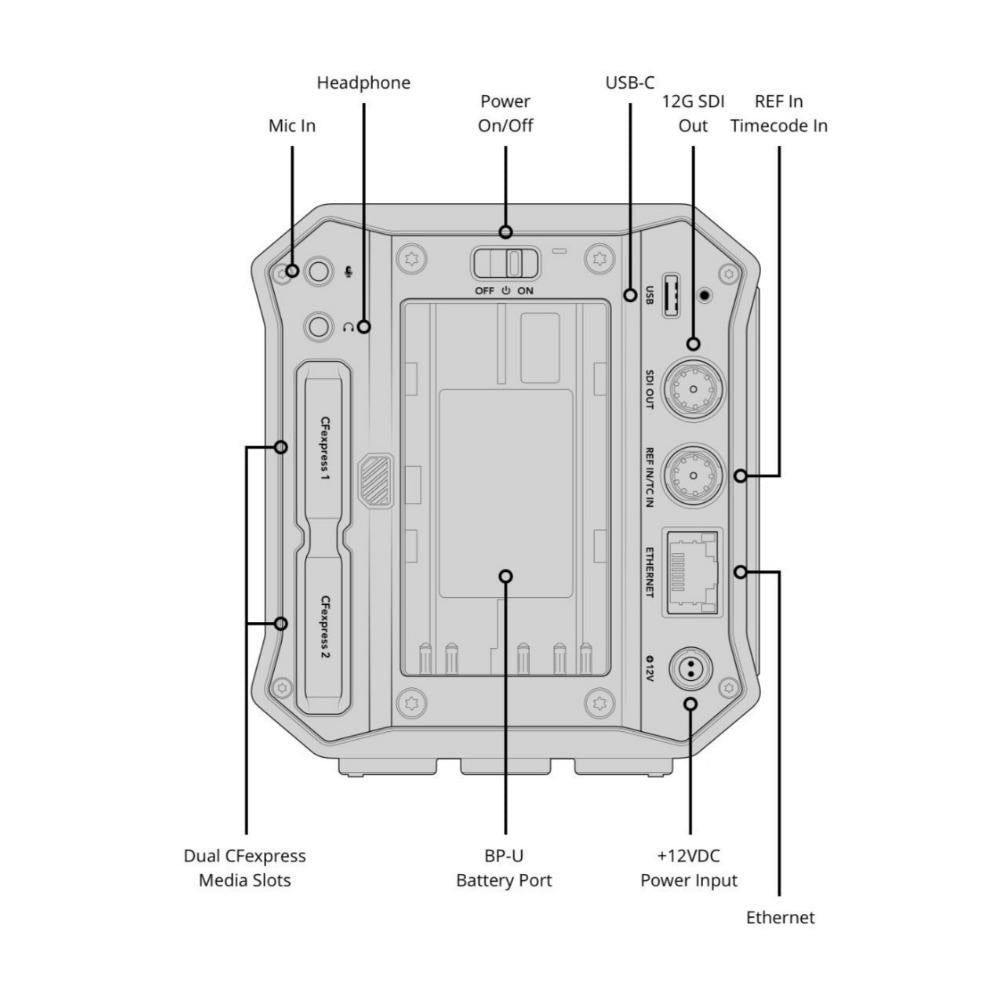

Pro Connections and Media Control
Includes 12G-SDI output, mini XLR audio input, USB-C external media support, and 10G Ethernet for remote file access. These features support flexible and efficient shooting environments.
Flexible Recording Options
Record in Blackmagic RAW (3:1 to 18:1 and Q0–Q5) and H.264 proxy simultaneously. Supports various resolutions and quality settings to match any post-production workflow.
Main
| Configuration | Core |
| Camera Format | 35.64mm x 23.32mm (Large Format) |
| Color | Black |
- 35.64mm x 23.32mm (large format)
- 2.9 microns
- Canon EF mount
- Iris and focus on supported lenses
- 16 Stops
- 800
- 12,288 x 8040 (12K 3:2 open gate)
- 12,288 x 6912 (12K 16:9)
- 12,288 x 6480 (12K 17:9)
- 12,288 x 5112 (12K 2.4:1)
- 9648 x 8040 (12K 6:5)
- 9408 x 6264 (9K 3:2)
- 8688 x 4896 (9K 16:9)
- 9312 x 4896 (9K 17:9)
- 9312 x 3864 (9K 2.4:1)
- 7680 x 6408 (9K 6:5)
- 8192 x 5360 (8K 3:2 open gate)
- 8192 x 4608 (8K 16:9)
- 8192 x 4320 (8K 17:9)
- 8192 x 3408 (8K 2.4:1)
- 6432 x 5360 (8K 6:5)
- 4096 x 2680 (4K 3:2 open gate)
- 4096 x 2304 (4K 16:9)
- 4096 x 2160 (4K 17:9)
- 4096 x 1704 (4K 2.4:1)
- 3216 x 2680 (4K 6:5)
- Project frame rates of 23.98, 24, 25, 29.97, 30, 50, 59.94 and 60 fps supported. Maximum sensor frame rate dependent on resolution selected.
- 12K (3:2 open gate) up to 40 fps
- 12K (16:9) up to 45 fps
- 12K (17:9) up to 50 fps
- 12K (2.4:1) up to 60 fps
- 12K (6:5) up to 40 fps
- 9K (3:2 Super 35) up to 50 fps
- 9K (16:9 Super 35) up to 65 fps
- 9K (17:9 Super 35) up to 65 fps
- 9K (2.4:1 Super 35) up to 80 fps
- 9K (6:5 Super 35) up to 50 fps
- 8K/4K (3:2 open gate) up to 72 fps
- 8K/4K (16:9) up to 84 fps
- 8K/4K (17:9) up to 90 fps
- 8K/4K (2.4:1) up to 112 fps
- 8K/4K (6:5) up to 72 fps
- Auto focus available using compatible lenses.
- 4-inch 1920 x 1080.
- 1500 nits
- LCD capacitive touchscreen.
- Automatically populated lens data from electronic Canon EF Mount lenses. Automatic recording of camera settings, motion sensor data plus slate data such as project, scene number, take and special notes
- A 3D LUT can also be embedded in metadata of Blackmagic RAW files
- Touchscreen menus on 4 inch screen. Push buttons for other controls. 3 assignable shortcut keys.
- Highly accurate timecode clock. Less than 1 frame drift every 8 hours.
- None
- 1 x 12G-SDI up to 2160p60
- 1 x Viewfinder USB-C with power, data, video and locking connector.
- 1 x mini XLR analog audio in, switchable between mic with phantom power support and line level (up to 14dBu).
- 1 x 3.5mm Stereo Input.
- 1 x 3.5mm headphone jack.
- Tri-Sync/Black Burst and Timecode.
- USB Type-C for external drive recording,
- PTP camera control and software updates.
- 1 x 10Gb/s RJ‑45 connector supporting 10/100/1000/10G BASE‑T.
- 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
- 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60
- SMPTE 424M, SMPTE 425M level A and B, SMPTE 2081‑1, SMPTE 2081‑10, SMPTE 2082‑1 and SMPTE 2082‑10
- Television standard sample rate of 48 kHz and 24‑bit
- Integrated stereo microphone
- 1 x mono speaker.
- 2 x CFexpress Type B card slot, 1 x 10 Gbps USB-C port for external media for Blackmagic RAW and H.264 Proxy Recording.
- Can format media to ExFAT (Windows/Mac) or HFS Plus (Mac) file systems.
- Blackmagic RAW Constant Bitrate 3:1,
- Blackmagic RAW Constant Bitrate 5:1,
- Blackmagic RAW Constant Bitrate 8:1,
- Blackmagic RAW Constant Bitrate 12:1,
- Blackmagic RAW Constant Bitrate 18:1,
- Blackmagic RAW Constant Quality Q0,
- Blackmagic RAW Constant Quality Q1,
- Blackmagic RAW Constant Quality Q3,
- Blackmagic RAW Constant Quality Q5,
- H.264 Proxy in 1920 x 1080, 8-bit 4:2:0
- Blackmagic Zoom Demand and Blackmagic Focus Demand for controlling your camera and lens from tripod handles.
- iPad control, Bluetooth control, USB PTP camera control. External control of some camera settings, focus, iris and zoom with compatible lenses. Camera Control REST API over Ethernet.
- Network time protocol support allows you to sync the time on your camera, whenever connected to a network with any NTP server of your choice.
- Using a browser connected over Ethernet, web media manager allows you to access, browse, download and delete files from any drive connected to the camera.
- Download files from any drive attached to your camera using FTP.
- File sharing using SMB
- 2 x CFexpress Type B
- 1 x high speed USB-C expansion port for external media.
- Blackmagic OS
- DaVinci Resolve Studio for Mac and Windows including activation key
- Blackmagic Camera Setup
- Blackmagic RAW Player
- Blackmagic RAW QuickLook Plugin
- Blackmagic RAW SDK
- Blackmagic RAW Speed Test
- 0 degrees to 40 degrees Celsius (32 degrees to 104 degrees Fahrenheit)
Blackmagic Design PYXIS 12K EF Full Frame RGBW Sensor Cinema Camera with 12K Resolution and EF Lens Mount
Camera Features
| Effective Sensor Size | |
| Pixel Pitch | |
| Lens Mount | |
| Lens Control | |
| Dynamic Range | |
| Native ISO | |
| Shooting Resolutions | |
| Frame Rates | |
| High Frame Rates | |
| Focus | |
Iris Control
| Iris wheel and touchscreen slider for manual iris adjustment on electronically controllable lenses, iris button for instant auto iris settings using compatible lenses. | |
| Screen Dimensions | |
| Screen Brightness | |
| Screen Type | |
| Metadata Support | |
| Controls | |
| Timecode Clock | |
| Total Video Inputs | |
| Total Video Outputs | |
| Analog Audio Inputs | |
| Analog Audio Outputs | |
| Reference Inputs | |
| Computer Interface | |
| Ethernet | |
| HD Video Standards | |
| Ultra HD Video Standards | |
| SDI Compliance | |
| SDI Audio Sampling | |
| Microphone | |
| Built in Speaker | |
| Media | |
| Media Format | |
| Codecs | |
| External Control | |
| NTP | |
| Web Media Manager | |
| FTP | |
| SMB | |
| Storage Type | |
| Software Included | |
Power Specifications
| Power Supply | 1 x External 18V DC 90 W power supply |
| External Power Input | 1 x 2‑pin Lemo compatible locking connector |
| Battery Type | BP-U series |
| Power | 12V - 18V |
Physical Specifications
| Height | 4.69 inch (119.1 mm) |
| Width | 4.17 inch (106 mm) |
| Depth | 5.94 inch (150.9 mm) |
| Weight | 3.5 lb (1.59 kg) |
Environmental Specifications
| Operating Temperature | |
| Storage Temperature | -20 degrees to 45 degrees Celsius (-4 degrees to 113 degrees Fahrenheit) |
| Relative Humidity | 0 to 90 percent non-condensing |
