Blackmagic Design SmartScope Duo 4K Rack-Mounted Dual 6G-SDI Monitors
Couldn't load pickup availability
Product highlights
Product highlights
In the box
In the box
Free standard shipping
Free standard shipping
*Orders placed before 1 PM EST Mon - Thur will ship the same day. Orders placed beyond these hours will be shipped the next business day. Exclusions apply. See shipping policy
Free Local Pickup
Free Local Pickup
Please call for store stock availability. Requests made before 2:30 PM EST can be available for next-day pickup. Learn more

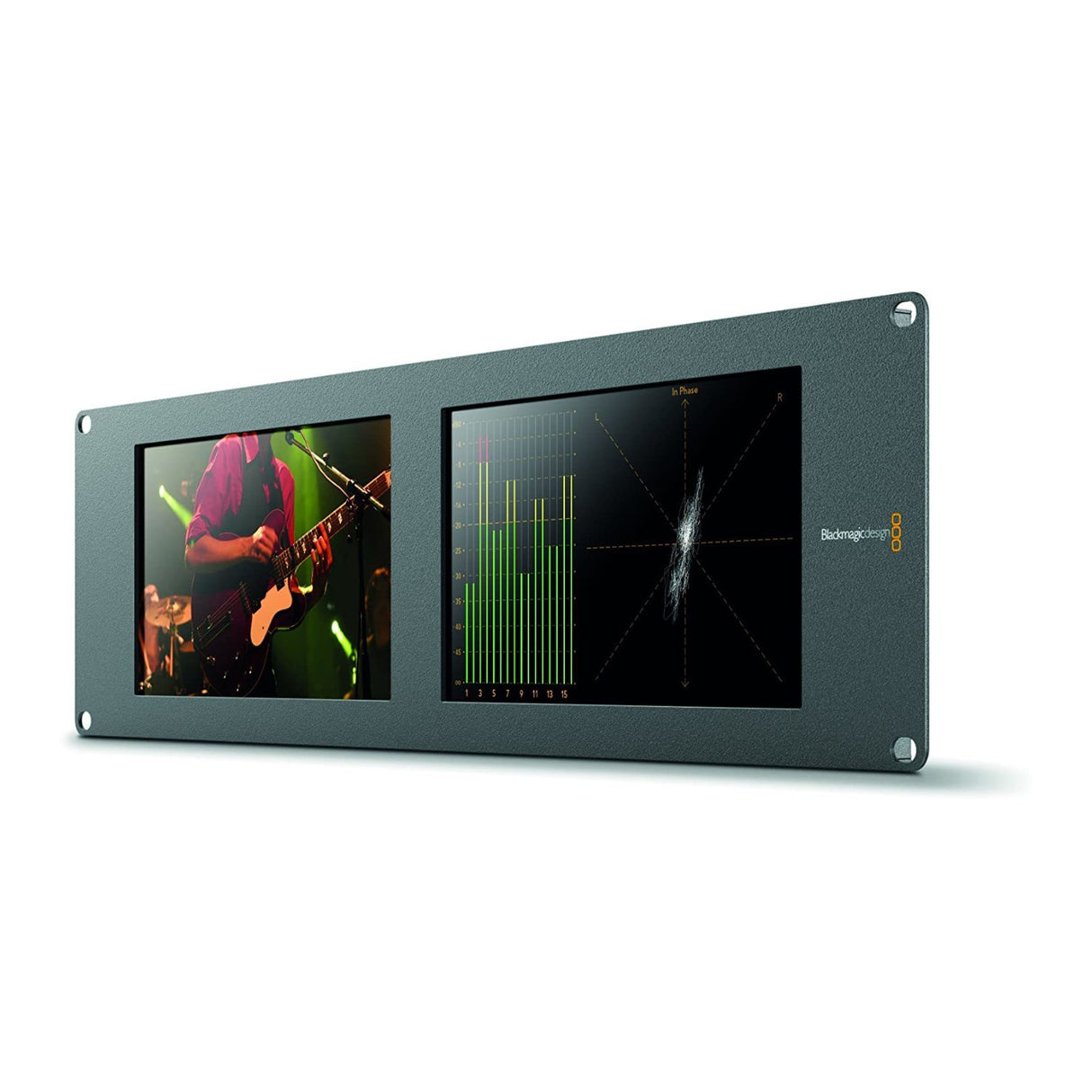

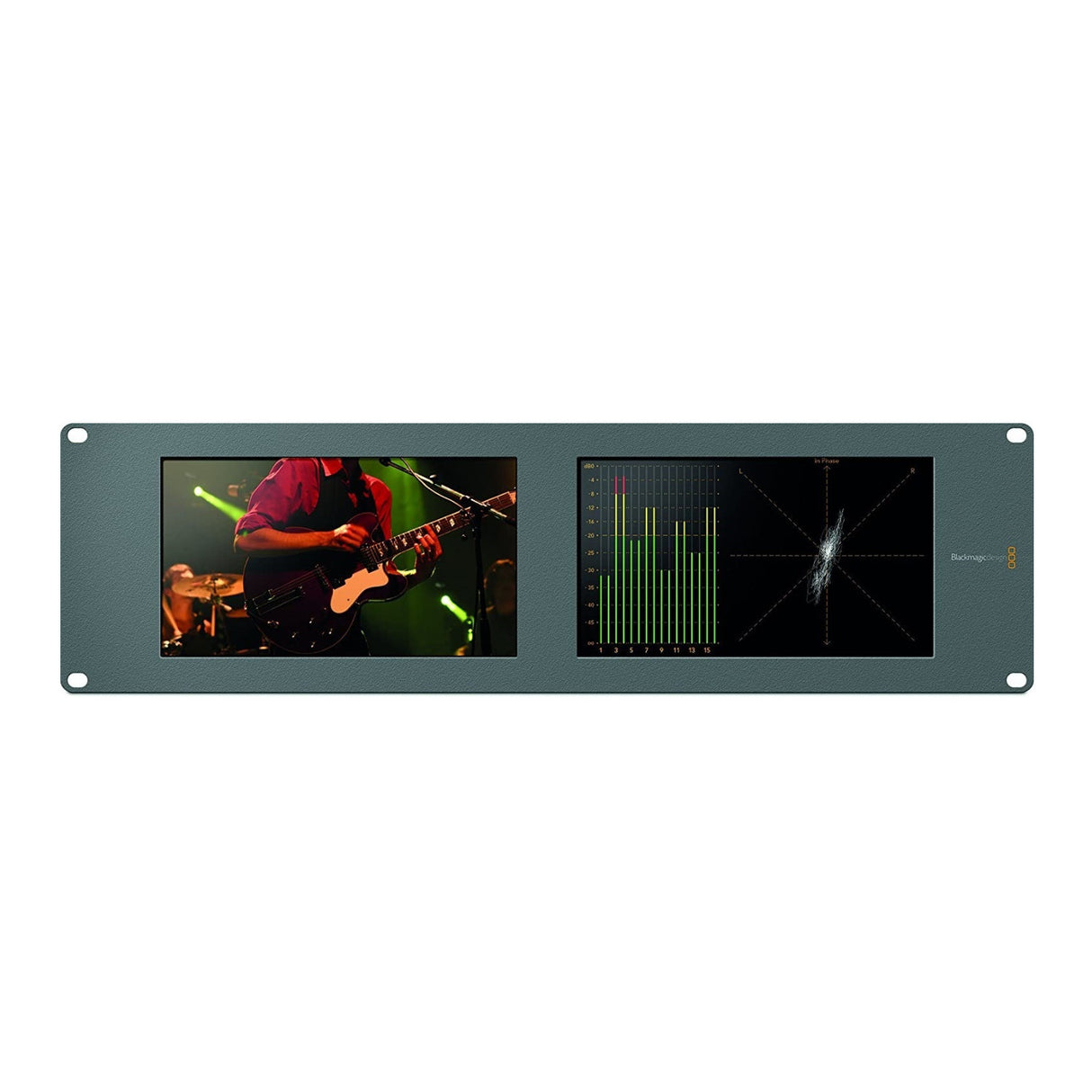

SmartScope Duo 4K looks like a SmartView Duo but adds independent waveform monitoring so you can select between waveform, vectorscope, RGB parade, YUV parade, histogram and audio phase level displays. Each monitor is independent so can display any combination of scope or picture view!
Monitoring anywhere you need it
SmartScope Duo 4K adds independent waveform monitoring and you can select between waveform, vectorscope, RGB parade, YUV parade, histogram and audio phase with audio level displays. Each SmartScope Duo 4K display is independent so you can monitor any combination of scope or picture view!
Accurate Waveform Monitoring
When you need to analyze image quality more accurately than simply looking at the picture then use SmartScope Duo 4K’s built in waveform monitoring! You can view two independent sources simultaneously and conveniently switch between monitoring or scope views whenever you need! Choose from waveform, vectorscope, RGB parade, YUV parade, histogram and audio phase and level displays, and get broadcast accurate waveform monitoring that shows everything you need to know technically about your video and audio signals. SmartScope Duo 4K removes the need for separate expensive scopes!
Ultra Thin Design
SmartView monitors feature an elegant front panel that is designed to allow multiple SmartScope Duo 4K models to be mounted next to each other to create a beautiful wall of monitors that share the same appearance and width! Lightweight and ultra thin, SmartView is perfect for broadcast trucks and fly away kits! When you need to mount SmartView in the extreme top or bottom of an equipment rack, the units can be rotated upside down and the images will automatically flip to provide the optimum viewing angle!
General
| Weight | Not Available |
Blackmagic Design SmartScope Duo 4K Rack-Mounted Dual 6G-SDI Monitors

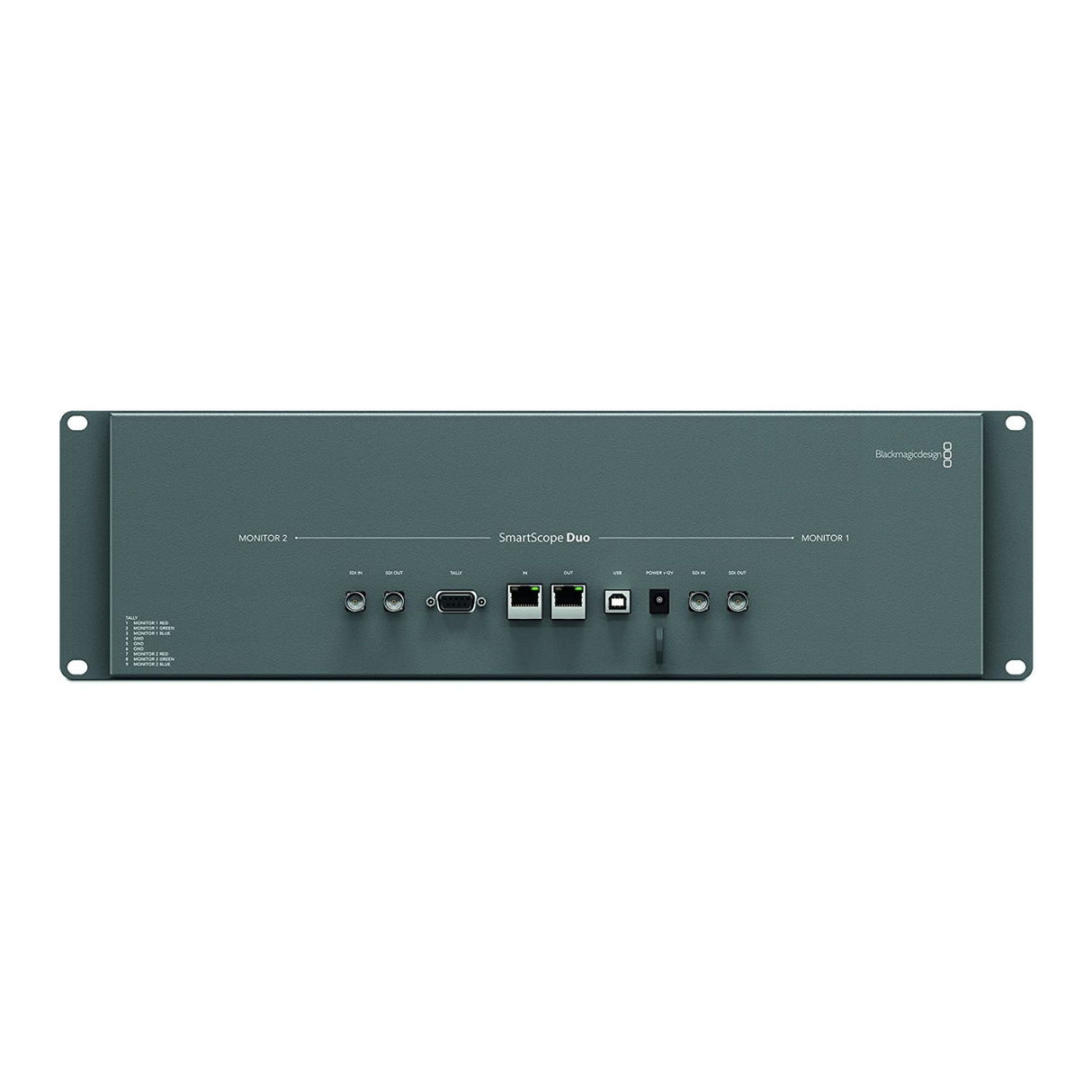

Connections
| SDI video input | Automatically switches between SD, HD and 6G-SDI. Reclocked loop through output |
| SDI video output | 1 x 10 bit loop through SD, HD and |
| 6G-SDI switchable | |
| SDI audio input | 16 channels embedded in SD, HD and UHD |
| SDI audio output | 16 channels embedded in SD, HD and UHD |
| Multi rate support | Standard definition SDI, high definition SDI and 6G-SDI |
| Tally | 9-pin D connector |
Standards
| SD format support | 525i29.97 NTSC, 625i25 PAL |
| HD format support | |
| 720p50, 59.94, 60 | |
| 1080p23.98, 24, 25, 29.97, 30, 50, 59.94, 60 | |
| 1080PsF23.98, 24, 25, 29.97, 30 | |
| 1080i50, 59.94, 60 | |
| 2K format support | |
| 2K DCI 23.98p, 2K DCI 24p, 2K DCI 25p | |
| 2K DCI 23.98PsF, 2K DCI 24PsF, 2K DCI 25PsF | |
| Ultra HD format support | 2160p23.98, 24, 25, 29.97, 30 |
| SDI ompliance | SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 424M Level B and SMPTE 425M. |
| Audio sampling | Television sample rate of 48KHz |
| Video sampling | 4:2:2 and 4:4:4 |
| Color precision | 8-bit |
| Color space | YUV and RGB |
| Computer interface | USB 2.0 for software updates and Ethernet for configuration |
| Colorspace conversion | Hardware based real time |
Scopes
| Luminance Waveform, Vectorscope, RGB Parade, YUV Parade, Histogram, Audio phase and level. |
Software
| Software Included | Configuration utility for MAC and Windows. |
| Internal Software Upgrade | Via included firmware updater software. |
| Physical Installation | 3RU |
Operating Systems
| Mac 10.15 Catalina, Mac 11.1 Big Sur or Later | |
| Windows 10, 64 bit |
Power Requirements
| Power Supply | 12V universal power supply included with international socket adapters for all countries. |
| Power Consumption | < 20 Watts |
| Operational Voltage Range | 12V - 15V |
Physical Specifications
| Dimensions | 19 x 5.2 x 1.3 inch / 48.3 x 13.3 x 3.2 cm |
| Weight | 3.37 lbs |
Environmental Specifications
| Operating Temperature | 0° to 40° C (32° to 104° F) |
| Storage Temperature | -20° to 45° C (-4° to 113° F) |
| Relative Humidity | 0% to 90% non-condensing |
