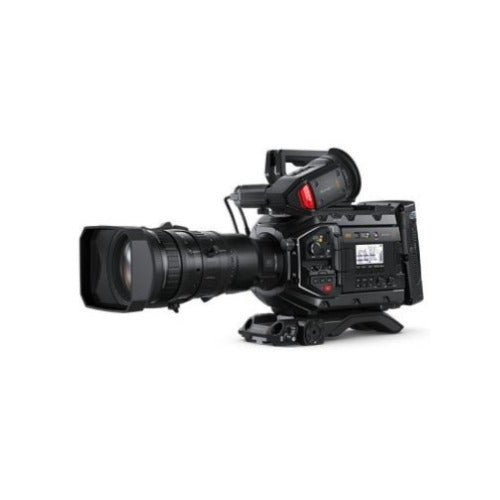

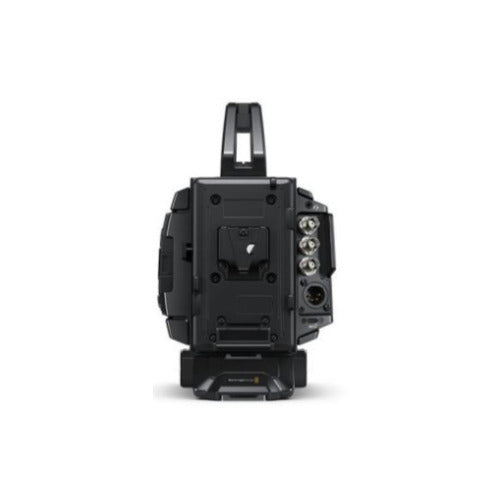

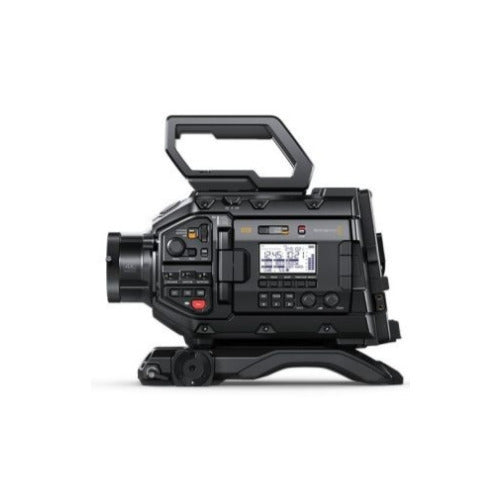

Blackmagic URSA Broadcast G2 Camera
Couldn't load pickup availability
Product highlights
Product highlights
In the box
In the box
Free standard shipping
Free standard shipping
*Orders placed before 1 PM EST Mon - Thur will ship the same day. Orders placed beyond these hours will be shipped the next business day. Exclusions apply. See shipping policy
Free Local Pickup
Free Local Pickup
Please call for store stock availability. Requests made before 2:30 PM EST can be available for next-day pickup. Learn more
The Blackmagic URSA Broadcast G2 Camera is an incredibly powerful camera designed for both traditional and online broadcasters. The 3 cameras in 1 design allow it to work as a 4K production camera, a 4K studio camera, or a 6K digital film camera. You can record to common SD cards, UHS-II cards, CFast 2.0 cards, or external USB disks, using common file formats such as H.265, ProRes, and Blackmagic RAW. You can even change the lens mount. No other broadcast camera is so flexible.
Broadcast Production Camera
The perfect solution for broadcasters, URSA Broadcast G2 includes ENG camera controls positioned around the camera so you can locate them by feel. It also features a low light sensor so you get amazing images using natural light. That's the perfect combination for broadcast news and programming.
Live Studio Camera
The URSA Broadcast includes an advanced YRGB color corrector built-in and full remote camera control. You can use B4 ENG lenses, large studio box lenses, or even change the lens mount and use any lens. Plus the optional Blackmagic focus and zoom demands let you control the lens from the tripod handles.
Digital Cinema Camera
The URSA Broadcast G2 includes an advanced 6K digital film sensor, and you can change the lens mount. Use a PL mount for digital film lenses or EF for photo lenses. Plus the high dynamic range, great low light performance, and Blackmagic RAW means you get a true 'Hollywood' quality digital film camera.
Get Digital Film Quality for Broadcast
The large 6K sensor combined with Blackmagic generation 5 color science gives you the same imaging technology used in digital film cameras. This means broadcasters can now use digital cinema quality in the broadcast. The 6K sensor features a resolution of 6144 x 3456 so it's flexible enough for broadcast and digital film work. When using B4 lenses, you get a 4K window of the sensor for Ultra HD broadcast use. Then if you change to a PL or EF lens mount, you can use the full 6K resolution of the sensor for the digital film. With 13 stops of dynamic range, you get darker blacks and brighter whites, so it's perfect for color correction.
Exceptional Low Light Performance
The new URSA Broadcast features incredible low light performance so you can shoot using ambient light or even under the moonlight! In advanced cameras, ISO is a measurement of the image sensor’s sensitivity to light. The Blackmagic URSA Broadcast G2 features gain from -12dB (100 ISO) up to +36dB (25,600 ISO) so it's optimized to reduce grain and noise in images while maintaining the full dynamic range of the sensor. The primary native ISO is 400, which is ideal for use under studio lighting. Then the secondary high base ISO of 3200 is perfect when shooting in dimly lit environments. The gain can be set via a camera switch, the LCD menu or remotely using the SDI remote camera control protocol.
Compatible with B4 Broadcast Lenses
The URSA Broadcast G2 features a B4 broadcast lens mount that includes optics specifically designed to match the camera’s sensor. The B4 lens mount lets you use modern Ultra HD lenses or lower cost HD lenses. Older HD lenses often feature resolutions well beyond HD, so you get great quality at low cost. The B4 lenses are fantastic because they are par-focal, so the image stays in focus as you zoom in and out, so you don't need to constantly chase focus as you shoot. That lets you work much faster! You also get full electronic lens control to adjust focus, iris and zoom using the camera’s controls, or remotely! Plus if you want to use alternative lenses, you can change the mount to PL, EF and more.
EVF
| Viewfinder Size | Not Available |
| Viewfinder Resolution | Not Available |
Camera
| Built-In ND Filter | Four position ND filter wheel with clear, 2 stop, 4 stop and 6 stop ND filters |
| Built-In Microphone type | Stereo |
| Memory Card Slot | No Slot Available |
Lens
| Minimum Focus Distance | Not Available |
Recording
| Recording Modes | Not Available |
| Variable Frame Rates | 23.98, 24, 25, 29.97, 30, 50, 59.94, 60, 120, 150 fps |
- Apple ProRes 422 HQ,
- Apple ProRes 422,
- H.265 SDI (10-bit 4:2:2),
- H.265 High (10-bit 4:2:0),
- H.265 Medium (10-bit 4:2:0),
- H.265 Low (10-bit 4:2:0),
- H.264 SDI (10-bit 4:2:2),
- H.264 High (8-bit 4:2:0),
- H.264 Medium (8-bit 4:2:0),
- H.264 Low (8-bit 4:2:0),
- Blackmagic RAW Constant Bitrate 3:1
- Blackmagic RAW Constant Bitrate 5:1
- Blackmagic RAW Constant Bitrate 8:1
- Blackmagic RAW Constant Bitrate 12:1
- Blackmagic RAW Constant Quality Q0
- Blackmagic RAW Constant Quality Q1
- Blackmagic RAW Constant Quality Q3
- Blackmagic RAW Constant Quality Q5
- 2 x CFast 2.0
- 2 x SD UHS‑II cards
- 1 x high speed USB‑C expansion port for external media.
- 2.5 inch SSD using optional URSA Mini Recorder
- Storage rates based on 30 frames per second
- Blackmagic OS
- DaVinci resolve studio for Mac and Windows including activation key
- Blackmagic camera setup
- Blackmagic RAW player
- Blackmagic RAW QuickLook plugin
- Blackmagic RAW SDK
- Blackmagic RAW speed test
- 1 x 4-Pin XLR port for external mains power supply or battery use.
- 1 x 12-Pin Molex connector under rear battery plate
- +12V 4-pin XLR regulated output on side of camera
- +12V D-Tap regulated output on VLock battery plate
- Blackmagic URSA viewfinder
- Blackmagic URSA studio viewfinder
- Blackmagic Camera fiber converter
- Blackmagic studio fiber converter
- Blackmagic URSA mini Pro PL mount
- Blackmagic URSA mini Pro F mount
- Blackmagic URSA mini mic mount
- Blackmagic URSA mini recorder
- Blackmagic URSA gold battery plate
Blackmagic URSA Broadcast G2 Camera
Effective Sensor Size
| 2/3-Inch sensor size when using 4K B4 mount | |
| (Actual sensor size 23.10mm x 12.99mm) |
Lens Mount
| B4 2/3 inch installed | |
| Active EF mount also included |
Lens Control
| Electronic control via 12-pin broadcast connector. Control via EF mount pins when using URSA Mini Pro EF Mount with compatible EF lenses. |
Lens Correction
| In-camera correction of color fringing when using compatible broadcast lenses |
Dynamic Range
| 13 Stops |
Dual Native ISO
| 0dB and 18dB gain |
Sensitivity at 0dB gain
| f11 with 2160p59.94. | |
| f12 with 2160p50. | |
| at 2,000 lux with 89.9% reflectance. | |
| additional 1.1 stop light loss using 4K B4 mount. |
Signal to Noise Ratio
| 64.62dB for 2160p | |
| Ultra HD scaled from 5.3K |
Built in ND Filters
| Four position ND filter wheel with clear, 2 stop, 4 stop and 6 stop ND filters |
Focus
| Focus button triggers auto focus when using compatible lenses with focus servo. Touch and hold on LCD determines focus region and triggers auto focus |
Iris Control
| Iris wheel and touchscreen slider for manual iris adjustment on electronically controllable lenses, iris button for instant auto iris settings on compatible lenses so no pixel is clipped in film mode. Scene average auto exposure in video and extended video mode |
Screen Dimensions
| 4-Inch |
Screen Type
| LCD capacitive touchscreen |
Controls
| Touchscreen menus on 4 inch screen. Push buttons for other controls. 3 assignable shortcut keys and 2 assignable shortcut keys (VTR and RET) on compatible broadcast lenses |
ProRes Shooting Resolutions and Frame Rates
| 3840 x 2160 (Ultra HD) up to 60 fps | |
| From ultra HD window or scaled from 5.3Kwindowed sensor | |
| 3840 x 2160 (Ultra HD) up to 50 fps | |
| Scaled from full sensor | |
| 1920 x 1080 (HD) up to 120 fps | |
| Scaled from 2.7K windowed sensor | |
| 1920 x 1080 (HD) up to 60 fps | |
| Scaled from Ultra HD or 5.3K windowed sensor | |
| 1920 x 1080 (HD) up to 50 fps | |
| Scaled from full sensor |
H.265 Shooting Resolutions and Frame Rates
| 3840 x 2160 (Ultra HD) up to 60 fps | |
| from Ultra HD window or scaled from 5.3Kwindowed sensor | |
| 3840 x 2160 (Ultra HD) up to 50 fps | |
| scaled from full sensor |
H.264 Shooting Resolutionsand Frame Rates
| 1920 x 1080 (HD) up to 60 fps | |
| scaled from Ultra HD or 5.3K windowed sensor | |
| 1920 x 1080 (HD) up to 50 fps | |
| scaled from full sensor |
Blackmagic RAW Shooting Resolutions and Frame Rates
| 6144 x 3456 (6K) up to 50 fps | |
| 6144 x 2560 (6K 2.4 | 1) up to 60 fps |
| 5376 x 3024 (5.3K 16 | 9) up to 60 fps |
| 3728 x 3104 (3.7K 6 | 5 anamorphic) up to 60 fps |
| 3840 x 2160 (Ultra HD) up to 60 fps | |
| 1920 x 1080 (HD) up to 150 fps |
Project Frame Rates
| 23.98, 24, 25, 29.97, 30, 50, 59.94 and 60 fps. | |
| Off-speed frame rates up to 60p in ultra HD and up to 150p in HD |
Metadata Support
| Automatically populated lens data from electronic B4 lenses. Automatic recording of camera settings and slate data such as project, scene number, take and special notes |
Timecode Clock
| Highly accurate timecode clock. Less than 1 frame drift every 8 hours |
Connections
| SDI video inputs | 1 |
| SDI video outputs | 1 |
| SDI monitor outputs | 1 |
| SDI rates | 1.5G, 3G, 6G, 12G |
| Analog Audio Inputs | 2 x XLR switchable between mic, line and AES digital audio. Phantom power support |
| Analog audio outputs | 1 x 3.5mm headphone jack, supports iPhone style headset for talkback |
| Reference inputs | Tri-sync/black burst/timecode |
| Lens control | 1 x 12-pin hirose broadcast lens connector |
| Remote control | 1 x 2.5mm LANC input for Rec start/stop, plus Iris and focus control using compatible lenses |
| Computer interface | 1 x USB Type‑C 3.1 Gen 2 with power delivery for external drive recording and connecting Blackmagic focus and zoom demand. 1 x USB Type‑C for software updates. |
Audio
| Microphone | Integrated stereo microphone |
| Built in speaker | 1 x Mono speaker |
Standards
| SD video standards | None |
| HD video standards | 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 1080i50, 1080i59.94, 1080i60 |
| Ultra HD video standards | 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60 |
| SDI compliance | SMPTE 292M, SMPTE 424M, SMPTE 425M level A and B, SMPTE 2081‑1, SMPTE 2081‑10, SMPTE 2082‑1 and SMPTE 2082‑10 |
| SDI audio sampling | 48 kHz and 24 bit |
Media
| Media | 2 x CFast 2.0 card slots, 2 x SD UHS‑II card slots, 1 x USB‑C 3.1 Gen 2 expansion port with power delivery for recording to external media |
| Media format | Can format media to ExFAT for Windows and Mac or HFS+ for Mac (file systems) |
Supported Codecs
| Codecs | |
Control
| External control | Lens control of compatible lenses using Blackmagic Zoom Demand and Blackmagic Focus Demand, Blackmagic SDI Control Protocol, iPad control via Bluetooth, 1 x 2.5mm LANC for lens and record control |
Color Corrector
| Color corrector | DaVinci YRGB |
Talkback and Tally
| Talkback | SDI Channels 15/16 and iPhone headset |
| Live tally indicator | Tally on LCD, URSA viewfinder and URSA studio viewfinder |
Storage Features
| Storage type | |
| Storage rates | |
| 6144 x 3456 (6K) | |
| Blackmagic RAW 3 | 1 - 323 MB/s |
| Blackmagic RAW 5 | 1 - 194 MB/s |
| Blackmagic RAW 8 | 1 - 121 MB/s |
| Blackmagic RAW 12 | 1 - 81 MB/s |
| Blackmagic RAW Q0 - 242 to 483 MB/s | |
| Blackmagic RAW Q1 - 162 to 387 MB/s | |
| Blackmagic RAW Q3 - 108 to 277 MB/s | |
| Blackmagic RAW Q5 - 65 to 162 MB/s | |
| 6144 x 2560 (6K 2.4 | 1) |
| Blackmagic RAW 3 | 1 - 240 MB/s |
| Blackmagic RAW 5 | 1 - 144 MB/s |
| Blackmagic RAW 8 | 1 - 90 MB/s |
| Blackmagic RAW 12 | 1 - 60 MB/s |
| Blackmagic RAW Q0 - 180 to 359 MB/s | |
| Blackmagic RAW Q1 - 120 to 287 MB/s | |
| Blackmagic RAW Q3 - 80 to 205 MB/s | |
| Blackmagic RAW Q5 - 49 to 120 MB/s | |
| 5376 x 3024 (5.3K 16 | 9) |
| Blackmagic RAW 3 | 1 - 248 MB/s |
| Blackmagic RAW 5 | 1 - 149 MB/s |
| Blackmagic RAW 8 | 1 - 94 MB/s |
| Blackmagic RAW 12 | 1 - 63 MB/s |
| Blackmagic RAW Q0 - 186 to 371 MB/s | |
| Blackmagic RAW Q1 - 125 to 297 MB/s | |
| Blackmagic RAW Q3 - 84 to 213 MB/s | |
| Blackmagic RAW Q5 - 51 to 125 MB/s | |
| 3728 x 3104 (3.7K 6 | 5 anamorphic) |
| Blackmagic RAW 3 | 1 - 177 MB/s |
| Blackmagic RAW 5 | 1 - 106 MB/s |
| Blackmagic RAW 8 | 1 - 67 MB/s |
| Blackmagic RAW 12 | 1 - 45 MB/s |
| Blackmagic RAW Q0 - 133 to 265 MB/s | |
| Blackmagic RAW Q1 - 89 to 212 MB/s | |
| Blackmagic RAW Q3 - 60 to 152 MB/s | |
| Blackmagic RAW Q5 - 36 to 89 MB/s | |
| 3840 x 2160 (Ultra HD) | |
| Apple ProRes 422 HQ - 110 MB/s | |
| Apple ProRes 422 - 73.6 MB/s | |
| H.265 SDI - 12.3 MB/s | |
| H.265 High - 10.8 MB/s | |
| H.265 Medium - 7.8 MB/s | |
| H.265 Low - 3.2 MB/s | |
| Blackmagic RAW 3 | 1 - 127 MB/s |
| Blackmagic RAW 5 | 1 - 77 MB/s |
| Blackmagic RAW 8 | 1 - 48 MB/s |
| Blackmagic RAW 12 | 1 - 32 MB/s |
| Blackmagic RAW Q0 - 96 to 190 MB/s | |
| Blackmagic RAW Q1 - 64 to 153 MB/s | |
| Blackmagic RAW Q3 - 43 to 109 MB/s | |
| Blackmagic RAW Q5 - 26 to 64 MB/s | |
| 1920 x 1080 | |
| Apple ProRes 422 HQ - 27.5 MB/s | |
| Apple ProRes 422 - 18.4 MB/s | |
| H.264 SDI - 7.0 MB/s | |
| H.264 High - 5.6 MB/s | |
| H.264 Medium - 3.2 MB/s | |
| H.264 Low - 1.8 MB/s | |
| Blackmagic RAW 3 | 1 - 19 MB/s |
| Blackmagic RAW 5 | 1 - 12 MB/s |
| Blackmagic RAW 8 | 1 - 7.8 MB/s |
| Blackmagic RAW 12 | 1 - 5.2 MB/s |
| Blackmagic RAW Q0 - 23 to 47 MB/s | |
| Blackmagic RAW Q1 - 16 to 37 MB/s | |
| Blackmagic RAW Q3 - 10 to 27 MB/s | |
| Blackmagic RAW Q5 - 6 to 16 MB/s |
Recording Formats
| Apple ProRes 3840 x 2160 and 1920 x 1080 with film,video or extended video dynamic range or custom 3D LUT | |
| H.265 3840 x 2160 with film, video or extended video dynamic range or custom 3D LUT. | |
| H.264 1920 x 1080 with film, video or extended video dynamic range or custom 3D LUT. | |
| Blackmagic RAW Q0, Q1, Q3, Q5, 3 | 1, 5:1, 8:1 and 12:1 at 6144 x 3456, 6144 x 2560, 5376 x 3024, 3728 x 3104, 3840 x 2160, 1920 x 1080 recorded in non-linear 12 bit with film dynamic range and extended video, video or custom 3D LUT embedded in metadata |
Software
| Software Included | |
Power Requirements
| Power supply | 1 x External 12V DC 100W power supply with 100 - 240V AC 50/60Hz IEC C14 input |
| External power input | |
| Power output | |
| Power | Rear camera mount compatible with industry standard V-mount or gold mount battery plates |
Accessories
| Optional accessories |
Environmental Specifications
| Operating temperature | 0 to 40-degree-C (32 to 104-degree-F) |
| Storage temperature | -20 to 45-degree-C (-4 to 113-degree-F) |
| Relative Humidity | 0 to 90-degree non-condensing |
Frequently Asked Questions
How do I return an item?
How do I return an item?
Returns are incredibly simple. Please log into your account, find your item you wish to return and follow the prompts to make a return. If you do not have an account, click here to find your order and make a return.
Will I receive a full refund when I return an item?
Will I receive a full refund when I return an item?
You will receive a full refund when you return an item in its original manufacturer’s packaging, undamaged and unmarked. If the item you are returning is priced at less than $35, you will be charged a 15% restocking fee. Please note you will not be refunded any shipping charges.
How many days do I have to make a return?
How many days do I have to make a return?
You have 30 days to make a return. During the holiday season, from November 1 to December 31, we extend the return window to 60 days.
My item was damaged in transit. How do I place a return?
My item was damaged in transit. How do I place a return?
If your order has been noticeably damaged in transit, we strongly recommend that you refuse delivery and notify us immediately. Claims for missing items or items damaged in transit must be made within 48 hours of delivery. If there is carrier damage, please contact support@focuscamera.com with your order number and a description of the damage.
There’s an issue with my order, what should I do?
There’s an issue with my order, what should I do?
Oh no! Please contact our customer service team so we can resolve the issue immediately. You can call us on 1.800.221.0828, email us at support@focuscamera.com, or send us a message here.
Can I exchange an item?
Can I exchange an item?
We do not currently offer exchanges. Please return the item you purchased within 30 days and order what you’d like instead.
If I ordered a kit, do I have to return all the items?
If I ordered a kit, do I have to return all the items?
If you ordered a kit, you must return all components and accessories to receive a full refund.
I ordered a product that included a free item. I’d like to return it, do I need to return the free item as well?
I ordered a product that included a free item. I’d like to return it, do I need to return the free item as well?
If you ordered a product that included a free item, you must include the free item with your return. If not, your return will not be accepted and you will not receive a full refund.
Do you offer repairs?
Do you offer repairs?
We currently only offer camera repairs at our Brooklyn store. The item must be dropped off and collected in person as we do not accept shipped items for repair. For more information, please call our Brooklyn store on 1.718.431.7900.
What is your return policy?
What is your return policy?
Most items can be returned within 30 days for a full refund. Click here to read our full return policy.
