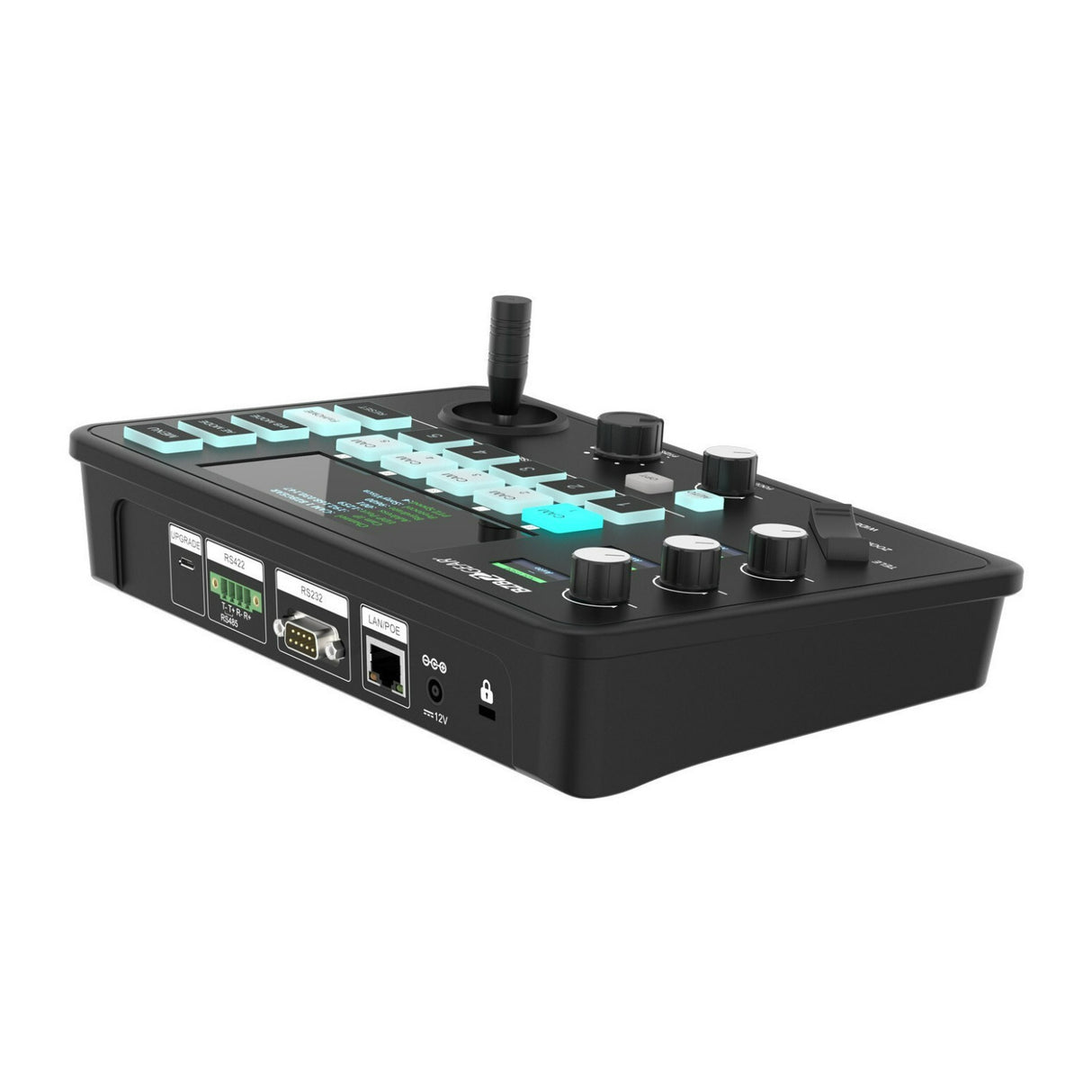

BZBGear Universal Compact Serial and IP PTZ Camera Joystick Controller (IP/RS232/422)
Couldn't load pickup availability
Product highlights
Product highlights
In the box
In the box
Free standard shipping
Free standard shipping
*Orders placed before 1 PM EST Mon - Thur will ship the same day. Orders placed beyond these hours will be shipped the next business day. Exclusions apply. See shipping policy
Free Local Pickup
Free Local Pickup
Please call for store stock availability. Requests made before 2:30 PM EST can be available for next-day pickup. Learn more

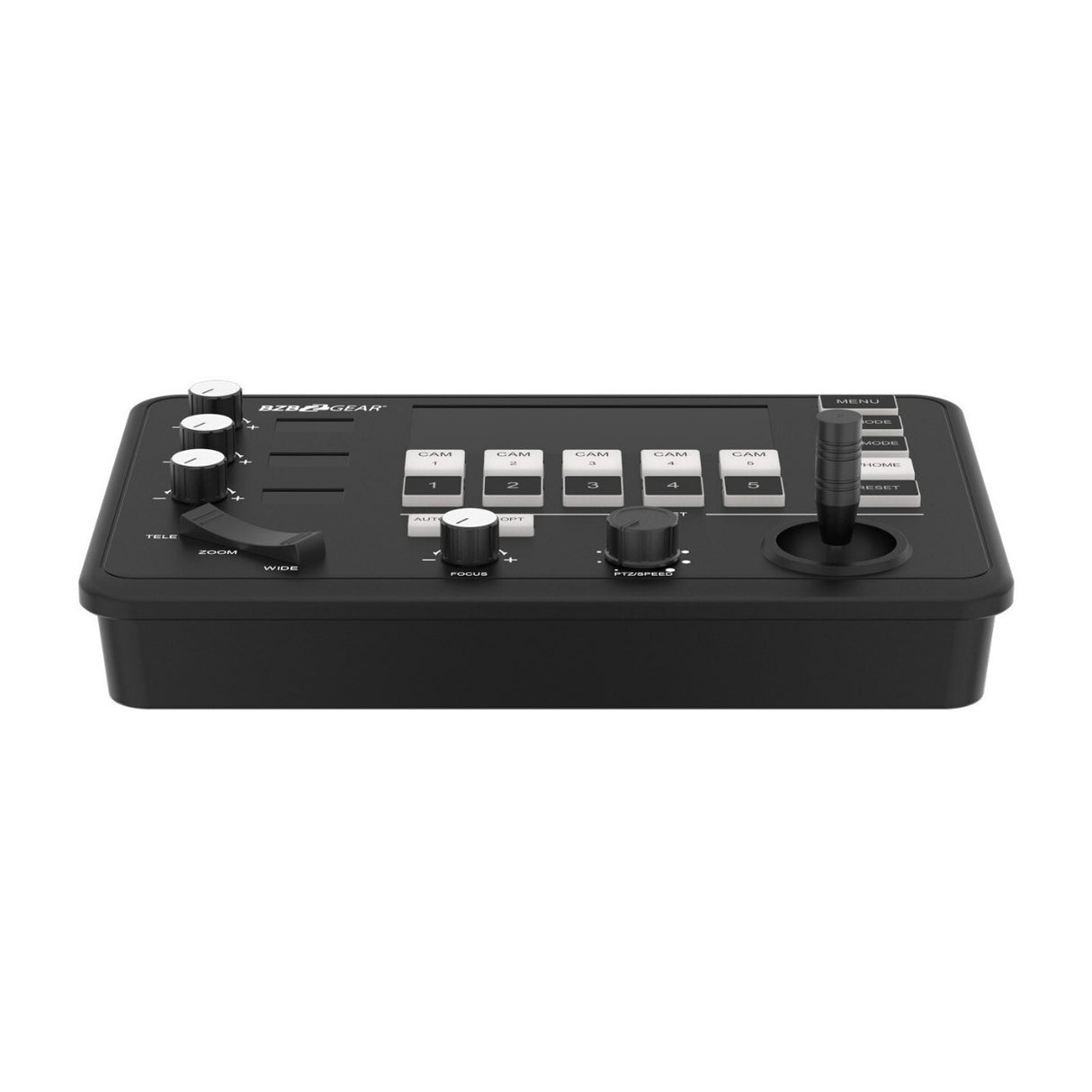

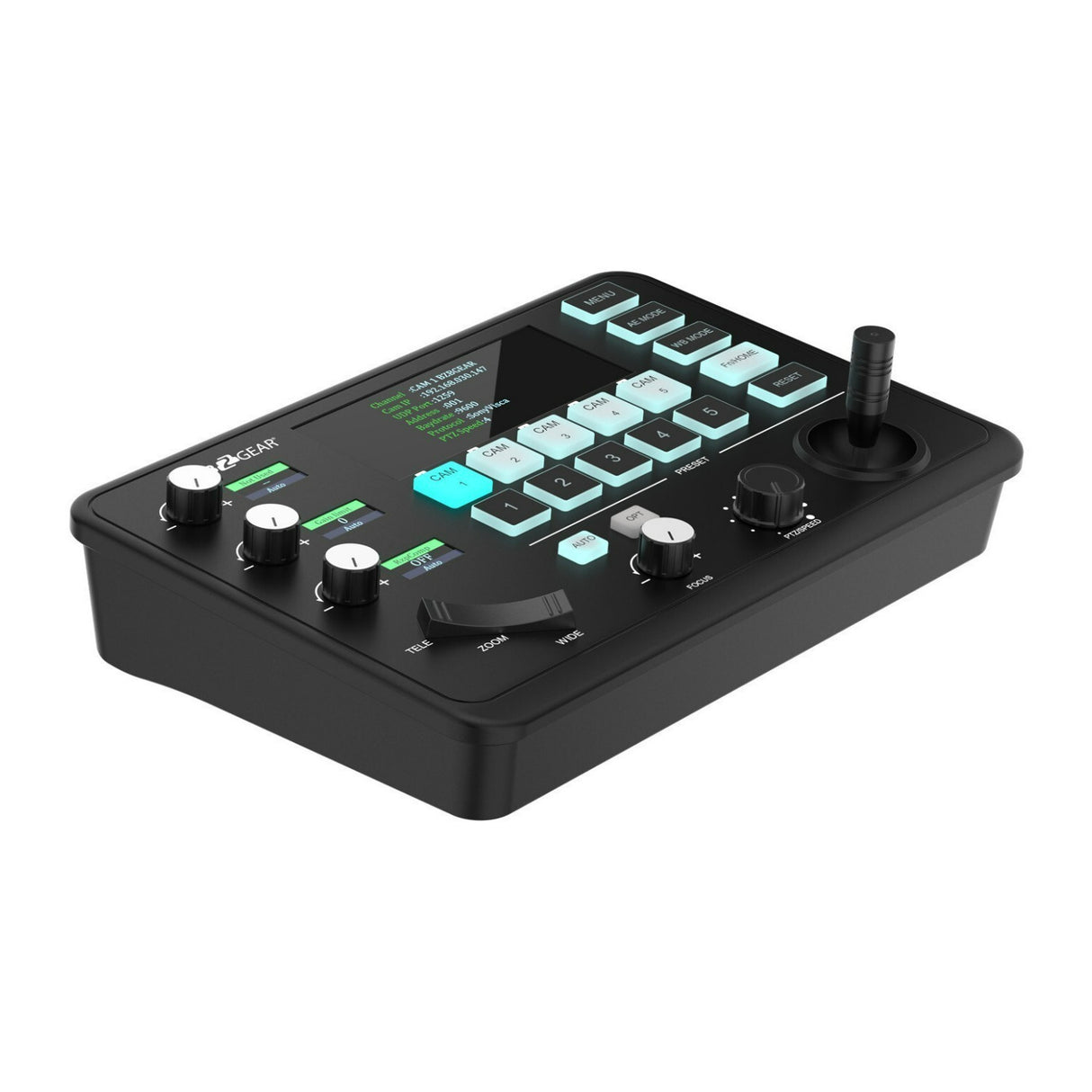

The BZBGear BG-Commander-Jr is a compact professional-grade joystick controller. The 2-axis joystick and zoom bridge key design provide refined control, durability, and stability. The responsive silicone buttons are backlit for a comfortable user experience in low-light environments.
Simultaneous Communication and System Compatibility
The BZBGear BG-Commander-Jr joystick controller is designed for simultaneous communication and system compatibility with its integrated VISCA, UDP, and PELCO P/D control protocols in addition to RS232, RS422/RS485, and IP(UDP) interfaces.
Ideal For
This compact and versatile BZBGear BG-Commander-Jr joystick controller is ideal for an array of applications ranging from professional AV systems, broadcasting, education, telemedicine, to video conferencing, houses of worship, and more.

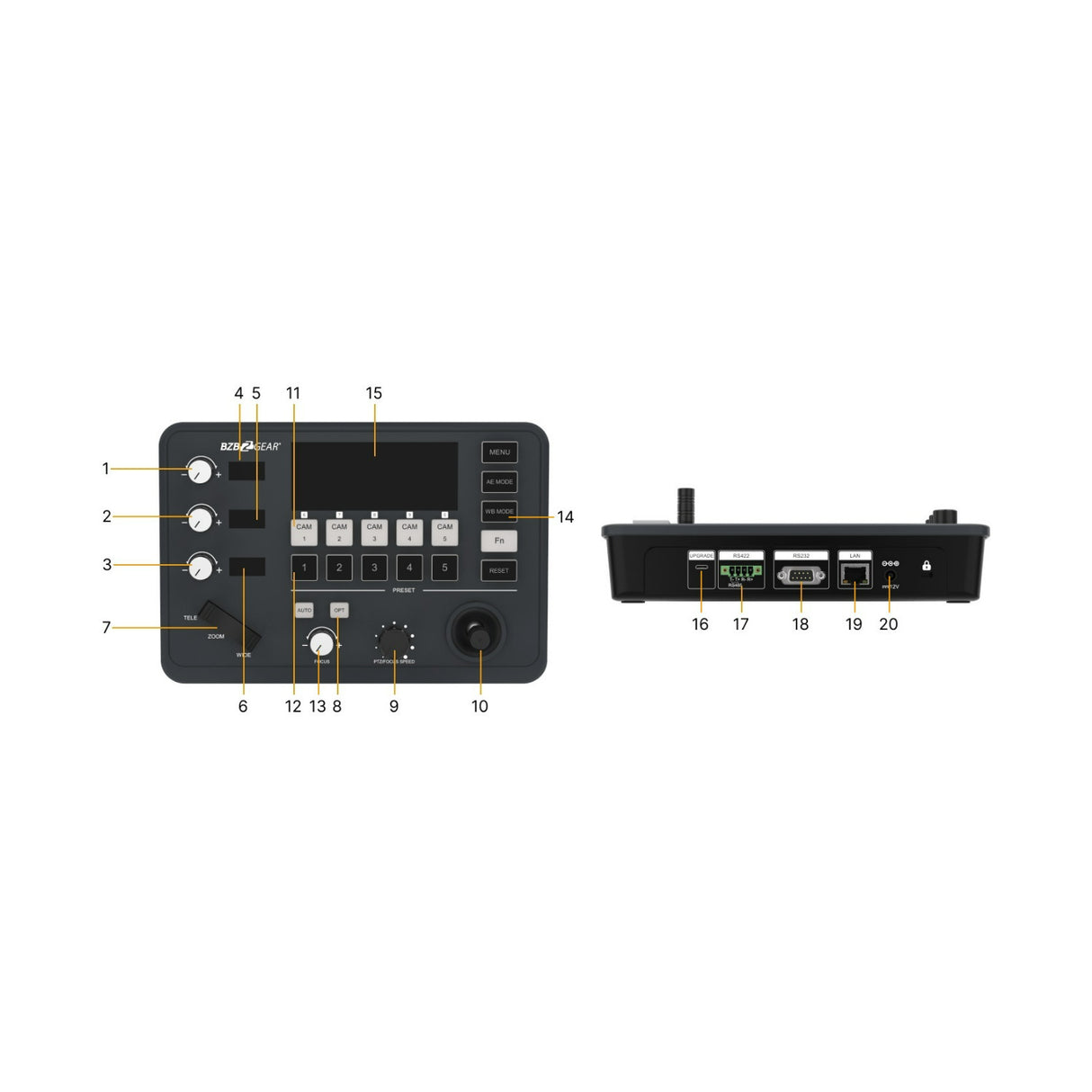

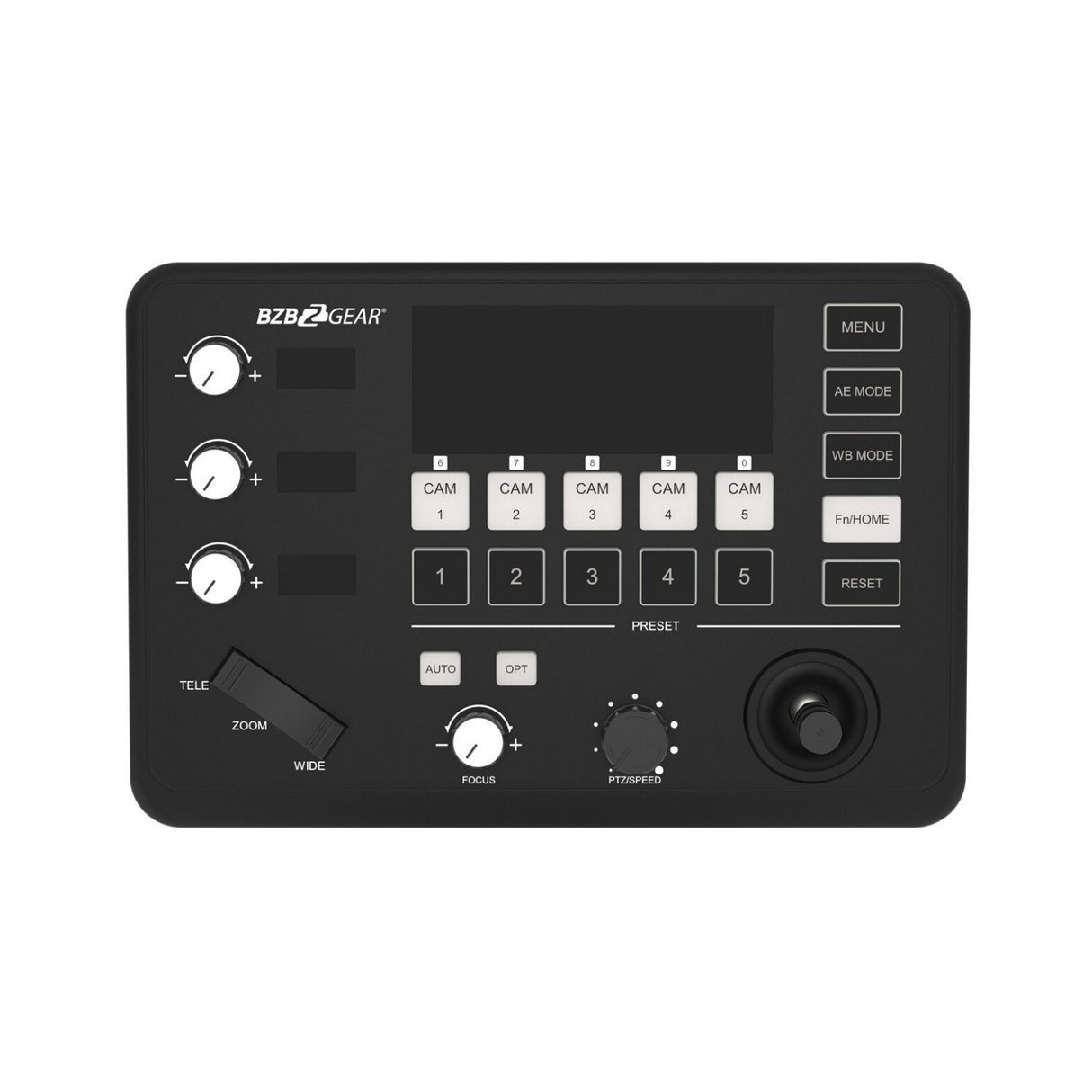

Knobs
Knob 1 adjusts the camera exposure parameter or red gain value depending on the mode selected. Knob 2 adjusts the camera exposure parameter or blue gain value depending on the mode selected. Knob 3 adjusts the camera exposure parameter. Turning the knob to the right increases the camera exposure, while turning left decreases the camera exposure.
Focus Functions
The auto button can be pressed to change the focus mode from manual to automatic or vice versa. The OPT key is used to trigger the camera's single-focus mode.
2-Axis Joystick
The joystick of the BZBGear BG-Commander-Jr joystick controller controls the camera's up, down, left, and right movements.

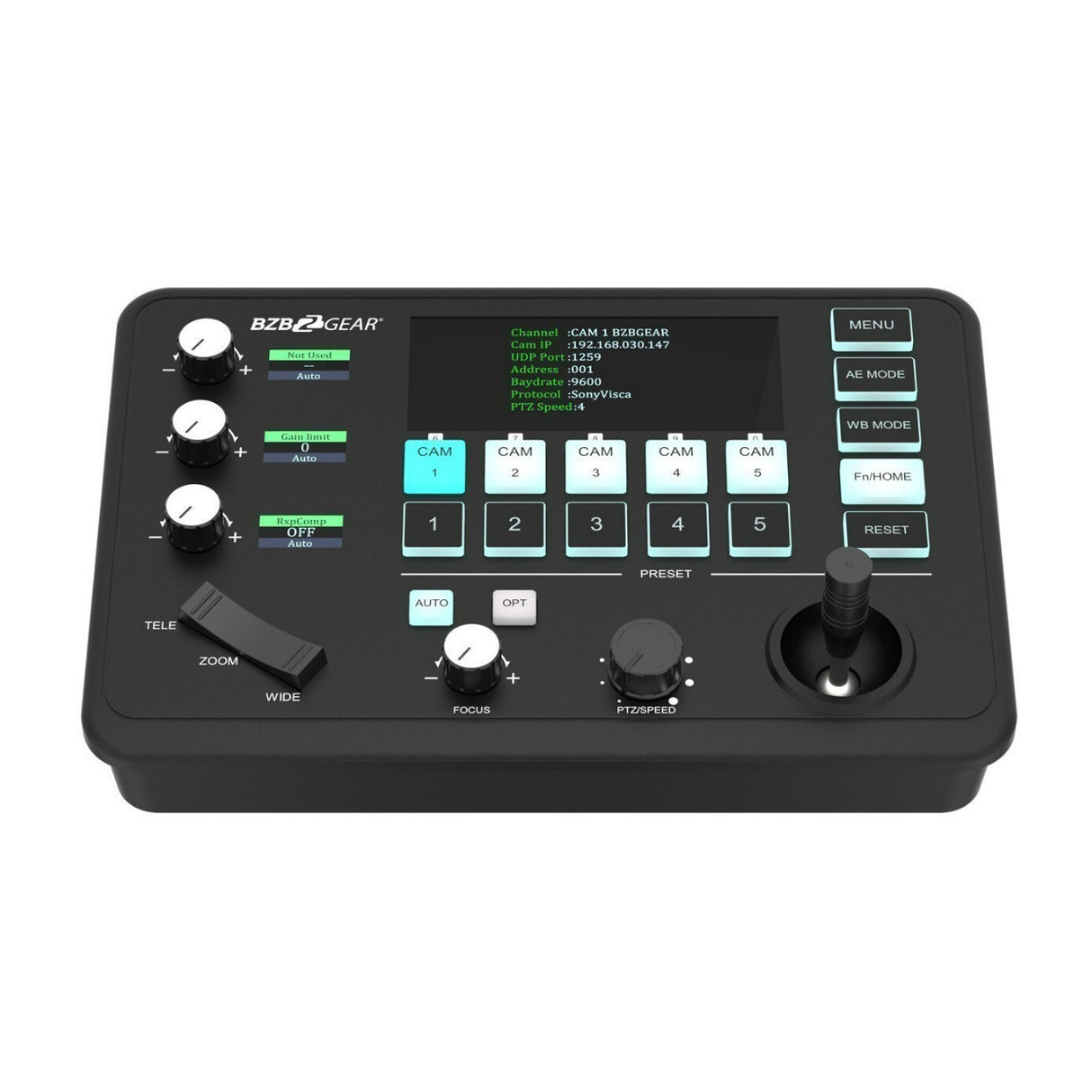

LED Display
It is used to display the current status and settings of the keyboard in real time.
LAN Interface
The LAN Interface is used for connection to a network switch to connect to a networked PTZ Camera.
PTZ Speed Adjustment Knob
This knob is used to adjust the speed of the camera Pan, Tilt, and Zoom, with a total of 7 levels.
Camera Select Buttons
CAM1 to CAM5 are shortcut keys for camera selection.
General
| Ports | 5 |
| Warranty Protection | Replacement Plan |
| NFC | No |
BZBGear Universal Compact Serial and IP PTZ Camera Joystick Controller

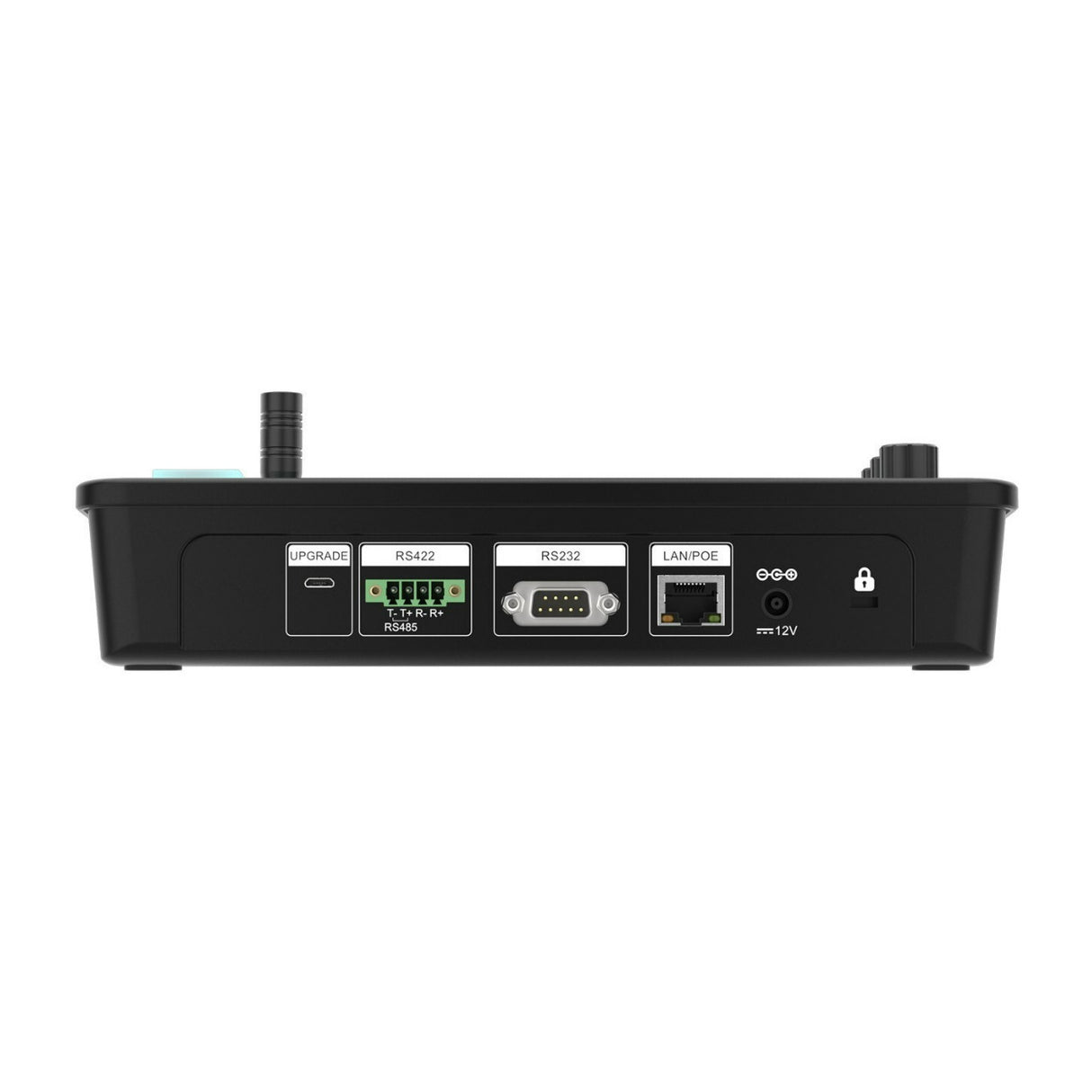

Communication and Control Interface
| RS422/RS485 interface | Phoenix Contact 4 pin 3.81mm Terminal |
| RS232C interface | DB9 Male Interface |
| LAN interface | RJ45 female interface |
| Power supply | JEITA Type 4 Female Interface |
| Upgrade online | Micro USB Female Interface |
Camera Control and Operation
| Supported number of cameras | 5 |
| Communication protocol | VISCA, PELCO P/D, UDP |
| Number of LED displays | 4 units color LED display screen |
| Number of camera channels | 5 |
| Variable knobs | 4 |
| Joystick | 2-Axis |
| Zoom mode | Tele-wide bridge keys |
| Buttons | 17 Silicon Button |
| Presets short keys | 5 presets per each channel |
| Focus mode | Auto/ Manual/ OPT |
| Pan/tilt rotation speed | 7-Level Adjustment |
| Zoom in/out speed | 7-Level Adjustment |
| AE mode | The mode can be switched arbitrarily, and the value can be adjusted |
| WB mode | The mode can be switched arbitrarily, and the value can be adjusted |
| Camera menu | One-keys for call |
Control Signal Format
| Baud rate | 2400bps, 4800bps, 9600bps, 19200bps, 38400bps |
| Date bits | 8 Bit |
| Stop bit | 1 Bit |
| Parity bit | None |
| Internet protocol | UDP / VISCA OVER IP |
Power Supply and Consumption
| Rated voltage | DC 12V |
| Rated current | 0.3A max |
| Max power consumption | 3.6W |
Physical and Misc
| Password privacy protection | Yes |
| Kingston's lock holes | Yes |
| Working temperature | 32-degree-F to 104-degree-F (0-degree-C to 40-degree-C) |
| Storage temperature | -4-degree-F to 140-degree-F (-20-degree-C to +60-degree-C) |
| Working environment | Indoor |
| Dimensions (L x W x H) | 9.6 x 6.5 x 1.9 inch (244 x 164 x 48 mm) |
| Gross weight | 2.43 lb (1.1 kg) |
