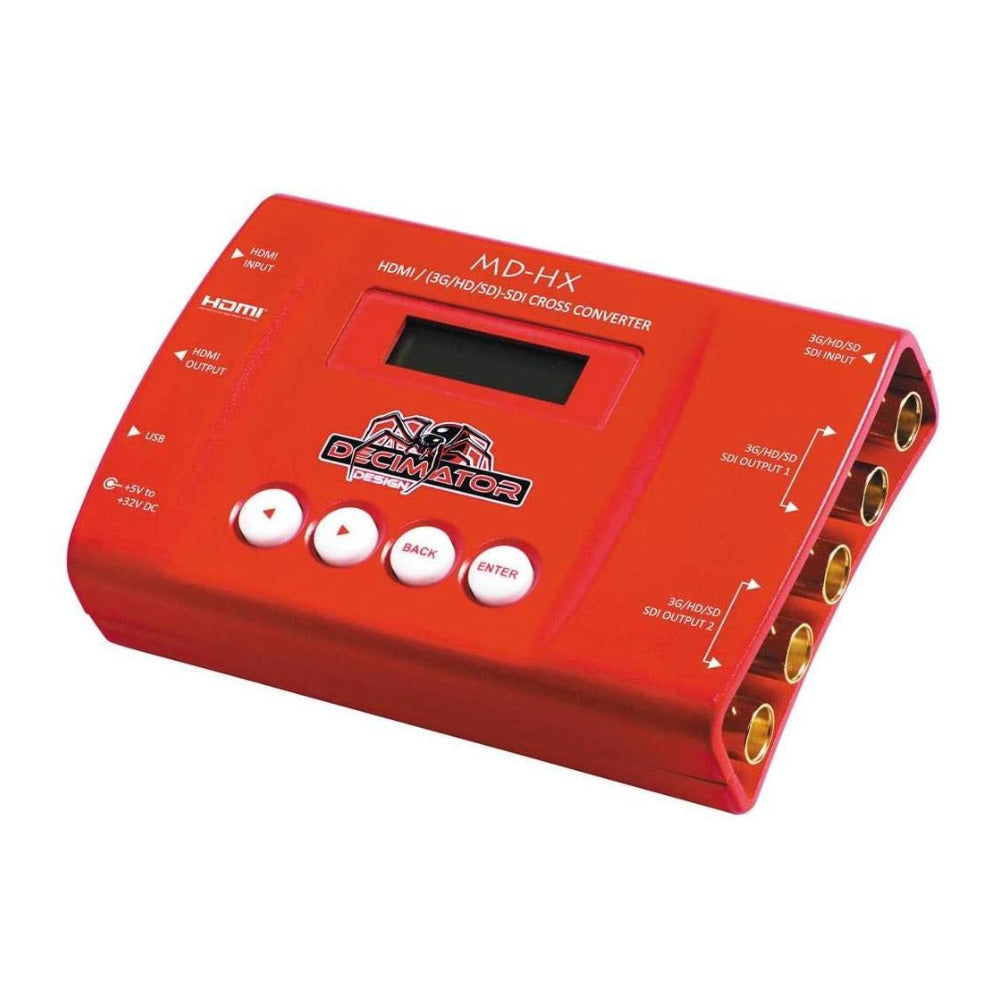

The Decimator MD-HX is a truly portable converter, which incorporates an easy-to-use LCD and button control system. This gives you easy access to all of the amazing features that have been unavailable without a computer until now. The days of having to play with complicated dip switches or having to carry around a computer to change a simple setting are gone.
Cross Converter
The Decimator MD-HX HDMI and SDI Cross Converter supports both 3G level A and B on the input and output, allowing conversions between A and B. It offers four (3G/HD/SD)-SDI outputs, that allow it to be used as a 1 to 4 distribution amplifier. Output pair 1 can either be a copy of the SDI input (default) or the same as pair 2. The audio pairs in the SDI and HDMI outputs can be rearranged as required.
Additional Features
Horizontal and/or vertical image flipping is possible via the built-in scaler. It also includes a down/up cross converter that allows either the HDMI or SDI input to be scaled and/or frame rate converted to the required standard. The converter features a robust aluminum case with easy-to-use LCD and button control system.
General
| Weight | Not Available |
| Color | Red |
Connections
| HDMI Inputs | 1 |
| External Ports | HDMI |
| Display Ports | 1 x HDMI |
- 1 x HDMI input
- 1 x (3G/HD/SD)-SDI input
- 1 x HDMI output
- 2 x (3G/HD/SD)-SDI Active Loop-through or addition outputs
- 2 x (3G/HD/SD)-SDI outputs
- SDI in to HDMI and SDI out
- SDI in to SDI out and HDMI in to HDMI out
- SDI in to SDI out and Scaled SDI in to HDMI out
- SDI in to SDI out and Scaled HDMI in to HDMI out
- HDMI in to SDI out and SDI in to HDMI out
- HDMI in to HDMI and SDI out
- HDMI in to SDI out and Scaled SDI in to HDMI out
- HDMI in to SDI out and Scaled HDMI in to HDMI out
- Scaled SDI in to SDI out and SDI in to HDMI out
- Scaled SDI in to SDI out and HDMI in to HDMI out
- Scaled SDI in to HDMI and SDI out
- Scaled HDMI in to SDI out and SDI in to HDMI out
- Scaled HDMI in to SDI out and HDMI in to HDMI out
- Scaled HDMI in to HDMI and SDI out
Decimator MD-HX HDMI and SDI Cross Converter with Scaling and Frame Rate Conversion
| Inputs | |
| Outputs | |
| Modes offered | |
| USB port | Control and firmware updates |
| Power input | Metal thread locking DC power socket |
| Dimensions | 3.1 x 4.8 x 1.2 inch (79.5 x 123 x 29.5 mm) |
