New Heights in Transmission, More Freedom in Flight
The DJI O4 Air Unit Series is equipped with the DJI O4 video transmission system, achieving ultra-low latency for more responsive controls. Paired with the dual-antenna design of the DJI O4 Air Unit Pro, the max transmission distance can reach up to 15 kilometers. This system can automatically select the most stable frequency. Whether soaring over mountains and rivers or navigating indoor spaces, perform confidently with precision.
Crisp and Fluid, Visually Striking
The DJI O4 Air Unit Series is capable of recording 4K at 60fps video. The video transmission system utilizes H.265 video encoding, supporting high-frame-rate transmission at 1080p at 100fps, ensuring clear and smooth real-time imagery. No matter how fast you fly, the camera view keeps up.
New Racing Mode- Unleashed Speed, Unlimited Fun
The DJI O4 Air Unit Series introduces a new Racing mode, with video transmission latency as low as 15 milliseconds. It supports up to eight aircraft racing simultaneously, taking you on an exhilarating, high-speed journey through the skies.
Upgraded Imaging - Cinematic Masterpieces at Your Fingertips
The DJI O4 Air Unit features a 1/2-inch image sensor, capable of capturing 4K/60fps video. The DJI O4 Air Unit Pro goes a step further with a 1/1.3-inch image sensor, supporting 4K/120fps video recording. No need for an external action camera to achieve ultra-wide-angle, high-definition footage. Creating stunning visuals has never been so effortless.
Even in Intense Light, Create With Confidence
The DJI O4 Air Unit Pro Camera Module can be used with the DJI Avata 2 ND Filter Set (ND8 or 16 or 32). Even in bright lighting conditions, it ensures balanced exposure and true-to-life colors. This allows you to flexibly control light intake and shutter speed, easily achieving natural motion blur and making your footage more dynamic and impactful.
Compatible With Canvas Mode - Your Flights, Your Way
Have full control over what's displayed on your screen. The DJI O4 Air Unit Series supports Canvas Mode and Betaflight OSD settings. You can customize the real-time data and layout displayed on your goggles screen, making flight data clear at a glance, and enhancing your control precision.
Lightweight Design, Effortless Adaptation

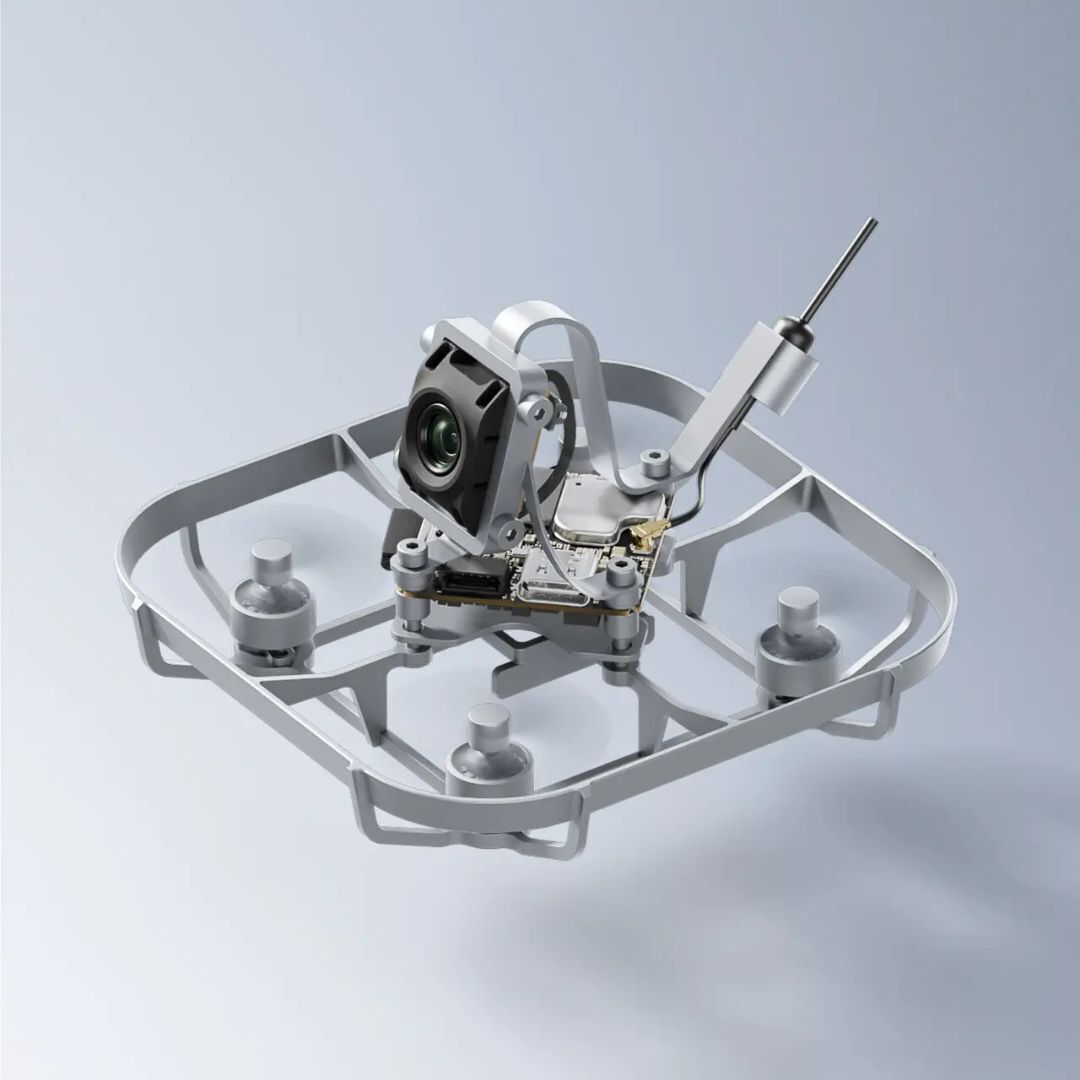

The DJI O4 Air Unit Series adopts a lightweight and portable design with extensive compatibility. Specifically, the DJI O4 Air Unit can fit drone frames of 2 inches and smaller, supporting flexible assembly to suit various creative flight scenarios. Experience the thrill of flying while capturing high-quality footage with ease.
Camera
| Sensor Size | 1/2 inch |
| Sensor Type | CMOS |
| Focal Length | 14mm |
| Maximum Aperture | f/2.8 |
| Minimum Focus Distance | 0.6 m to ∞ |
| Recording Modes | MP4 |
| Memory Card Slot | No Slot Available |
General
| Warranty Length | 1 Year |
| Operating Temperature | -10° to 40° C |
| Weight | Air Unit (camera module excluded): Approx. 5.1 g / 0.17 oz. Air Unit (camera module included): Approx. 8.2 g / 0.28 oz. Antenna: Approx. 0.75 g / 0.026 oz |
| Drone Dimensions | Transmission Module: 30×30× 6 mm (L×W×H) Camera Module: 13.44×12.36×16.50 mm (L×W×H) Coaxial Cable: 50 mm 3-in-1 Cable: 50 mm Antenna: 80 mm |
Charger
| Voltage | 3.7 Volts |
- Air Unit (camera module excluded): Approx. 5.1 g
- Air Unit (camera module included): Approx. 8.2 g*
- Antenna: Approx. 0.75 g
- * The lens mount is not included. With the lens mount, the weight is 9.2 grams.
- Transmission Module: 30×30× 6 mm (L×W×H)
- Camera Module: 13.44×12.36×16.50 mm (L×W×H)
- Coaxial Cable: 50 mm
- 3-in-1 Cable: 50 mm
- Antenna: 80 mm
- 5.170-5.250 GHz
- 5.725-5.850 GHz
- 5.1 GHz: <23 dBm (CE)
- 5.8 GHz:
- <30 dBm (FCC)
- <14 dBm (CE)
- < 30 dBm (SRRC)
- With DJI Goggles 3 and pick racing mode:
- With 1080p/100fps video transmission quality, the latency is as low as 20 ms.
- With DJI Goggles N3 and pick racing mode:
- With 1080p/100fps video transmission quality, the latency is as low as 24 ms.
- With DJI Goggles 2 or Goggles Integra：
- With 1080p/100fps video transmission quality, the video transmission latency is less than 35 ms.
- Latency data represents the minimum latency during the screen refresh process of DJI Goggles.Tested in an outdoor open environment without interference. The video transmission latency data varies with different devices.
- With DJI Goggles 3/DJI Goggles N3:
- 10 km (FCC), 6 km (CE), 6 km (SRRC)
- Measured in an unobstructed outdoor environment free of interference. The above data shows the farthest communication range under various standards . The actual maximum communication range during flight is limited by the flight endurance of the aircraft. Always pay attention to RTH reminders in the app during your flight.
- Supports auto mode
- Supports manual mode:
- With DJI Goggles 3 or DJI Goggles N3:
- 60 MHz: 1 channel; 40 MHz: 1 channels; 20 MHz: 3 channels; 10 MHz: 3 channel
- With DJI Goggles 2 or Goggles Integra：
- 40 MHz: 1 channel; 20 MHz: 3 channels; 10 MHz: 3 channels
- FCC/SRRC/CE:
- 60MHz/40 MHz：
- Channel 1: 5794.5 MHz
- 20 MHz/10 MHz:
- Channel 1: 5768.5 MHz
- Channel 2: 5789.5 MHz
- Channel 3: 5814.5 MHz
- FOV: 117.6°
- The equivalent focal length: 14 mm
- Aperture: f/2.8
- Focus: 0.6 m to ∞
- 100-6400 (Auto)
- 100-12800 (Manual)
- 4K (4:3): 3840×2880@30/50/60fps
- 4K (16:9): 3840×2160@30/50/60fps
- 1080p (4:3): 1440×1080@30/50/60/100/120fps
- 1080p (16:9): 1920×1080@30/50/60/100/120fps
- Betaflight 4.3.0 and higher versions
- DJI Goggles 3 + DJI FPV Remote Controller 3
- DJI Goggles N3 + DJI FPV Remote Controller 3
- DJI Goggles 2/Goggles Integra + DJI FPV Remote Controller 2
- The flight control firmware needs to be configured to support the SBUS protocol in order to use the DJI FPV remote controller.
DJI O4 Air FHD FPV Digital Video Transmission Unit with 155-Degree Ultra-Wide FOV and 10-Bit Mode
Air unit
| Weight | |
| Dimensions | |
Video Transmission
| Operating Frequency | |
| Operating frequency allowed varies among countries and regions. Please refer to local laws and regulations for more information. | |
| Transmitter Power (EIRP) | |
| Lowest Latency | |
| Max Video Transmission Range | |
| Live View Quality | 1080P@30/50/60/100fps |
| Communication Bandwidth | Max 60 MHz |
| Antenna | 1 antenna, 1T1R |
| Channels | |
| Channels Info | |
Camera
| Image Sensor | 1/2-inch CMOS Sensor |
| Lens | |
| ISO Range | |
| Video Resolution | |
| Video Format | MP4 |
| Max Video Bitrate | 100 Mbps |
| Color Mode | Normal Mode |
| Camera FOV | Standard, Wide-Angle |
| EIS | RockSteady 3.0+, Stabilization function off (supports Gyroflow) |
Hardware
| Input Voltage | 3.7-13.2 V |
| Operating Temperature | -10° to 40° C |
Storage
| Built-in Storage | 23GB |
| Supported SD Cards | Not supported |
| Recommended microSD Cards | Not supported |
Compatibility
| Supported Flight Controller System | |
| Supported DJI Goggles and Remote Controllers | |
