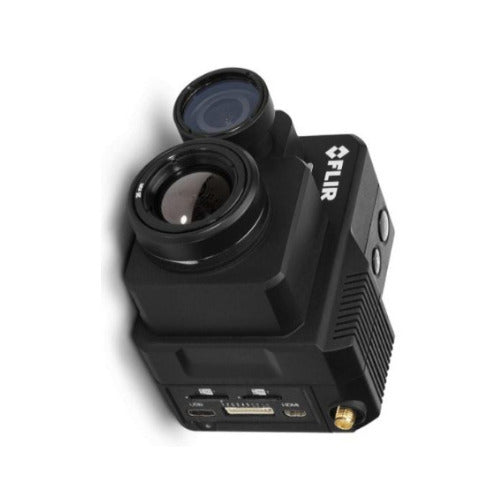

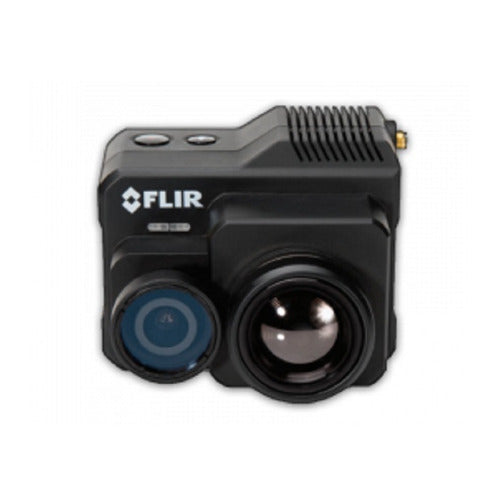

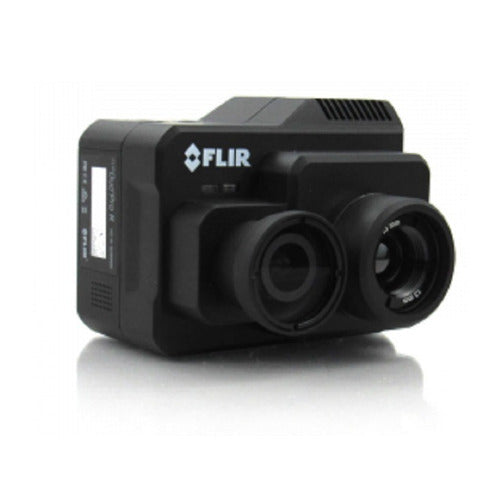

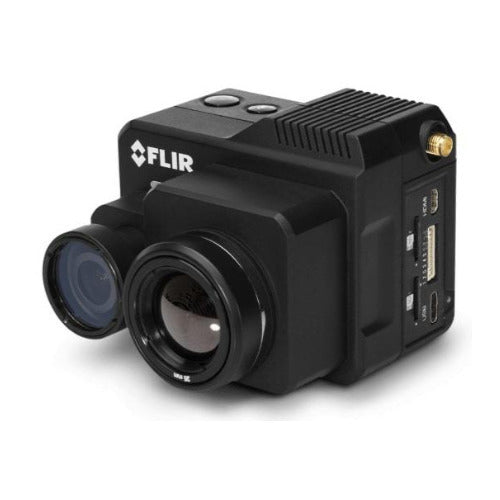

FLIR Duo Pro R 336 x 256 30Hz with 13mm Lens Dual Thermal Imaging Camera
Couldn't load pickup availability
Product highlights
Product highlights
In the box
In the box
Free standard shipping
Free standard shipping
*Orders placed before 1 PM EST Mon - Thur will ship the same day. Orders placed beyond these hours will be shipped the next business day. Exclusions apply. See shipping policy
Free Local Pickup
Free Local Pickup
Please call for store stock availability. Requests made before 2:30 PM EST can be available for next-day pickup. Learn more
The ultimate drone thermal imaging solution is here. The FLIR Duo Pro R combines a high resolution, radiometric thermal imager, 4K color camera, and a full suite of on-board sensors to bring you the most powerful dual-sensor imaging solution in the world for small commercial drones. Capture actionable data around the clock with Duo Pro R.
High-Definition Color Imagers
This Duo Pro R camera allows you to view thermal and high-definition color imagers in flight, or see them both in picture-in-picture mode, all while recording video and stills on two microSD cards. The fully integrated GPS receiver, IMU, magnetometer, and barometer provide all the data needed to create accurate orthomosaics without integrating to external flight controllers. Additionally, this drone camera can be easily configured, thanks to the FLIR UAS app that lets pilots set color palettes, image optimization features, configure PWM inputs without lugging a computer to the field.
Main
| Objective Lens Diameter | 13mm |
| Configuration | Core |
| Refresh Rate | 30 Hz |
| Lens Configuration | 13mm |
| Color | Black |
FLIR Duo Pro R 336 x 256 30Hz with 13mm Lens Dual Thermal Imaging Camera
Overview
| Spectral band | 7.5 – 13.5 µm |
| Thermal frame rate | 30 Hz |
| Thermal imager | Uncooled VOx Microbolometer |
| Thermal lens options | 13 mm: 25 x 19 degrees |
| Thermal sensitivity | <50 mK |
| Thermal sensor resolution options | 336 x 256 |
| Weight | 325 g |
| Dimensions | 85 x 81.3 x 68.5 mm |
Connections and Communications
| Digital video output | 1080p60, 1080p30, 720p60 |
| MAVLink interface | Yes |
| Remote control | Yes - PWM (3 channels), MAVLink |
| 10 pin accessory port | Power in, Analog Video Out, PWM, MAVLink, Frame Sync Out |
| Micro – HDMI | Digital Video Out |
| Mounting features | 1/4–20 inches TPI Tripod Mounts (qty 2, bottom surface) |
| USB 3.0 | Power in, USB Mass Storage |
Environmental and Approvals
| Operating temperature range | -20 degree Celsius to +50 degree Celsius |
| Operational altitude | +38,000 feet |
| Storage temperature range | -20 degree Celsius to +60 degree Celsius |
Imaging and Optical
| Global Positioning System [GPS] | Yes (GPS, GLONASS) |
| Multiple color palettes | Yes – Adjustable in App and via PWM |
| Visible Camera FOV | 56 x 45 degree |
| Imaging modes | IR-only, Vis-only, Picture-in-Picture (IR in Vis) |
| MSX image enhancement | Yes |
| Other sensors | Accelerometer, Gyroscope, Magnetometer, Barometer |
| Visible sensor resolution | 4000 x 3000 |
Performance
| Measurement accuracy | +/- 5 degree Celsius or 5% of readings in the -25 degree Celsius to +135 degree Celsius range +/- 20 degree Celsius or 20% of readings in the -40 degree Celsius to +550 degree Celsius range |
| Power | |
| Input voltage | 5.5 - 26.0 VDC (10-pin JST Port) 5.0 VDC (USB-C Port) |
| Power dissipation [average] | 10 W |
