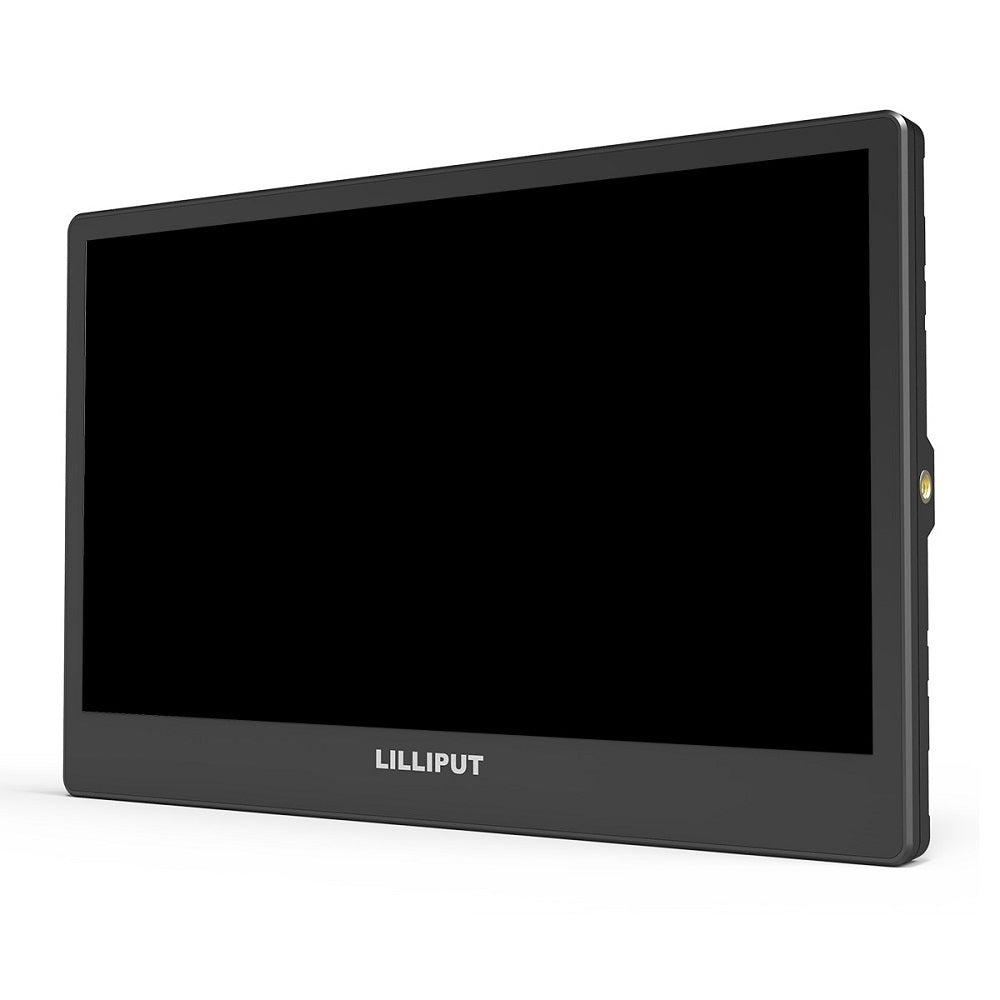

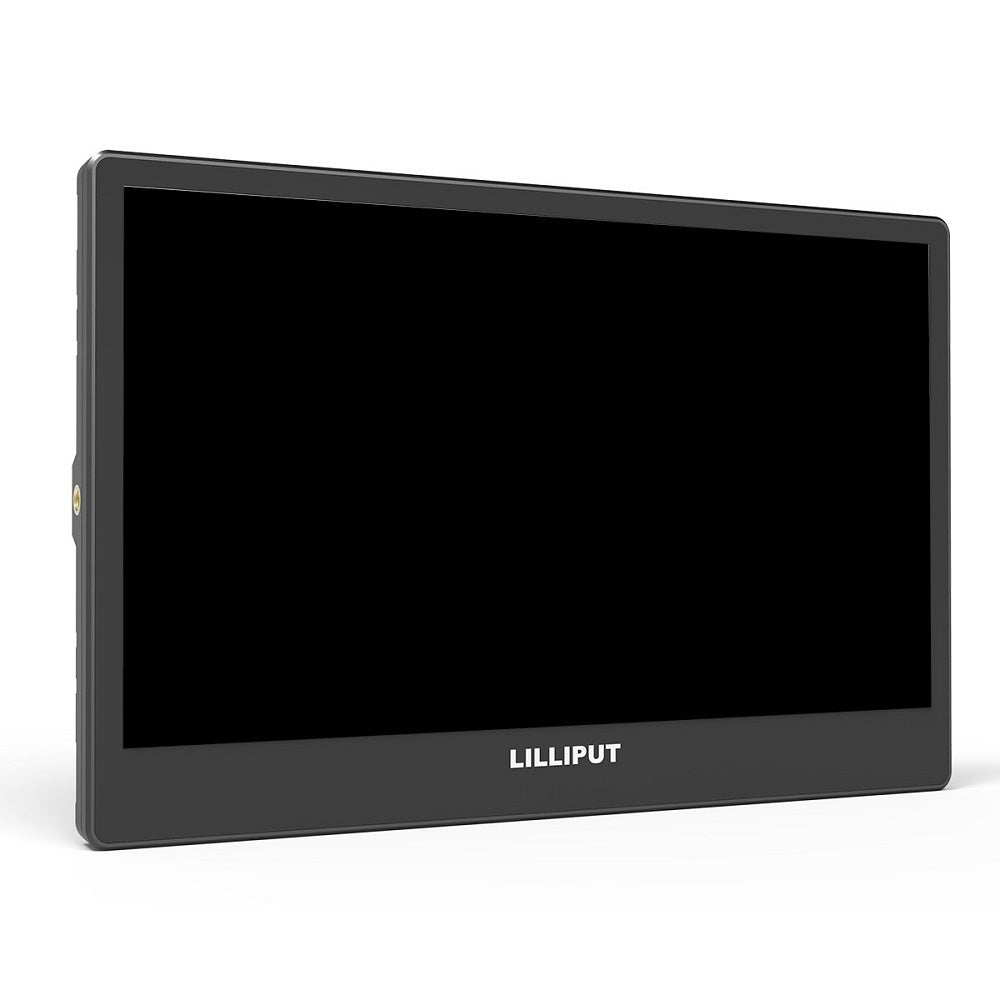

Lilliput A12 12.5-Inch 4K Broadcast Director Monitor
Couldn't load pickup availability
Product highlights
Product highlights
In the box
In the box
Free standard shipping
Free standard shipping
*Orders placed before 1 PM EST Mon - Thur will ship the same day. Orders placed beyond these hours will be shipped the next business day. Exclusions apply. See shipping policy
Free Local Pickup
Free Local Pickup
Please call for store stock availability. Requests made before 2:30 PM EST can be available for next-day pickup. Learn more

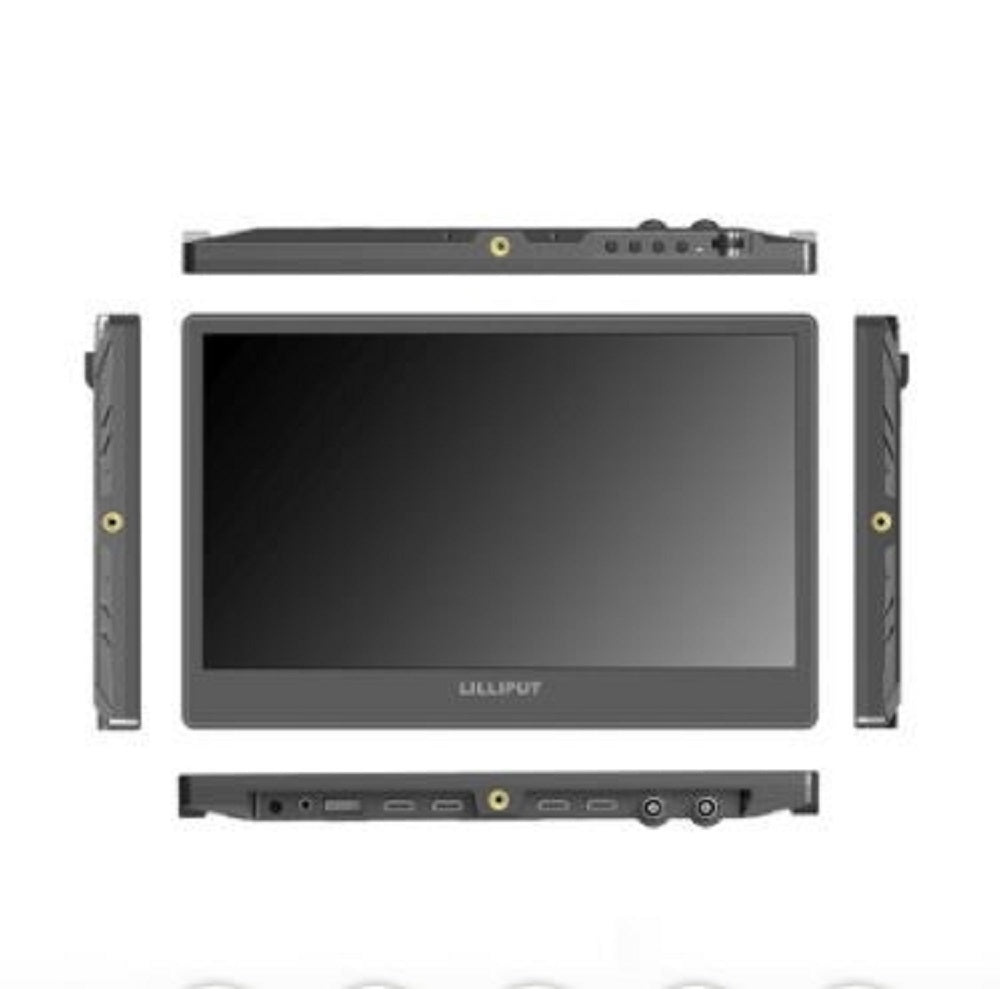

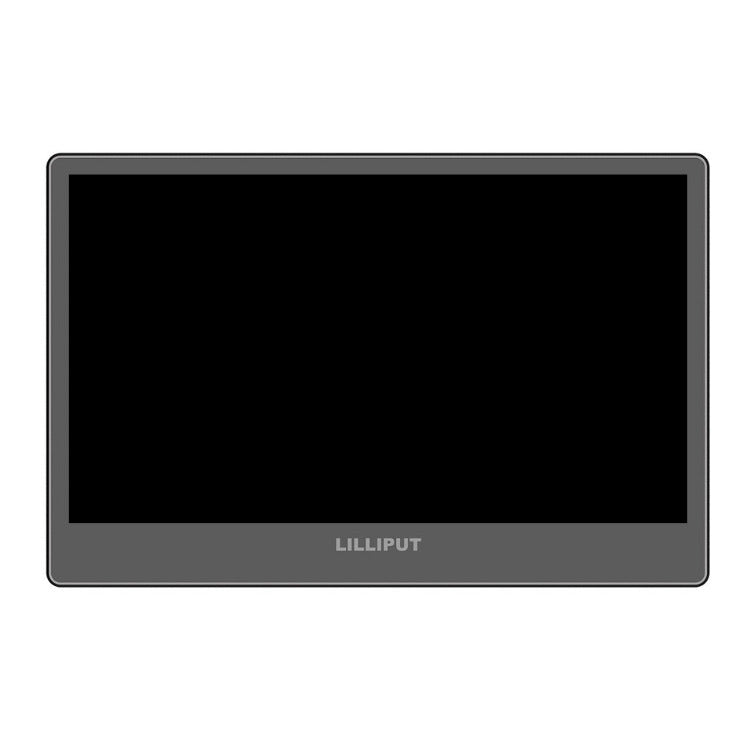

The Lilliput A12 is a 12.5-inch 4K resolution monitor with HDMI, DisplayPort, and SDI connectivity. At the pinnacle of 4K technology, the Lilliput A12 has been designed for the professional video and film industry and is ideally suited for directors and camera operators operating 4K UHD (or DCI) camera systems.
4K Ultra-HD Resolution Monitor
The Lilliput A12 features a 12.5-inch Ultra HD 4K panel. The native resolution is four times that of full HD producing brilliant clarity and vivid details that amaze, even when viewed up close; this level of detail is well suited to the lifelike color of IPS 4K display; the resulting images will redefine your monitoring experience.
4K DisplayPort Input
The Lilliput A12 features both a DisplayPort 1.2 port and HDMI 2.0, both of which support 4k 60Hz signal input. DisplayPort delivers more high-performance features than any other digital interface. Designed to replace older standards like DVI and VGA, DisplayPort opens up new possibilities in computing, digital displays, and consumer electronics. It’s the future standard and it’s available today.
12.5-Inch 8-Bit IPS Display
IPS (In-plane switching) is a screen technology for liquid crystal displays (LCDs) which involves arranging and switching the orientation of the molecules of the liquid crystal layer between the glass substrates. The Lilliput A12 boasts an 8 bit IPS display with a native 3840x2160 resolution and a 170-degree viewing angle - allowing you to see from all angles
Advanced Monitor Functions
The Lilliput A12 has a plenitude of advanced functions to assist with your shooting. Namely - Quad View, Peaking, False Colour, Histograms, Exposures, Check Fields, Color Bars, Pixel to Pixel, and Image flips.
1500:1 Contrast Ratio
The Lilliput A12 has a 1500:1 contrast ratio and 400cd/m brightness ratio, giving you sharper pictures and rich colors.

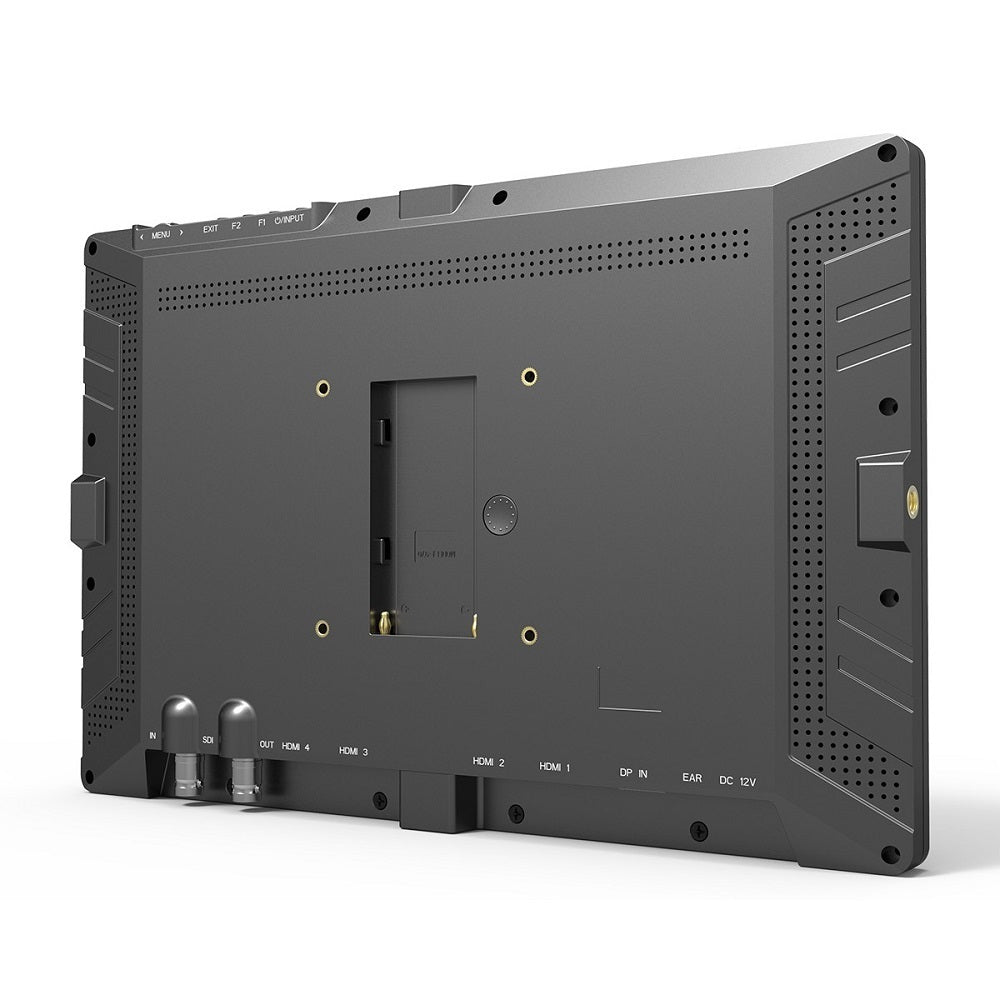

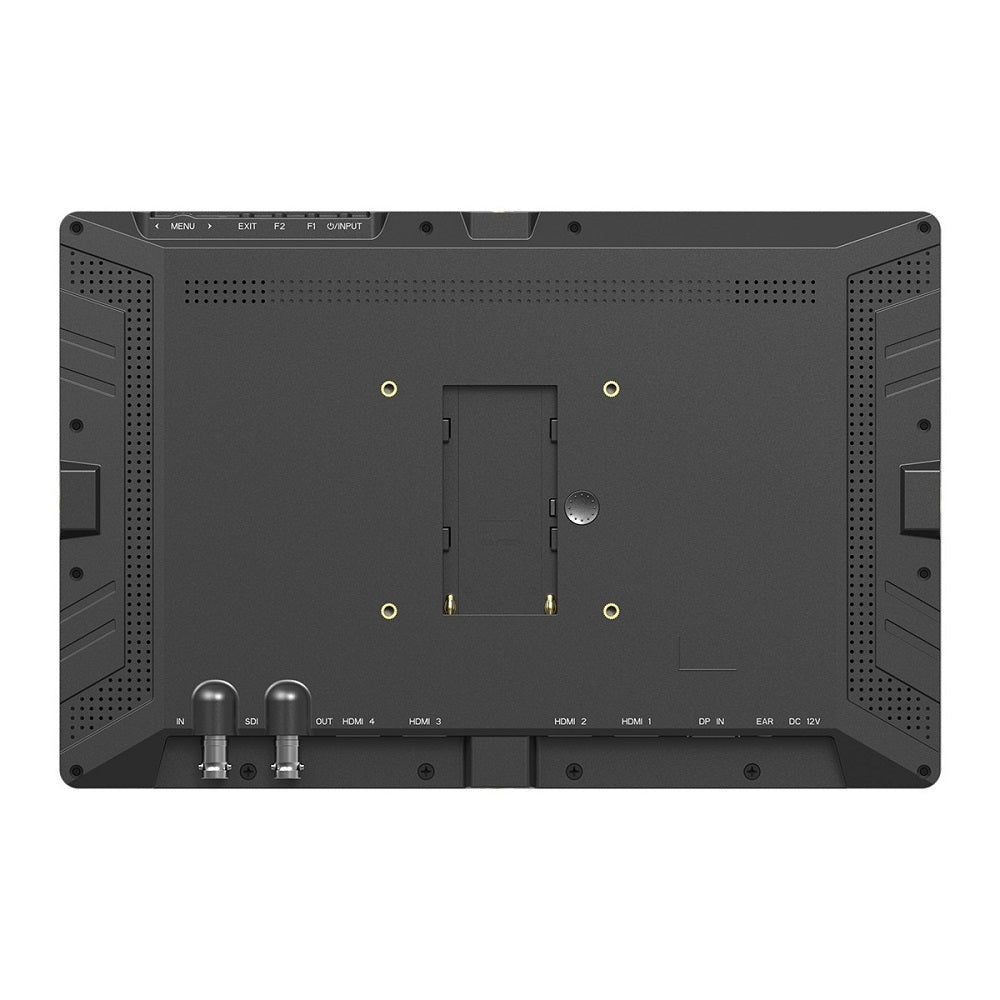

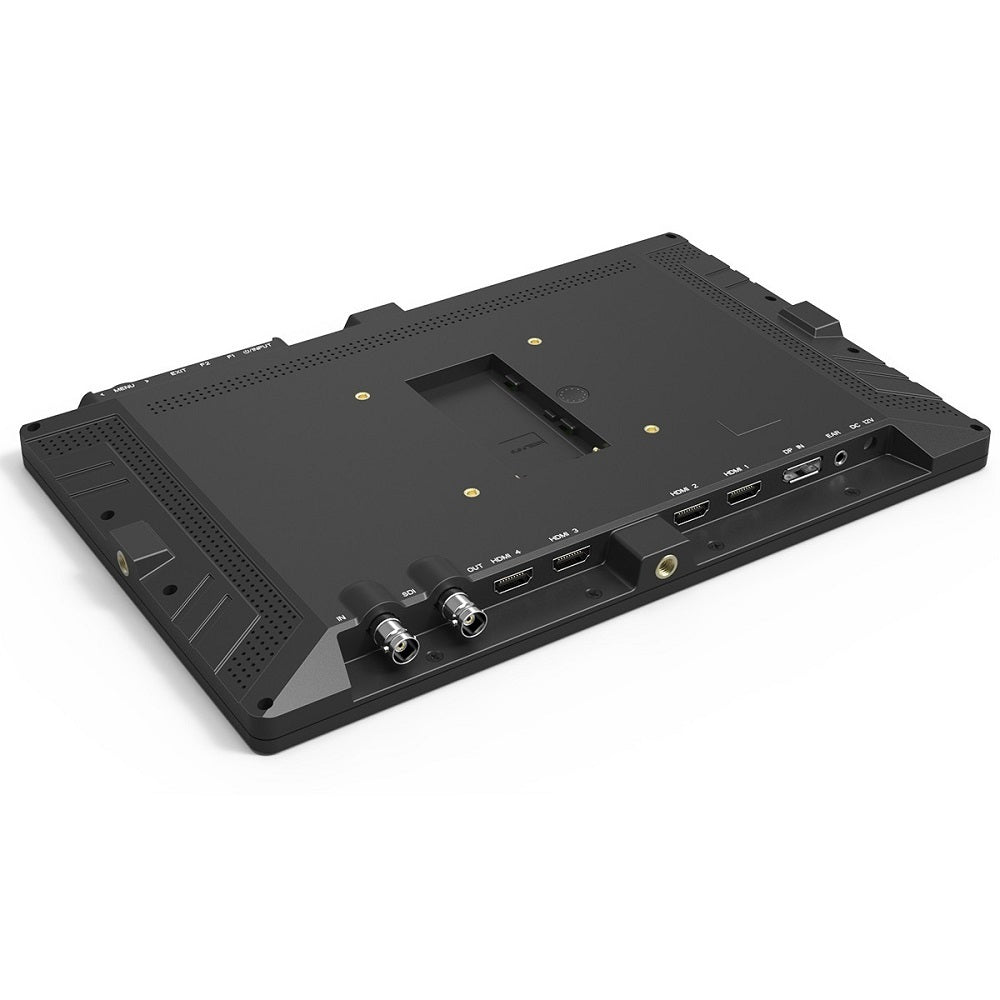

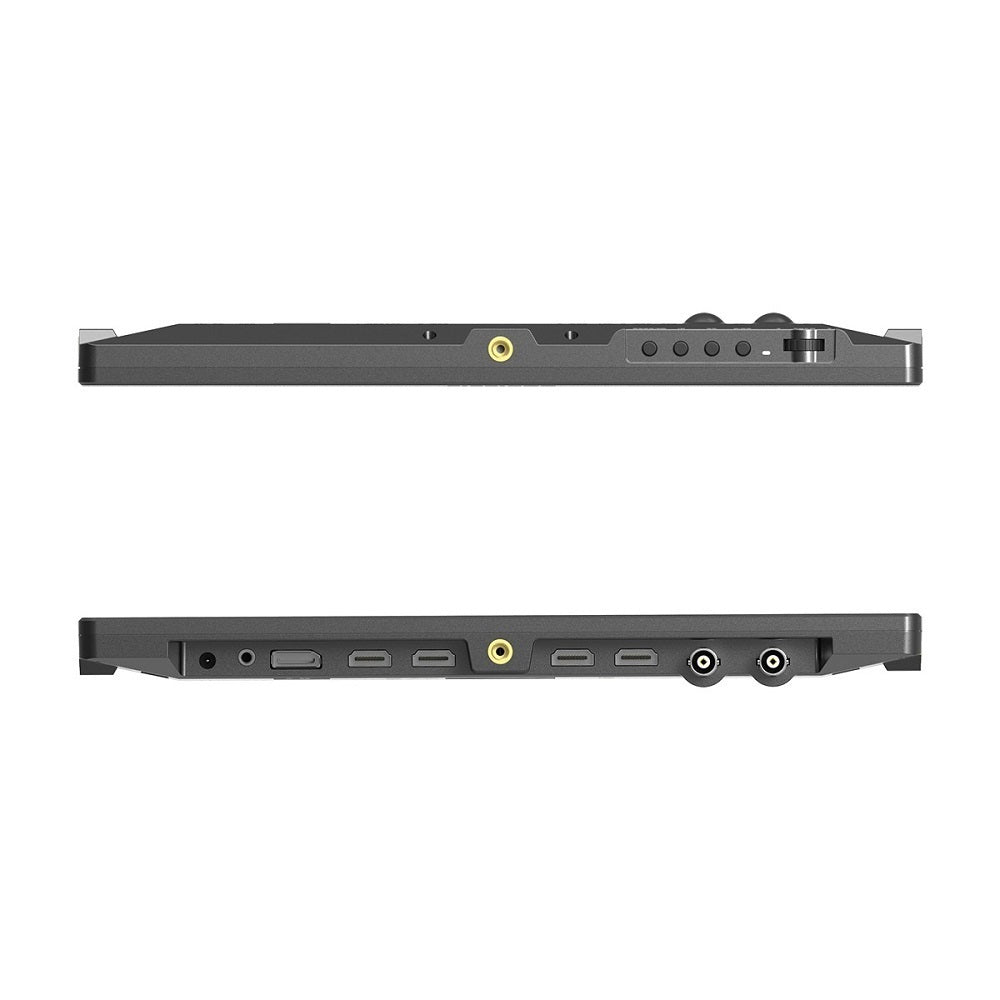

Connectivity
Not content with simply 4K standards, the Lilliput A12 monitor features a legacy connection for 3G-SDI, HDMI, and DVI-I (DVI-D, VGA), making it ideal for post-production and fieldwork alike.
General
| AC Input Power | Not Available |
Environmental
| Storage Temperature | -30°C to 70°C |
| Operating Temperature | -20 degree Celsius～60 degree Celsius |
Physical
| Weight | 960 g |
| Wall Mounting | Not Available |
Display
| Resolution | 3840 x 2160 |
| Brightness | 400 cd/m² |
| Variable Frame Rates | Not Available |
| Bit Depth / Color Support | 8-Bit (16.7 Million Colors) |
| Viewing Angle (H x V) | 170 x 170° |
| Dot Pitch | Not Available |
Lilliput A12 4K Broadcast Director On-Camera Monitor
Display
| Display screen | 12.5 inch 8bit IPS |
| Physical resolution | 3840 x 2160 |
| Aspect ratio | 16:9 |
| Brightness | 400 cd/㎡ |
| Contrast | 1500:1 |
| Viewing angle | 170 degree /170 degree (H/V) |
Input
| 3G-SDI | 1 |
| HDMI | HDMI 2.0 x 1 (support 4K 60Hz) and HDMI 1.4 x 3 (support 4K 30Hz) |
| Display port | DisplayPort 1.2 x 1 (support 4K 30Hz) |
Output
| 3G-SDI Loop | 1 |
Audio
| Speaker | 2 (Built-in) |
| Ear phone slot | 1 |
Power
| Current | 1.3 A / 12 V |
| Input voltage | DC 7-20 V |
Environment
| Operating temperature | -20 degree Celsius～60 degree Celsius |
| Storage temperature | -30 degree Celsius～70 degree Celsius |
Dimension
| Dimension (L x W x D) | 297.6 x 195 x 21.8 mm |
| Weight | 960 g |
