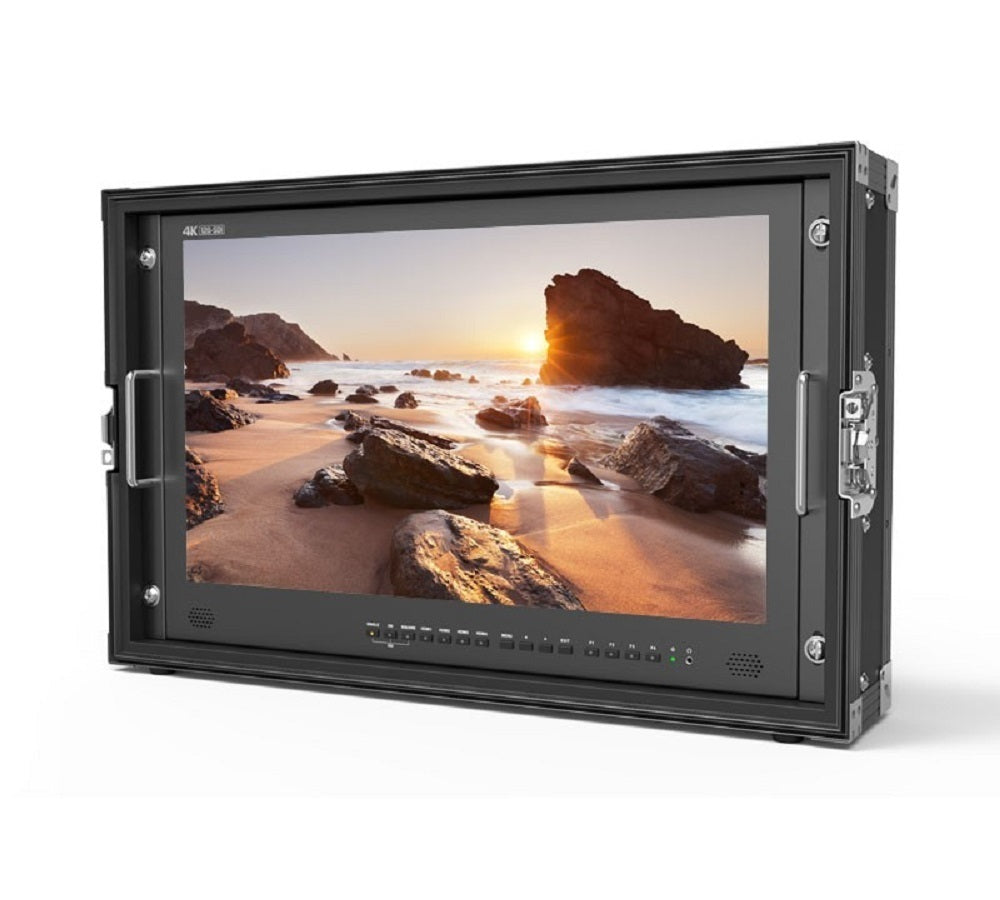

Lilliput BM230-12G 23.8-Inch 12G-SDI 4K Broadcast Director Monitor
Couldn't load pickup availability
Product highlights
Product highlights
In the box
In the box
Free standard shipping
Free standard shipping
*Orders placed before 1 PM EST Mon - Thur will ship the same day. Orders placed beyond these hours will be shipped the next business day. Exclusions apply. See shipping policy
Free Local Pickup
Free Local Pickup
Please call for store stock availability. Requests made before 2:30 PM EST can be available for next-day pickup. Learn more
The Lilliput BM230-12G is a 23.8-inch 4K resolution monitor with HDMI and SDI connectivity at 12G connectivity speeds. Designed for the professional video and film industry and is ideally suited for directors and camera operators operating 4K capable equipment. This BM230-12G broadcast monitor is for 4K full HD camcorders and its DSLR application can be used for taking photos and making movies.
4K Ultra-HD Resolution
The BM230-12G monitor features the latest 4K imaging technology. Connected through by HDMI 2.0, 4K screens are Ultra HD - containing 8.3 million pixels making the resolution four times more powerful than full HD making them the ultimate in cinematic displays.
12G SDI Input
The BM230-12G monitor has 2x 12G-SDI Single link input and output loop onboard. It can support 12G bandwidth inputs, as well as being backward compatible with 3G bandwidth inputs.
Solid Transmission Distances
The BM230-12G has a robust signal transmission range, meaning that you can use up to a 70 meter 12G-SDI input cable, and an output cable at up to 50 meters length, offering a flexible path to SDI connectivity. We measure this by looking at the height of the 'eye' in the signal wave as shown on an oscilloscope. The BM230-12G has a 'tall' eye when analysed, which highlights the strength and jitter-free quality of the signal.
Image Flip Mode
Integrate the monitor into your current workflow at whatever angle you choose. X flip - Y flip functionality gives you that flexibility.
6U Rackmount Frame
Ideal for live feed vans and event management - the monitor is able to be mounted into a 6U rackmount frame to fit within your current equipment cabinet.

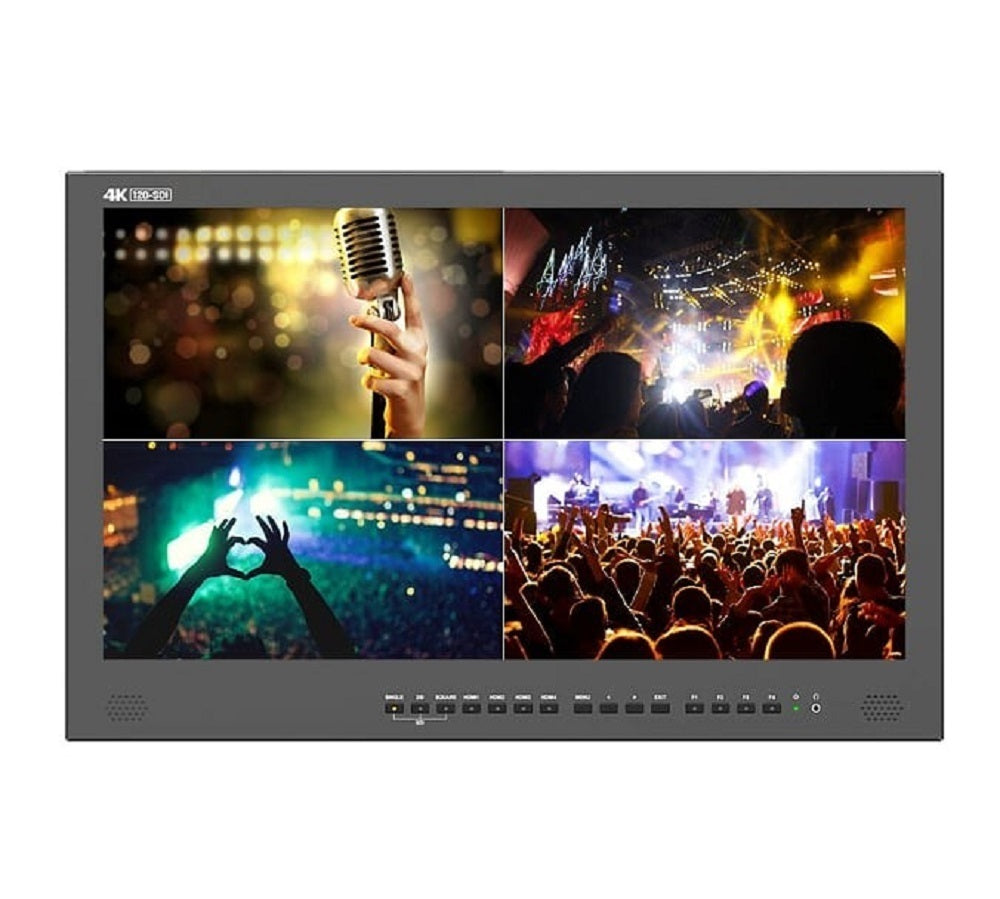

4 Way Split Screen Display
The BM230-12G monitor supports 4 independent input signals simultaneously making it easier than ever to view your set from 4 separate angles.
1000:1 Contrast Ratio
The BM230-12G has a 1000:1 contrast ratio and 330cd/m brightness ratio, giving you sharper pictures and rich colours. Enjoy more detailed images than ever before.
Connectivity for All Video Standards
The monitor comes with all of the major video standards used in commercial and the video industry. The BM230-12G connects using HDMI for 4K resolutions, and can connect using either HDMI or SDI for standard 1080p and below resolutions. This gives the ability to meet the needs of any professional display solution.
Metal Outer Housing
An aluminium outer body provides excellent protection to extend the lifetime of your monitor, finished in black to match into most installation colour schemes.
Programmable Function Keys
4 Programmable function keys on the front of the monitor allow you to shortcut to your most used functions, such as peaking, histograms, check field, image flip etc.
General
| AC Input Power | ≤61.5W |
Environmental
| Storage Temperature | -20°C to 60°C |
| Operating Temperature | 0 degree Celsius～60 degree Celsius |
Physical
| Weight | 8.6kg / 17kg (with case) |
| Wall Mounting | Not Available |
Video
| Video System | NTSC |
Display
| Resolution | 3840 x 2160 |
| Brightness | 300 cd/m² |
| TV Screen Size (Diagonal) | 23.8" |
| Variable Frame Rates | Not Available |
| Bit Depth / Color Support | 10-Bit (1.07 Billion Colors) |
| Viewing Angle (H x V) | 178 x 178° |
| Contrast Ratio | 1000:1 |
| Dot Pitch | Not Available |
Lilliput BM230-12G 23.8-Inch 12G-SDI 4K Broadcast Director Monitor
Display
| Display screen | 23.8 inch 10bit |
| Physical resolution | 3840×2160, 4K |
| Aspect ratio | 16:9 |
| Brightness | 300cd/m² |
| Contrast | 1000:1 |
| Viewing angle | 178°/178°(H/V) |

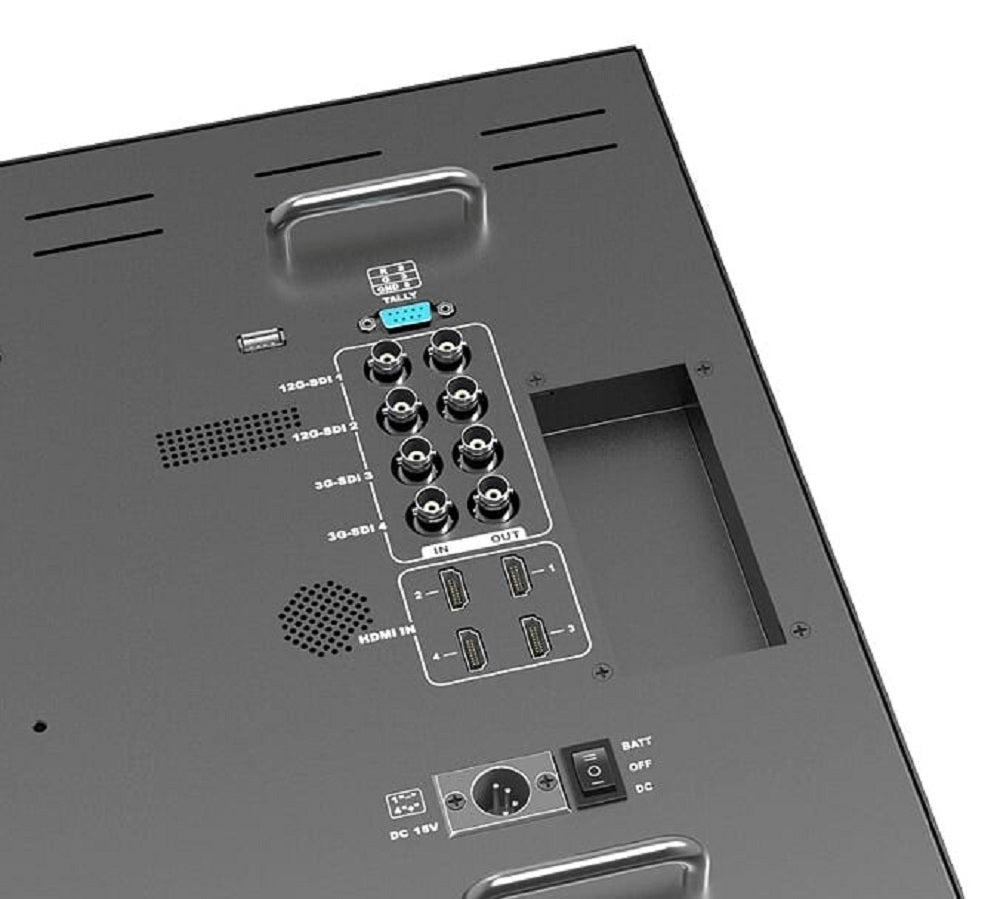

Input
| 12G-SDI | 2 |
| 3G-SDI | 2 |
| HDMI | HDMI 2.0 × 1 (4K@60Hz) HDMI 1.4 × 3 (4K@30Hz) |
| TALLY | 1 |
Output
| 12G-SDI | 2 |
| 3G-SDI | 2 |
Audio
| Speaker | 1 |
| Earphone slot | 1 |
Power
| Current | 4.1A (15V) |

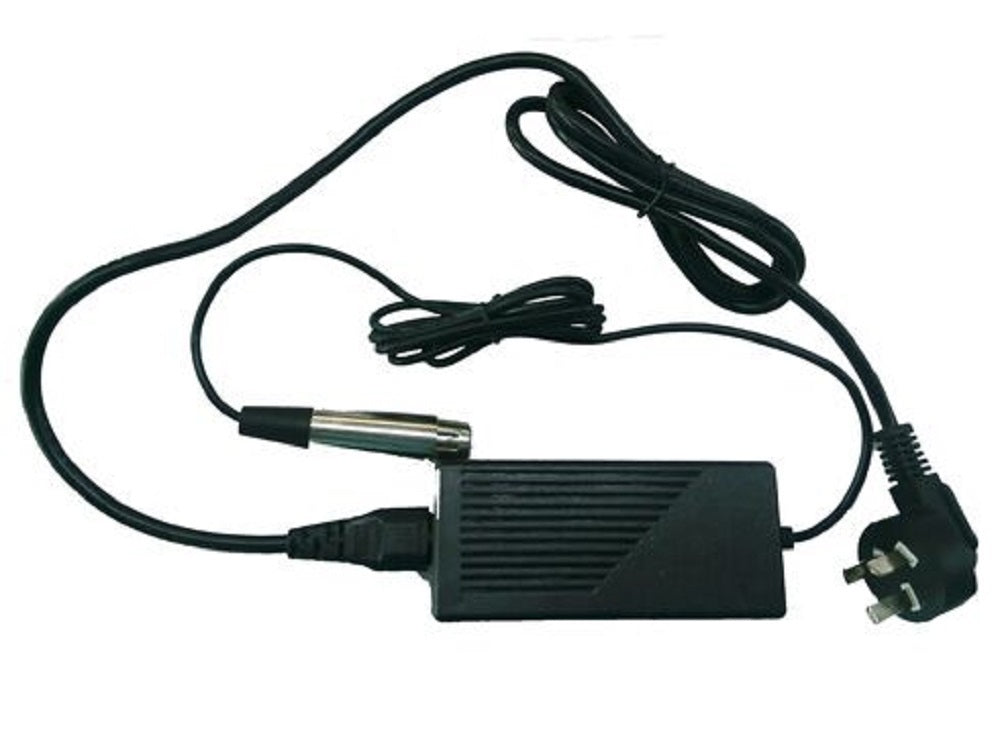

| Input voltage | DC 12-24V (XLR) |

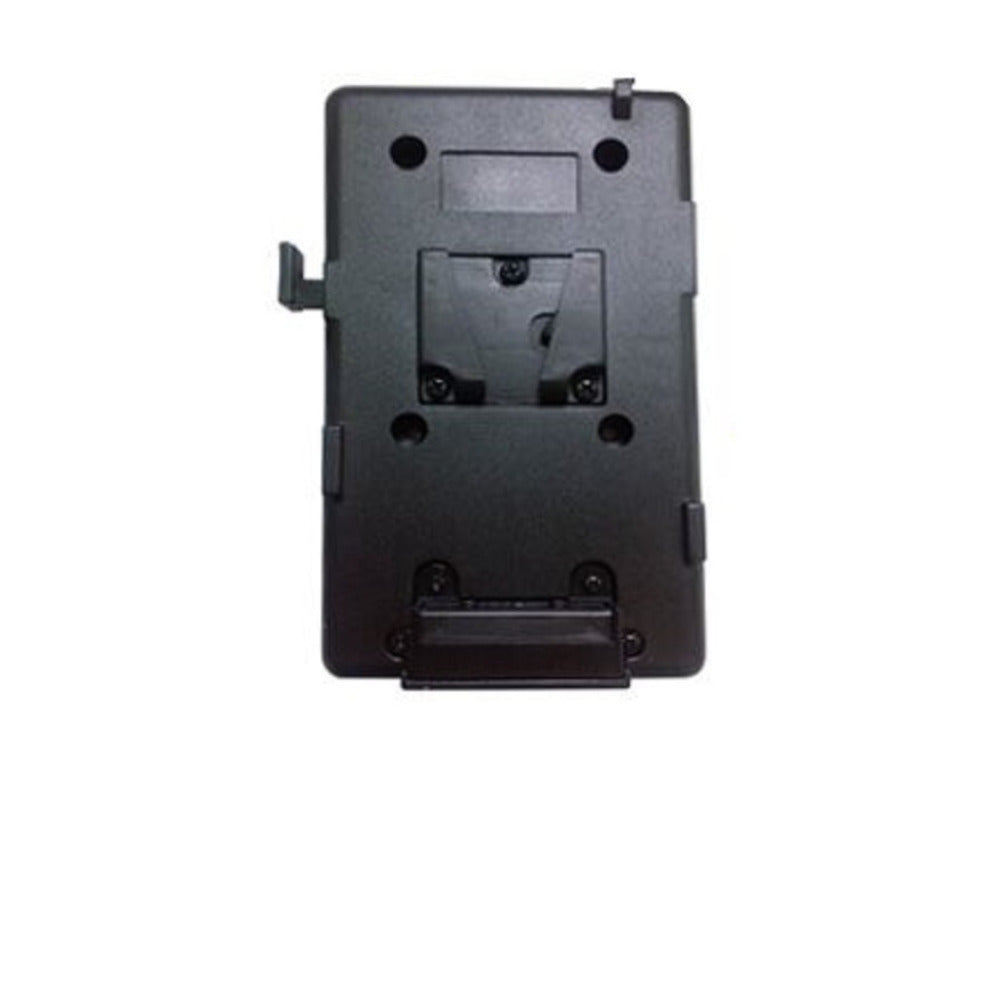

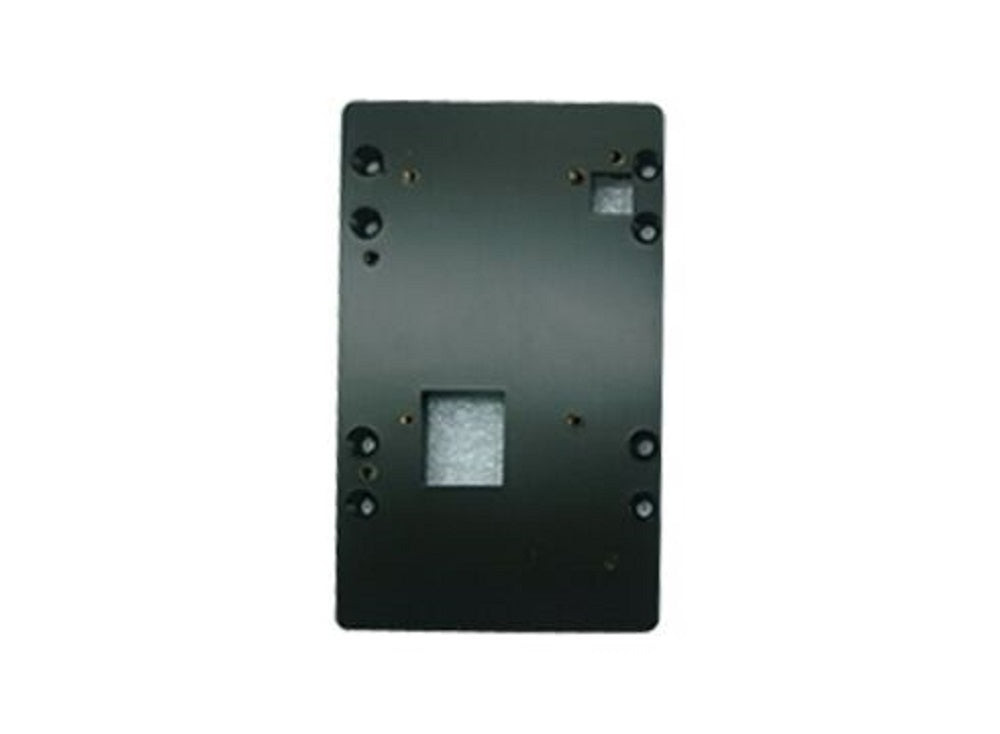

| Battery plate | V-mount |
| Power consumption | ≤61.5W |
Environment
| Operating temperature | 0 degree Celsius～60 degree Celsius |
| Storage temperature | -20 degree Celsius～60 degree Celsius |
Dimension

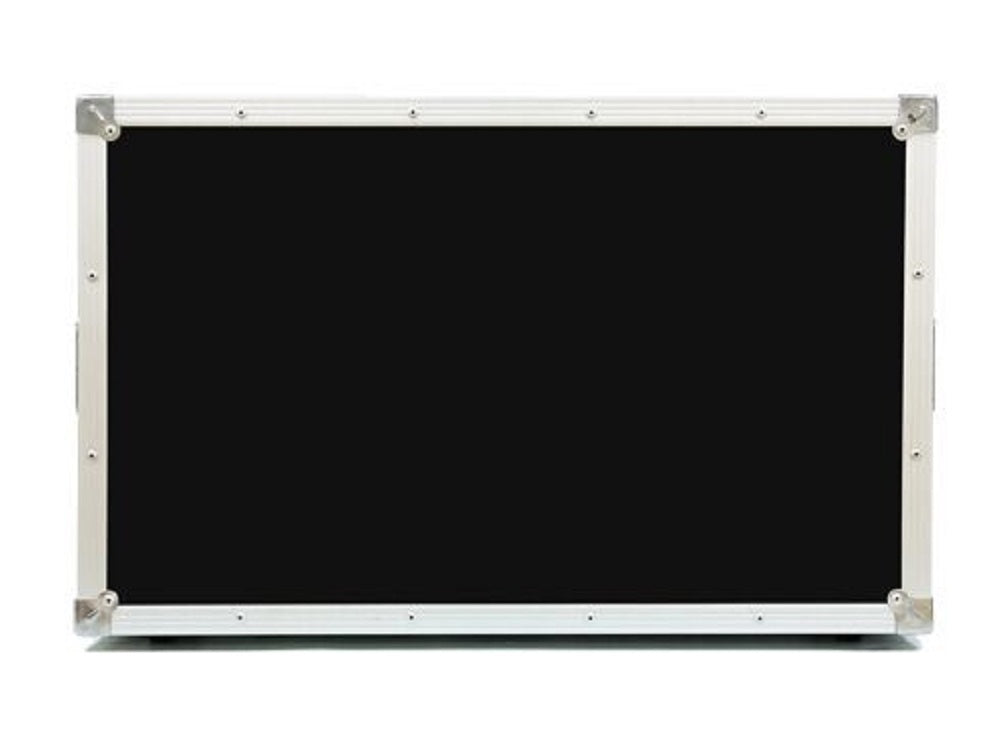

| Dimension (L x W x D) | 579 × 376.5 × 45 mm / 666 × 417 × 173 mm (with case) |
| Weight | 8.6kg / 17kg (with case) |
