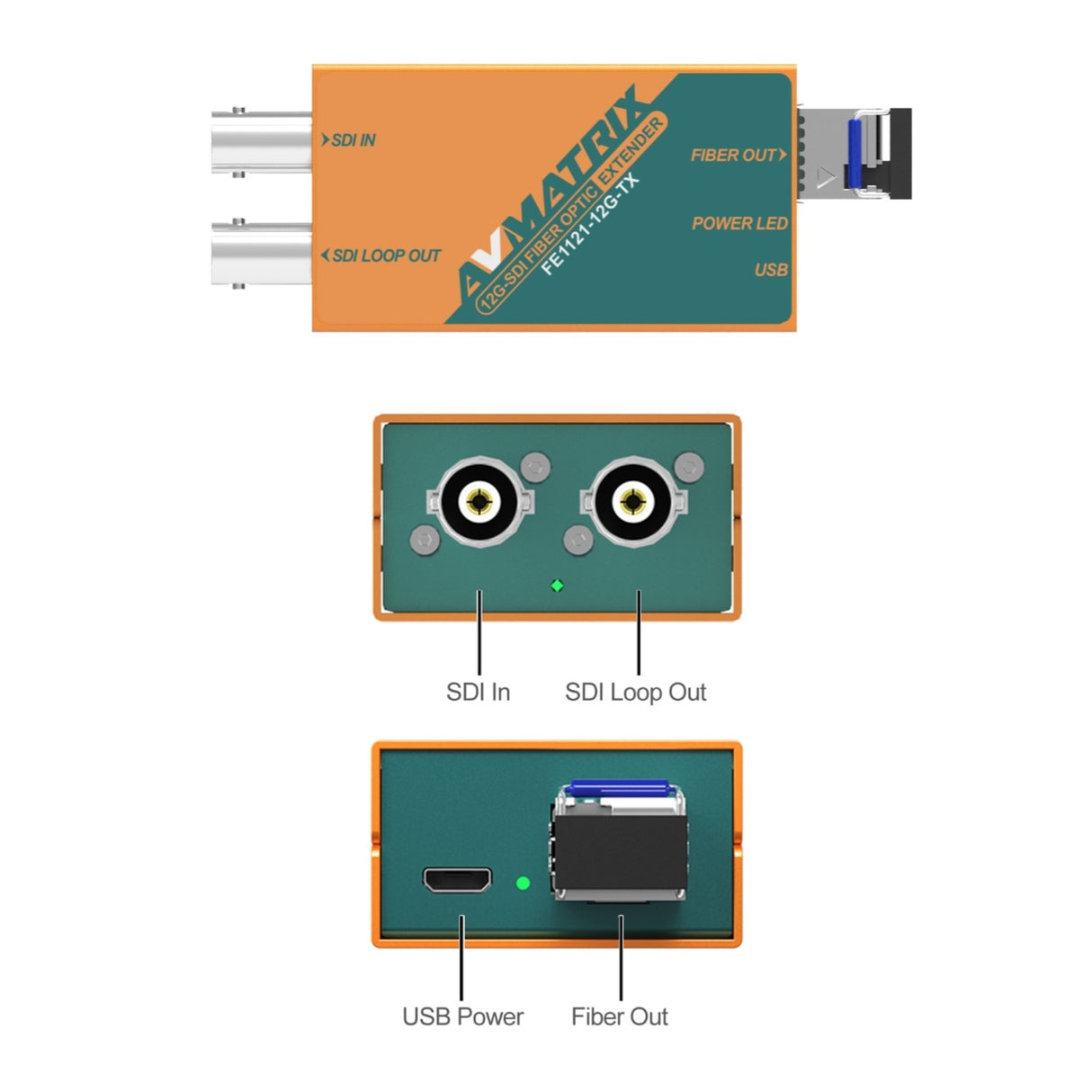

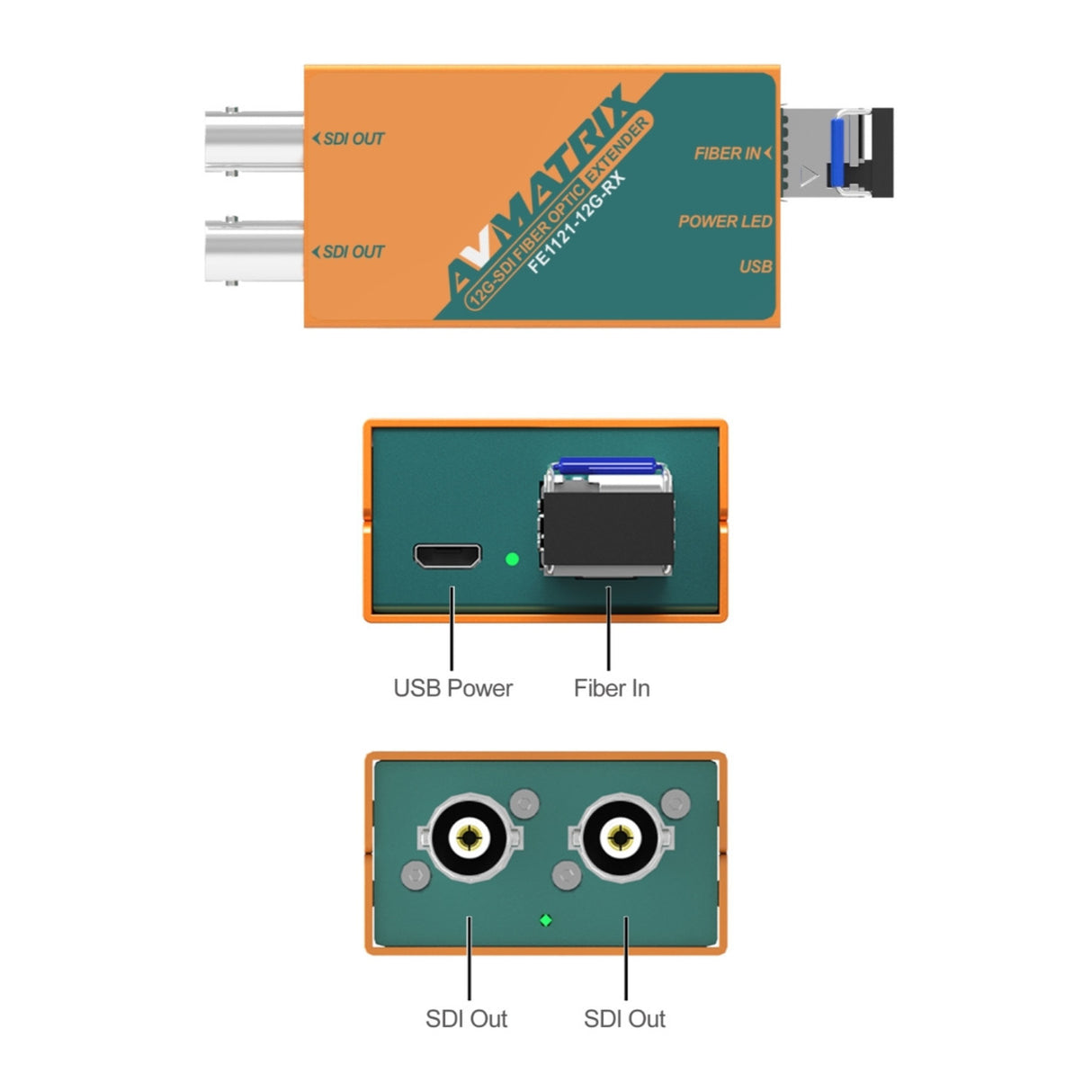

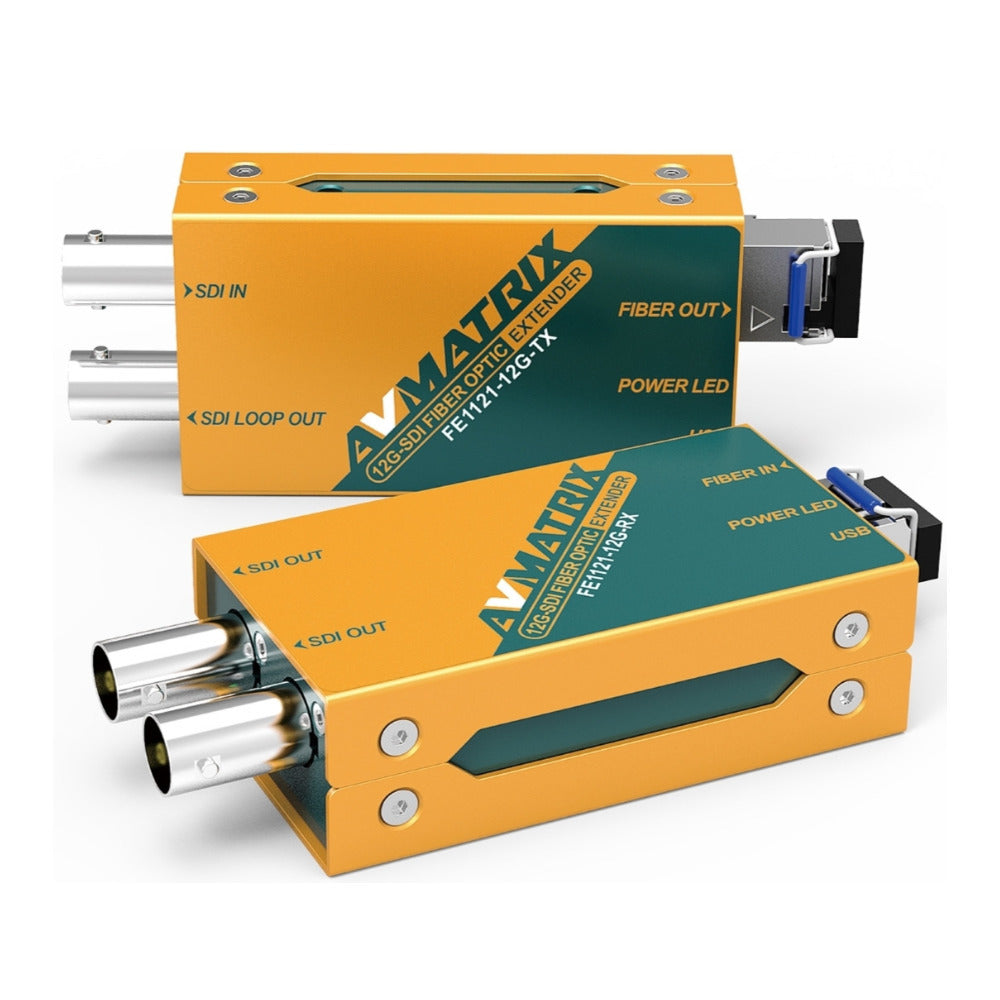

The AV Matrix FE1121-12G is a fiber optic transmitter and receiver that can be used to transmit a 4K 60p signal over a 10 km range.
10km Transmission
The 12G-SDI Fiber Optic Extender is a transmitter/receiver kit supporting 1310nm wavelength single-mode LC simplex fiber extensions up to 10km. It is a miniature-style extension solution that supports all SDI formats resolutions up to 4K60 with audio and metadata.
General
| Weight | Not Available |
| Color | Yellow |
Connections
| Ethernet | LAN |
AV Matrix FE1121-12G 12G-SDI Fiber Optic Extender
DI Formats
| SDI auto switching | SD / HD / 3G / 6G / 12G-SDI on input |
Connections
| Transmitter SDI video input | SD / HD / 3G / 6G / 12G-SDI / ASI (75Ω) X1 |
| Transmitter SDI loop output | SD / HD / 3G / 6G / 12G-SDI / ASI (75Ω) X1 |
| Transmitter fiber optical input | SFP module (LC) x1 |
| Receiver fiber optical input | SFP module (LC) x1 |
| Receiver SDI video output | SD / HD / 3G / 6G / 12G-SDI / ASI (75Ω) X2 |
Standards
| Optical fiber module | SFP Module - Hot Pluggable / Connector Style - LC / Fiber Type - Single-Mode / Optical Wavelength - 1310nm / Max Bandwidth - 12Gbps / Optical Transmit Power - -4dBm / Receiver Sensitivity - -12dBm |
| Single-mode max. distance | 10 km (6.2 Miles) for 12G (4K 60p Signal) |
| Optical fiber compliance | SMPTE 297M |
| SDI Compliance | SMPTE ST-2081, SMPTE ST-2082, SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 424M-B, ITU-R BT.656, ITU-R BT.601, SMPTE 274M, SMPTE 425M |
| SDI video rate | SD / HD / 3G / 6G / 12G-SDI |
| SDI equalization and re-clocking | Yes, SDI input and output support up to 60m for 12G SDI |
| SDI audio | Support 32/16 channels embedded |
