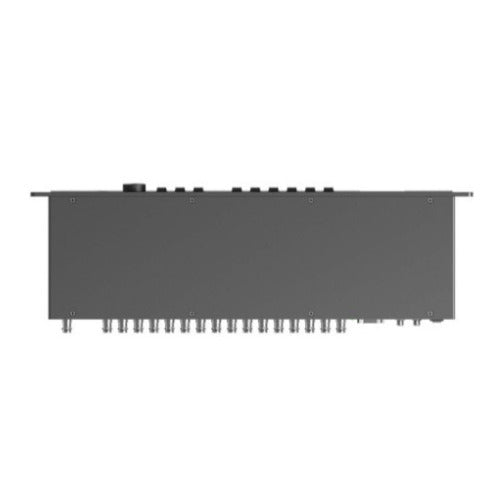

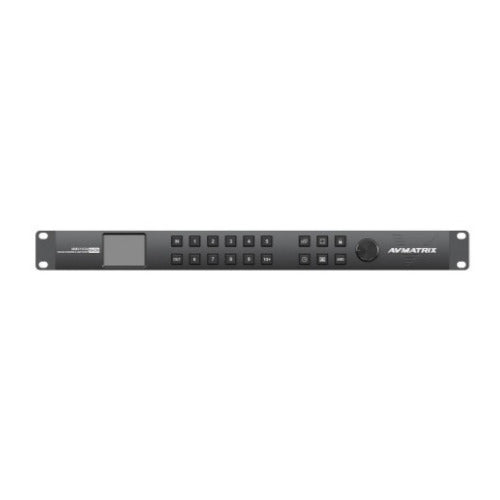

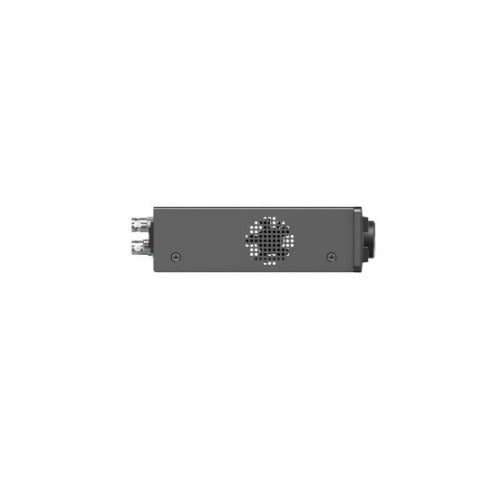

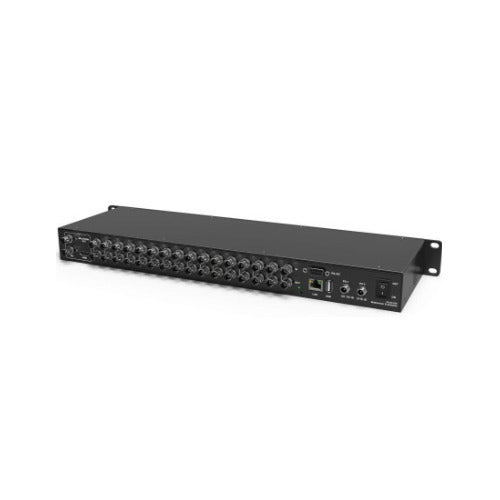

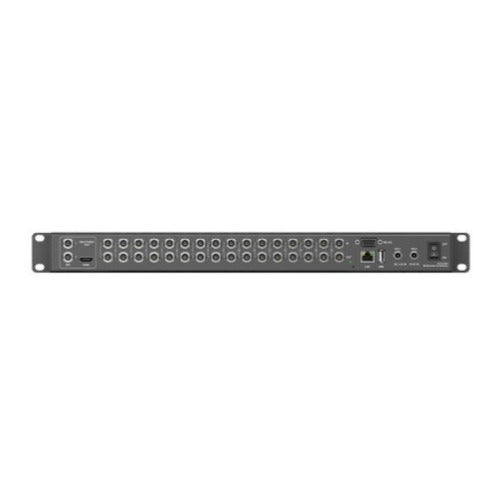

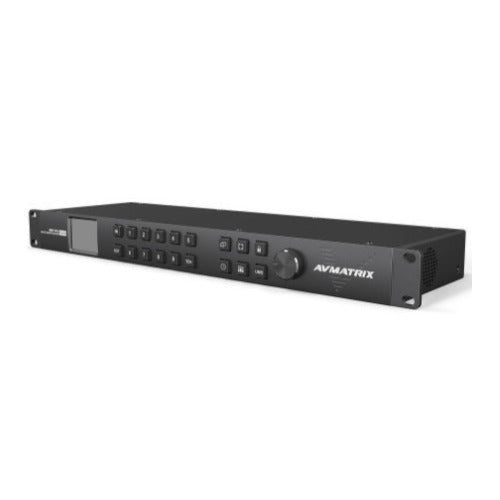

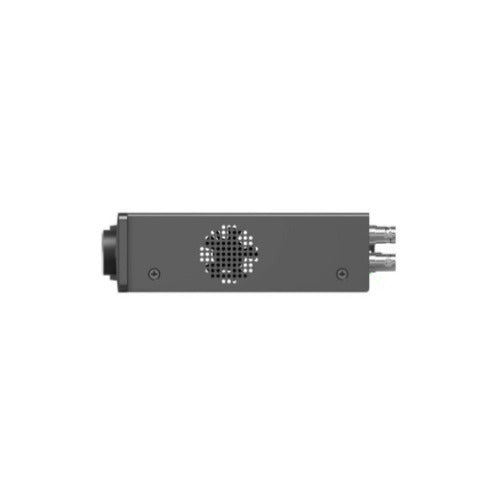

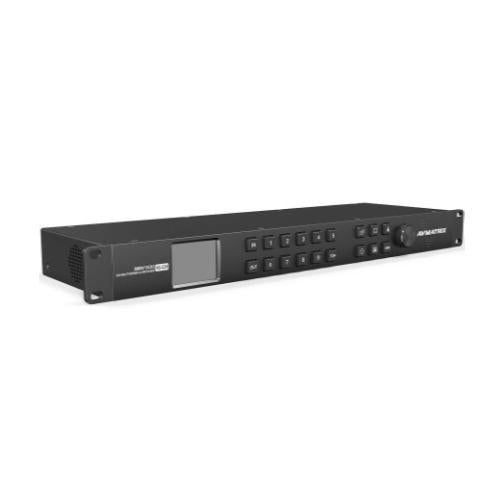

AV Matrix MMV1630 Compact 1RU 3G-SDI 16-Channel Multiviewer and Switcher
Couldn't load pickup availability
Product highlights
Product highlights
In the box
In the box
Free standard shipping
Free standard shipping
*Orders placed before 1 PM EST Mon - Thur will ship the same day. Orders placed beyond these hours will be shipped the next business day. Exclusions apply. See shipping policy
Free Local Pickup
Free Local Pickup
Please call for store stock availability. Requests made before 2:30 PM EST can be available for next-day pickup. Learn more
AV Matrix MMV1630 Compact 1RU 3G-SDI 16-Channel Multiviewer and Switcher is the perfect solution for a large broadcast project. This compact unit supports two modes, a 16-channel SDI multiviewer mode and 16x16 SDI matrix switcher. The input signal automatically detects SD, HD and 3G-SDI. The video format of multiview output can be selected from total nine formats from 720p to 1080p. Plus, 20 standard layouts with 16/12/11/10/9/8/6/4 are preset in this device. You can even SOLO any input signal in full screen through the shortcut key. The AV Matrix MMV1630 Multiviewer also supports UMD, audio meter, signal status and time code overlay. All functions can be quickly controlled by the PC software or front-panel buttons and knob.
General
| Weight | 2 kg |
| Color | Black |
Connections
| HDMI Inputs | 2 |
| Ethernet | LAN |
AV Matrix MMV1630 Compact 1RU 3G-SDI 16-Channel Multiviewer and Switcher
Multiviewer Mode
| Inputs | SD / HD / 3G-SDI x 16 |
| Loop outputs | SD / HD / 3G-SDI x 16 |
| Outputs | SDI x2 HDMI x1 |
| SDI input format support | 1080p - 60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98 // 1080PsF - 30 / 29.97 / 25 / 24 / 23.98 // 1080i - 60 / 59.394 / 50 // 720p - 60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98 // 625i 50 PAL // 525i 59.94 NTSC |
| SDI/HDMI output formats | 1080p - 60 / 50 / 30 / 25 / 24 // 1080i - 60/50 // 720p 60 / 50 / 30 / 25 |
| SDI auto switching | Auto Selects SD, HD, and 3G-SDI on input |
| SDI video rate | SD / HD / 3G-SDI |
| SDI compliance | SMPTE 292M / SMPTE 259M / SMPTE424M |
| Color space and precision | YUV 4:2:2 / YUV 4:4:4 / RGB 4:4:4 / XYZ 4:4:4 |
Switcher Mode
| Inputs | SD / HD / 3G-SDI / DVB-ASI x 16 |
| Outputs | SD / HD / 3G-SDI / DVB-ASI x 16 |
| SDI format support | 1080p - 60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98 // 1080PsF - 30 / 29.97 / 25 / 24 / 23.98 // 1080i - 60 / 59.394 / 50 // 720p - 60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98 // 625i 50 PAL // 525i 59.94 NTSC |
| SDI auto switching | Auto Selects SD, HD, and 3G-SDI on input |
| SDI video rate | SD / HD / 3G-SDI |
| SDI compliance | SMPTE 259M, SMPTE 292M / SMPTE 259M / SMPTE 296M / SMPTE 352M / SMPTE 372M / SMPTE 424M / SMPTE 425M / DVB-ASI |
| Color space and precision | YUV 4:2:2 / YUV 4:4:4 / RGB 4:4:4 / XYZ 4:4:4 |
Controls
| Front panel buttons and knob control | |
| LAN (software control and update) | |
| RS-422 |
Power
| Power connector | Threaded Locking Connector |
| Power consumption | 36W |
| Voltage range | 12-20 VDC |
Environment
| Operating temperature | 0-60-degree-C |
| Relative humidity | 0-90% non-condensing |
| Storage temperature | -30-70-degree-C |
Size
| Dimensions | Standard 19-inch 1 Rack Unit Footprint |
| Weight | 2 kg |
