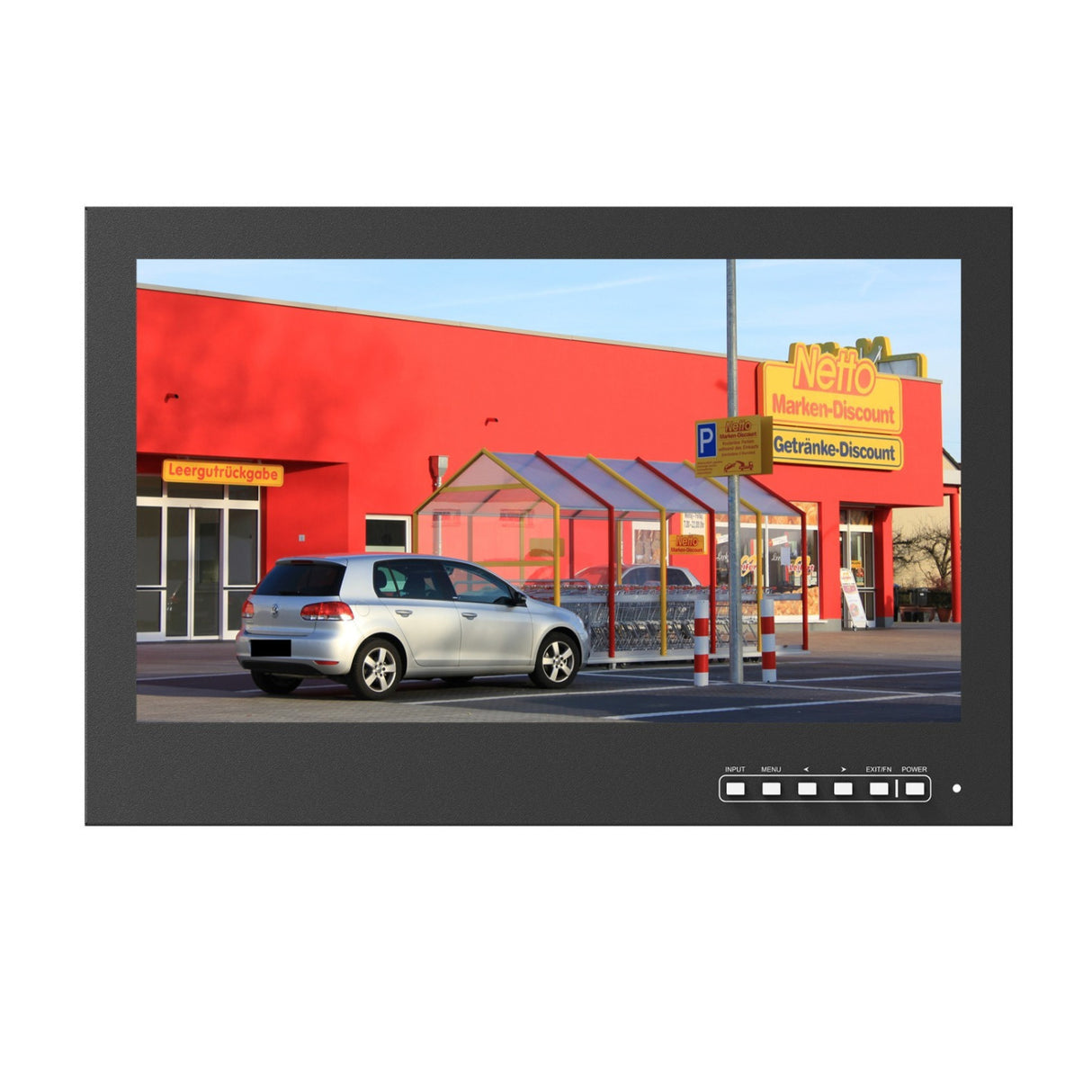

The PVM150S is a purpose designed CCTV monitor for use with industry standard CCTV servers and video systems. The unit features and HDMI 1.4b video as well as an SDI bayonet type input which facilitates connections.

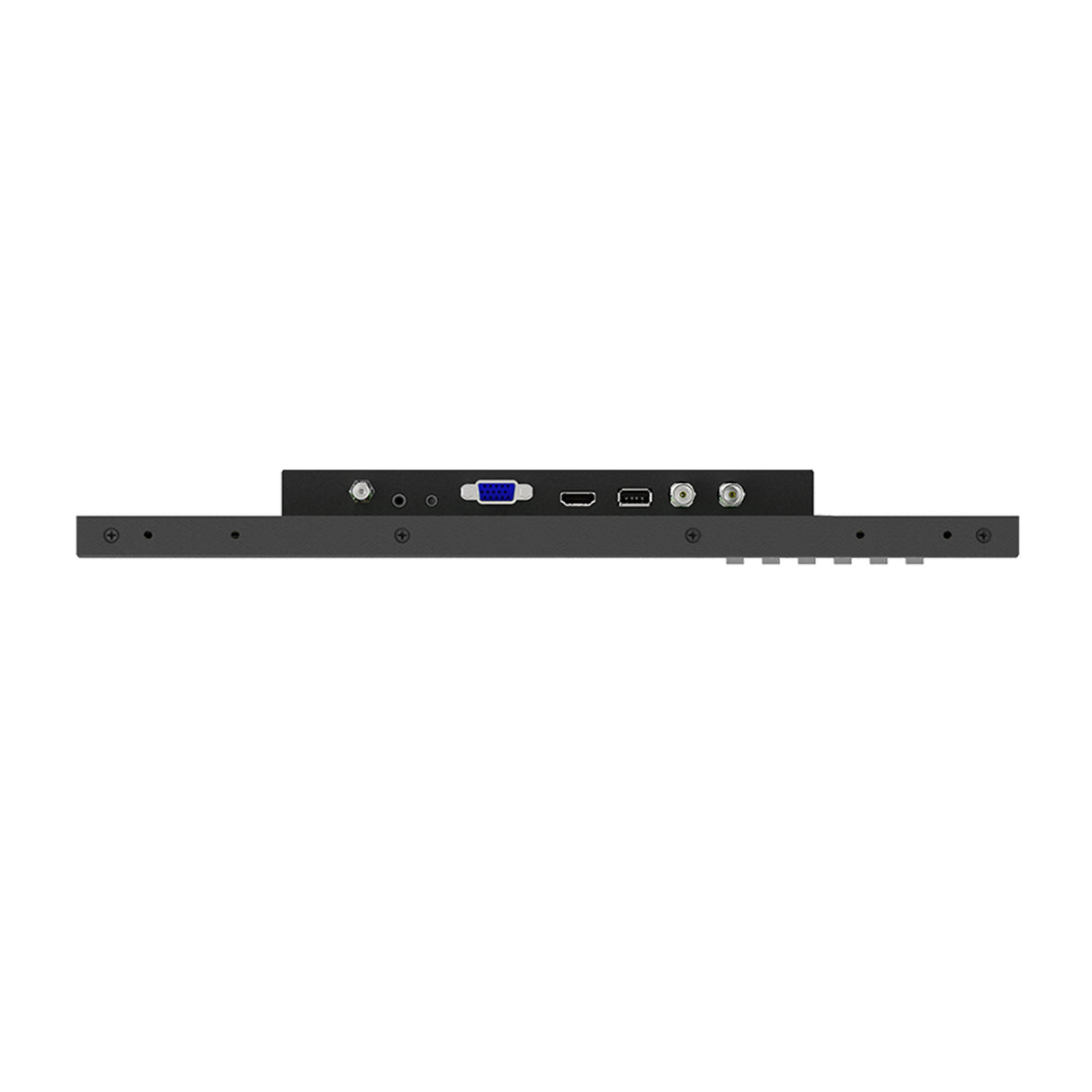

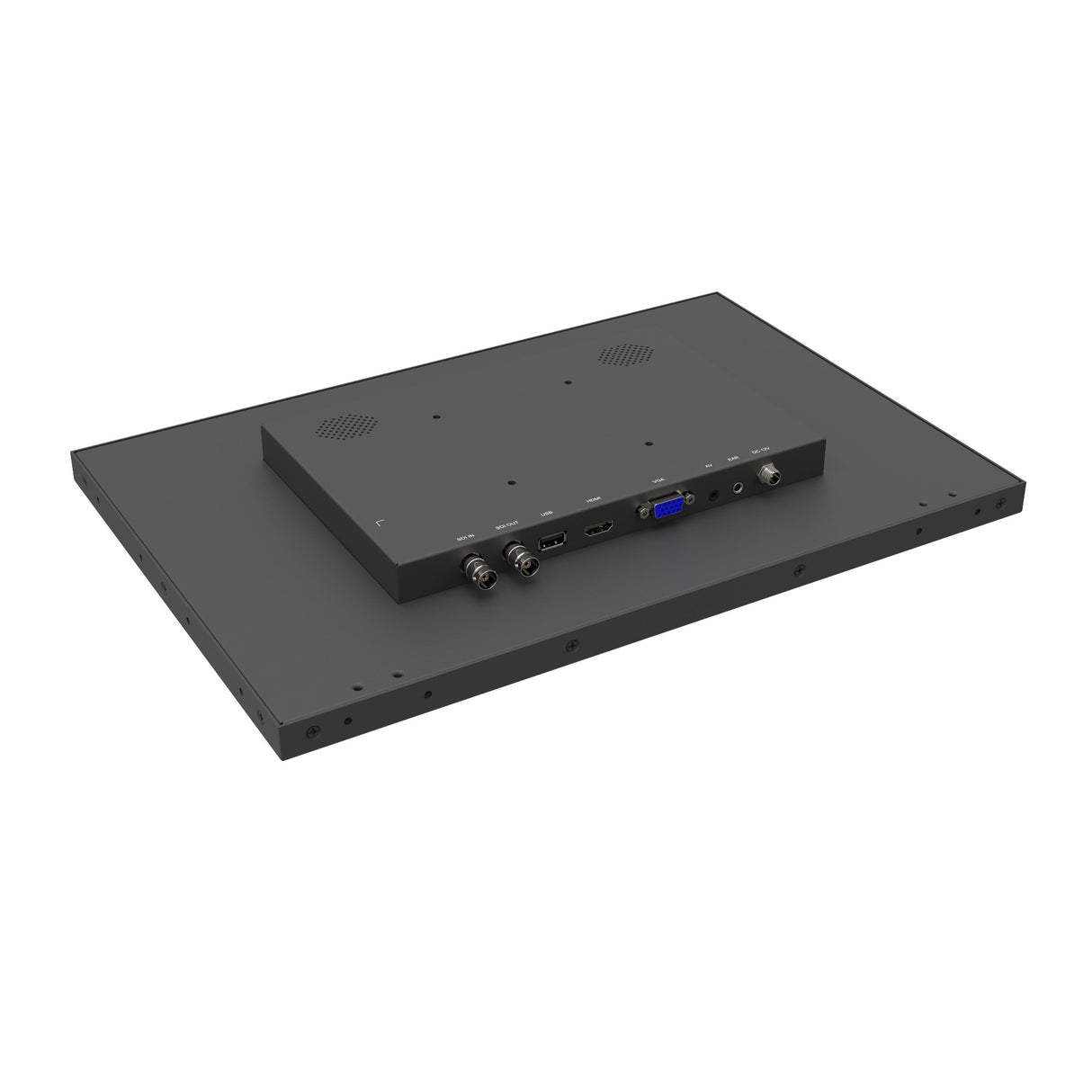

4K HDMI / 3G-SDI / VGA / Composite
HDMI 1.4b supports 4K 30Hz signal input, SDI supports 3G-SDI, HD-SDI and SD-SDI signal inputs. Universal VGA and AV composite ports can also meet different usage environments.
FHD Resolution
Creatively integrated the 1920×1080 native resolution into a 15.6 inch LCD panel, which is far beyond from HD resolution.
1000nit High Brightness
Features with 1000:1, 1000 cd/m2 high brightness and 178 degree WVA. As well as seeing every detail in massive FHD visual quality, it is sunlight readable in the open air.
HDR
When HDR is activated, the display reproduces a greater dynamic range of luminosity, allowing lighter and darker details to be displayed more clearly. Effectively enhancing the overall picture quality.

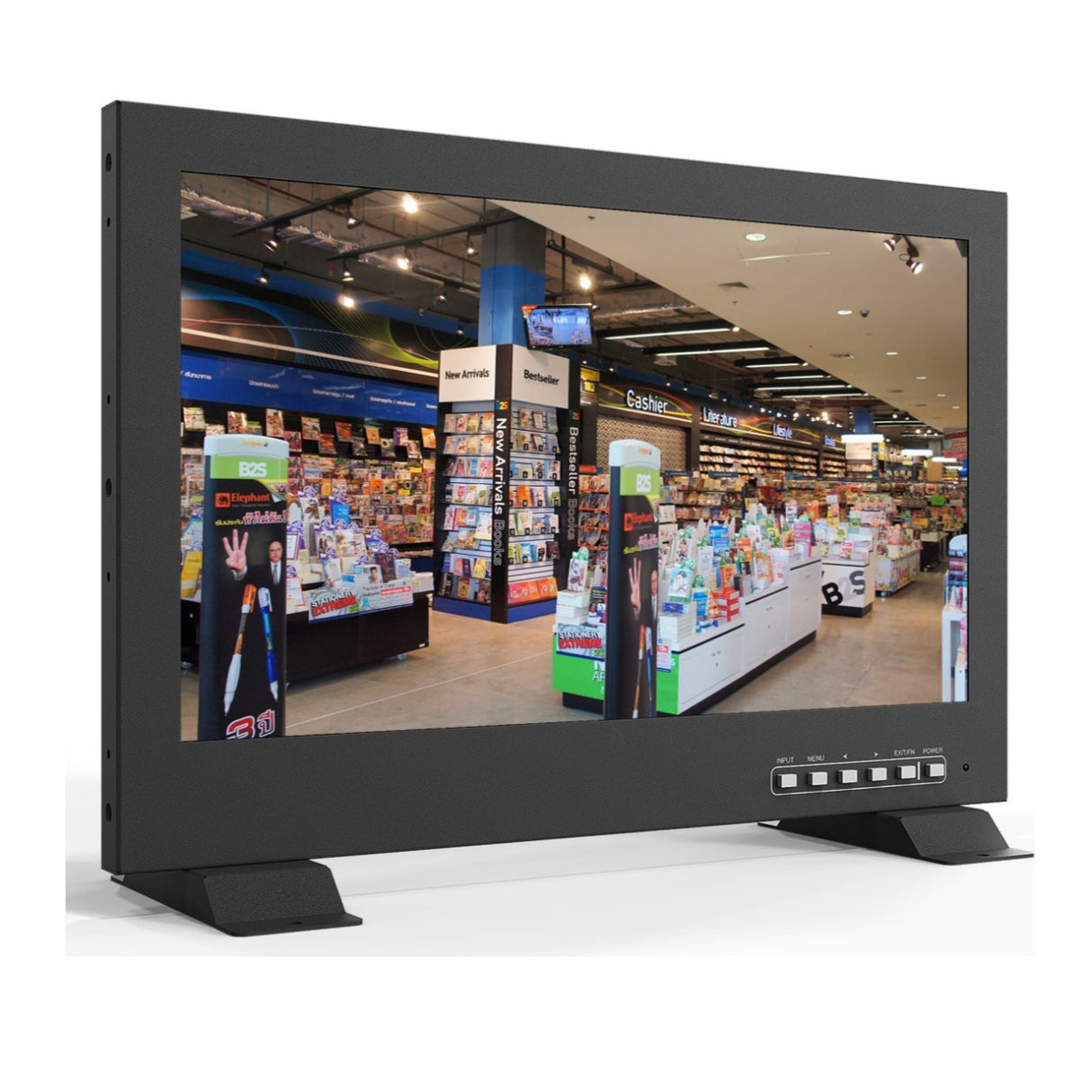

Security Camera Assist
As a monitor in security camera system to help with general store oversight by allowing managers and employees to keep an eye on multiple areas at once.
Metal Housing
Metal enclosure can protect the screen and interfaces from damage cause by dropping or vibrating as well as the service life is increased.
Wall-Mount

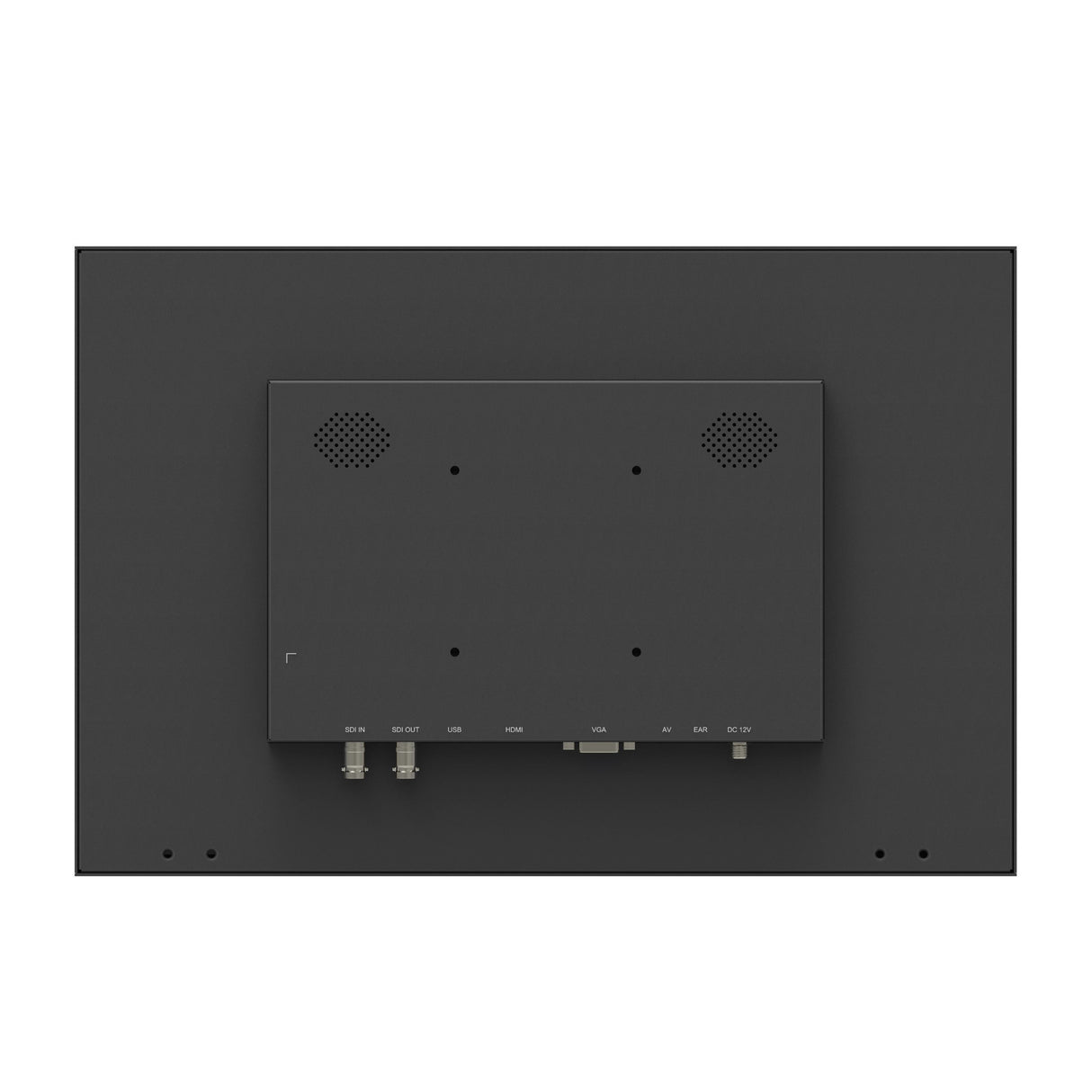

It can be installed and fixed on the wall through the VESA 75mm screw holes at its back.

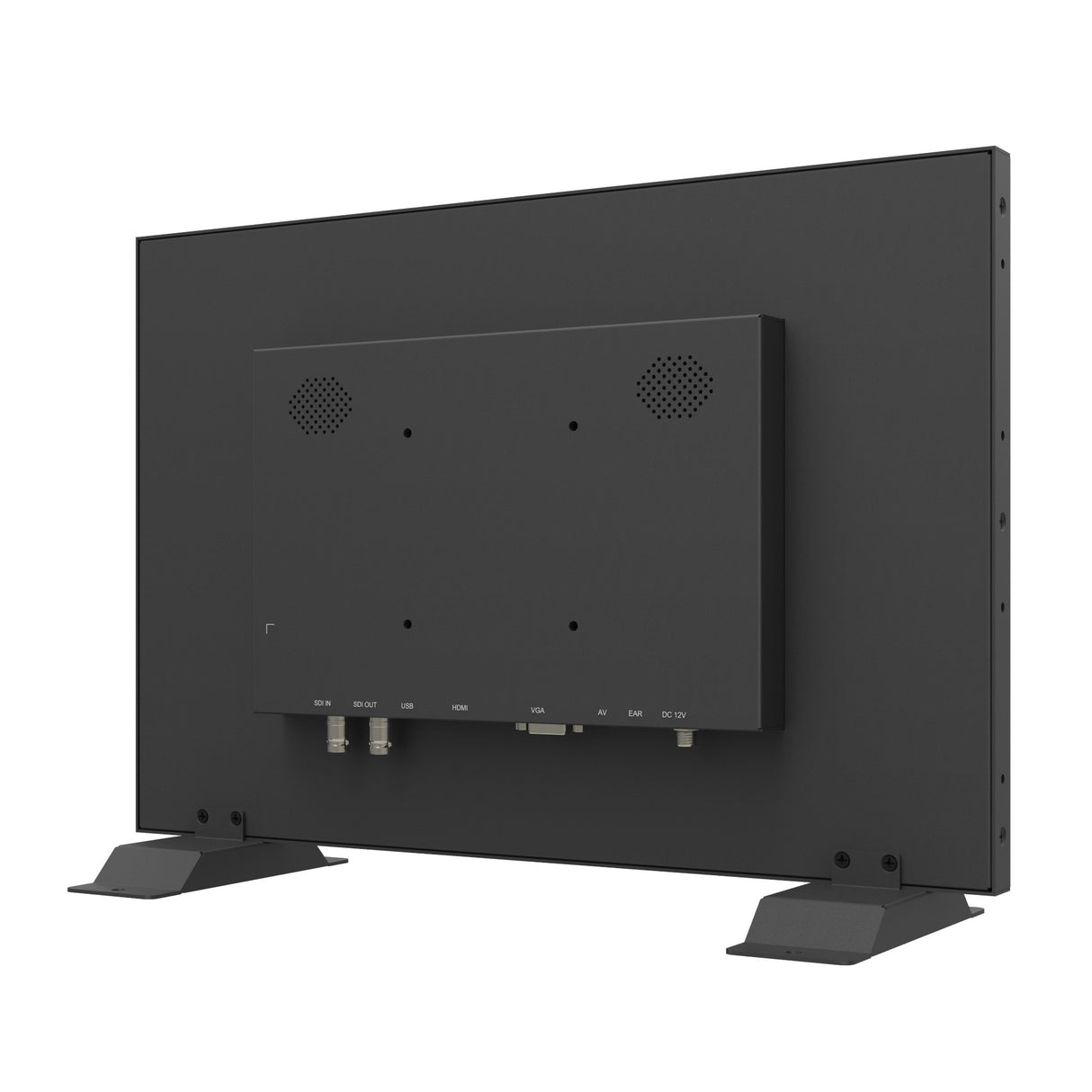

Desktop
Help with standing on the desktop by installing the base bracket on the bottom of monitor.
6U Rackmount
A 6U rack for a customized monitoring solution also supported for viewing from the different angles and images displays.

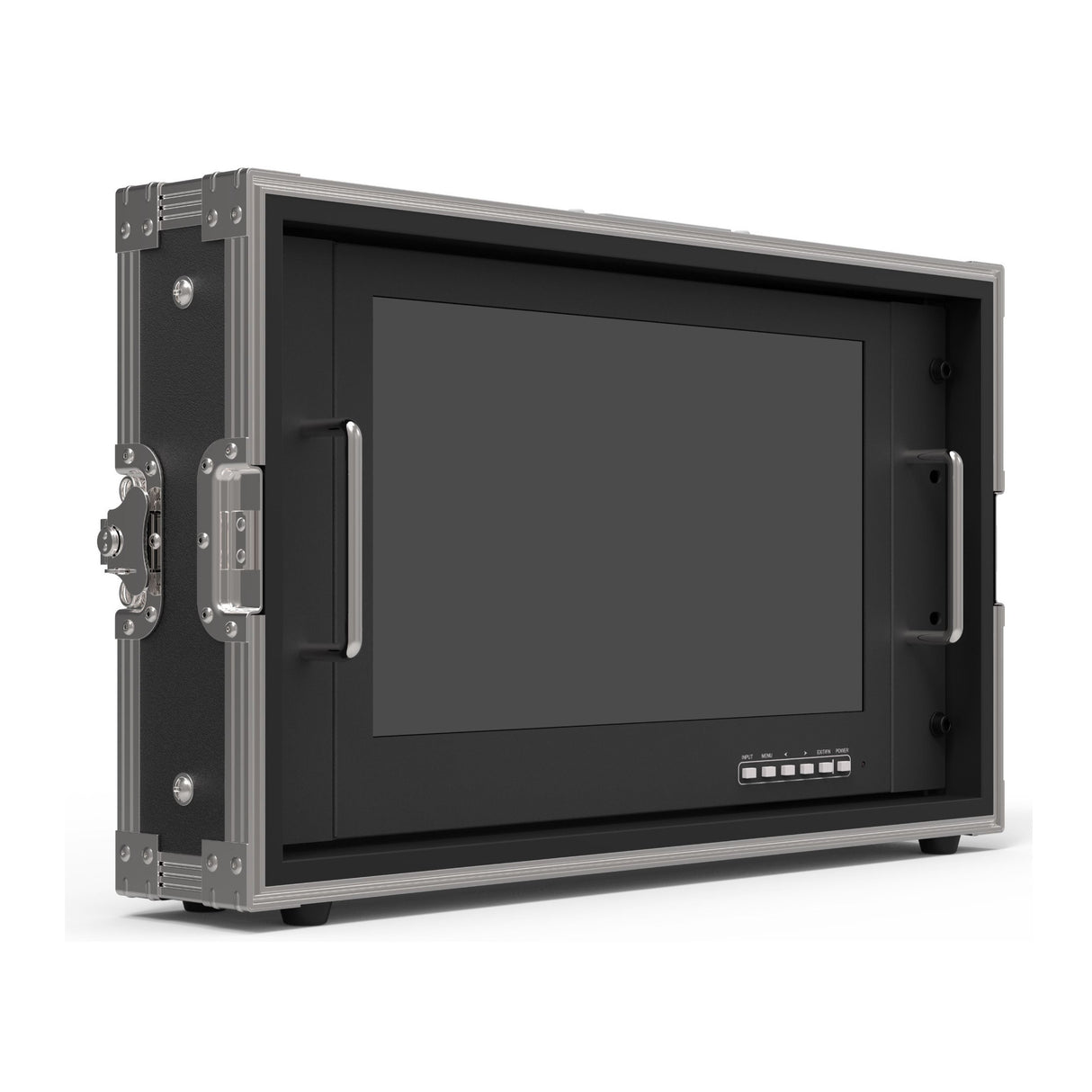

Carry-On

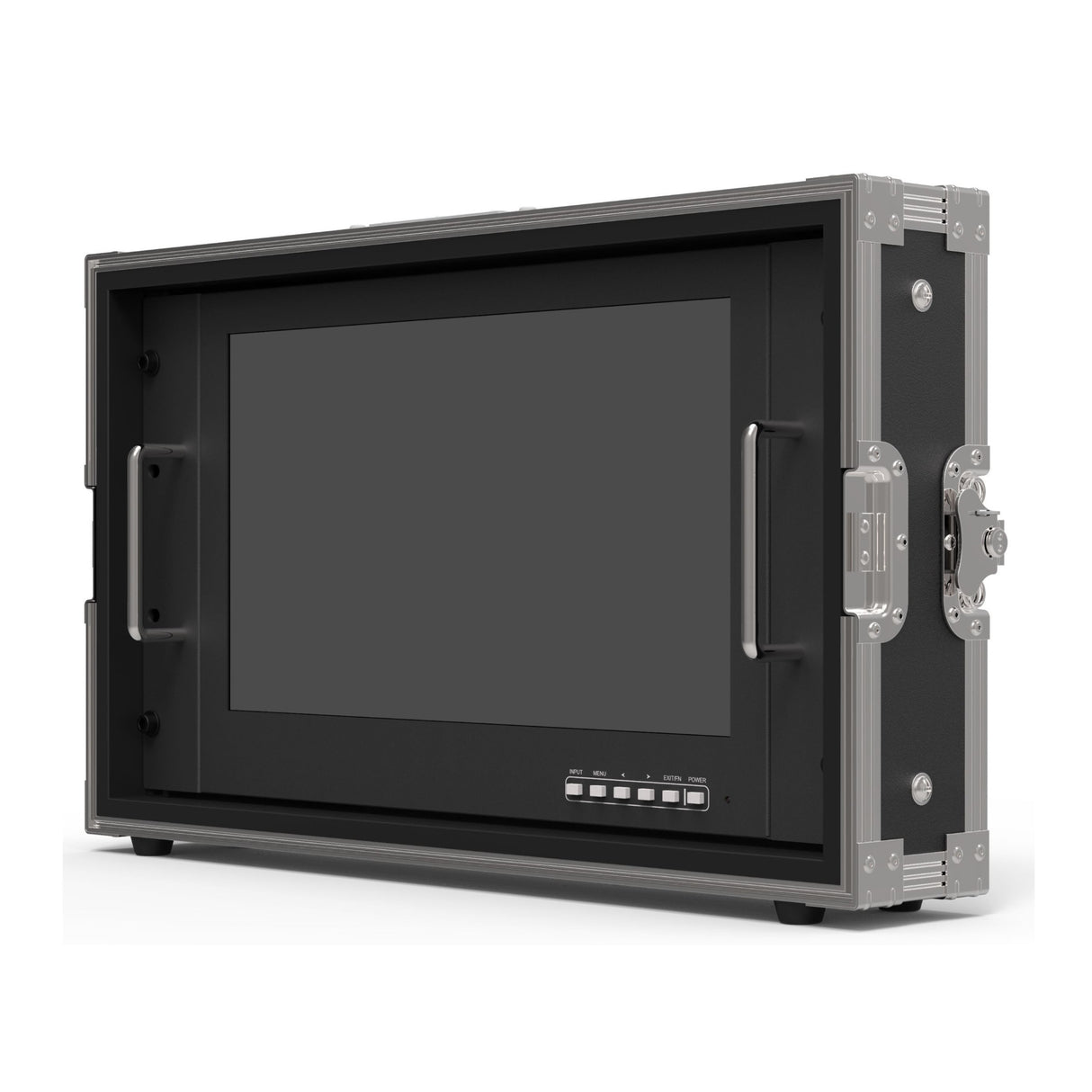

The portable aluminum case can completely store and protect the monitor so that it can be taken away at any time.
Connectivity
| External Ports | HDMI |
General
| AC Input Power | DC 10-24V |
Environmental
| Storage Temperature | -30°C to 70°C |
| Operating Temperature | -20 degree c - 60 degree c |
Physical
| Weight | 2.87kg |
| Wall Mounting | Not Available |
Display
| Resolution | 4K Ultra HD |
| Brightness | 1000 cd/m² |
| TV Screen Size (Diagonal) | 15.6" |
| Variable Frame Rates | Not Available |
| Panel Type | IPS-Type LCD |
| Viewing Angle (H x V) | 178 x 178° |
| Contrast Ratio | 1000:1 |
| Dot Pitch | Not Available |
Lilliput PVM150S 15.6-Inch Security SDI Monitor
Display
| Display screen | 15.6-inch 8bit IPS |
| Physical resolution | 1920×1080 |
| Aspect ratio | 16:9 |
| Brightness | 1000cd/m2 |
| Contrast | 1000:1 |
| Viewing angle | 178 degree /178 degree (H/V) |
Input
| 3G-SDI | 1 |
| HDMI 1.4b | 1 ( support 4K 30Hz ) |
| VGA | 1 |
| AV | 1 |
Output
| 3G-SDI | 1 |
Audio
| Speaker | 2 |
| Ear phone slot | 1 |
Power
| Current | ≤2A(12V) |
| Input voltage | DC 10-24V |
| Battery plate | F970 |
| Power consumption | ≤24W |
Environment
| Operating temperature | -20 degree c - 60 degree c |
| Storage temperature | -30 degree c – 70 degree c |
Dimension
| Dimension (L x W x D) | 252mm x 157mm x 25mm |
| Weight | 2.87kg |
