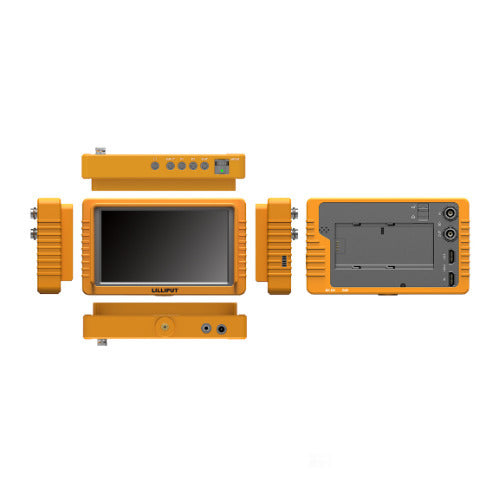

Lilliput Q5 5.5-Inch Full HD Camera Monitor with SDI and HDMI Cross Conversion
Couldn't load pickup availability
Product highlights
Product highlights
In the box
In the box
Free standard shipping
Free standard shipping
*Orders placed before 1 PM EST Mon - Thur will ship the same day. Orders placed beyond these hours will be shipped the next business day. Exclusions apply. See shipping policy
Free Local Pickup
Free Local Pickup
Please call for store stock availability. Requests made before 2:30 PM EST can be available for next-day pickup. Learn more

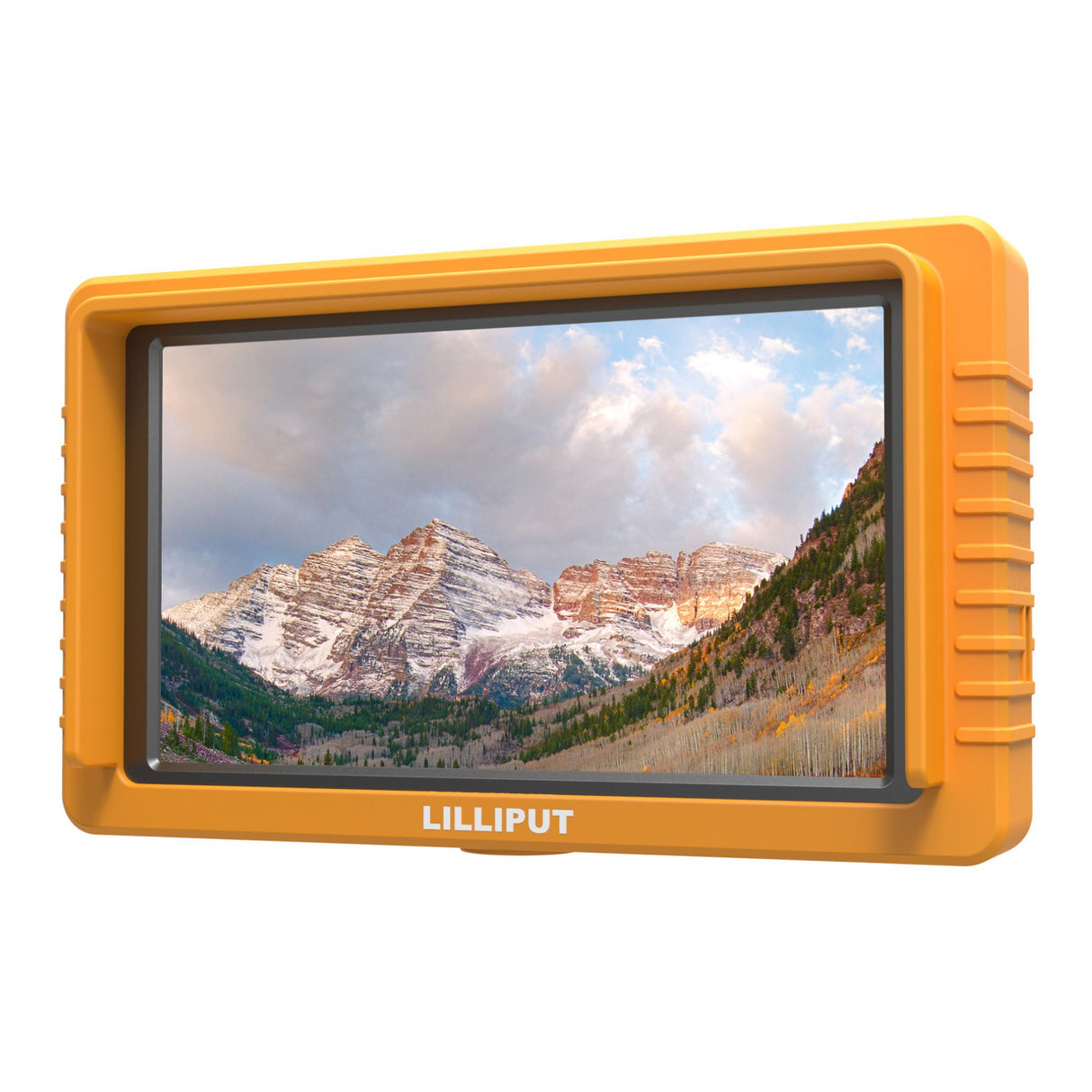

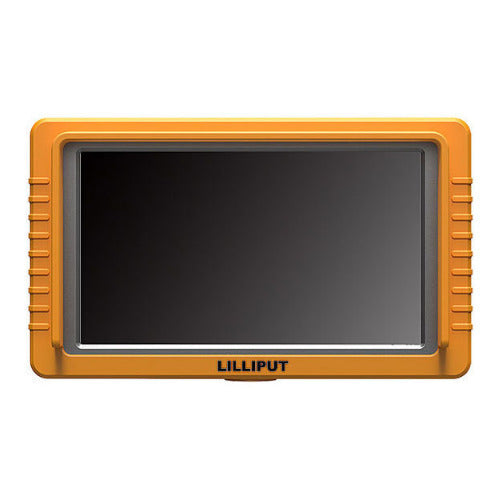

The Lilliput Q5 5.5-inch Full HD Camera Monitor with SDI and HDMI Cross Conversion is an SDI/HDMI on camera monitor with precise color, outstanding brightness and advanced functions. The Q5 5.5-inch FHD Camera Monitor has a 16:9 IPS panel with 1920x1080 Full HD native resolution (401ppi), high 1000:1 contrast, 160 degree wide viewing angles and high 450cd/m² brightness. This 5.5-inch monitor provides an excellent viewing experience.
Advanced Functions

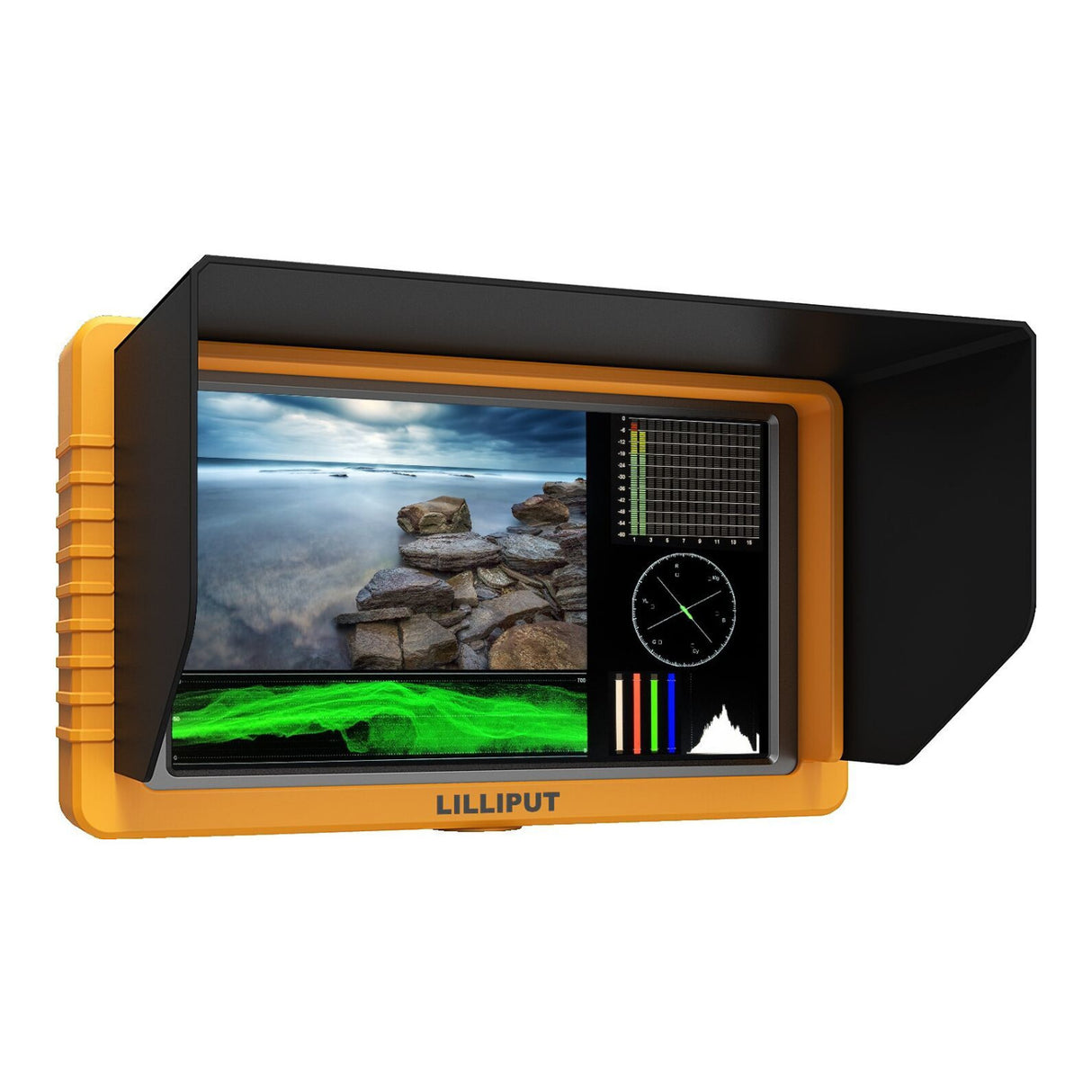

The Q5 monitor creatively integrates column (YRGB peak), time code, waveform (waveform PIP mode included), vectorscope and audio level meter, all into one field monitor. These functions make the Q5 an excellent choice for accurately monitoring while making movies and playing videos.
Protective Metal Housing

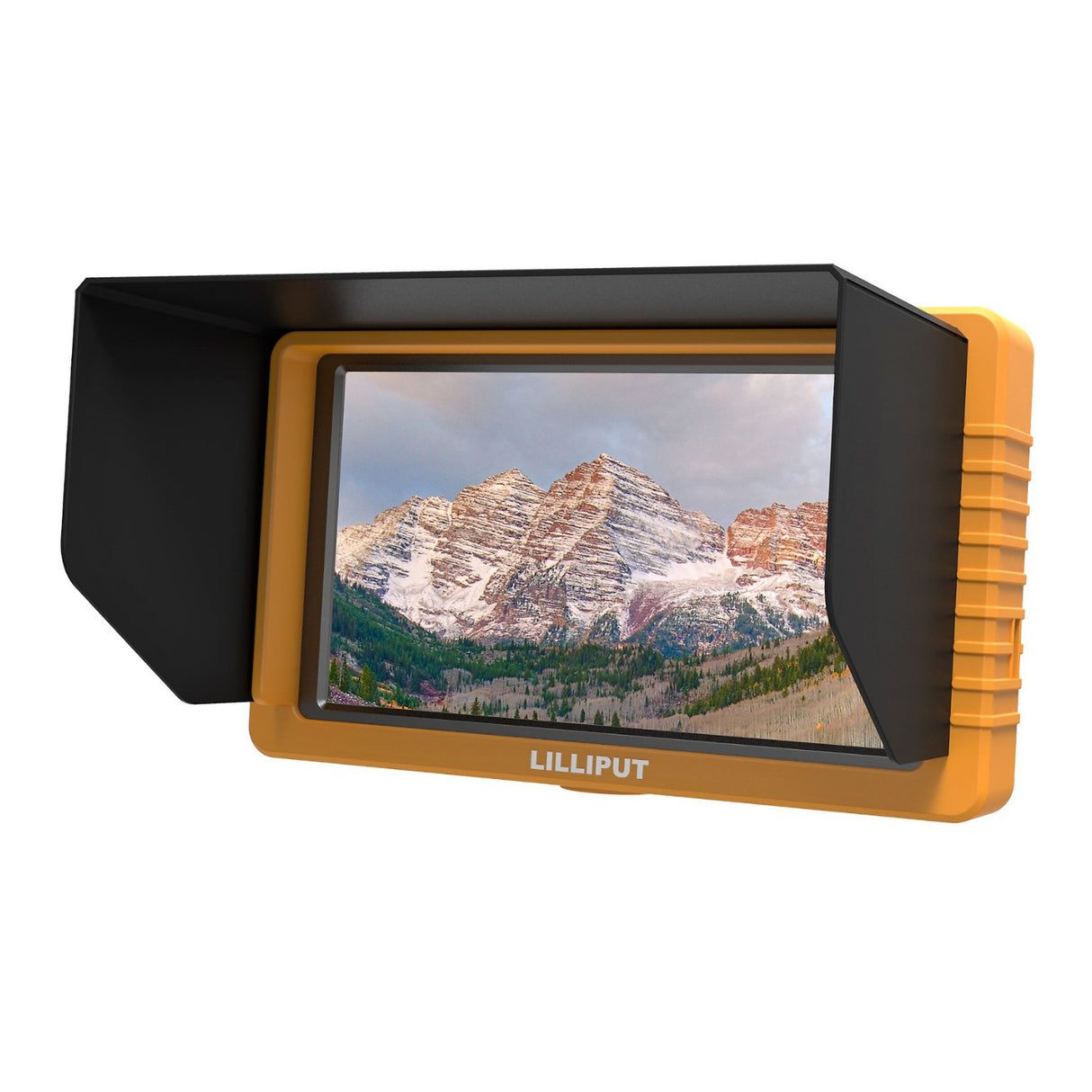

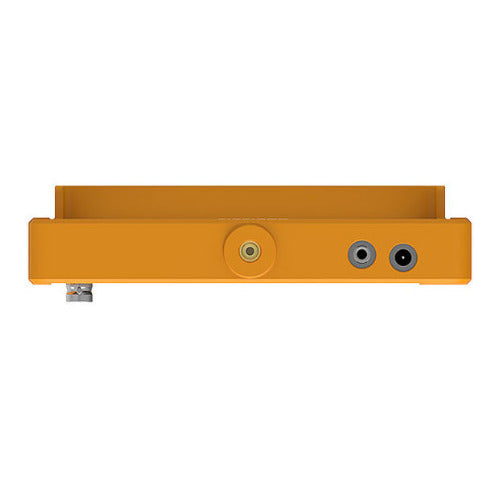

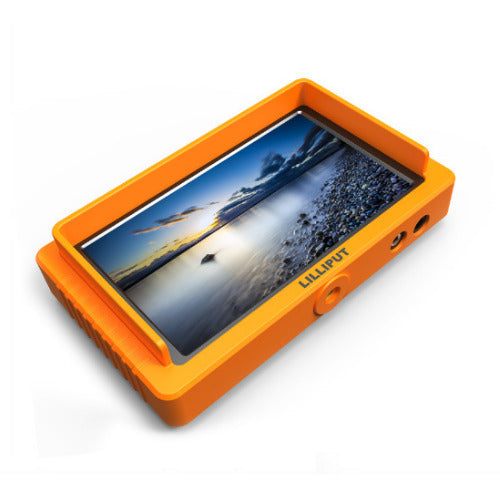

The Lilliput Q5 5.5-inch FHD SDI Monitor is extremely thin at just 20mm yet features firm metal housing that protects it from vibration, drops and, when combined with the included sunshade, inclement weather. This rugged body with silicone rubber case allows for a longer life.
SDI and HDMI Cross Conversion

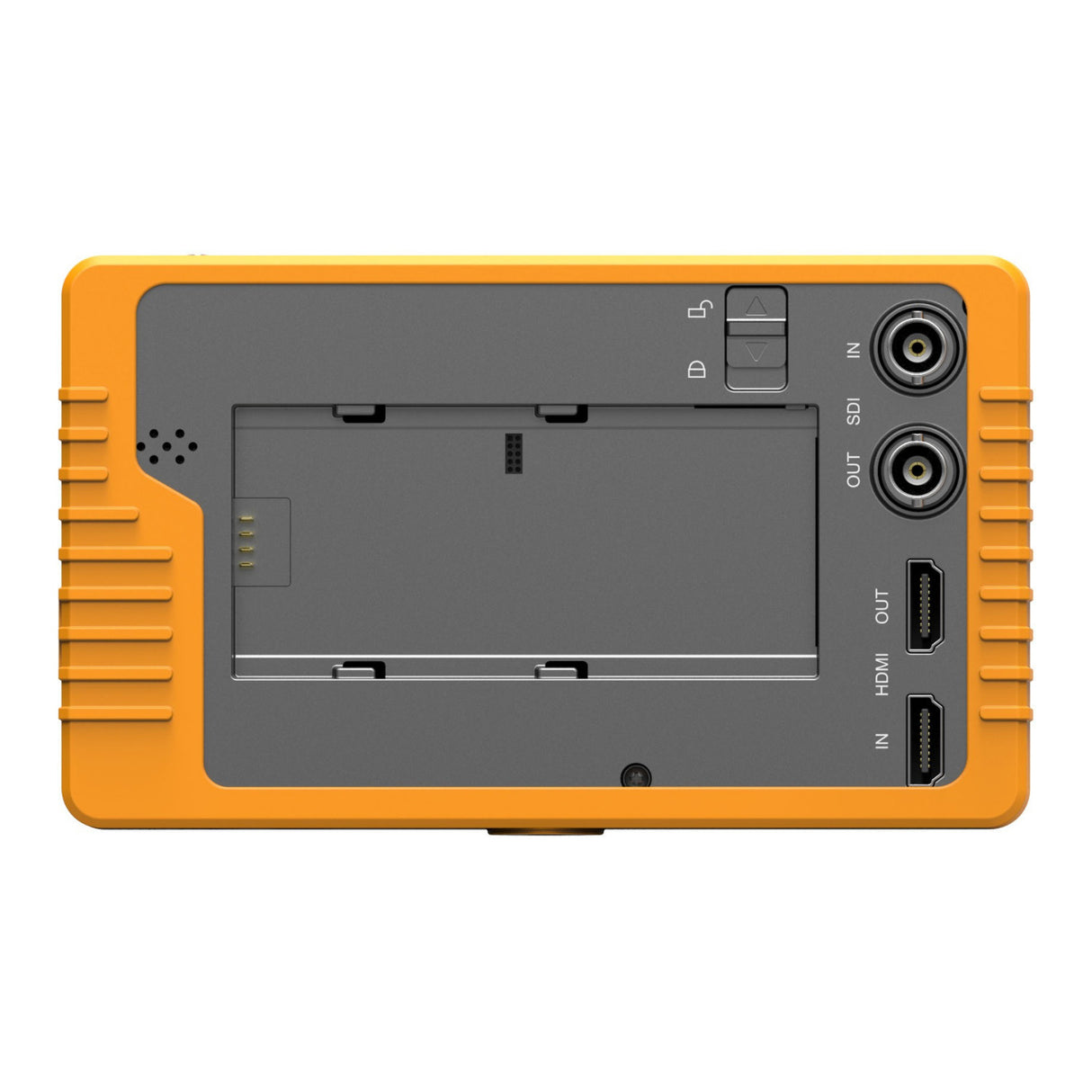

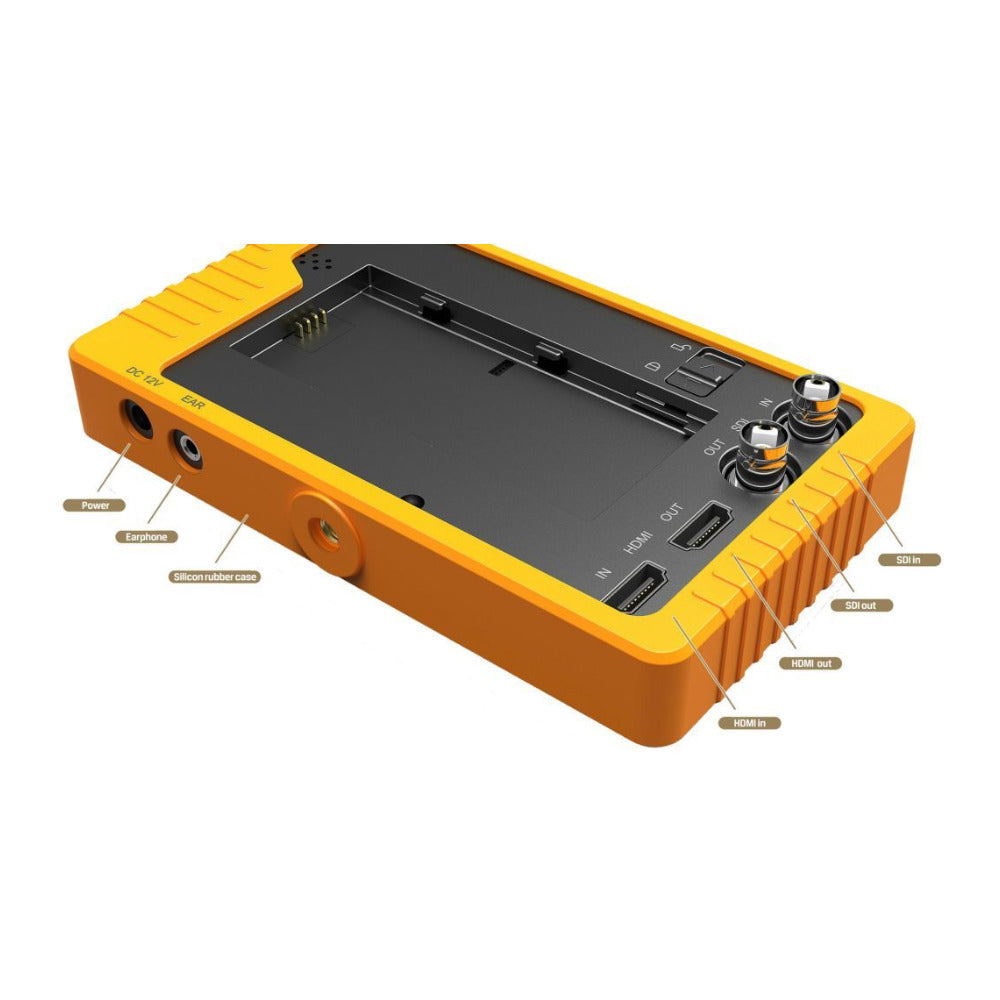

This is an HDMI as well as SDI monitor. Its high-quality HDMI and SDI inputs ensure its precise color can be easily controlled on multiple displays. The Q5's HDMI output connector will actively transmit an HDMI input signal or output an HDMI signal that has been converted from an SDI signal.
To translate that into English, signals transmit from the SDI input to the HDMI output and from the HDMI input to the SDI output.
Connectivity
| External Ports | HDMI |
General
| AC Input Power | Not Available |
Environmental
| Storage Temperature | -30°C to 70°C |
| Operating Temperature | -20 degree Celsius～60 degree Celsius |
Physical
| Weight | 11.3oz / 320g |
| Wall Mounting | Not Available |
Display
| Resolution | 1920 x 1200 |
| Brightness | 450 cd/m² |
| TV Screen Size (Diagonal) | 5.5" |
| Variable Frame Rates | Not Available |
| Contrast Ratio | 1000:1 |
| Dot Pitch | 63x68um |
- Power: 1W
- 480i (59.94)
- 1080i (60/59.94/50)
- 1080p (30/29.97/25/24/24sF/23.98/23.98sF)
- 720p (60/59.94/50)
- 1080i (29.97/25/24/23.98)
- 1080p (60/59.94/50/30/29.97/25/24/23.98)
- Without case: 6.1x3.5x0.79in / 154.5x90x20mm
- With case: 6.2x3.7x0.9in / 157.5x93x23mm
- Without case: 11.3oz / 320g
- With case: 12.0oz / 340g
Lilliput Q5 5.5-inch Full HD SDI Camera Monitor
Display
| Display screen | 5.5-inch IPS 8-bit |
| Physical resolution | 1920x1200 (401ppi) |
| Active area (WxH) | 2.68x4.76in / 68.04x120.96mm |
| Dot pitch (WxH) | 63x68um |
| Aspect ratio | 16:9 |
| Brightness | 450cd/㎡ |
| Contrast ratio | 1000:1 |
| Light source | 12 LEDs |
Input
| 3G-SDI | 1 |
| HDMI | 1 |
Output
| 3G-SDI | 1 |
| HDMI | 1 |
Audio
| Speaker | 1 (built-in) |
| Ear phone slot | 1 |
SDI Format
| SMPTE-125M | |
| SMPTE-292M | 1080p (30/29.97/25/24/24sF/23.98/23.98sF) |
| SMPTE-296M | 720p (60/59.94/50/30/29/25/24/23.98) |
| SMPTE-372M | |
| SMPTE-425M-AB | 1080p (60/59.94/50) |
| Level A and Level B | 720p (60/59.94/50/30/29.97/25/24/23.98) |
| Level B 2x | 1080i (60/59.94/50) |
| ITU-R BT.656 | 576i (50) |
HDMI Format
| Full HD ~ HD | 1080p, 1080i, 720p, 576p, 576i, 480p, 486i |
Power
| Current | 1A |
| Input voltage | DC 7-24V |
| Battery pate | F970 / QM91D / DU21 / LP-E6 |
| Power consumption | ≤12W |
Controls

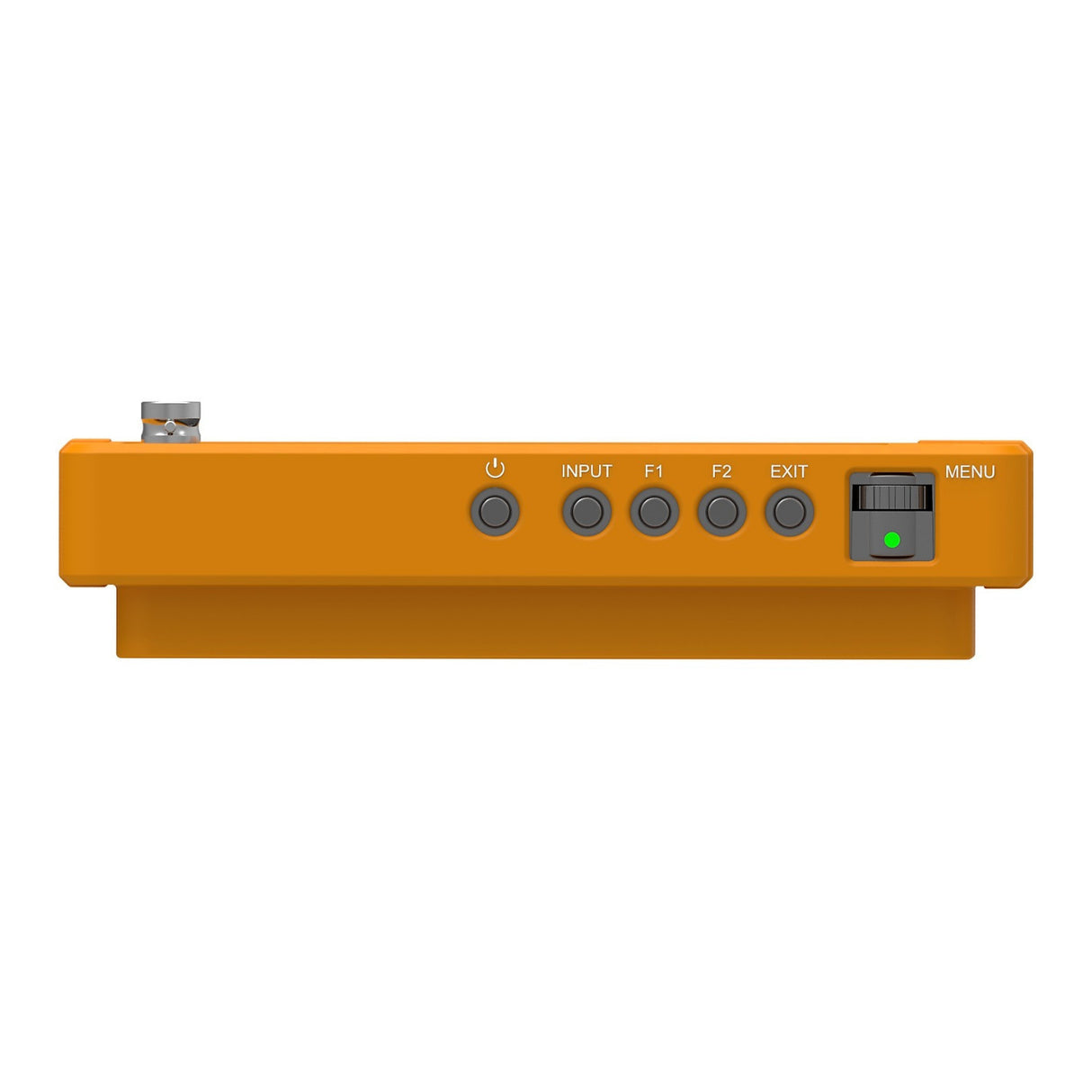

| Basic | Exit, F1-F2 user-definable buttons, Input, Power ON/OFF |
| Advanced | Brightness, Contrast, Saturation, Sharpness, Tint, Color Temp, Red Gain, Green Gain, Center Marker, Aspect Marker, Safety Marker, Marker Color, Marker Mat, Thickness, Scan, Aspect, DSLR, Check Field, Freeze H/V Delay, DSLR, Waveform, Time Code, Zoom, Peaking, False Color, Exposure, Exposure Level, Volume, Level Meter, Histogram, Language, HDMI/SDI Convert, Color Bar, OSD Time, Image Flip, Back Light, Fan, Reset |
Environment
| Operating Temperature | -4F~140F / -20℃～60℃ |
| Storage Temperature | -22F~158F / -30℃～70℃ |
General
| Dimensions (LxWxD) | |
| Weight | |
| Warranty | 1 year parts and labor in Depot of City of Industry, CA |
