Lilliput Q7 7" Full HD SDI Camera Monitor
Couldn't load pickup availability
Product highlights
Product highlights
In the box
In the box
Free standard shipping
Free standard shipping
*Orders placed before 1 PM EST Mon - Thur will ship the same day. Orders placed beyond these hours will be shipped the next business day. Exclusions apply. See shipping policy
Free Local Pickup
Free Local Pickup
Please call for store stock availability. Requests made before 2:30 PM EST can be available for next-day pickup. Learn more

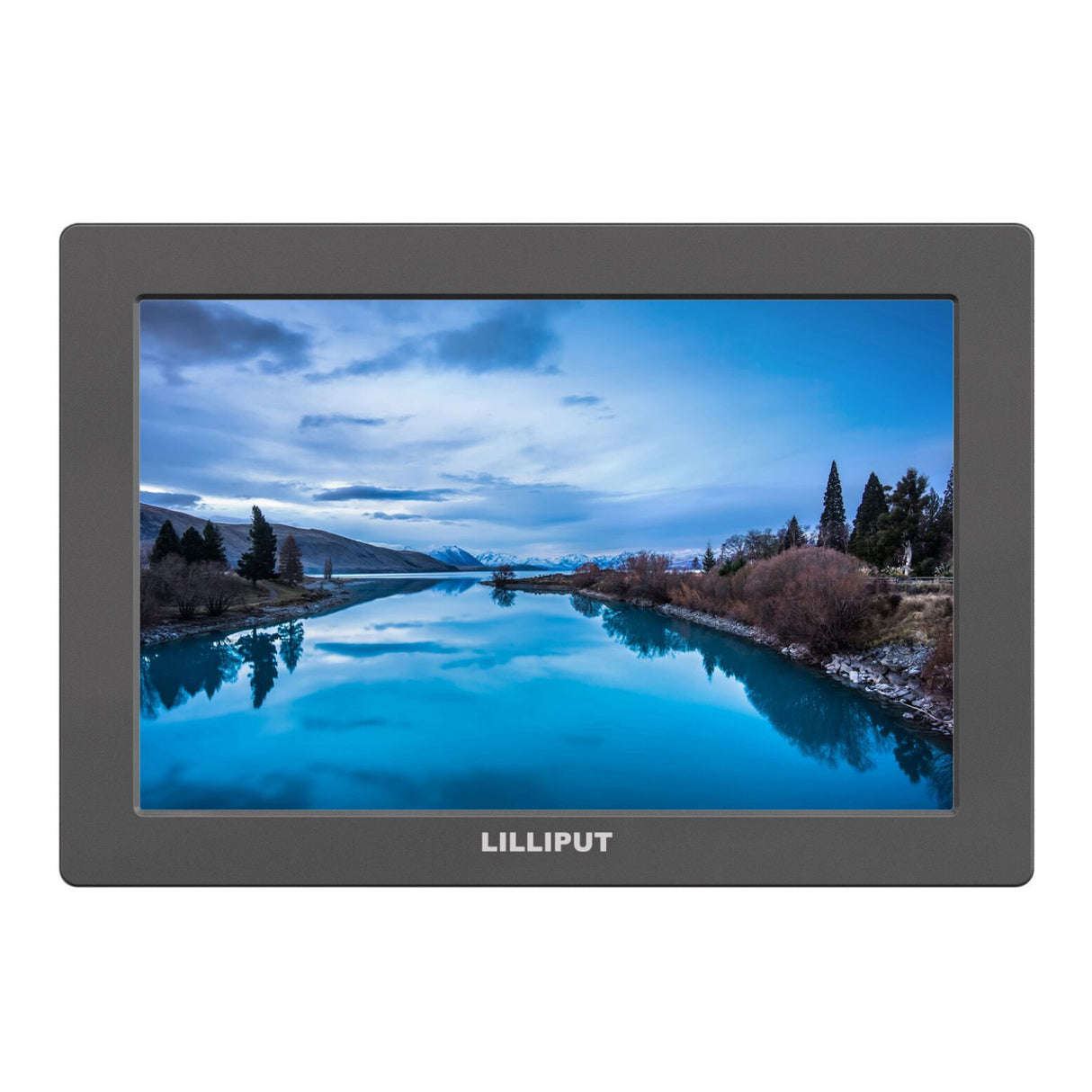

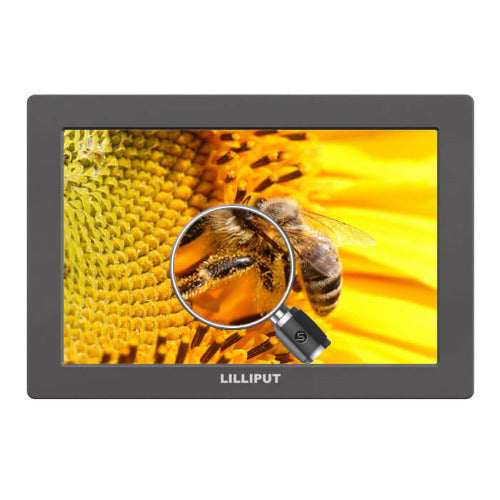

The Lilliput Q7 7-inch Full HD SDI Camera Monitor offers precise color, outstanding brightness and SDI and HDMI cross conversion. The Q7 7-inch FHD Camera Monitor has a 16:10 LCD panel with 1920x1200 Full HD native resolution, high 1000:1 contrast, 165 degree wide viewing angles and high 500cd/m² brightness. This 7-inch monitor provides an excellent viewing experience and precise color. This Lilliput screen is 4 times clearer than a standard definition display.
Advanced Functions

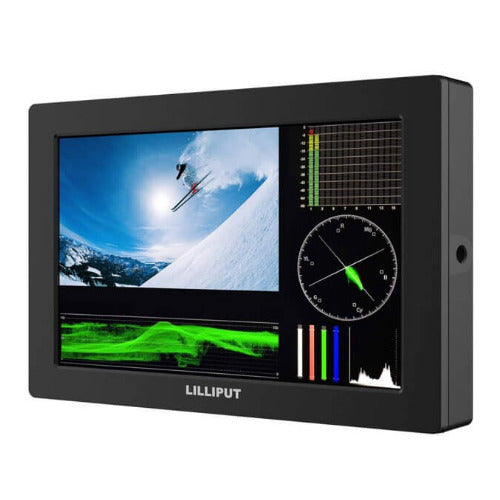

The Q7 monitor creatively integrates column (YRGB peak), time code, waveform, vectorscope, and audio level meter, all into one field monitor. This Lilliput monitor also provides multiple modes to suit your needs. It's functions include Waveform PIP mode, Waveform Y - enlarged horizontally mode, Full screen mode.
Protective Metal Housing

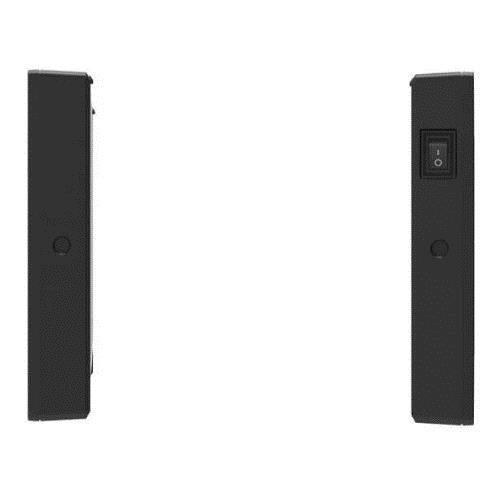

The Lilliput Q7 is extremely thin at just 22mm yet features firm metal housing that protects it from vibration, drops and inclement weather. This rugged body allows for a longer life.

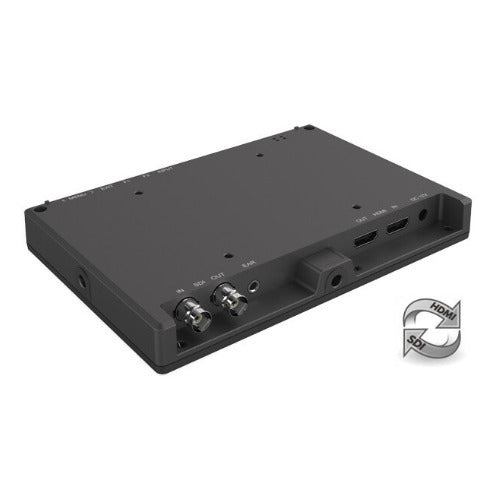

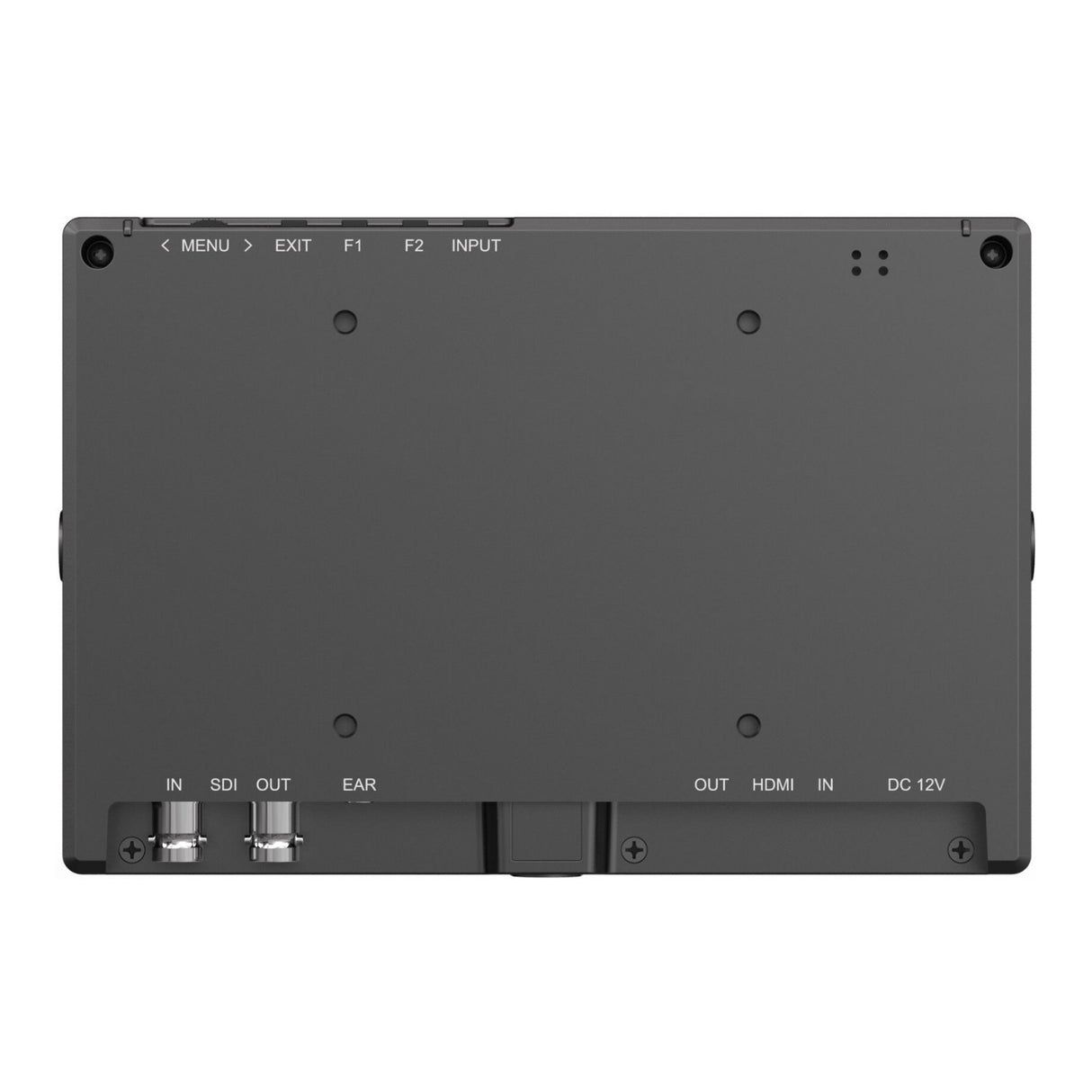

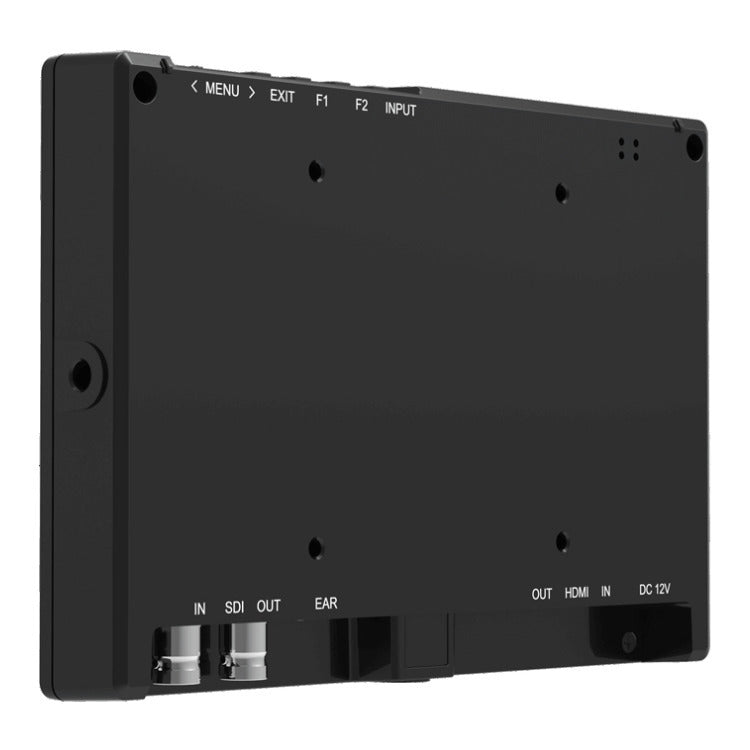

SDI and HDMI Cross Conversion

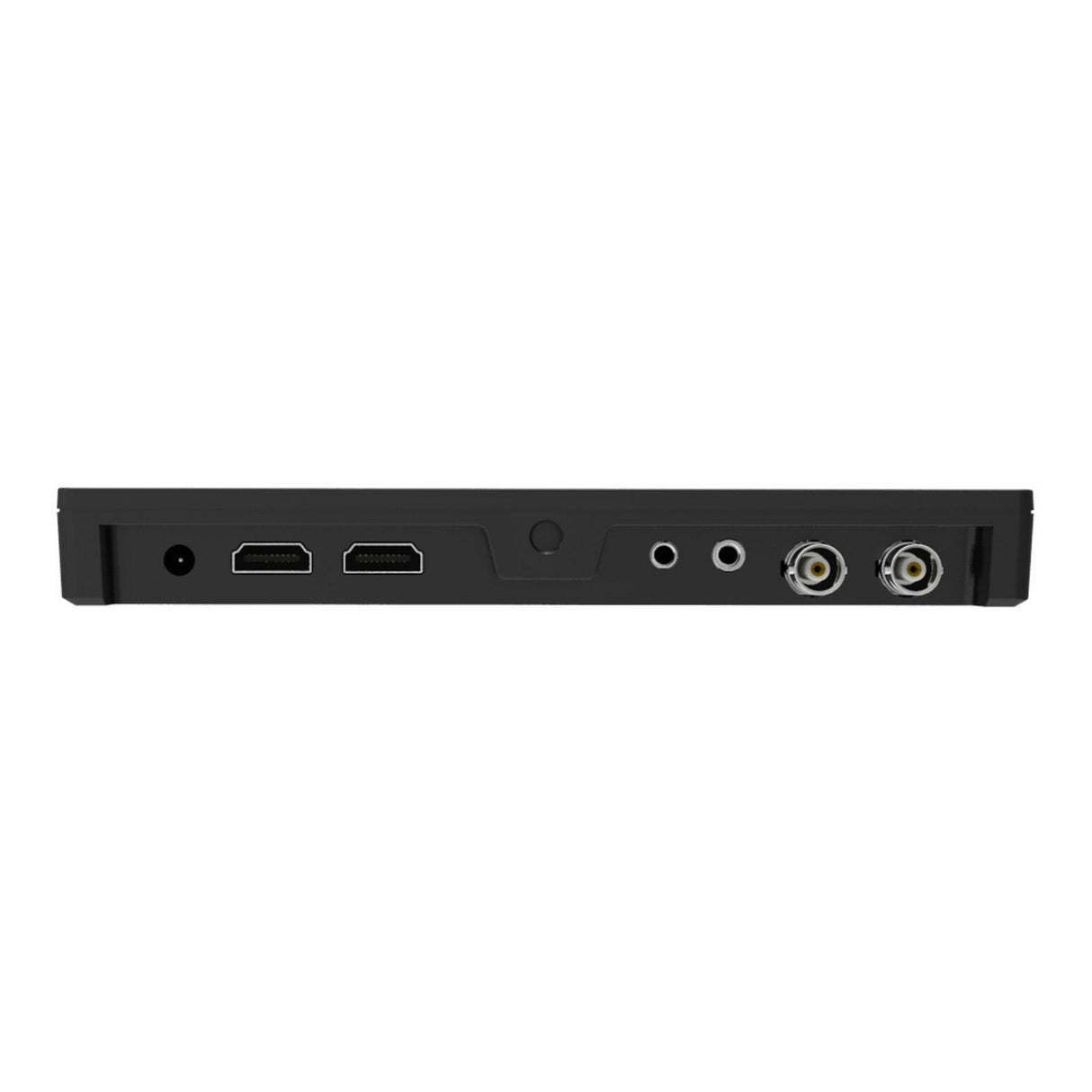

This is an HDMI as well as SDI monitor. Its high-quality HDMI and 3G-SDI inputs ensure its precise color can be easily controlled on multiple displays. The Q7's HDMI output connector will actively transmit an HDMI input signal or output an HDMI signal that has been converted from an SDI signal.
To translate that into English, signals transmit from the SDI input to the HDMI output and from the HDMI input to the SDI output.
Auxiliary Options
This Lilliput monitor provides more auxiliary functions for professionals, making it an excellent choice for accurately monitoring while making movies and playing videos.
Connectivity
| External Ports | HDMI |
General
| AC Input Power | Not Available |
Environmental
| Storage Temperature | -30°C to 70°C |
| Operating Temperature | -20 degree Celsius～60 degree Celsius |
Physical
| Weight | 14.3oz / 405g |
| Wall Mounting | Not Available |
Display
| Resolution | 1920 x 1200 |
| Brightness | 500 cd/m² |
| TV Screen Size (Diagonal) | 7" |
| Variable Frame Rates | Not Available |
| Viewing Angle (H x V) | 170 x 170° |
| Contrast Ratio | 1000:1 |
| Dot Pitch | Not Available |
- 480i (59.94)
- 1080i (60/59.94/50)
- 1080p (30/29.97/25/24/24sF/23.98/23.98sF)
- 720p (60/59.94/50)
- 1080i (29.97/25/24/23.98)
- 1080p (60/59.94/50/30/29.97/25/24/23.98)
Lilliput Q7 7-inch Full HD SDI Camera Monitor
Display
| Display screen | 7 inch |
| Physical resolution | 1920×1200 |
| Aspect ratio | 16:10 |
| Brightness | 500cd/m2 |
| Contrast | 1000:1 |
| Viewing angle | 170 degree /170 degree (h/v) |
Input
| 3G-SDI | 1 |
| HDMI | 1 |
Output
| 3G-SDI | 1 |
| HDMI | 1 |
Audio
| Speaker | 1 |
| Ear phone slot | 1 |
SDI Format
| SMPTE-125M | |
| SMPTE-292M | 1080p (30/29.97/25/24/24sF/23.98/23.98sF) |
| SMPTE-296M | 720p (60/59.94/50/30/29/25/24/23.98) |
| SMPTE-372M | |
| SMPTE-425M-AB | 1080p (60/59.94/50) |
| Level A and Level B | 720p (60/59.94/50/30/29.97/25/24/23.98) |
| Level B 2x | 1080i (60/59.94/50) |
| ITU-R BT.656 | 576i (50) |
HDMI Format
| Full HD ~ HD | 1080p, 1080i, 720p, 576p, 576i, 480p, 486i |
Power
| Current | 1A |
| Input Voltage | DC 7-24V |
| Battery Plate | V-mount / Anton Bauer mount / F970 / QM91D / DU21 / LP-E6 |
| Power Consumption | ≤12W |
Controls
| Basic | Menu/Exit, F1-F2 user-definable buttons, Input, Power |
| Advanced | Brightness, Contrast, Saturation, Sharpness, Tint, Color Temp, Red Gain, Green Gain, Center Marker, Aspect Marker, Safety Marker, Marker Color, Marker Mat, Thickness, Scan, Aspect, Underscan, H/V Delay, Check Field, Zoom, Freeze, DSLR, Waveform, Peaking, Peaking color, Peaking Level, False Color, Exposure, Exposure Level, Histogram, Audio, Language, HDMI/SDI Convert, Color Bar, OSD Time, Image Flip, Back Light, Fan, Reset |
Environment
| Operating temperature | -20 degree Celsius ～60 degree Celsius |
| Storage temperature | -30 degree Celsius ～70 degree Celsius |
General
| Dimensions (LxWxD) | 7.2x4.2x0.05in / 182x124x22mm |
| Weight | 14.3oz / 405g |
| Warranty | 1 year parts and labor in Depot of City of Industry, CA |
