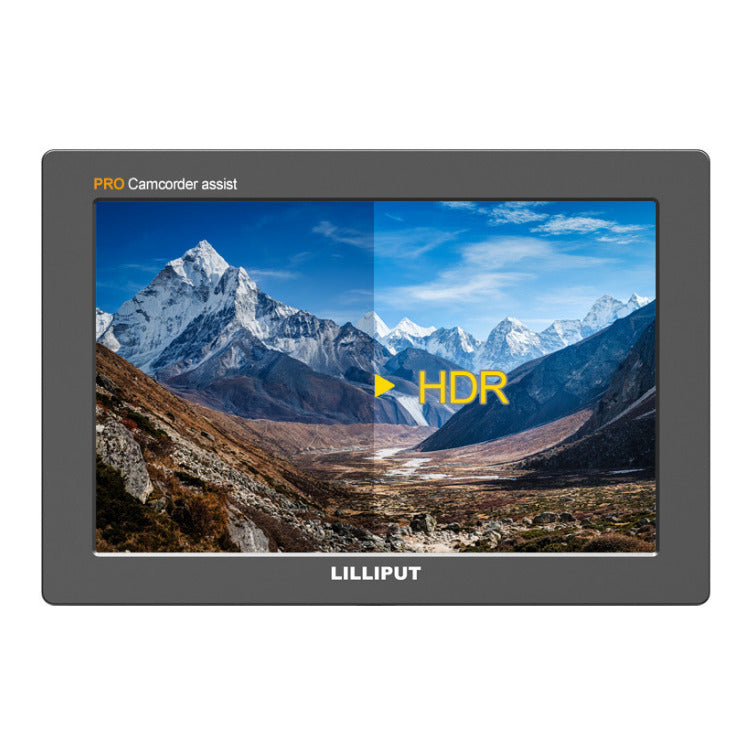

The Lilliput Q7 Pro 7-inch Full HD SDI Camera Monitor with HDR/3D LUTs is a fantastic camcorder assistant with an outstanding display, a wide color gamut range and SDI and HDMI cross conversion. This 7-inch camera-top monitor includes HDR, 3D LUT and gamma modes and is compatible with pro camcorders and DSLRs.
Compatible with Variety of Cams
The Q7 Pro is an essential camcorder or camera mate, compatible with top camcorder and DSLR brands. The 7-inch PRO SDI Monitor assists camera operators, photographers and cinematographers in providing the best possible shooting experience.
Color Precision
The Q7 Pro 7-inch FHD Camera Monitor has a 16:10 LCD panel with 1920x1200 Full HD native resolution, high 1000:1 contrast, 165° wide viewing angles and high 500cd/m² brightness. This 7-inch monitor provides an excellent viewing experience and precise color. This Lilliput screen is 4 times clearer than a standard definition display.
You can adjust the color space from Native to SMPTE-C to Rec. 709 and EBU.
Advanced Functions

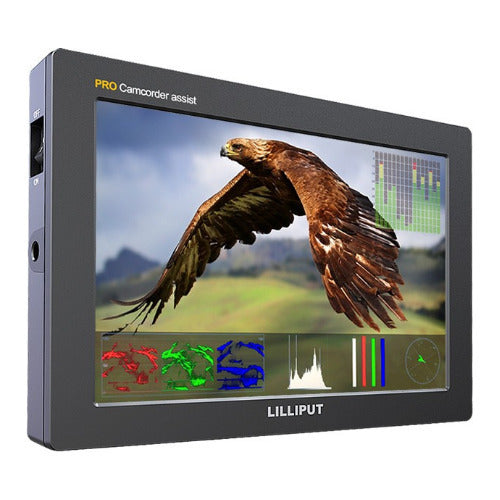

The Q7 Pro monitor creatively integrates multiple advanced functions into one field monitor and provides multiple modes to suit your needs. Functions include color space, 3D-LUT, HDR, time code, column (YRGB peak), waveform (waveform PIP mode included), vectorscope and audio level meter, among others.
The monitor is easy to use with multiple buttons and menu options, including F1 and F2 user-definable buttons and custom auxiliary options. A dial selects and adjusts values for sharpness, saturation, tint and volume, etc.
Protective Metal Housing

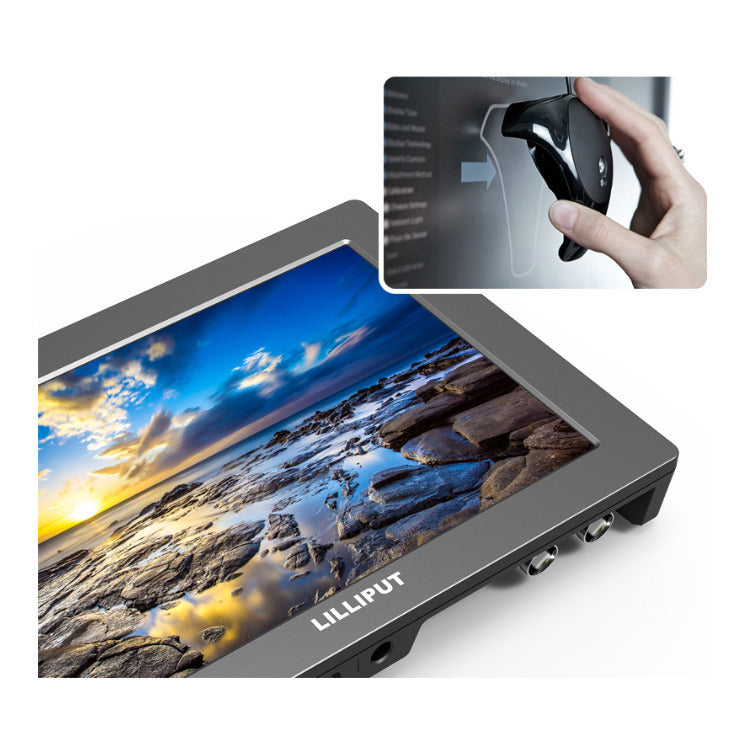

The Lilliput Q7 Pro is extremely thin at just 22mm yet features firm metal housing that protects it from vibration, drops and inclement weather. This rugged body allows for a longer life.
HDR
When you activate HDR, your Q7 Pro display will reproduce a greater dynamic range of luminosity. This allows clearer display of lighter and darker details and enhances the color and picture quality in general.
3D LUT
The Lilliput Q7 Pro features a wider color gamut range, allowing for a precise color reproduction of Rec. 709 color space with built-in 3D LUT. Included are 8 default logs and 6 user logs.
SDI and HDMI Cross Conversion

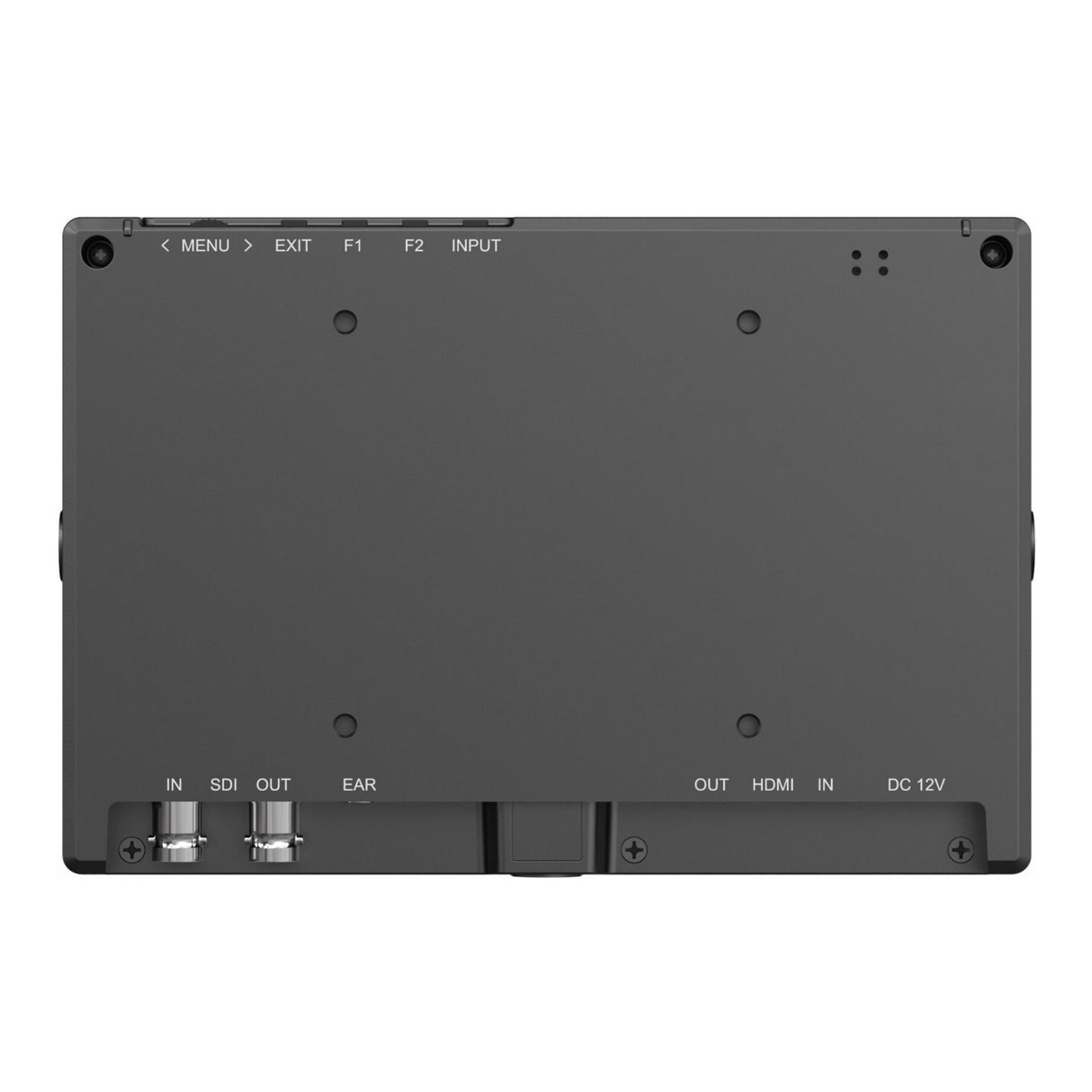

This is an HDMI as well as SDI monitor. Its high-quality HDMI and 3G-SDI inputs ensure its precise color can be easily controlled on multiple displays. The Q7 Pro's HDMI output connector will actively transmit an HDMI input signal or output an HDMI signal that has been converted from an SDI signal.
To translate that into English, signals transmit from the SDI input to the HDMI output and from the HDMI input to the SDI output.
Auxiliary Options
This Lilliput monitor provides more auxiliary functions for professionals, making it an excellent choice for accurately monitoring while making movies and playing videos. Functions include peaking, false color and more.
General
| AC Input Power | Not Available |
Environmental
| Storage Temperature | -30°C to 70°C |
| Operating Temperature | -4F~140F / -20℃～60℃ |
Physical
| Weight | 14.3oz / 405g |
| Wall Mounting | Not Available |
Display
| Resolution | 1920 x 1200 |
| Brightness | 500 cd/m² |
| TV Screen Size (Diagonal) | 7" |
| Variable Frame Rates | Not Available |
| Viewing Angle (H x V) | 170 x 170° |
| Contrast Ratio | 1000:1 |
| Dot Pitch | Not Available |
- Left/Right: 85/85°
- Up/Down: 85/85°
- 480i (59.94)
- 1080i (60/59.94/50)
- 1080p (30/29.97/25/24/24sF/23.98/23.98sF)
- 720p (60/59.94/50)
- 1080i (29.97/25/24/23.98)
- 1080p (60/59.94/50/30/29.97/25/24/23.98)
Lilliput Q7 Pro 7-inch Full HD SDI Camera Monitor with HDR/3D LUTs
Display
| Display Screen | 7-inch IPS panel |
| Physical Resolution | 1920x1200 |
| Aspect Ratio | 16:10 |
| Brightness | 500cd/㎡ |
| Contrast Ratio | 1000:1 |
| Viewing Angle | 170°/170°(H/V) |
Input
| 3G-SDI | 1 |
| HDMI | 1 |
| USB (3D LUT Load) | 1 |
Output
| 3G-SDI | 1 |
| HDMI | 1 |
Audio
| Speaker | 1 |
| Ear Phone Slot | 1 |
SDI Format
| SMPTE-125M | |
| SMPTE-292M | 1080p (30/29.97/25/24/24sF/23.98/23.98sF) |
| SMPTE-296M | 720p (60/59.94/50/30/29/25/24/23.98) |
| SMPTE-372M | |
| SMPTE-425M-AB | 1080p (60/59.94/50) |
| Level A and Level B | 720p (60/59.94/50/30/29.97/25/24/23.98) |
| Level B 2x | 1080i (60/59.94/50) |
| ITU-R BT.656 | 576i (50) |
HDMI Format
| Full HD ~ HD | 1080p, 1080i, 720p, 576p, 576i, 480p, 486i |
Power
| Current | 1A |
| Input Voltage | DC 7-24V |
| Battery Plate | F970 / LP-E6 |
| Power Consumption | ≤12W |
Environment
| Operating Temperature | -4F~140F / -20℃～60℃ |
| Storage Temperature | -22F~158F / -30℃～70℃ |
General
| Dimensions (LxWxD) | 7.2x4.2x0.05in / 182x124x22mm |
| Weight | 14.3oz / 405g |
| Warranty | 1 year parts and labor in Depot of City of Industry, CA |
