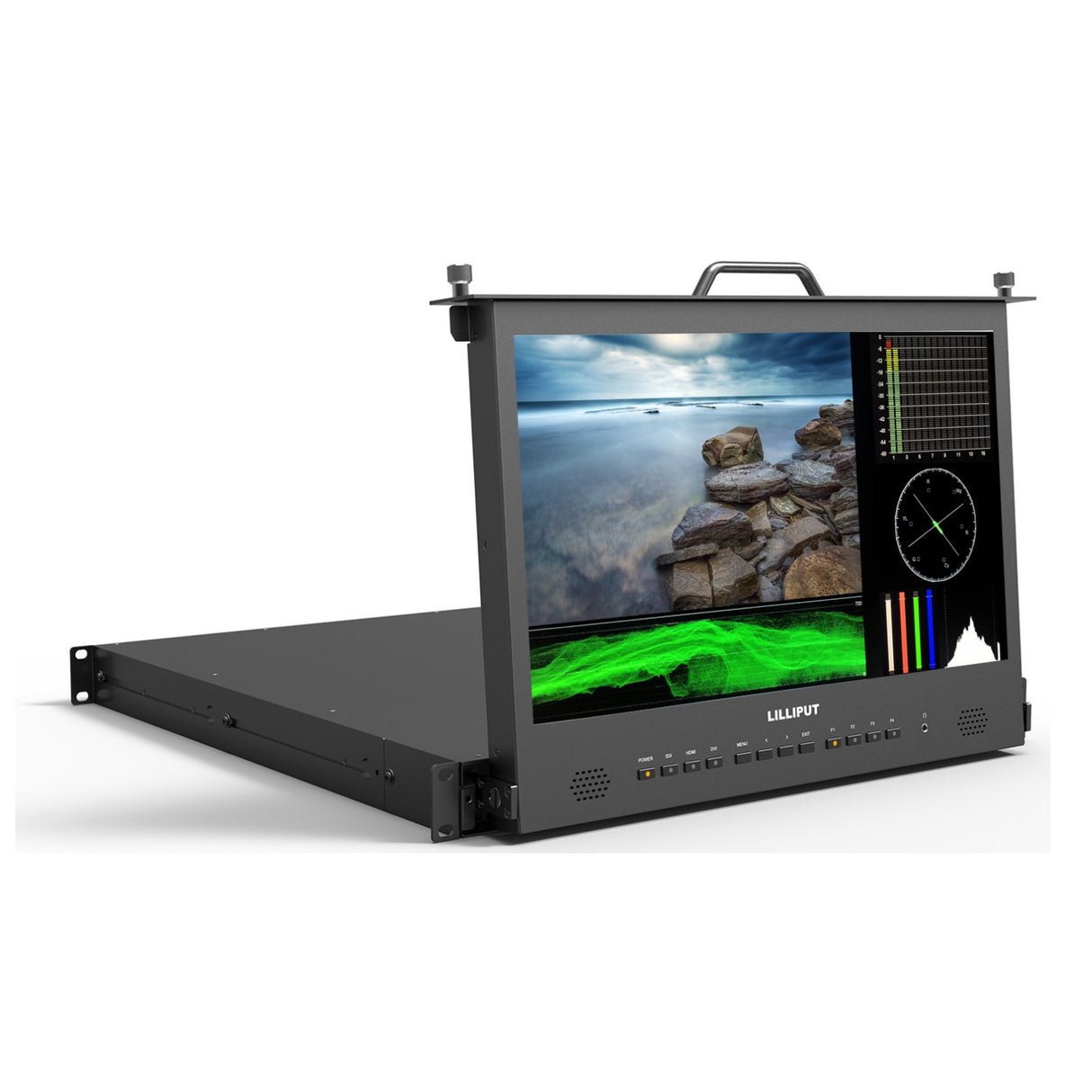

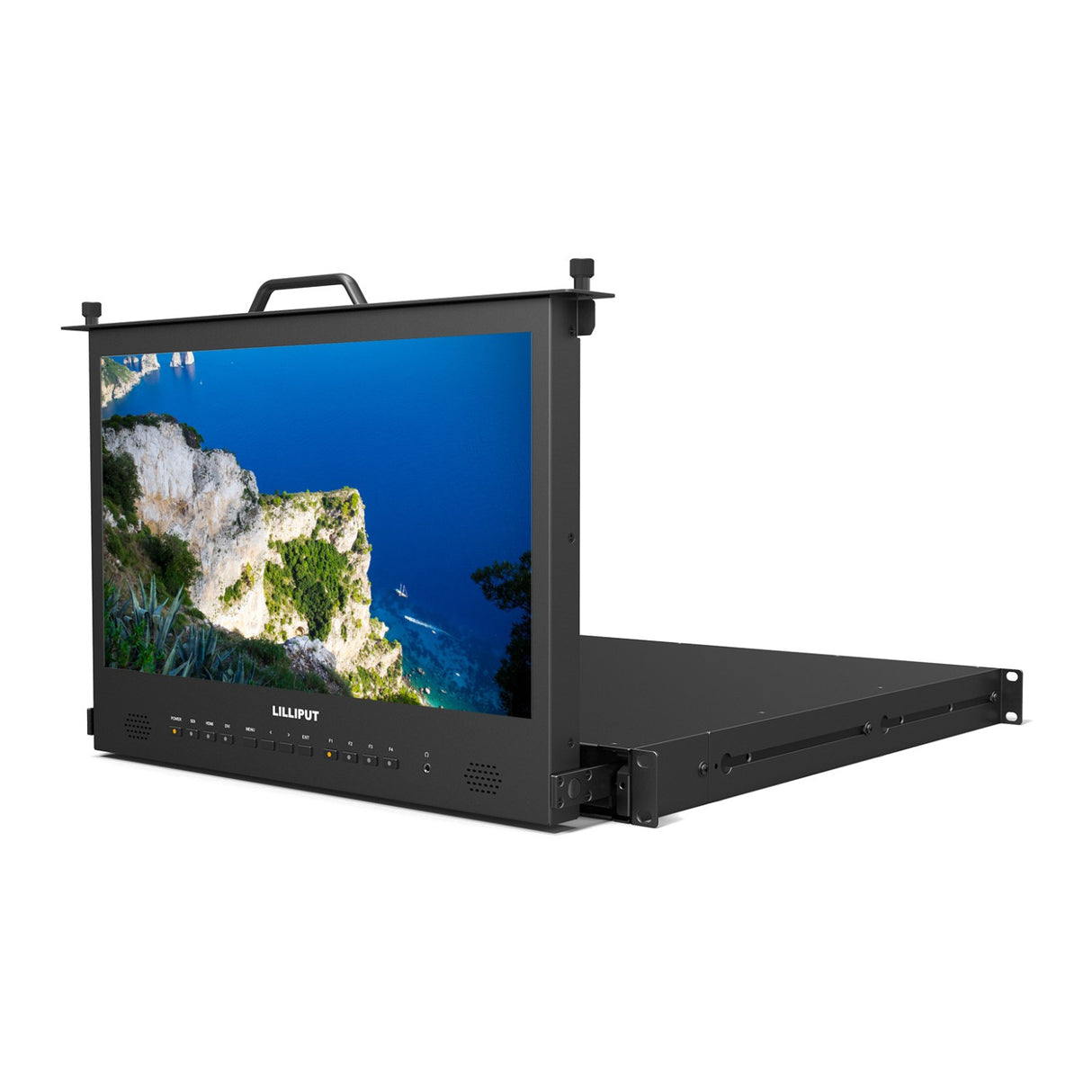

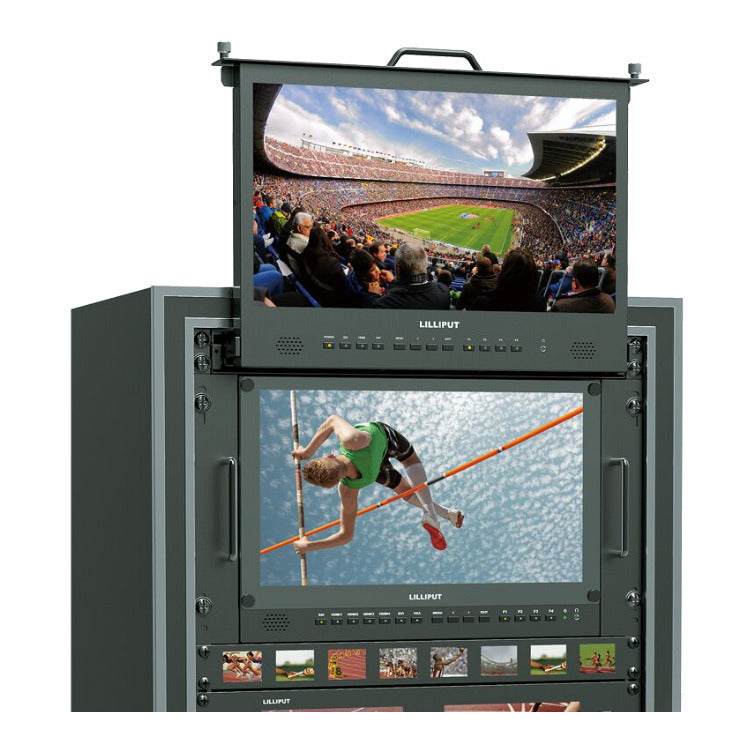

The RM-1730/S is designed for mounting in a rack / drawer solution and is an ideal monitoring solution for live events and installation into server stations or any that requires a permanent monitoring situation in a rack mount environment.

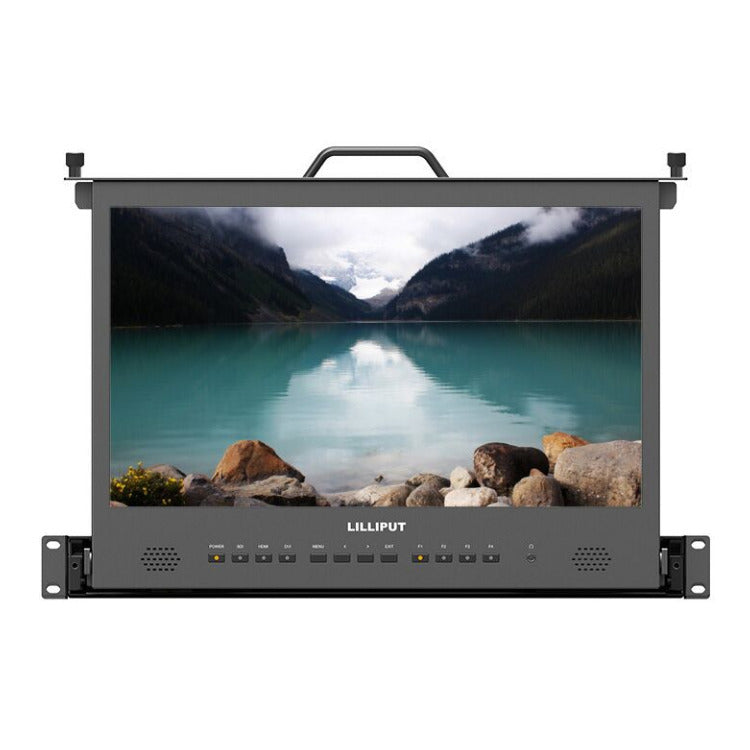

The 17.3-inch full HD IPS screen panel gives crisp pictures and sharp color contrast, resulting in the highest fidelity picture quality for both text and video alike.
Full HD 1920x1080
The RM1730/S has a full HD 1920 x 1080 native resolution panel at 17.3-inch. This means that the best quality image representation is available from a full HD input source, with display available in a number of other resolutions and frequencies. It has a 700:1 contrast ratio, 300cdm/2 brightness, and has a 178 degree viewing angle - meaning that it offers clarity and range of display.
HDMI and SDI Cross Conversion
With the facility to cross convert an input feed, the RM1730/S will take an input from an HDMI source and cross convert it to an SDI signal for further transmission or monitoring. Likewise, it can take an SDI source and down convert it to an HDMI signal for onward transmission or monitoring.
Special Features

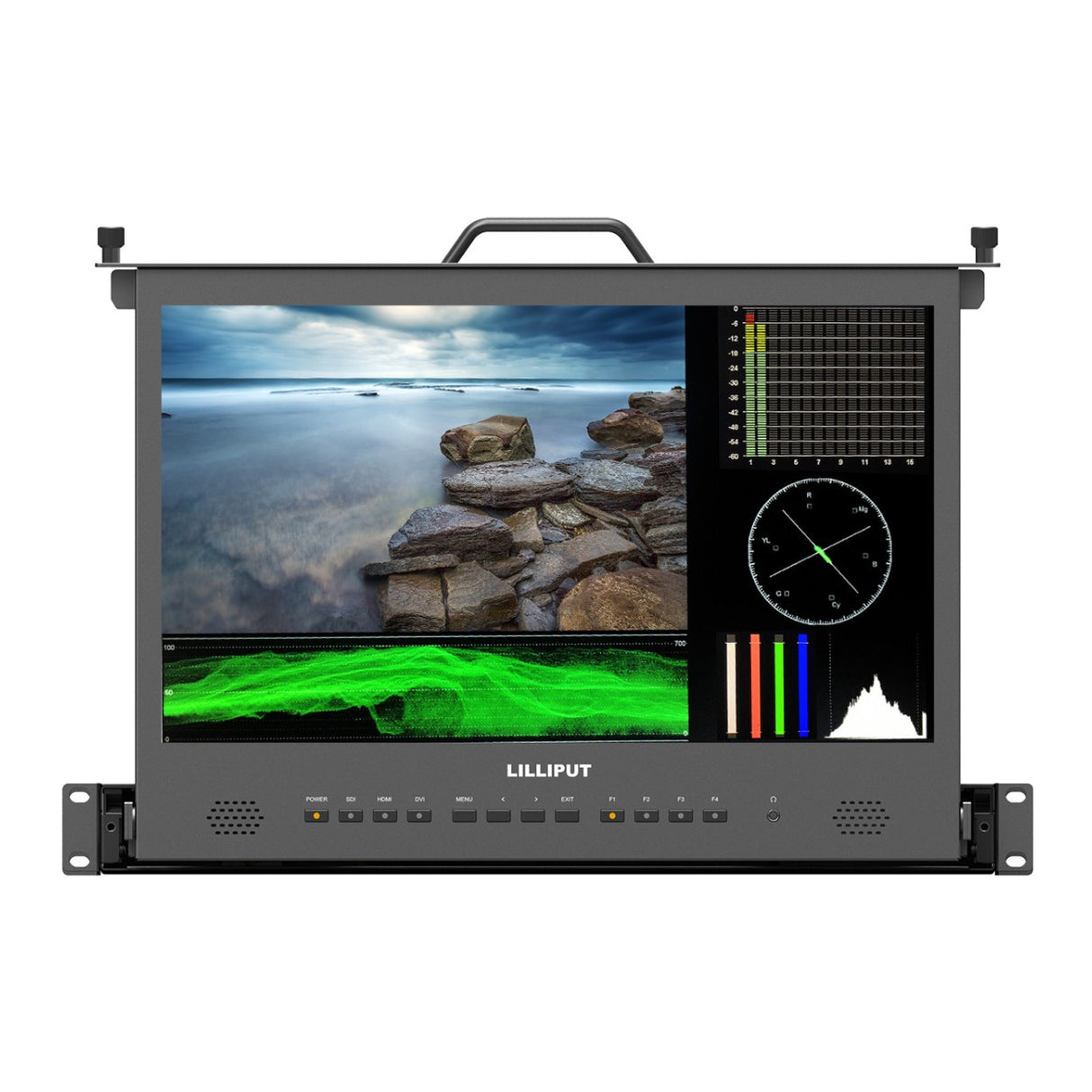

With integrated tools to assist both filmmakers and operators, the RM1730/S has time codes, vector scopes, waveforms and audio levels as special features. This means that you can monitor the input feed much closer and with a much finer level of detail.
Premium Construction

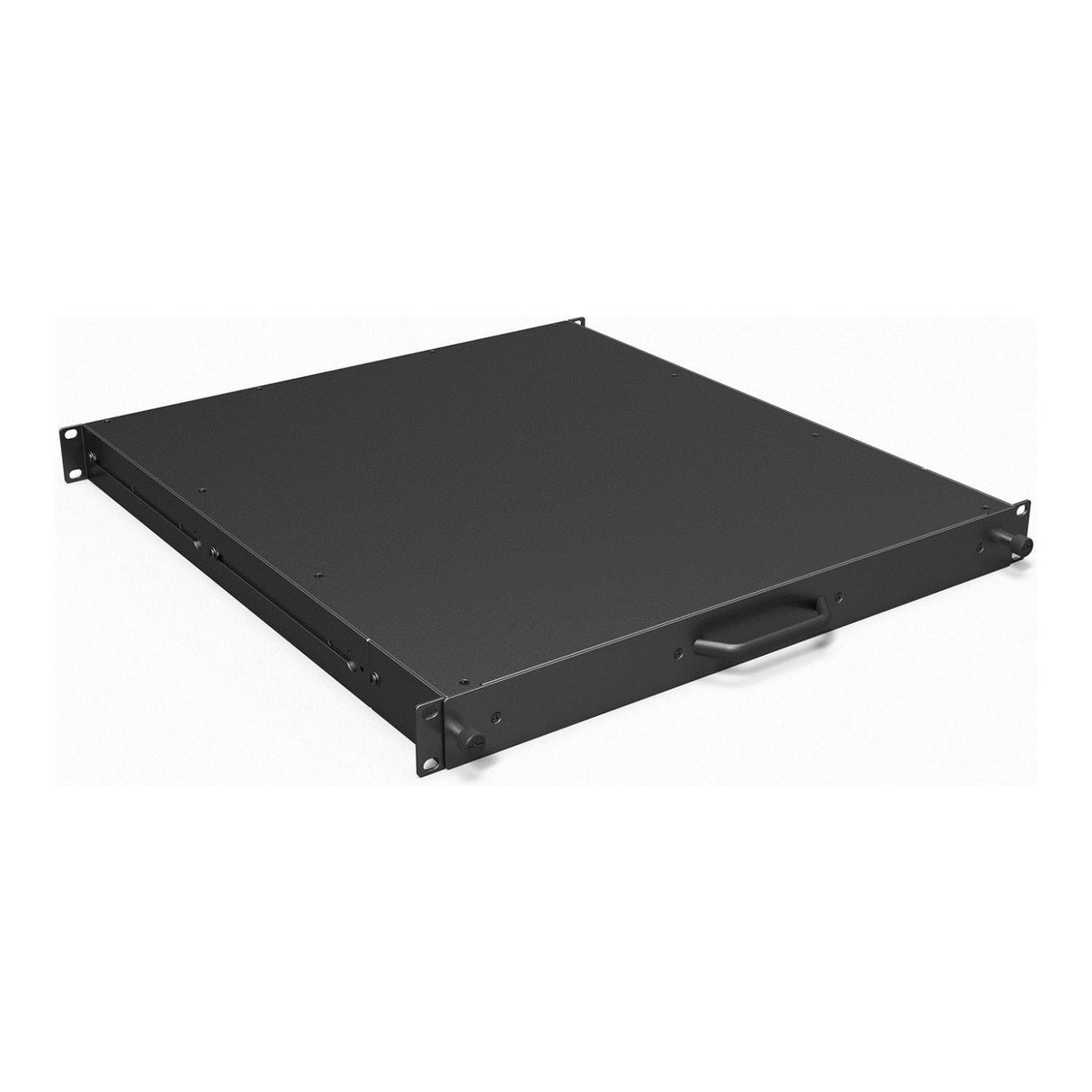

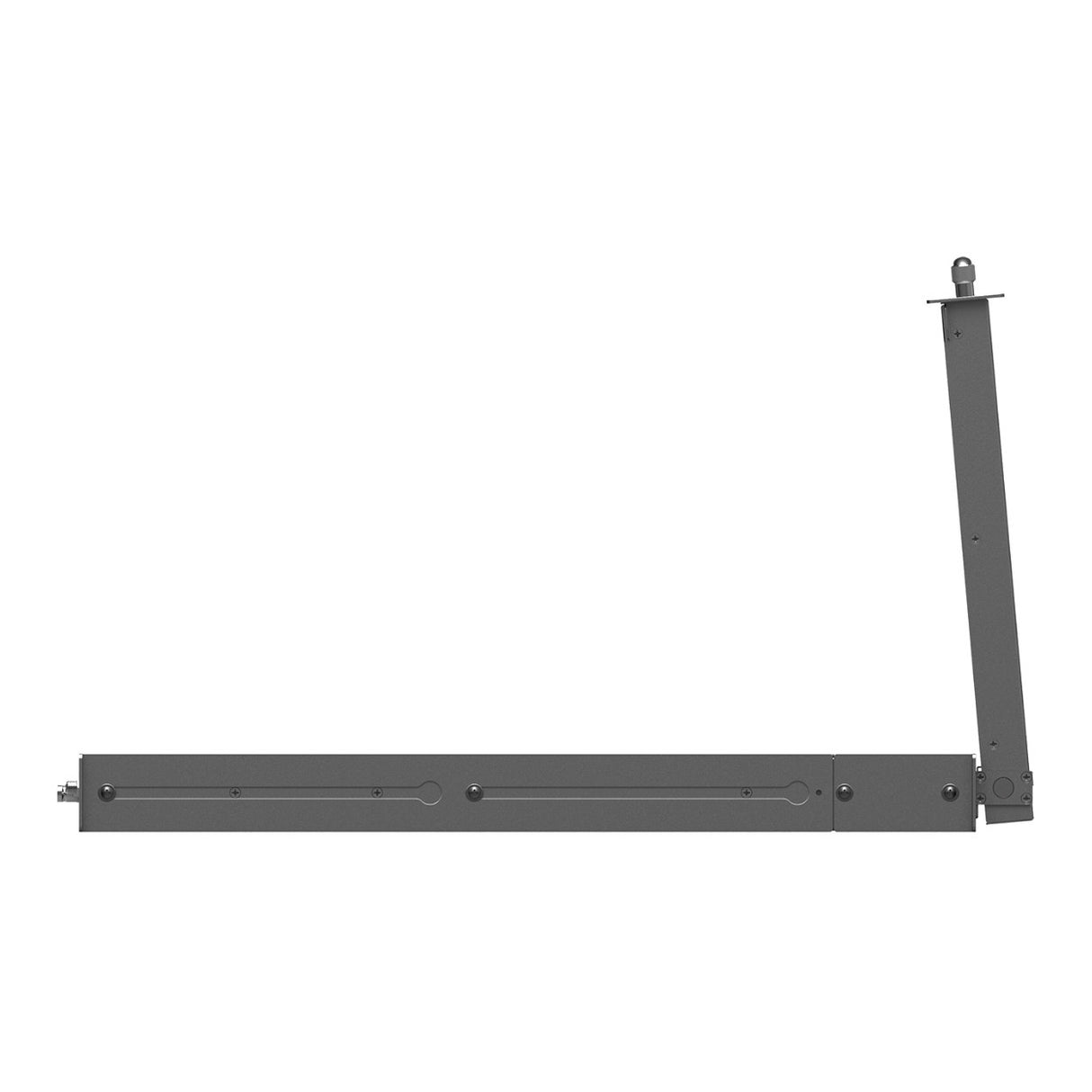

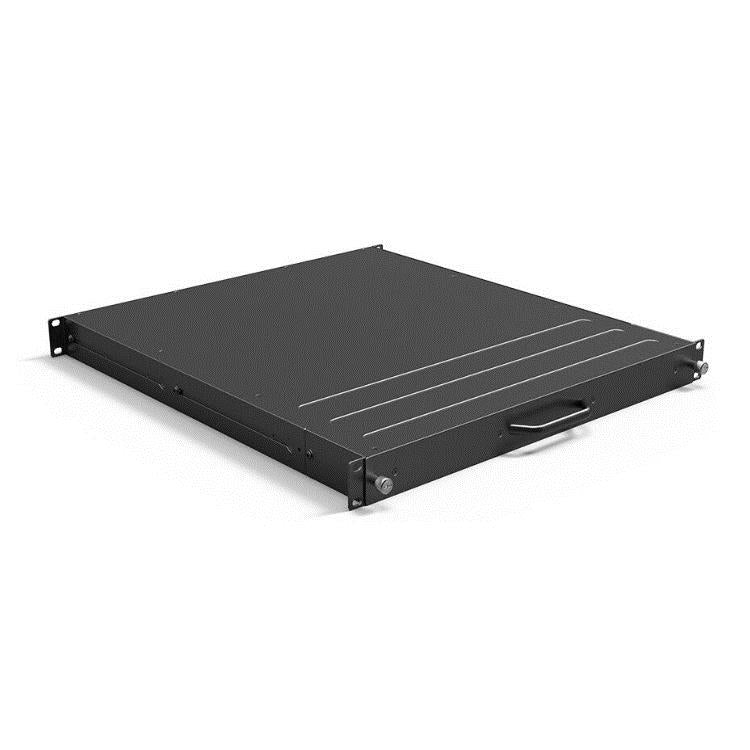

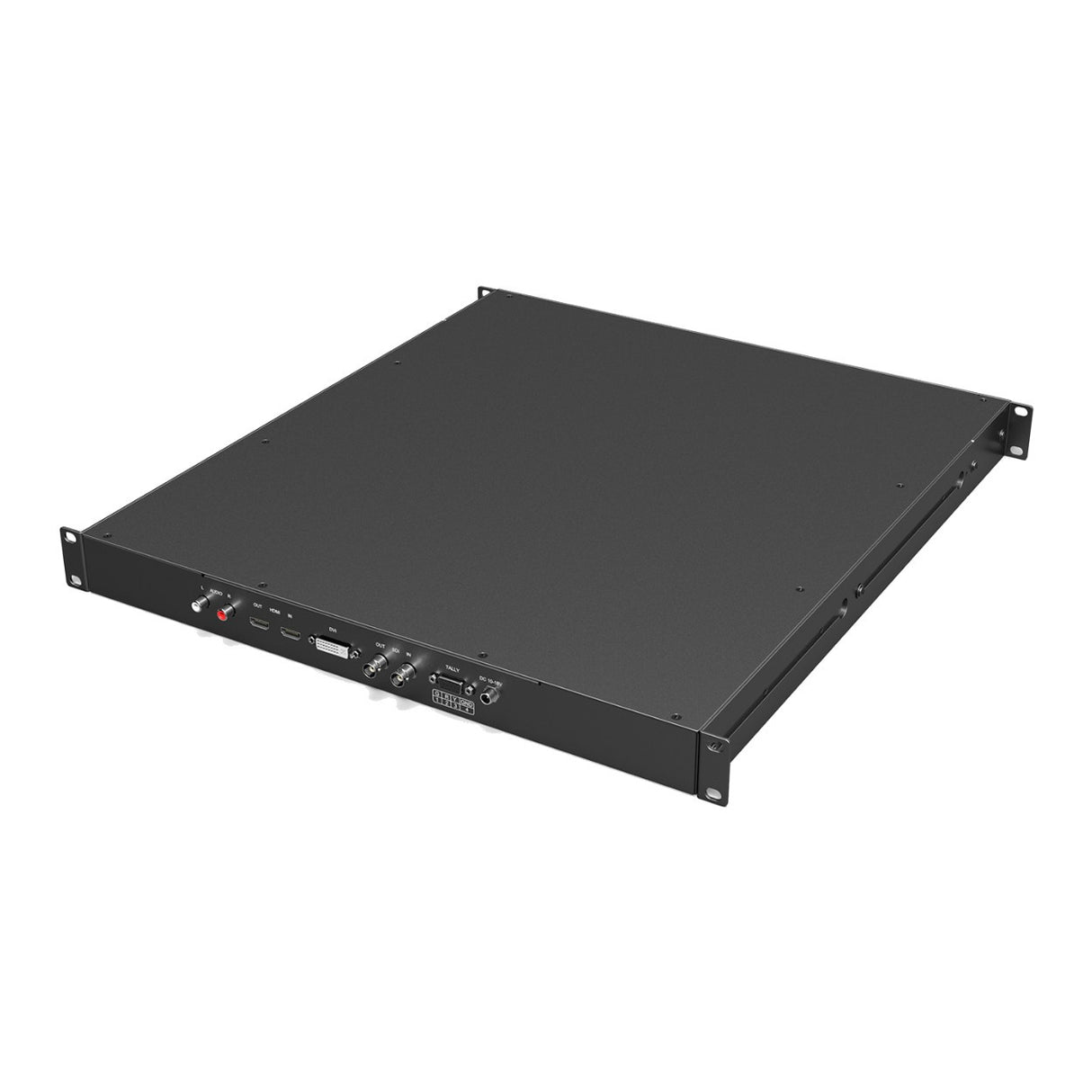

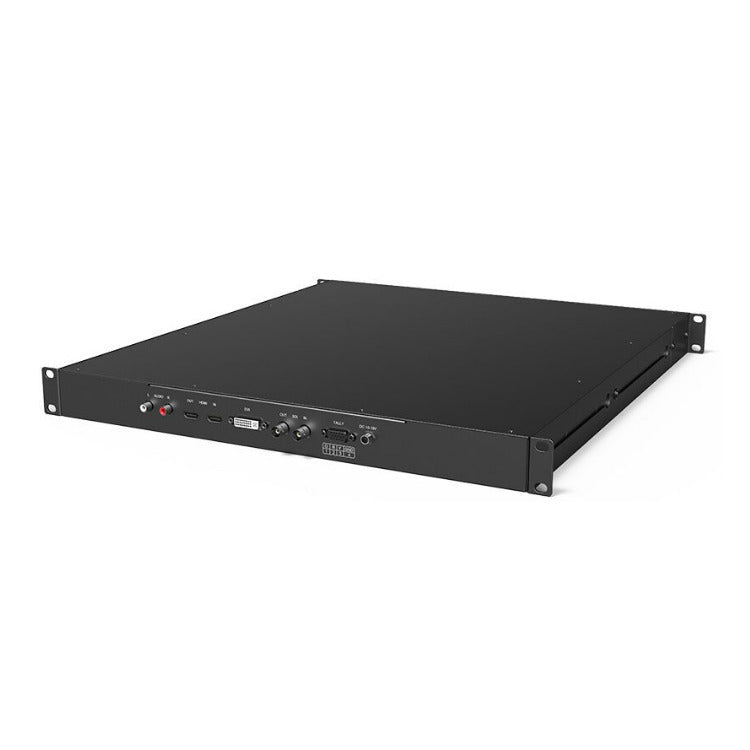

Designed to reduce the installation footprint, whilst at the same time remaining flexible for wherever work space is at a premium, the RM1730/S is housed in a metal pull-out drawer, and has multiple methods for mounting into a 1U rack space and is ideally suited for use in an industrial or broadcast cabinet.
General
| AC Input Power | ≤32W |
Environmental
| Storage Temperature | -30°C to 70°C |
| Operating Temperature | -4-140 Fahrenheit / -20-60 degree Celsius |
Physical
| Weight | 19.0 lb / 8.6 kg |
| Wall Mounting | Not Available |
Video
| Video System | NTSC |
Display
| Resolution | 1920 x 1080 |
| Brightness | 300 cd/m² |
| Variable Frame Rates | Not Available |
| Panel Type | LED |
| Bit Depth / Color Support | 8-Bit (16.7 Million Colors) |
| Viewing Angle (H x V) | 178 x 178° |
| Contrast Ratio | 700:1 |
| Response Time | 14ms |
| Dot Pitch | 0.1989 x 0.1989 mm |
- Symbol
- TR
- Min (ms): -
- Typical (ms): 14
- Max (ms): 19
- TF
- Min (ms): -
- Typical (ms): 11
- Max (ms): 16
- Left/Right: 89/89 degree
- Up/Down: 89/89 degree
- Power: 1W
- 480i (59.94)
- 1080i (60/59.94/50)
- 1080p (30/29.97/25/24/24sF/23.98/23.98sF)
- 720p (60/59.94/50)
- 1080i (29.97/25/24/23.98)
- 1080p (60/59.94/50/30/29.97/25/24/23.98)
- Level A and Level B
- 1080p (60/59.94/50)
- 1080i (60/59.94/50)
- 720p (60/59.94/50/30/29.97/25/24/23.98)
Lilliput RM-1730S 17.3-Inch 1RU Full HD Pull-out Rackmount Monitor with Waveform, Vector
Display
| Size | 17.3-inch IPS |
| Physical Resolution (Dot) | 1920x1080 |
| Active Area (H x V) | 15.0 x 8.5 inch / 381.89x214.81 mm |
| Dot Pitch (H x V) | 0.1989 x 0.1989 mm |
| Aspect Ratio | 16:9 |
| Brightness | 300cd/m2 |
| Contrast Ratio | 700:1 |
| Light Source | LED |
| Surface Treatment | Hard coating (3H), high resolution adaptable AG |
| Response Time | |
| Viewing Angle | 178 degree / 178 degree (H / V) |
| Menu Language | English/Chinese |

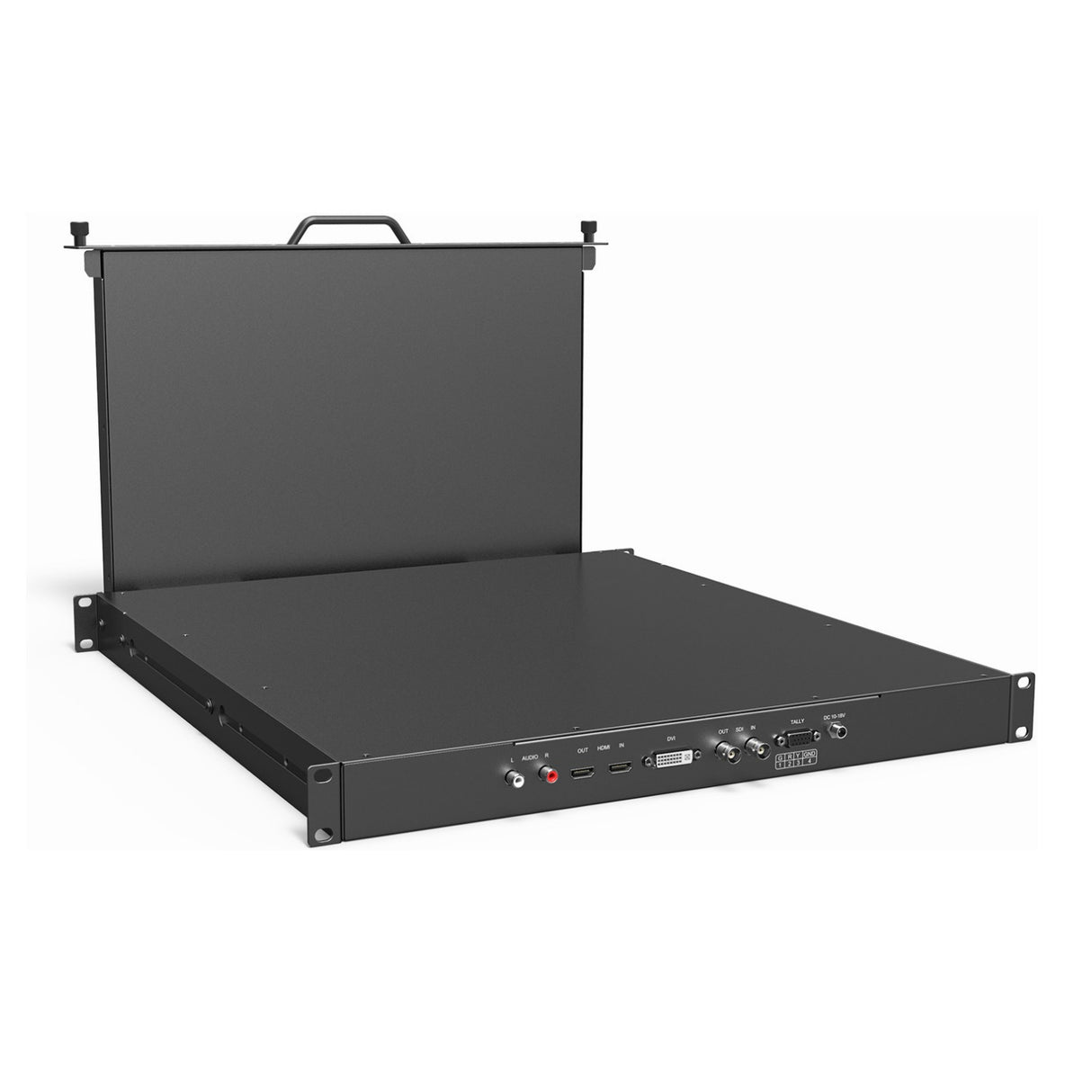

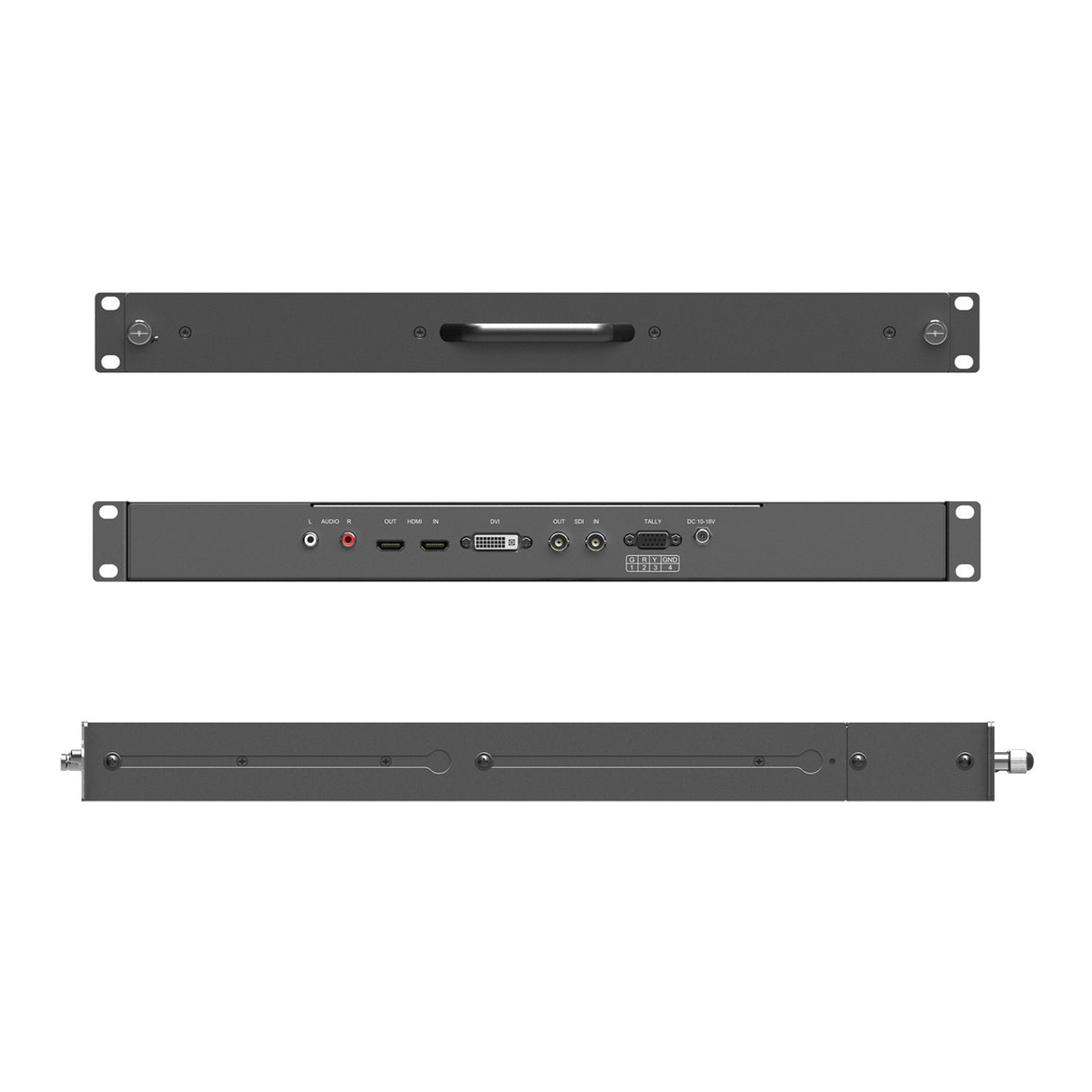

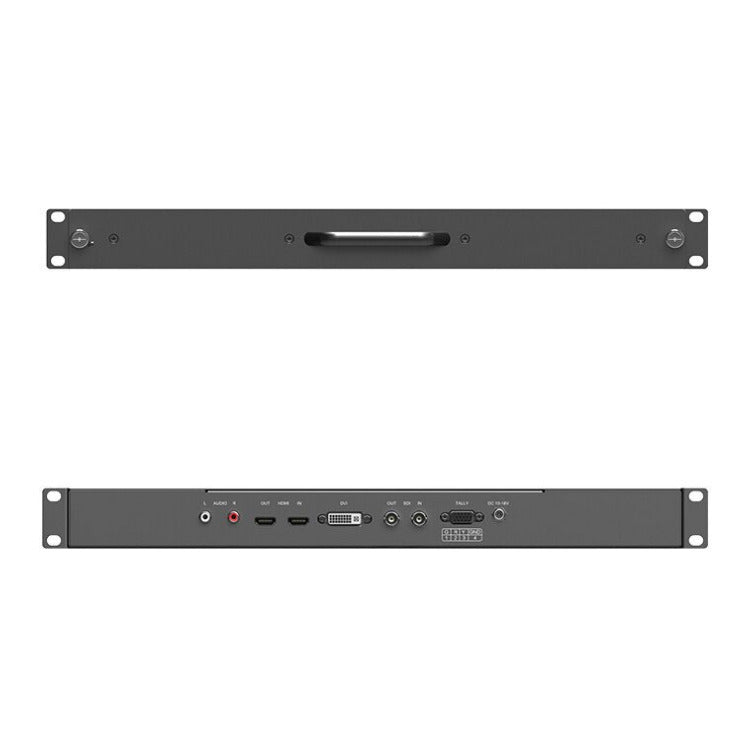

Input
| 3G-SDI | 1 |
| HDMI | 1 |
| DVI | 1 |
| AUDIO | 1 |
| TALLY | 1 |
Output
| 3G-SDI | 1 |
| HDMI | 1 |
Audio
| Speaker | 2 (built-in) |
| Ear Phone Slot |
SDI Format
| SMPTE-125M | |
| SMPTE-292M | 1080p (30/29.97/25/24/24sF/23.98/23.98sF) |
| SMPTE-296M | 720p (60/59.94/50/30/29/25/24/23.98) |
| SMPTE-372M | |
| SMPTE-425M-AB | |
| ITU-R BT.656 | 576i (50) |
Power
| Current | 2.8A |
| Input Voltage | DC 10-18V |
| Power Consumption | ≤32W |
Controls
| Basic | Power, SDI, HDMI, DVI, MENU, < > button, Exit, F1-F4 User-definable buttons, Earphone jack |
| Advanced | Aspect, Screen Marker, Aspect Marker, Zoom, H/V Delay, Check Field, Underscan, Freeze, DSLR, Peaking, Peaking Color, Peaking Level, False Color, Exposure, Exposure Level, Histogram, Level Meter, Waveform, Brightness, Contrast, Saturation, Tint, Sharpness, Backlight, Volume, Center Marker, Safety Markers, Marker Color, Marker Mat, Thickness, Scan, Audio Ch, Language, HDMI/SDI Convert, Color Bar, Color Temp, OSD Time, Fan, Reset |
Environment
| Operating Temperature | -4~140 Fahrenheit / -20~60 degree Celsius |
| Storage Temperature | -22~158 Fahrenheit / -30~70 degree Celsius |
General
| Dimensions (L x W x D) | 19.0 x 1.7 x 20.0 inch / 482.5 x 44 x 507.5 mm |
| Weight | 19.0 lb / 8.6 kg |
