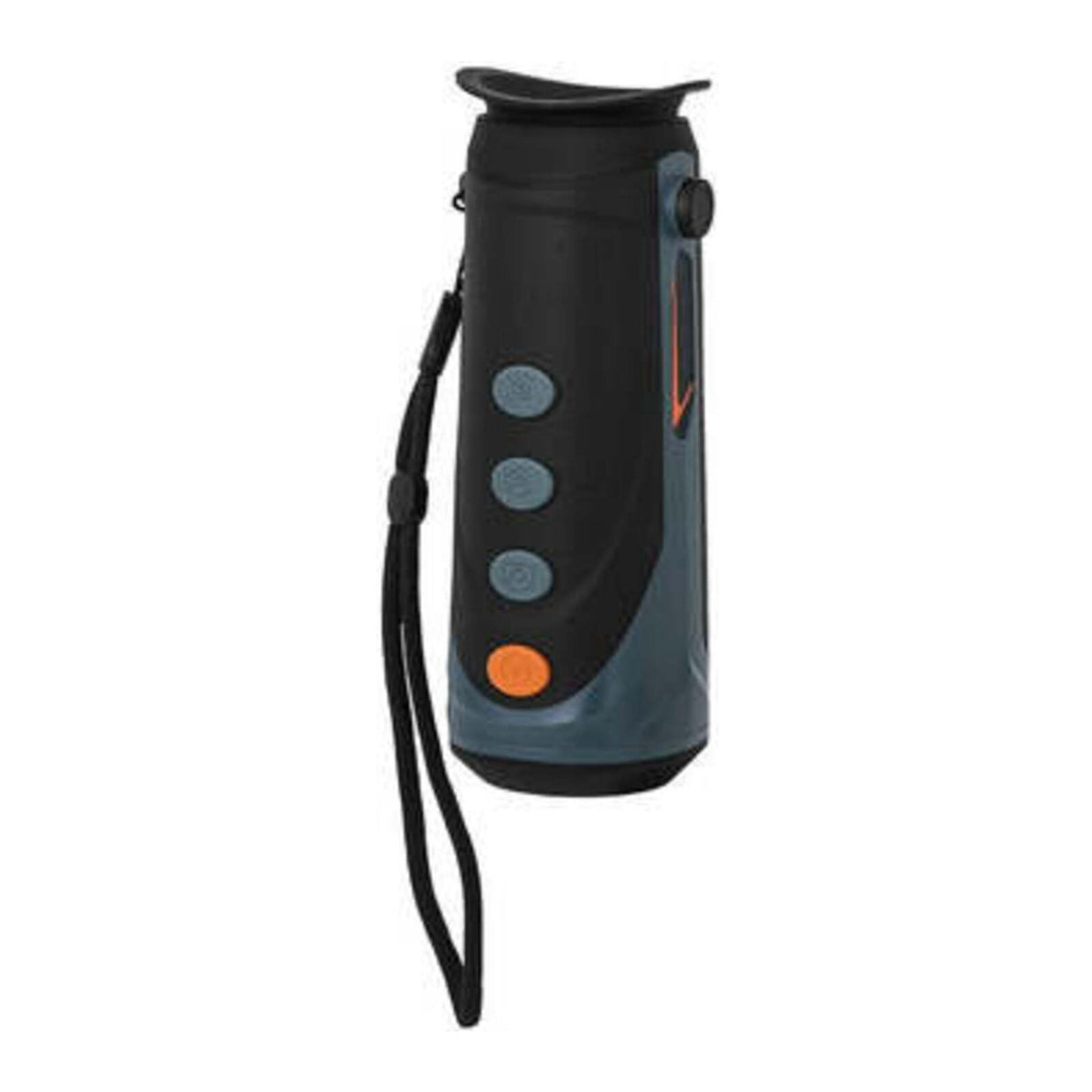

Lorex Portable Weatherproof 50Hz Frame Rate 256GB Micro SD Capacity Thermal Monocular Camera
Couldn't load pickup availability
Product highlights
Product highlights

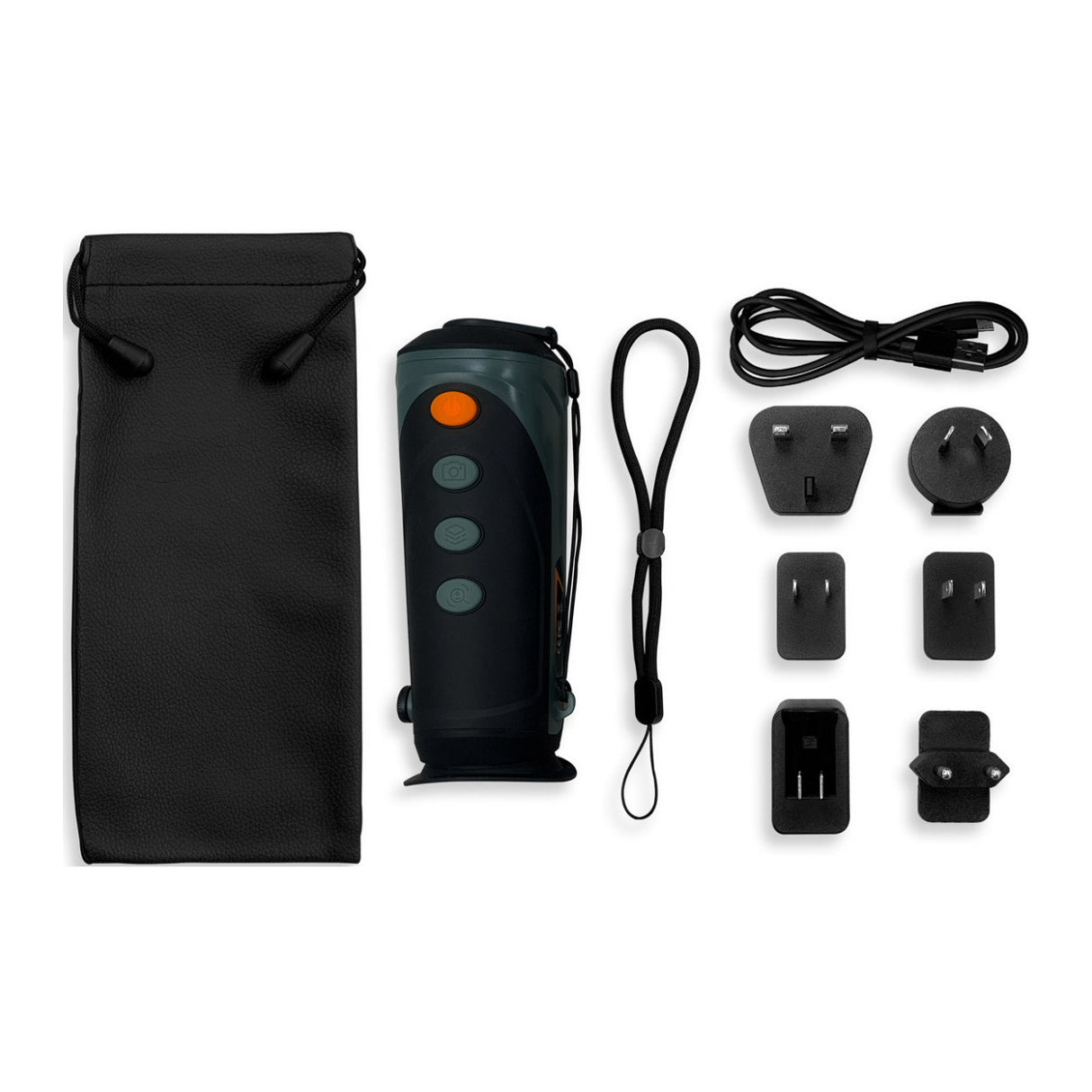

In the box
In the box
Free standard shipping
Free standard shipping
*Orders placed before 1 PM EST Mon - Thur will ship the same day. Orders placed beyond these hours will be shipped the next business day. Exclusions apply. See shipping policy
Free Local Pickup
Free Local Pickup
Please call for store stock availability. Requests made before 2:30 PM EST can be available for next-day pickup. Learn more
See the heat with the Lorex Thermal Monocular Camera. Rather than visible light, this thermal camera uses different levels of infrared energy or heat to create an image. This allows it to easily detect people, animals, and objects in all kinds of environments, including complete darkness, haze, or glaring light. The hunters can easily see the heat signatures of animals through dense foliage and adverse weather, even in complete darkness.
Ideal For
Campers and hikers using this thermal camera can find their way in the dark and detect animals. Through this camera, law enforcement people can see through bad weather, dense foliage, and woods and electricians can spot overheating with electrical components or hotspots in machines. This thermal camera allows firefighters to see through smoke, helping to detect the hottest sections are bodies. Building surveyors using this camera can see underlying building issues, track moisture, and discover hot zones inside residential and commercial buildings. Medical professionals can measure body temperature and search for underlying issues in joints, veins, and the skin of both people and animals.

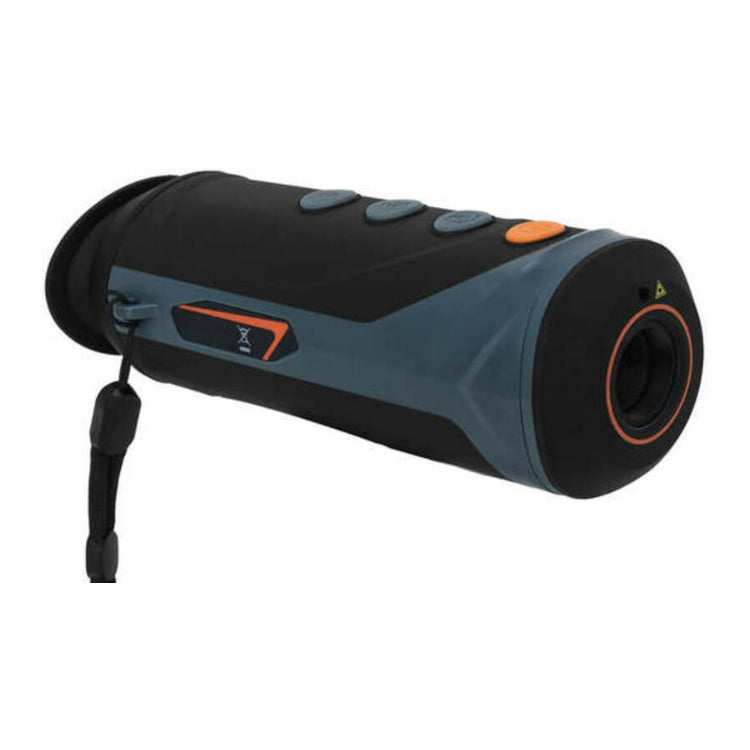

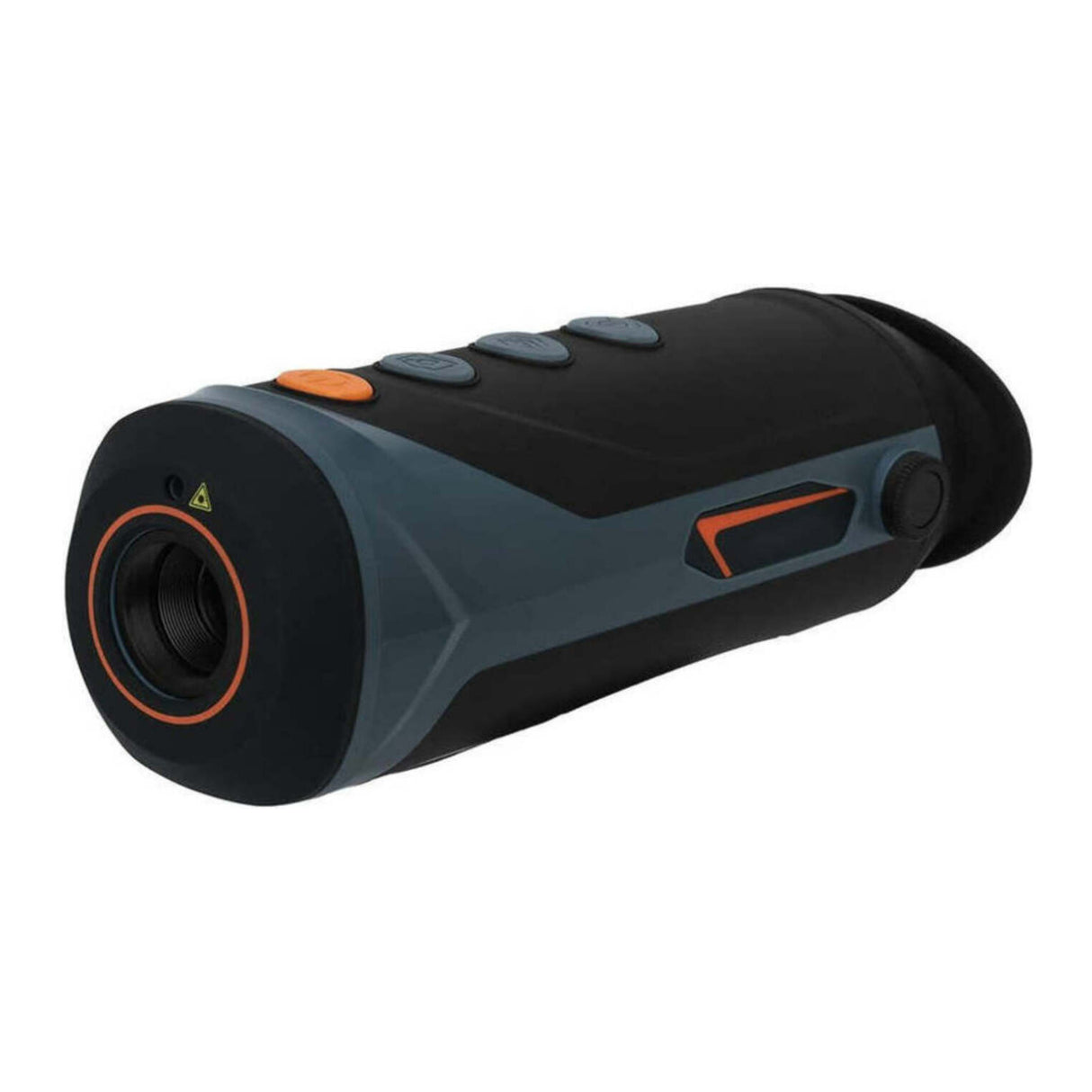

Portable and Durable
A small, lightweight, and IP67 weatherproof design, along with a very low power consumption rate, make this camera an especially handy long-term outdoor tool.

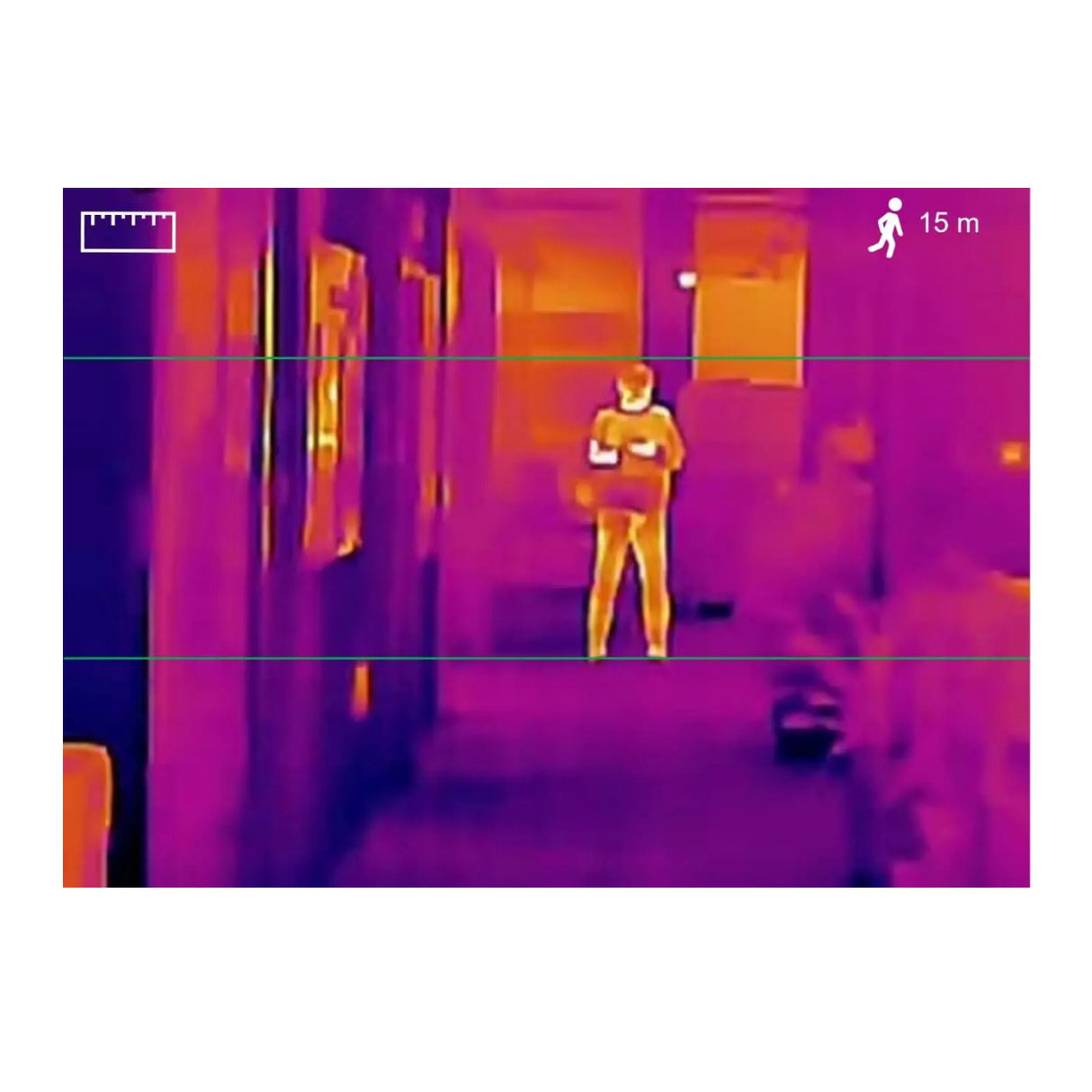

Video Ranging
With its hassle-free distance measurement feature, simply mark the top and bottom of a target on the screen, and the interface will automatically display the distance of the target from the monocular.

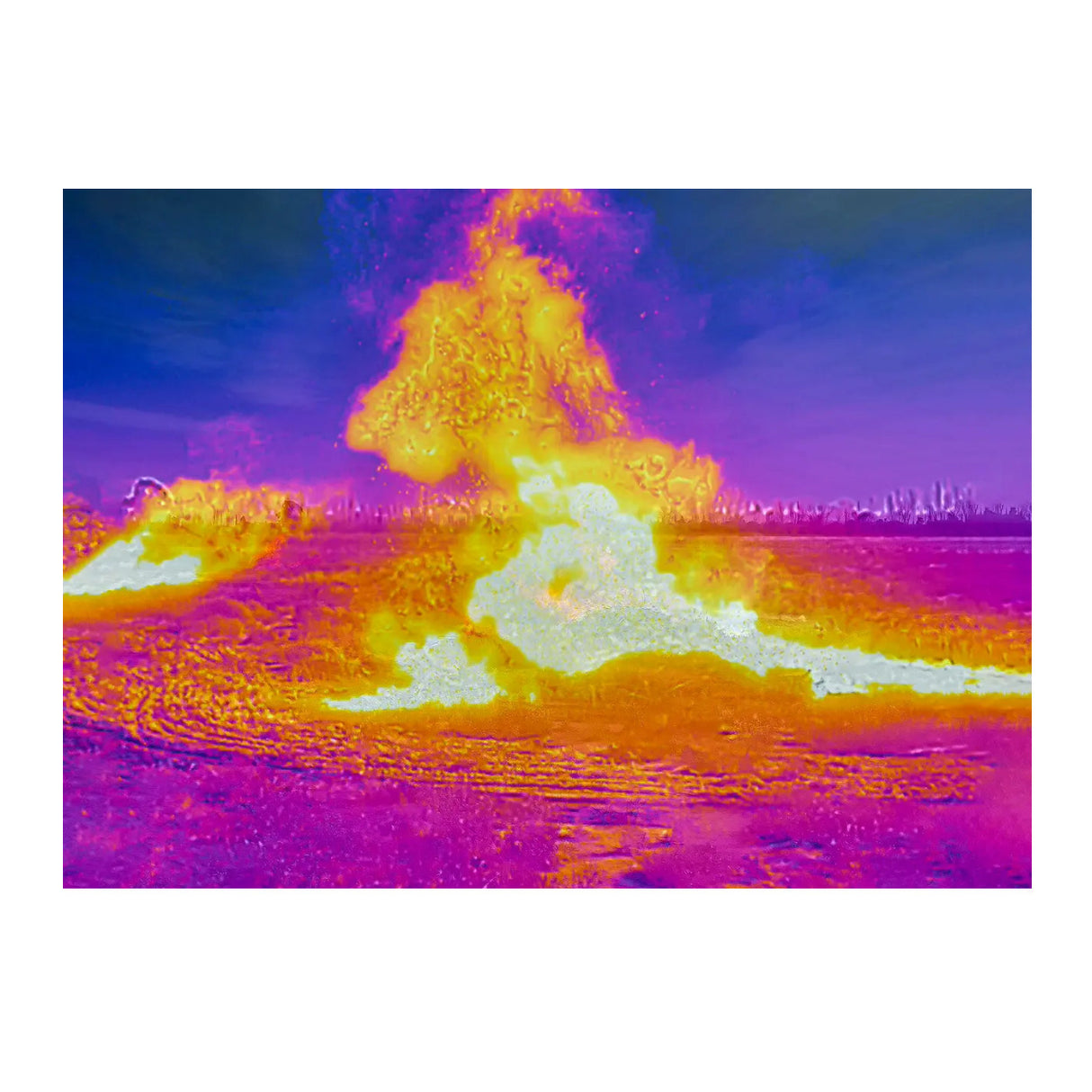

Fire Detection
The monocular can automatically detect fires that break out in the scene and track them in real-time.
Multiple Color Palettes
Choose from four different color palettes to meet your observation needs. The iron red improves the comfort of long-term observation under night conditions. The Rainbow color is convenient for users to quickly identify targets. The white-hot color is suitable for observing active targets. The alarm quickly detects the emergence of high-temperature targets.
General
| WiFi | Yes |
| Power Source | Battery |
| Weight | Net Weight: 0.77 lb (350 g) Gross Weight: 2.20 lb (1 kg) |
- 7.5 mm (H: 24.0-degree,V: 18.0-degree)
- 10 mm (H: 17.3-degree, V: 13.1-degree)
- 15 mm (H: 11.7-degree, V: 8.8-degree)
- 7.5 mm: 1 m (3.28 feet)
- 10 mm: 2 m (6.56 feet)
- 15 mm: 3 m (9.84 feet)
- Focal length: 7.5 mm
- Detection distance:
- Vehicle: 777 m (2,549.21 feet)
- Human: 291 m (954.72 feet)
- Recognition distance:
- Vehicle: 194 m (636.48 feet)
- Human: 75 m (246.06 feet)
- Identification distance:
- Vehicle: 97 m (318.24 feet)
- Human: 37 m (121.39 feet)
- Focal length: 10 mm
- Detection distance:
- Vehicle: 1,111 m (3,645.01 feet)
- Human: 416 m (1,364.83 feet)
- Recognition distance:
- Vehicle: 277 m (908.79 feet)
- Human: 107 m (351.05 feet)
- Identification distance:
- Vehicle: 97 m (318.24 feet)
- Human: 53 m (173.88 feet)
- Focal length: 15 mm
- Detection distance:
- Vehicle: 1,666 m (5,465.88 feet)
- Human: 625 m (2,050.52 feet)
- Recognition distance:
- Vehicle: 416 m (1,364.83 feet)
- Human: 160 m (524.93 feet)
- Identification distance:
- Vehicle: 208 m (682.41 feet)
- Human: 80 m (262.47 feet)
- FCC: DHQA-ESH-P22030967B
- CE: 479742742-3
- RCM: RCMD23245 001
- UKCA: 4790742742-1, 4790742742-2, 4790742742-3, 4790742742-4
Lorex Portable Weatherproof 50Hz Frame Rate 256GB Micro SD Capacity Thermal Monocular Camera
General
| Appearance | Thermal Monocular Camera |
| Type | Monitor |
Thermal
| Detector type | Vanadium oxide uncooled focal plane detector |
| Effective pixels | 256 x 192 |
| Pixel pitch | 12 micrometer |
| Spectral range | 8 to 14 micrometer |
| Sensitivity (NETD) | ≤50 mK at f/1.0 |
| Focal length | 7.5 mm, 10 mm and 15 mm |
| Aperture | F1.0 |
| Field of view | |
| Focus control | Fixed-focal |
| Close focus distance | |
| DRI detection distance | |
| Digital zoom | 4 levels |
| Color palettes | 4 (white hot; alarm; rainbow; iron red) |
Display
| Video compression | H.265 |
| Frame rate | 50 Hz |
| Display screen dimensions | 0.2 inch |
| Resolution | 720 x 540 |
Certification
| Certification |
Function
| Storage | Micro SD card (Max. 256GB) |
| Laser aiming | 180 m (590.55 feet), Class 2 (IEC 60825-1) |
Intelligence
| Fire detection | Yes |
| Cold/hot spot trace | Yes |
Port
| Analog output | 1 x CVBS output |
| Wi-Fi hotspot | Yes |
| USB | Micro USB |
Power
| Power supply | 5 VDC, 0.3 A or built-in battery |
| Battery capacity display | Yes |
| Power consumption | <1.5 W |
| Battery life | 9 hour (Wi-Fi hotspot off, at 25-degree-C) |
| Charging time | 3 hour |
Environment
| Operating temperature | –20-degree-C to +55-degree-C (–4-degree-F to +131-degree-F) |
| Operating humidity | ≤90% |
| Storage temperature | –20-degree-C to +60-degree-C (–4-degree-F to +140-degree-F) |
Physical Characteristics
| Protection | IP67 |
| Product dimensions (L x W x H) | 6.73 x 2.27 x 2.31 inch (170.9 x 57.6 x 58.6 mm) |
| Net weight | 0.77 lb (350 g) |
| Gross weight | 2.20 lb (1 kg) |
| Installation | Handheld, tripod |
| Bracket | Optional |
| Drop test height | 2 m (6.56 feet) |
