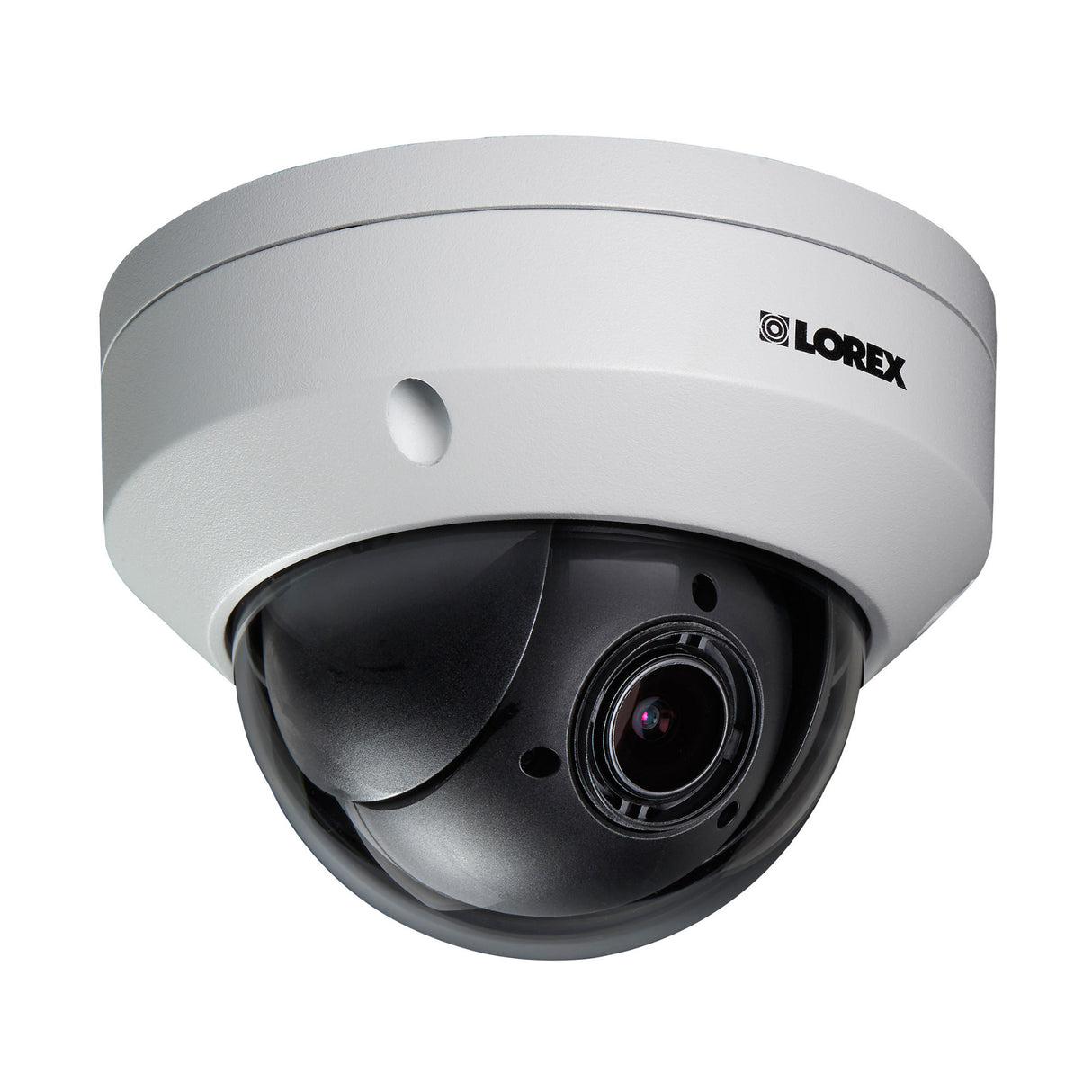

Lorex Super High Definition 2K (4MP) Pan-Tilt-Zoom Camera
Couldn't load pickup availability
Product highlights
Product highlights
In the box
In the box
Free standard shipping
Free standard shipping
*Orders placed before 1 PM EST Mon - Thur will ship the same day. Orders placed beyond these hours will be shipped the next business day. Exclusions apply. See shipping policy
Free Local Pickup
Free Local Pickup
Please call for store stock availability. Requests made before 2:30 PM EST can be available for next-day pickup. Learn more
Protect what matters most with a cutting-edge security camera that meets all your needs. This security camera by Lorex comes equipped with incredible 2K Super HD video resolution clarity and rapid Pan-Tilt-Zoom (PTZ) speed capabilities. With a waterproof casing and advanced 355° rotation, it's the perfect solution for monitoring large areas, especially outdoors. Install the camera on a ceiling or attach it to a wall and be at ease knowing you're protected from all angles
See the entire scene with Pan/Tilt capability
Monitoring a large area has now become easier. Program this 2K (4MP) security camera to automatically monitor activity in any direction with preset viewing patterns. You can also control the range of coverage through your NVR, computer, tablet, or smartphone. The camera's PTZ features include 355° rotation, 90° tilt range and rapid 100° per second panning speed.
Powerful 4× optical zoom
The camera's 4× optical zoom and 16× digital zoom will help you capture even the smallest of details. The 4× optical zoom will not compromise the quality of your video, either. You can use the zoom as part of a preset viewing pattern or use it on-the-go. Either way, this feature is highly effective in gaining evidence if an event occurs on your property.
Customize unlimited PTZ preset tours
Advanced PTZ options allow you to automate the camera's field of view. The first option is a simple preset. Use the NVR to move the camera's viewpoint to the location you desire and create a preset. This will allow you to quickly move the camera's viewpoint to this location with a simple click. The second option is a fully automated PTZ tour. This is when you set up a number of presets and have the camera cycle between them endlessly. Feel free to use all of the camera's pan, tilt, and zoom features in these tours to maximize your security coverage. The final option is a simple pattern. This setting will automatically cycle between two positions.
Superior detail with Super HD resolution
With a real-time rate of 30 frames per second and an advanced 4MP image sensor at its core, this camera is capable of recording 2K Super HD video with smooth on-screen motion and accurate color reproduction.
HEVC / H.265 compression
Compress your video data files without reducing the 2K quality footage. The camera's HEVC compression technology (aka High-Efficiency Video Compression, H.265 or MPEG-H Part 2), will save you bandwidth and video storage space. HEVC compressed videos files will retain their 2K quality, ensuring you don't lose important details in the process. Please note that the use of HEVC compression technology requires the use of a compatible HEVC capable NVR.
Easy and clutter-free installation
Only a single ethernet cable is needed for set-up. This cable simultaneously transmits video to the NVR, powers the camera (a Lorex NVR or PoE switch is required), and allows you to control camera movements directly from the NVR or a mobile device. Furthermore, the wires are encased in a sturdy, fire-resistant jacket, allowing for multi-purpose installation indoors or outdoors.
Weatherproof with extreme temperature tolerance
Don't limit the range of your coverage because of the weather. Whether it's heavy rain, snow or wind, this PTZ camera is rated IP66 which means it's fully waterproof. Extreme hot or freezing temperatures won't affect its ability, as it was designed to withstand temperatures ranging from -22°F up to 140°F (-30°C up to 60°C). Even the wall mount bracket is fully waterproof.
Camera/Video
| Digital Zoom | 16x |
| Sensor Resolution | 4 Megapixels |
| Night Vision | Yes |
| Sensor Size | 1/3.1 inch |
Features
| Outdoor Use | Yes |
| Water-Resistant | Yes |
General
| Color | White |
| Weight | 1.20lbs / 0.54kg (camera only), 2.35lbs / 1.06kg (with wall mount) |
| External Ports | 1 Gb Gigabit Ethernet |
- Manual Speed — Max 100°/Sec Pan; Max 60°/Sec Tilt
- Preset Speed — Max 100°/Sec Pan; Max 60°/Sec Tilt
- 0.2 Lux in Color
- 0.02 Lux in Black and White
- 1.20lbs / 0.54kg (camera only)
- 2.35lbs / 1.06kg (with wall mount)
Lorex Super High Definition 2K (4MP) Pan-Tilt-Zoom Camera)
| Image Sensor | 4MP, 1/3” CMOS |
| Video Format | NTSC / PAL |
| Effective Pixels | 2592 (H) x 1520 (V) |
| Resolution | 4MP |
| Range | 0°~355° Pan; 0°~90° Tilt |
| Pan/Tilt Speed | |
| Zoom | 4x Optical Zoom & 16x Digital Zoom |
| Scan System | Progressive |
| Sync System | Internal |
| S/N Ratio | >50dB (AGC Off) |
| Iris | Auto Iris |
| AES Shutter Speed | 1/1s~1/30,000s |
| Min. Illumination | |
| Video Output | IP |
| Audio | N/A |
| Lens / Lens Type | 2.7mm ~ 11mm, F1.6 ~ F2.8 / Zoom Module |
| Field of view (Horizontal) | 104°~33° |
| Termination | RJ45 (10Base-T/100Base-TX) / DC Jack |
| Night Vision Range | N/A |
| Day / Night | Auto (ICR) / Color / B/W |
| Color Night Vision™ | Yes |
| Power Requirement | PoE (802.3af); 12V DC (Optional) |
| Power Consumption | Max. 850mA / 10W |
| Operating Temp. Range -22°F ~ 140°F / -30° ~ 60°C | |
| Operating Humidity Range <90% RH | |
| Environmental Rating IP66 (Indoor / Outdoor) 5 | |
| Dimensions Camera Only | (Dia. × H) 4.8” × 3.5” / 122 × 89mm |
| Dimensions with Wall Mount | (W × L × H) 4.8 × 6.3” × 4.8” / 89 × 160 × 123mm |
| Weight |
