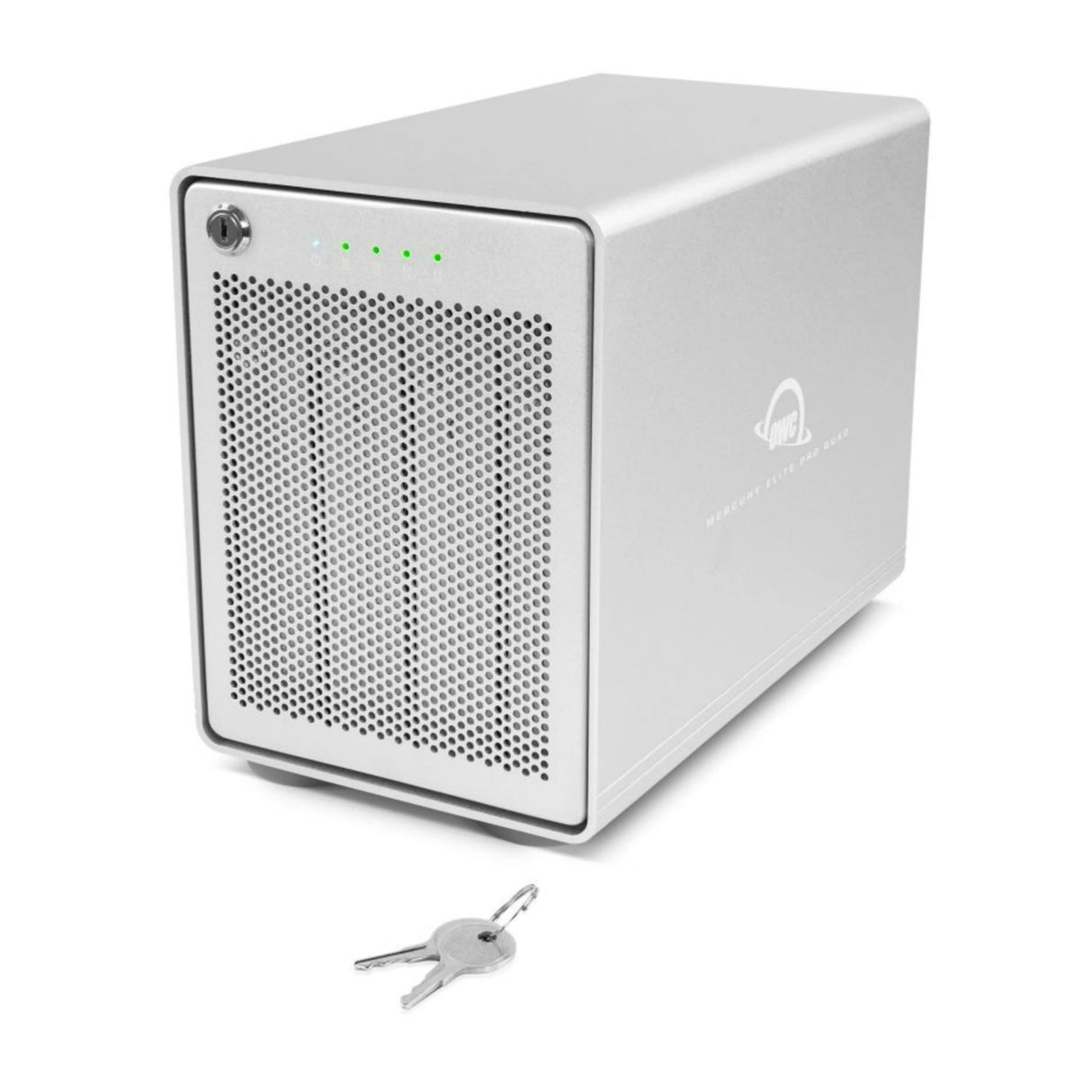

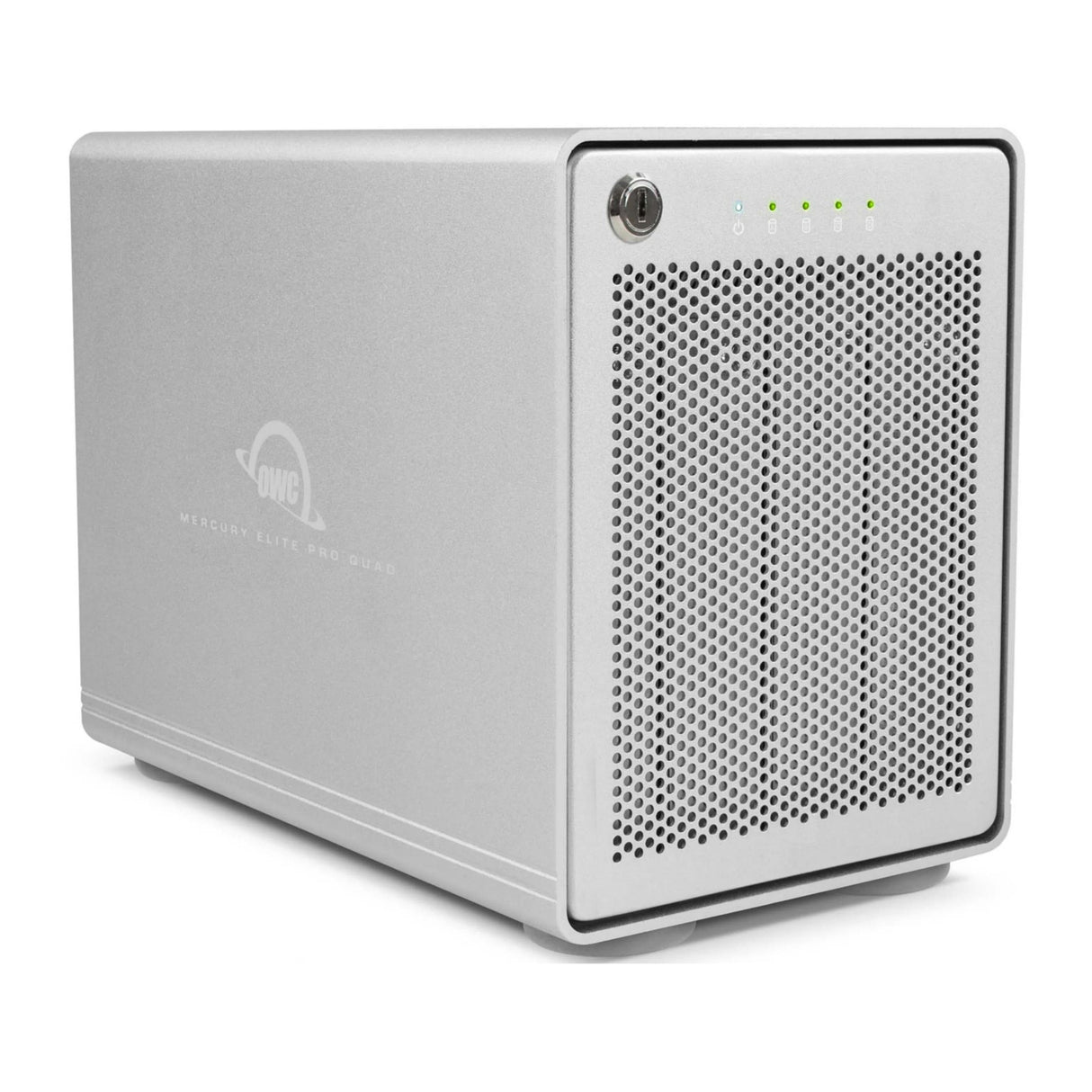

OWC Mercury Elite Pro Quad 4-Bay USB 3.1 Gen 2 Type-C Cool and Quiet RAID Aluminum Enclosure
Couldn't load pickup availability
Product highlights
Product highlights
In the box
In the box
Free standard shipping
Free standard shipping
*Orders placed before 1 PM EST Mon - Thur will ship the same day. Orders placed beyond these hours will be shipped the next business day. Exclusions apply. See shipping policy
Free Local Pickup
Free Local Pickup
Please call for store stock availability. Requests made before 2:30 PM EST can be available for next-day pickup. Learn more
The OWC Mercury Elite Pro Quad is the ideal four-bay enclosure for content workflows where speed, capacity, performance, and flexibility are paramount.
The Flexibility Of USB-C
The Mercury Elite Pro Quad's powerful USB-C interface delivers 10 Gb/s USB 3.1 Gen 2 bandwidth and works with any USB-C or Thunderbolt 3-equipped Mac or Windows PC. Simply connect the Mercury Elite Pro Quad via the included USB-C cable to experience next-level performance. If your computer doesn’t feature USB-C connectivity, the included USB-C to USB-A cable brings backward compatibility for machines with legacy USB ports.
Capacity Without Compromise

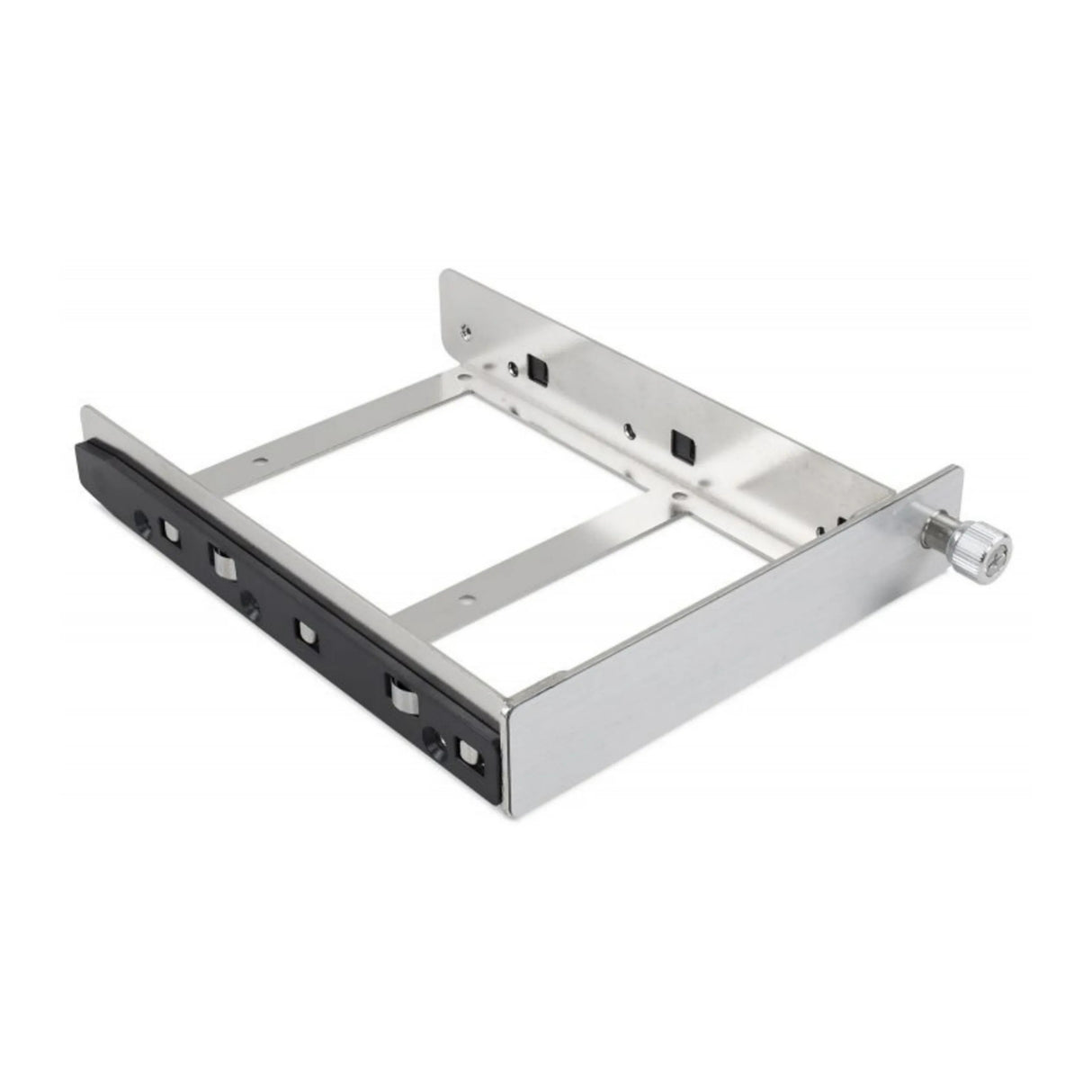

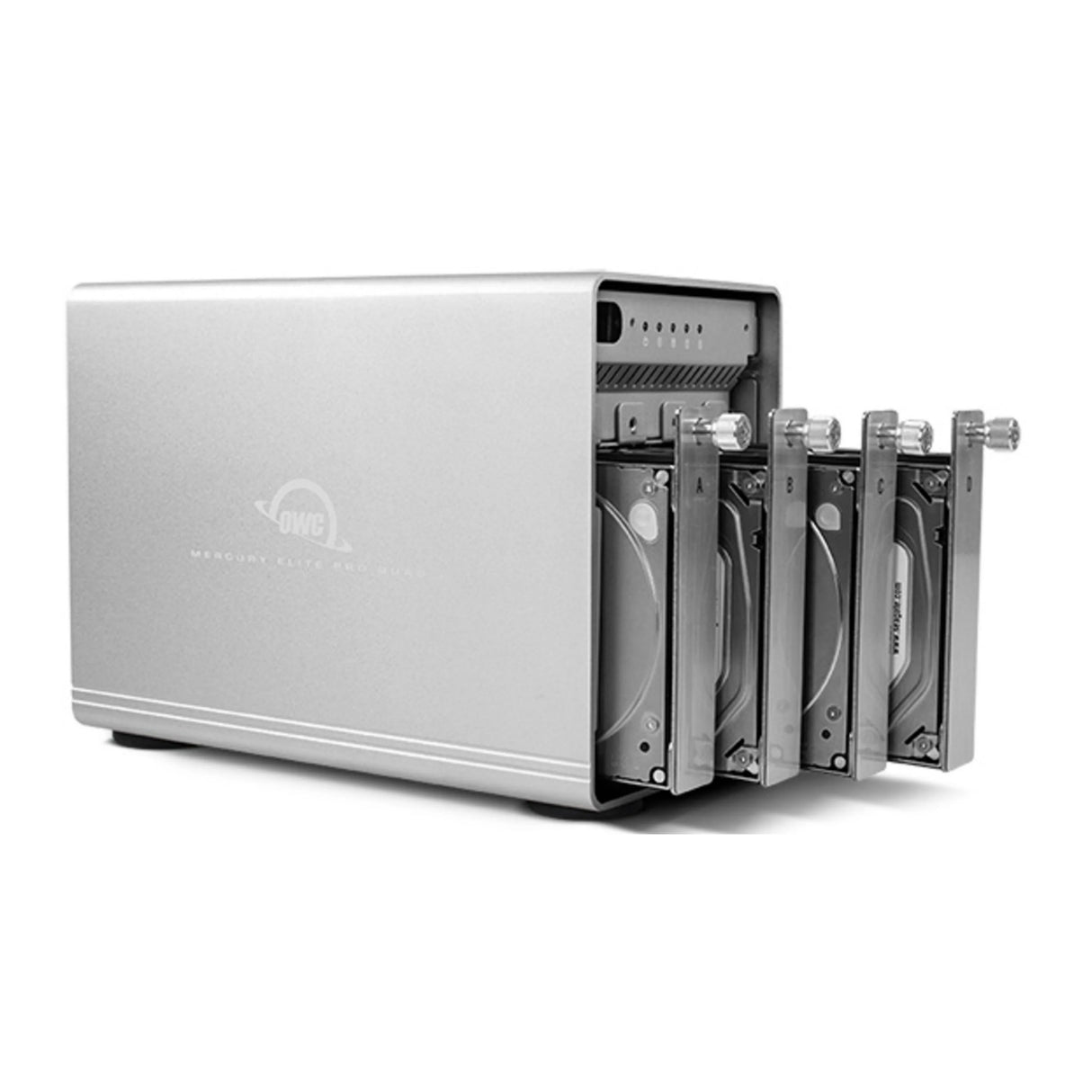

It is compatible with 2.5-inch and 3.5-inch drives, the Mercury Elite Pro Quad’s four universal drive bays let users pack up to a massive 80 TB of storage. With this level of capacity and drive flexibility, you will not have to compromise when it comes to your storage.
Includes SoftRAID for Easy and Complete Drive Management
Now you can maximize disk space, get the fastest access speeds, and protect against disk failure with Plug and Play simplicity. The SoftRAID’s easy setup makes it a breeze to create RAID volumes by helping you through the entire process. Just decide what you’re using your RAID volume for and how much space to allocate to it. It's that simple to create your preference for speed and/or redundancy attributes of your data volume.
Workflow and Storage Solutions for Pros
Whether you’re finishing and mastering, creating proxies, or working with state-of-the-art VFX, you need dependable tech that keeps pace with your demands. The OWC workflow and storage solutions cover every angle, delivering processing speeds up to 2800 MB/s, capacity for all five levels of RAID, and bonus features like the freedom to daisy chain and hot-swap.
Designed for Professionals

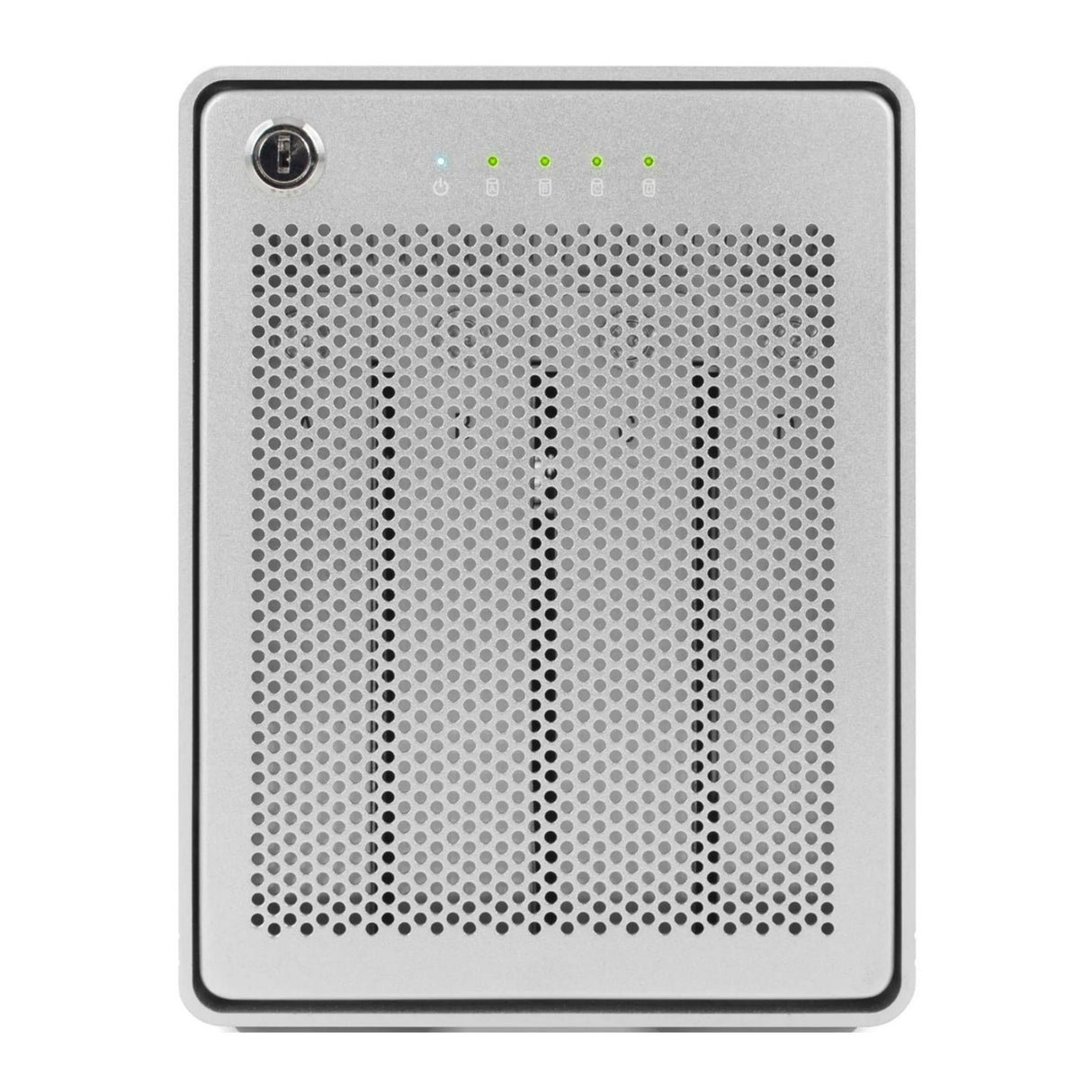

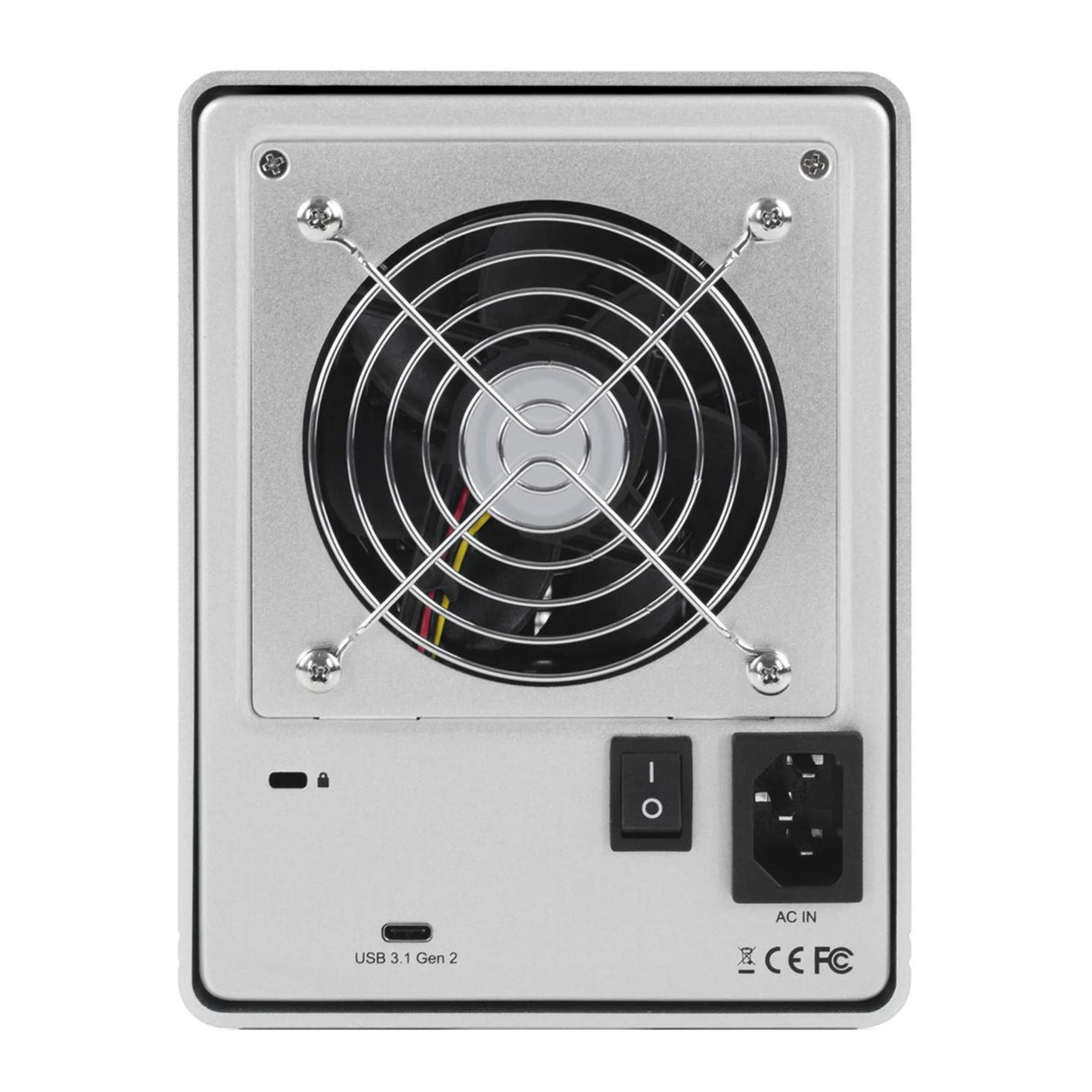

Every detail was considered when designing the Mercury Elite Pro Quad. Built with a heat-dissipating aluminum enclosure, a whisper-quiet fan, and vibration-absorbing feet, the Mercury Elite Pro Quad runs cool and quietly, making it ideal for noise-sensitive environments. Front-facing LEDs provide an instant drive-activity snapshot, while the front panel access lock keeps your drives safe. You can even secure the entire drive with the rear-mounted Kensington-compatible lock slot. On top of that, drive-equipped models undergo OWC's multi-hour drive burn-in performance certification procedure to ensure that your drive arrives operating properly and is ready to perform.
Drives
| Interface | SATA |
Electrical
| AC Input Power | 100 to 240 VAC |
| PSU Wattage | 1 x 120 W |
| Power Source | AC Power Adapter |
Security
| Security Features | Kensington Security Slot |
Enviornmental
| Certifications | CE, FCC |
| Operating Temperature | 32 to 104°F / 0 to 40°C |
Physical
| Cooling System | Fan |
| Material | Aluminum |
| Status Monitoring | LED Indicator |
General
| Ports | 2 |
| Number of Bays | 4 x 2.5"/3.5" |
- 12.0TB Toshiba MG09ACA Series 7,200RPM Enterprise Capacity Hard Disk Drive with 512 MB cache
- RAID 0
- RAID 1
- JBOD
- RAID 0+1
- RAID 4
- RAID 5
- Mac OS X 10.6 Snow Leopard
- Mac OS X 10.7 Lion
- Mac OS X 10.8 Mountain Lion
- OS X 10.9 Mavericks
- OS X 10.10 Yosemite
- OS X 10.11 El Capitan
- macOS 10.12 Sierra
- macOS 10.13 High Sierra
- macOS 10.14 Mojave
- macOS 10.15 Catalina
- macOS 11.x Big Sur
- macOS 12.x Monterey
- macOS 13.x Ventura
- Windows 7 32-bit Edition
- Windows 7 64-bit Edition
- Windows Home Server 2011
- Windows 8 32-bit Edition
- Windows 8 64-bit Edition
- Windows 8.1 32-bit Edition
- Windows 8.1 64-bit Edition
- Windows Server 2012
- Windows 10 32-bit Edition
- Windows 10 64-bit Edition
- Windows Server 2016
- Windows 11
- Height: 7.3 inch (18.5 cm)
- Length: 9.4 inch (24.0 cm)
- Width: 5.3 inch (13.5 cm)
- Weight: 7.94 lb (3.6 kg)
- CE
- FCC
- Operating: 32-degree-F to 104-degree-F (0-degree-C to 40-degree-C)
- Non-operating: -4-degree-F to 158-degree-F (-20-degree-C to 70-degree-C)
- Operating: -304.8 m to 3,048.0 m (-1,000 feet to 10,000 feet)
- Non-operating: -304.8 m to 12,192.0 m (-1,000 feet to 40,000 feet)
- Operating: 8% to 90% non-condensing
- Non-operating: 5% to 95% non-condensing
OWC Mercury Elite Pro Quad 4-Bay USB 3.1 Gen 2 Type-C Cool and Quiet RAID Aluminum Enclosure
| Total capacity | 48.0TB |
| Total solution cache size | 2048MB |
| Standard mechanism | |
| Hot swap support | Yes |
| Chipset | USB 3.1 Gen 2: (1) Via Labs VLI-822 |
| SATA | ASMedia ASM-235CM |
| Drive interface | SATA |
| Rotational speed | 7,200RPM |
| Data transfer rate maximum | USB 3.2 Gen 2: Up to 10 Gb/s (or 1250 MB/s) |
| Plug and play | Yes |
| RAID capable | Yes |
| Default RAID level | RAID 5 |
| RAID levels supported | |
| RAID features | Software RAID |
| Mac OS compatibility | |
| PC OS compatibility | |
| Host port requirements | USB (USB-C or USB-A1) or Thunderbolt (USB-C) port |
| Other requirements | SoftRAID XT works with macOS 10.12 or later and Windows 10 or later. SoftRAID is licensed per computer. The SoftRAID serial number will work with both Mac and Windows but can only be active on one computer at a time. Additional seats can be purchased. RAID 4/1+0 (10) are currently Mac only at this time. |
| Power supply | Internal UL-listed universal auto-switching power supply |
| AC input | 100-240V, 50-60Hz |
| DC output | +12V, 10A |
| Wattage | 120W |
| External power adapter | No |
| Number of bays | 4 |
| Device ports | Host Port - USB 3.2 Gen 2 Type-C up to 10Gb/s (1250MB/s) - USB 2.0/3.0 backwards compatible |
| Cooling | 92mm Temperature-controlled cooling fan |
| Security slot | Yes |
| Housing material | Aluminum |
| Dimensions | |
| Certifications | |
| Ambient temperature | |
| Altitude | |
| Humidity |
