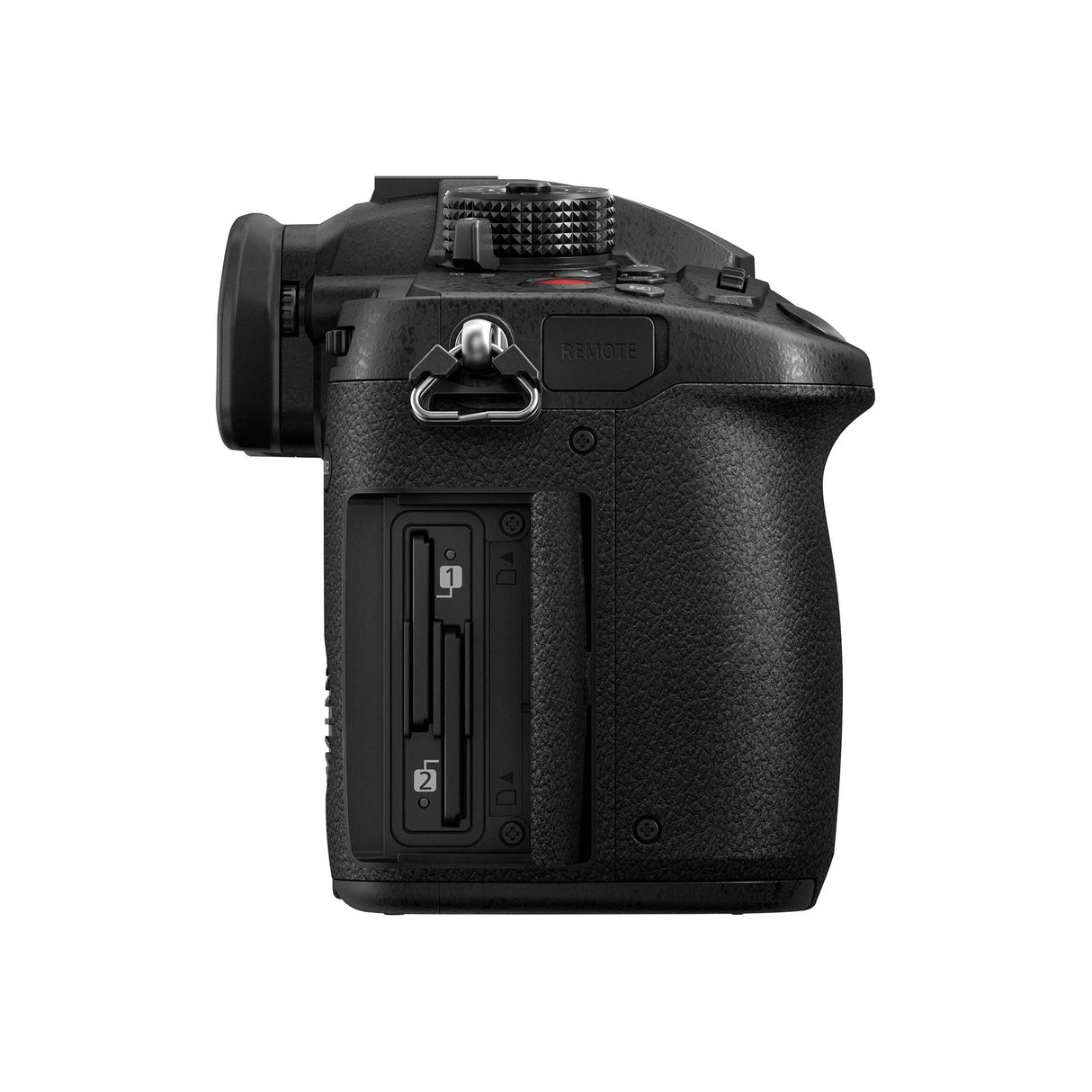

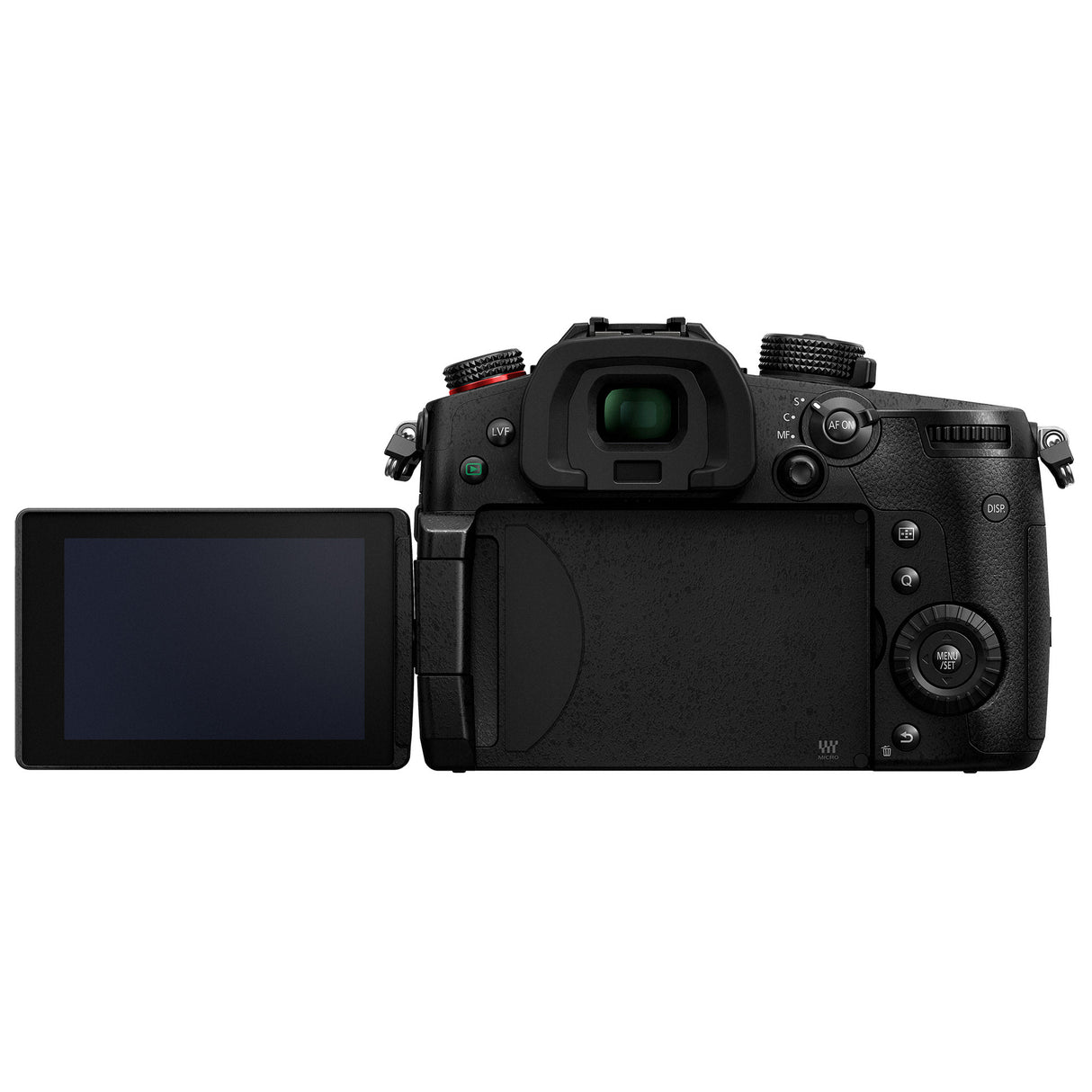

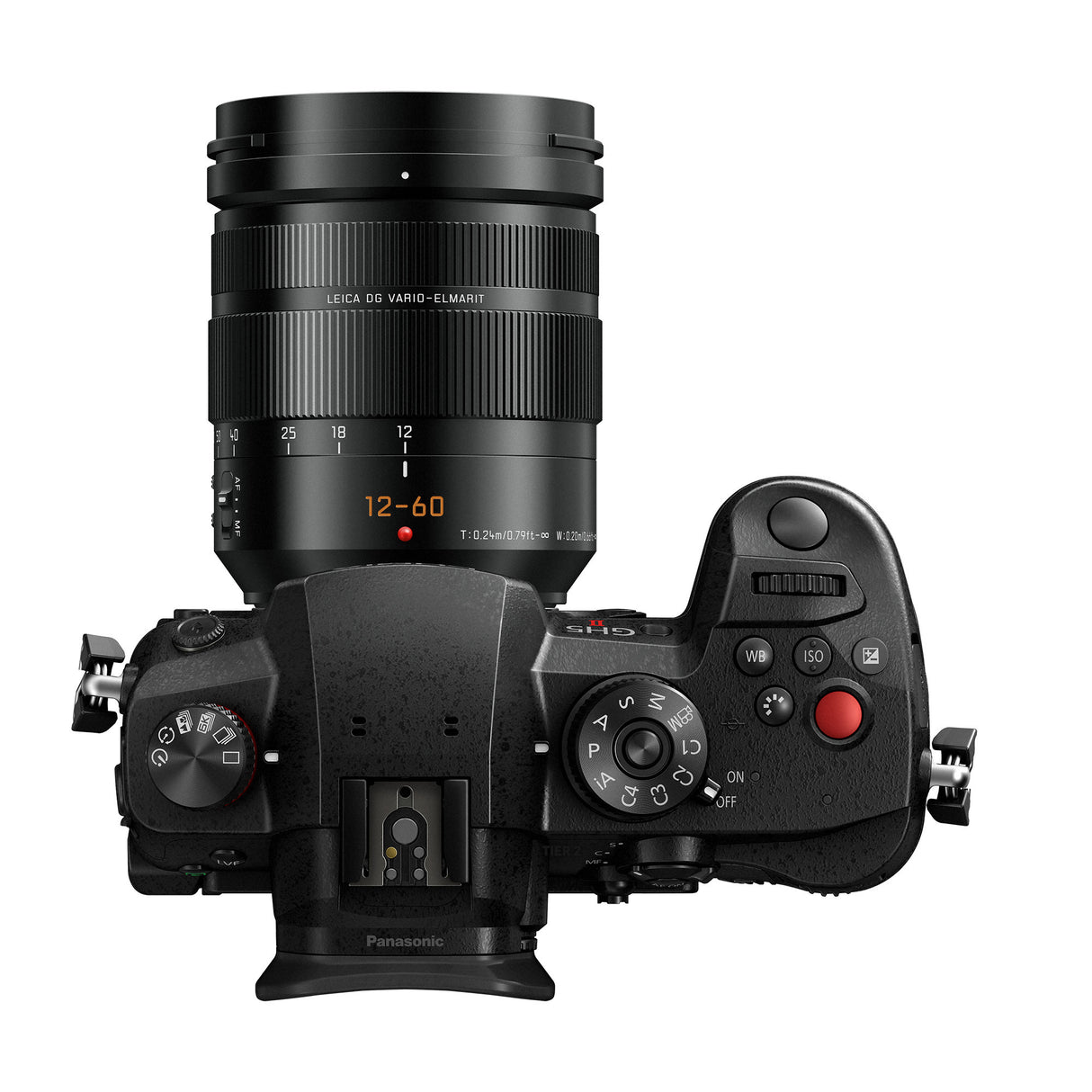

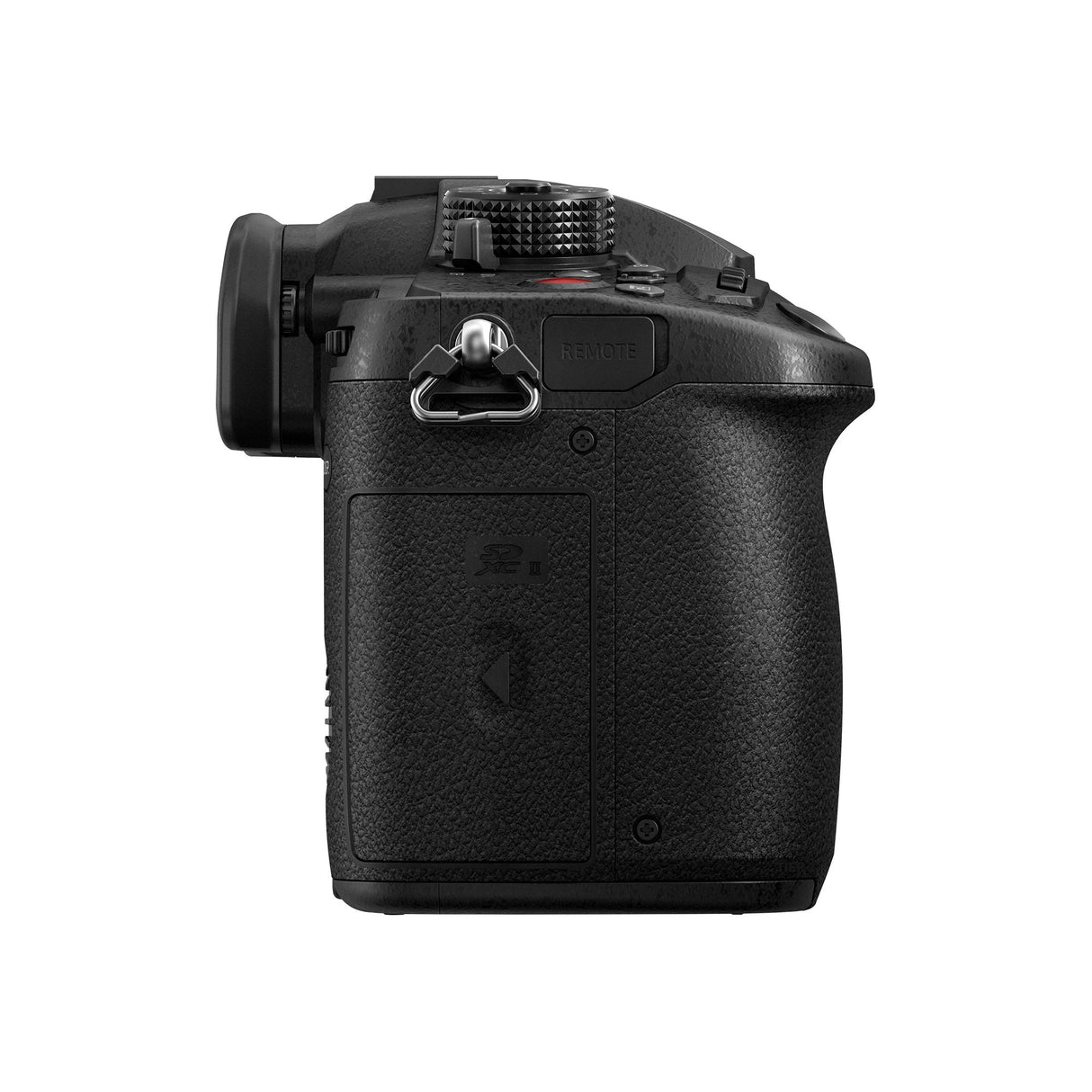

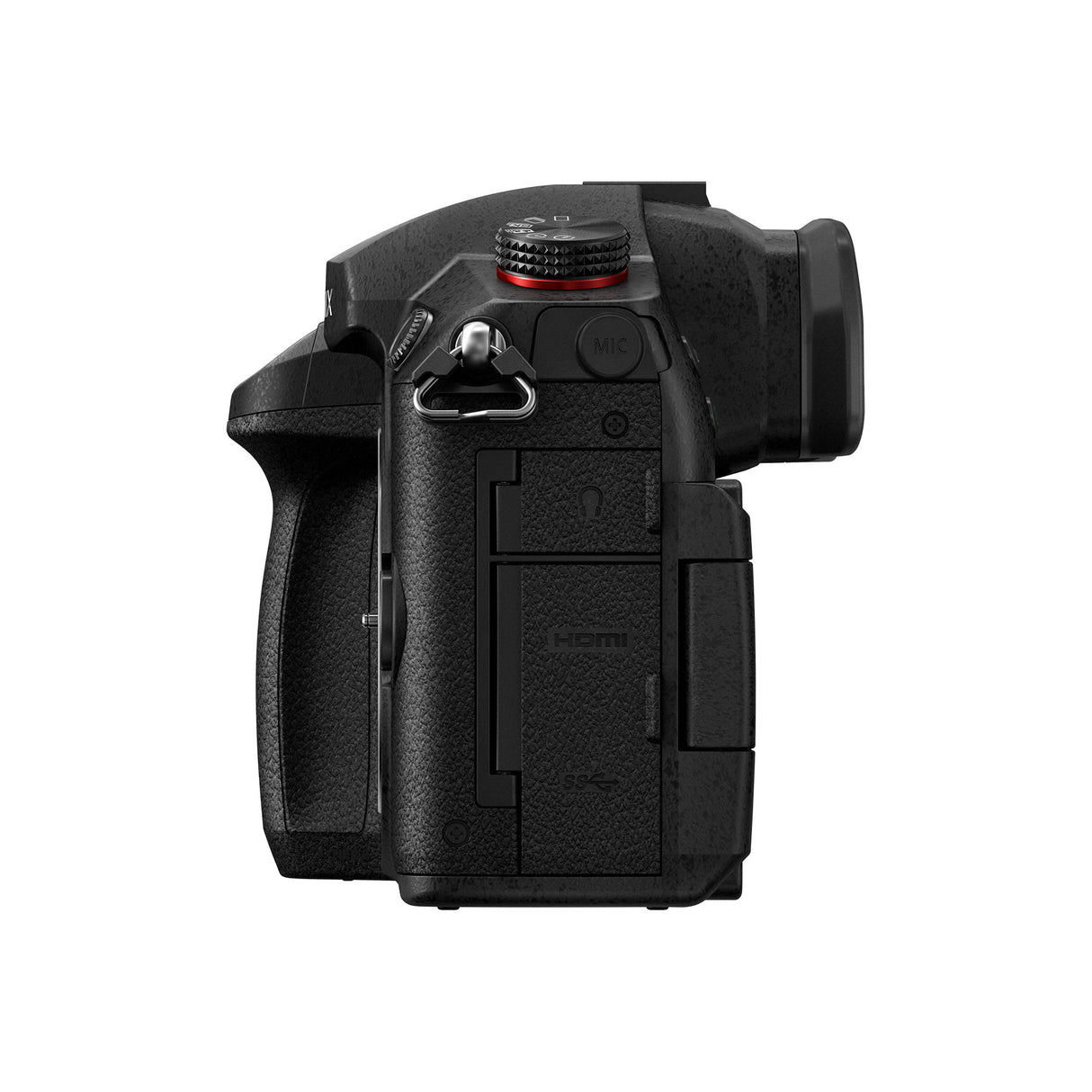

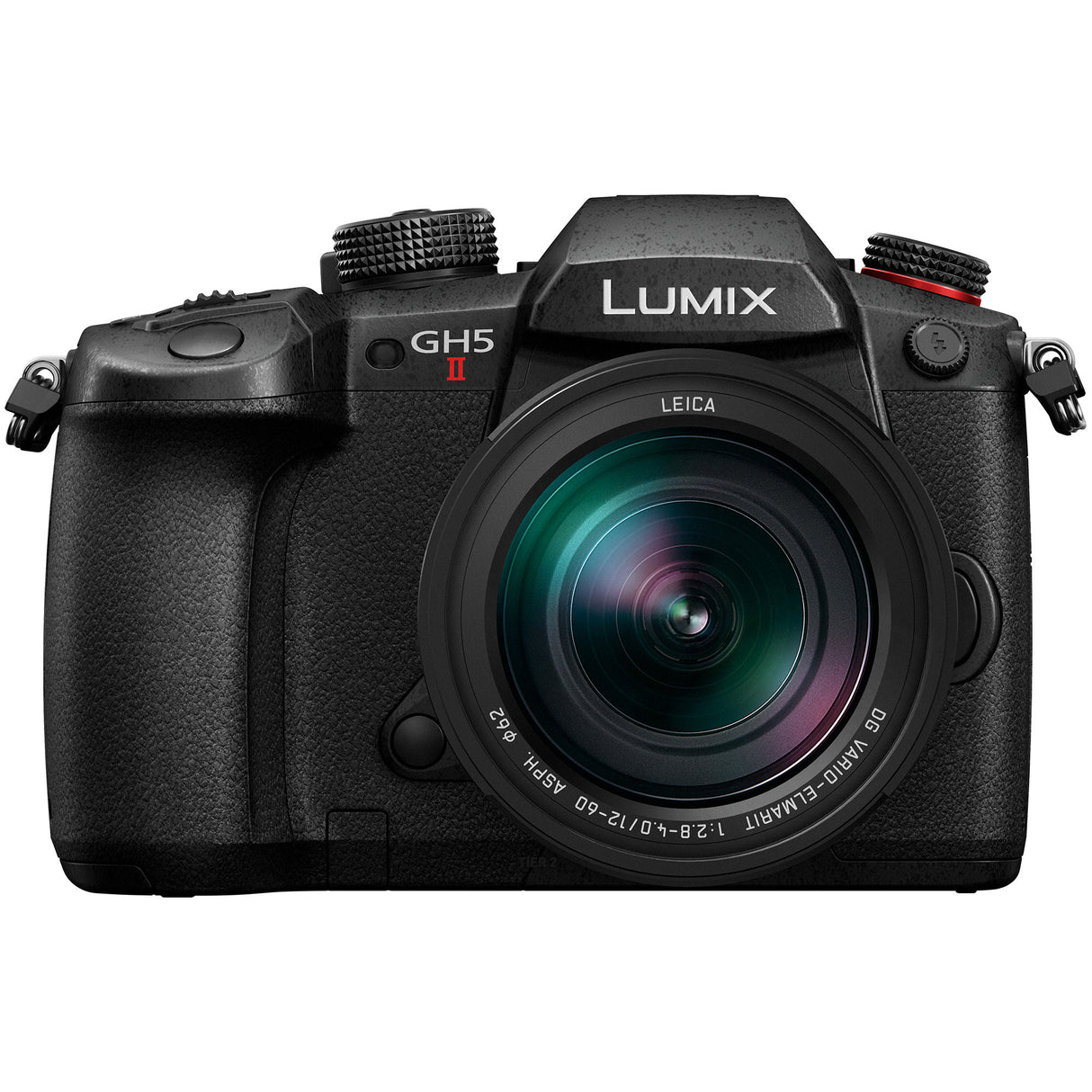

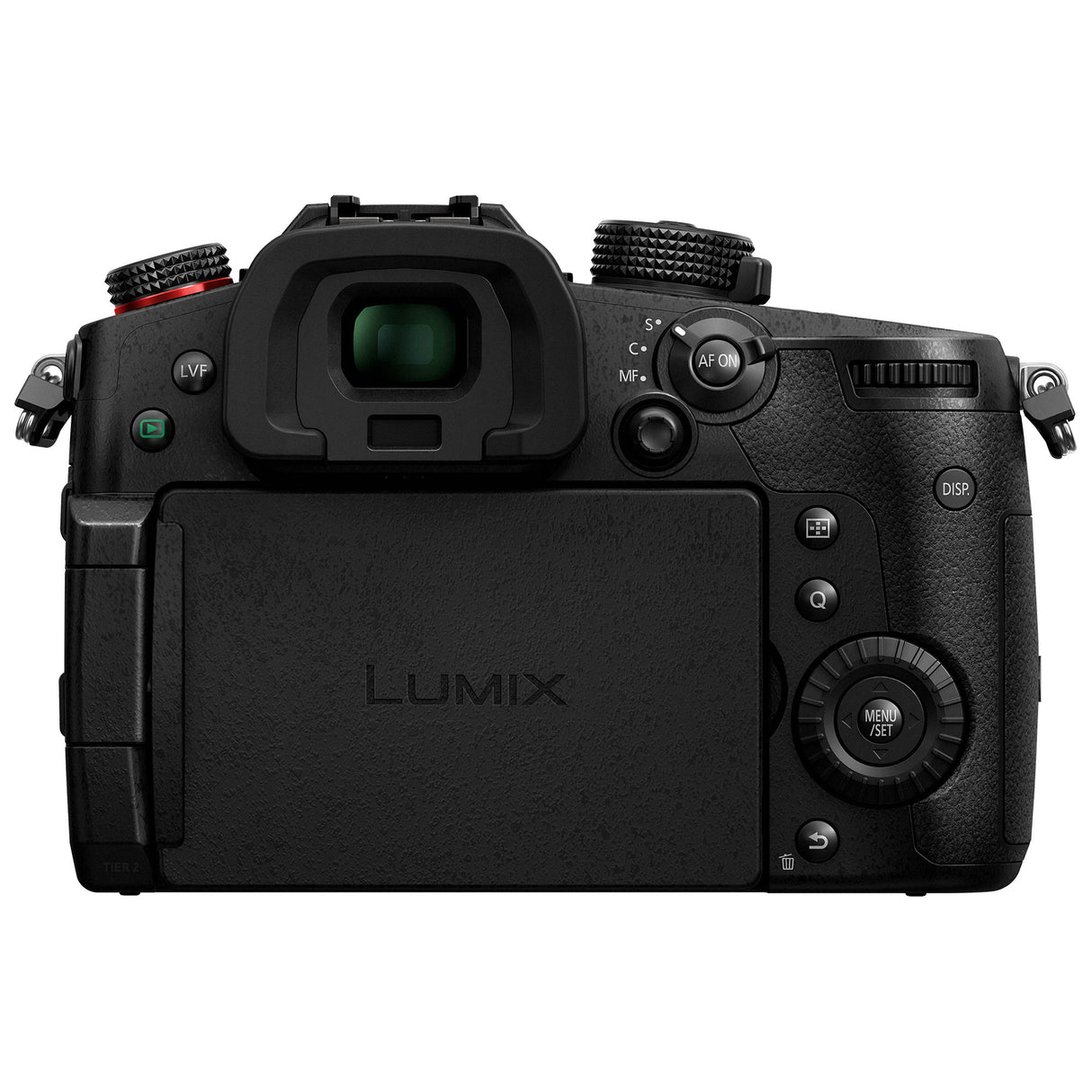

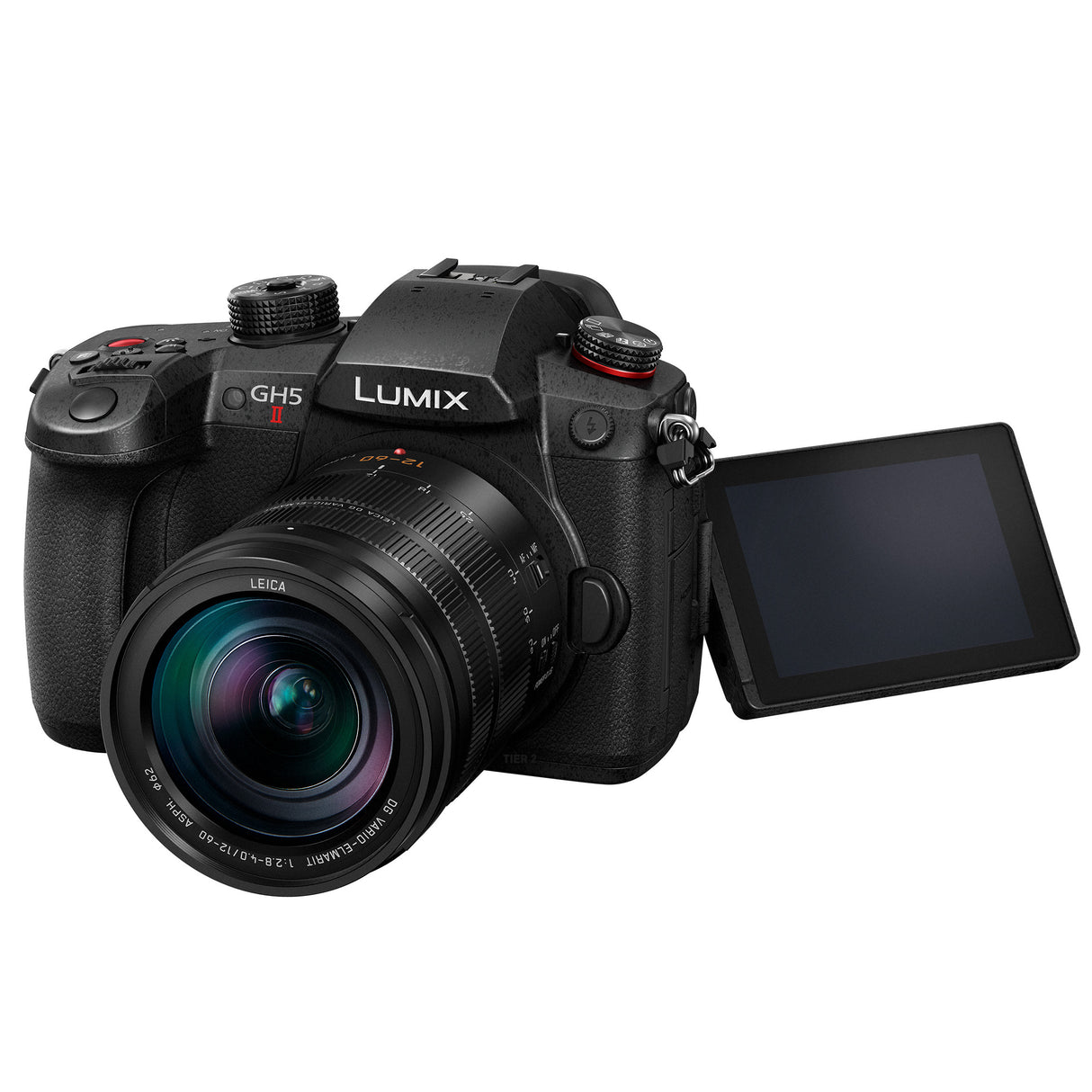

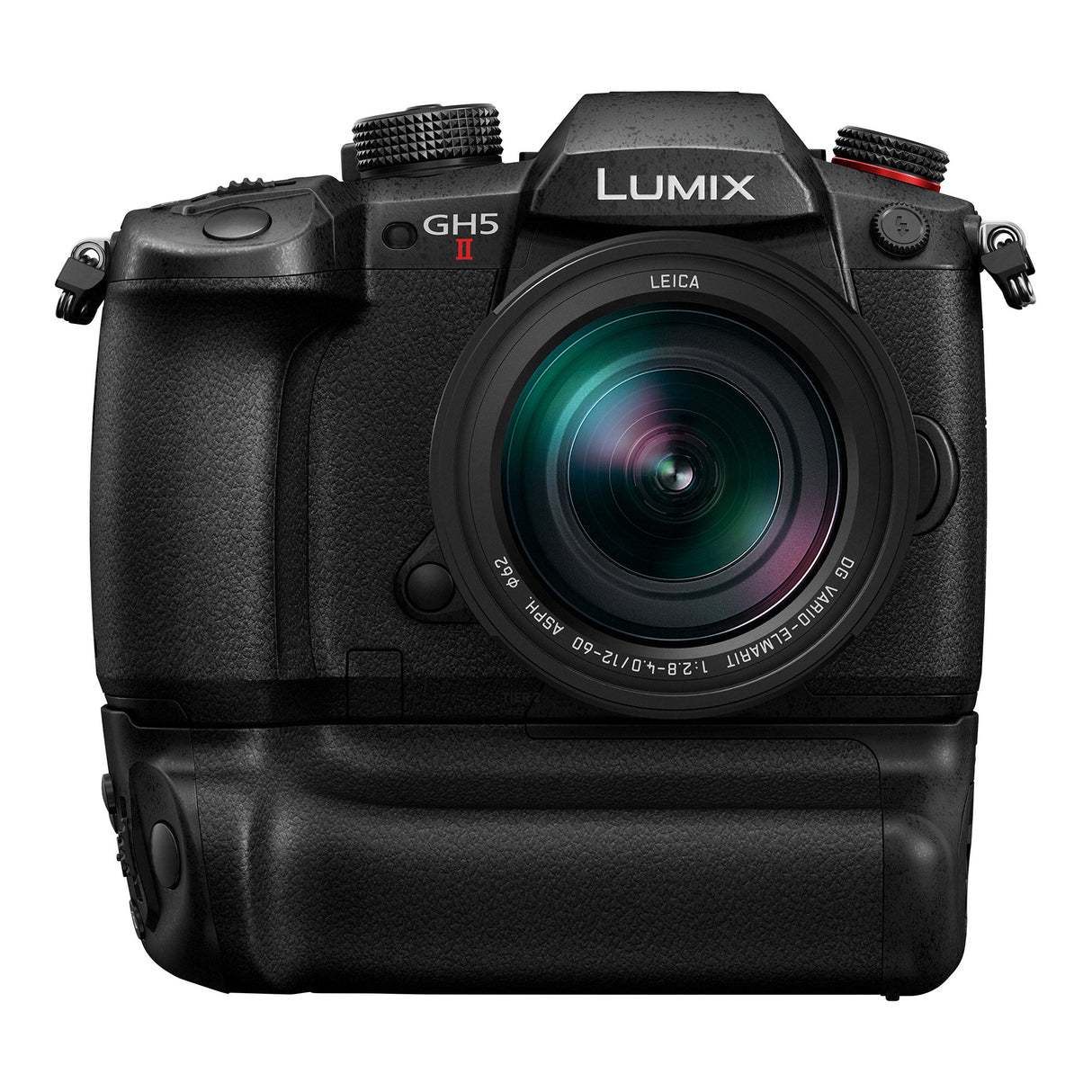

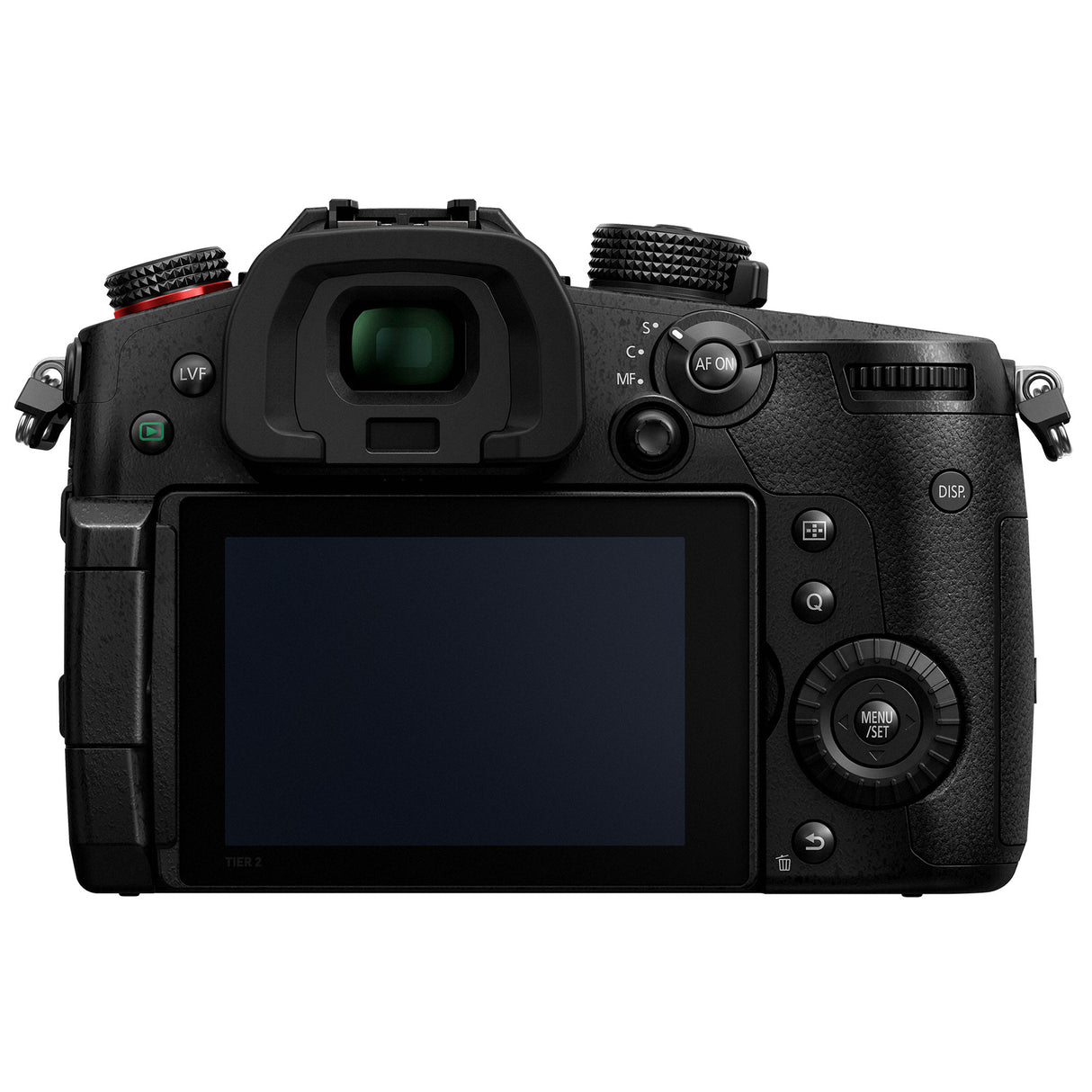

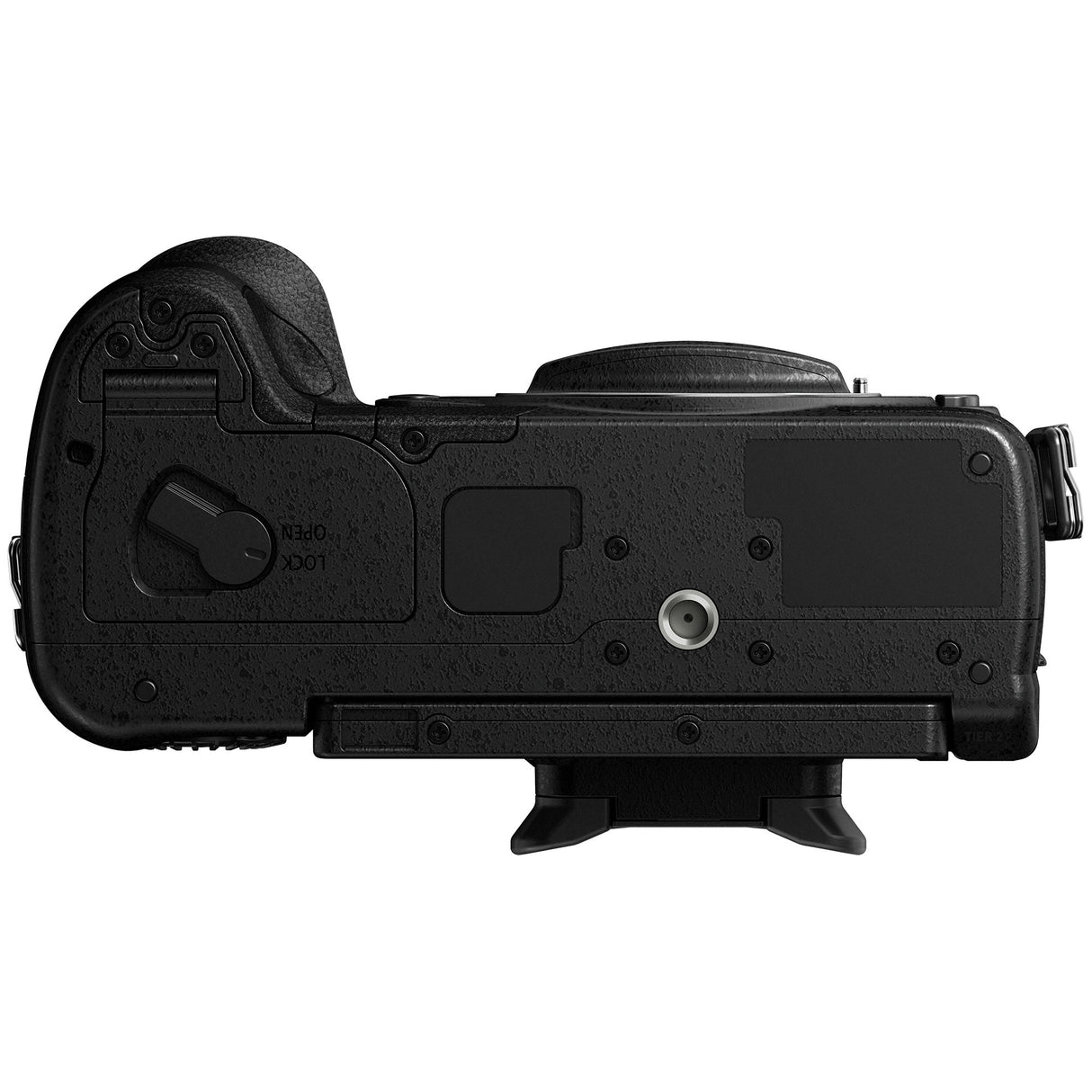

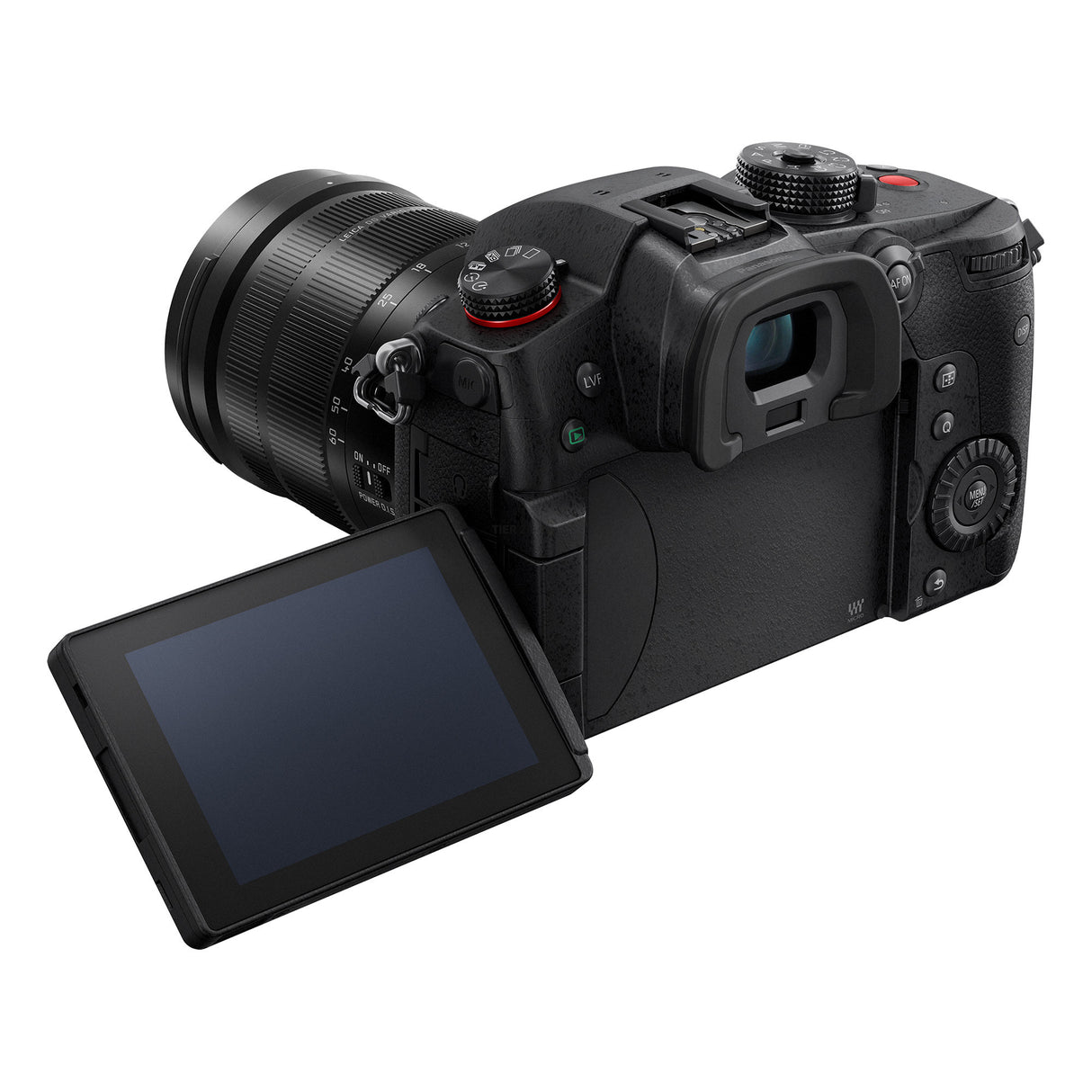

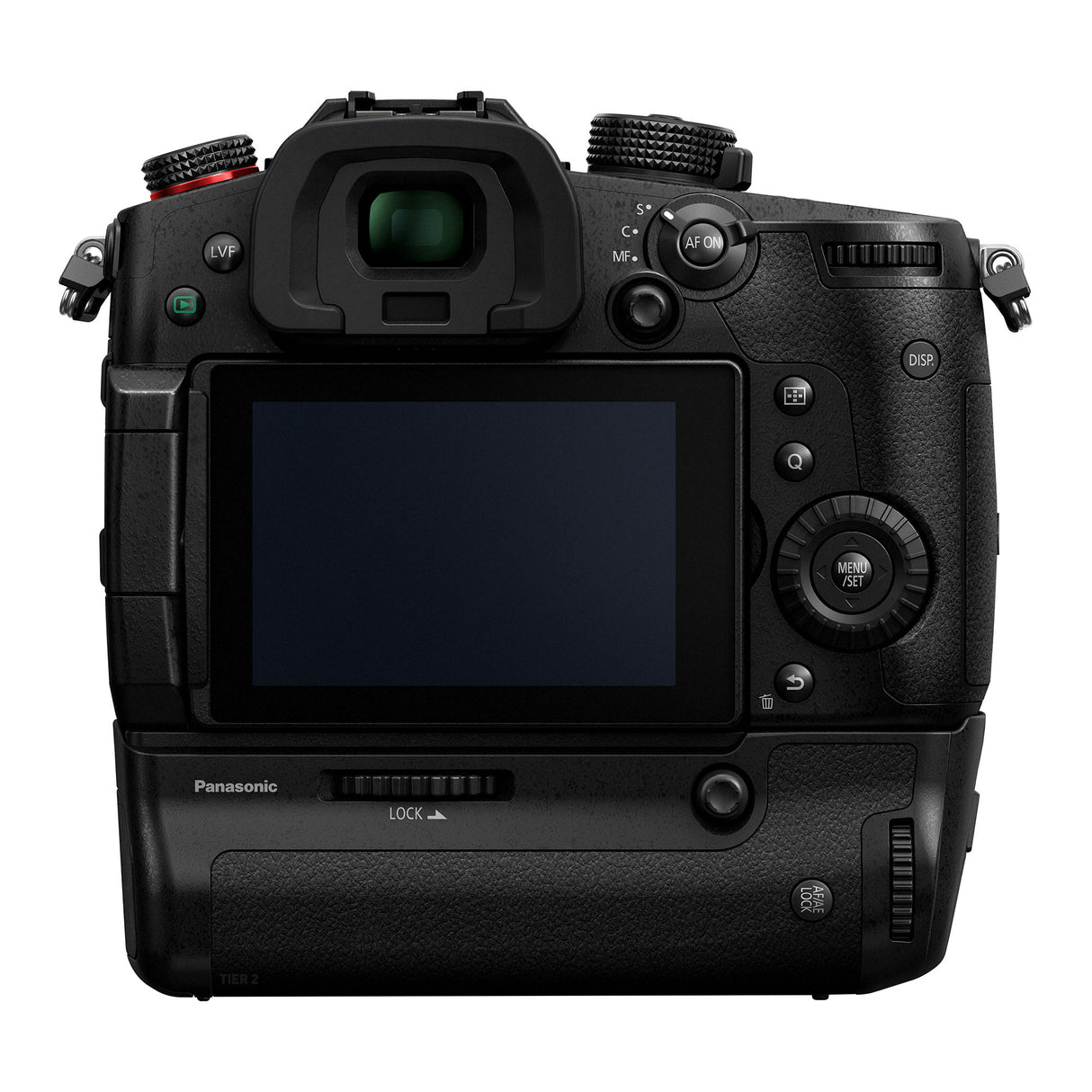

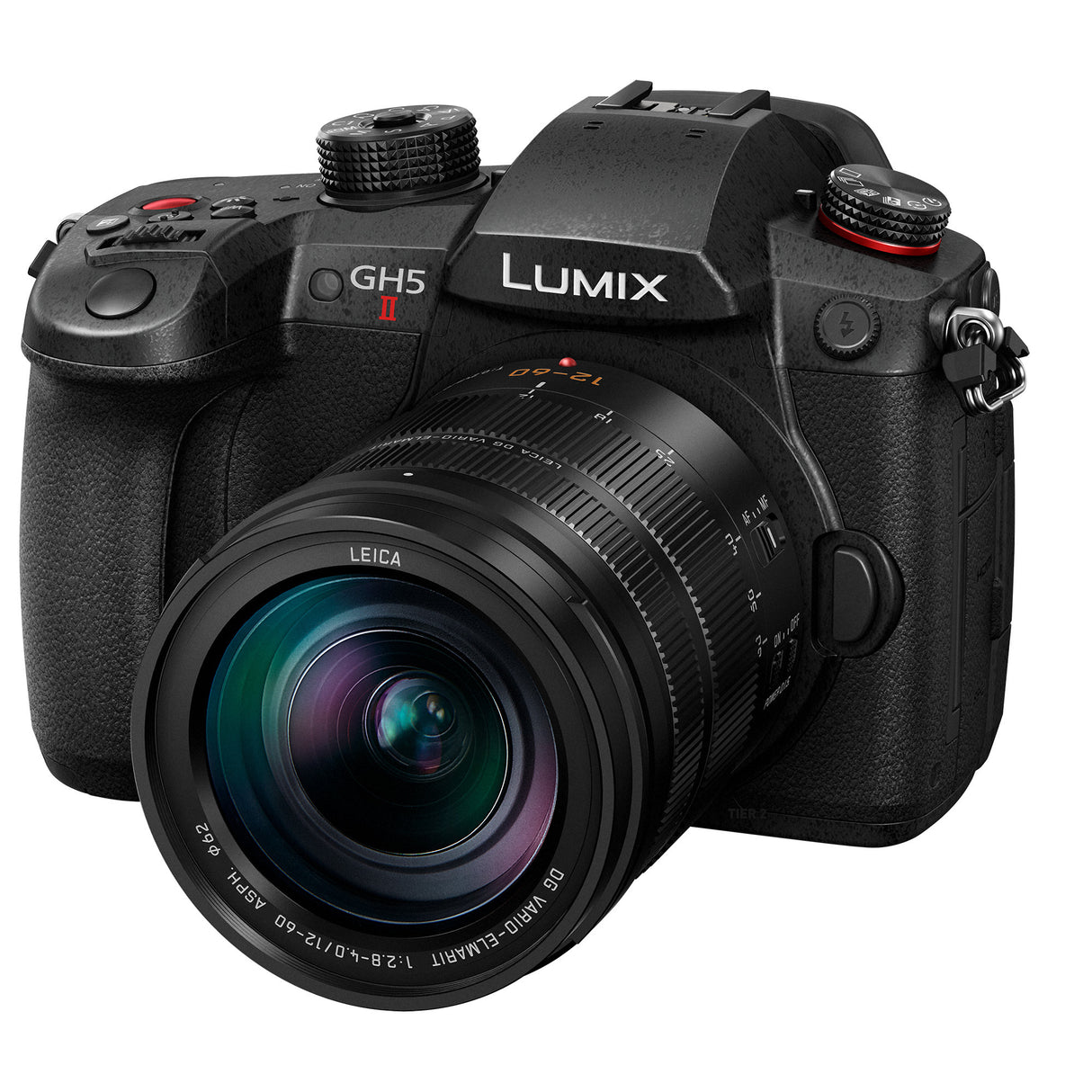

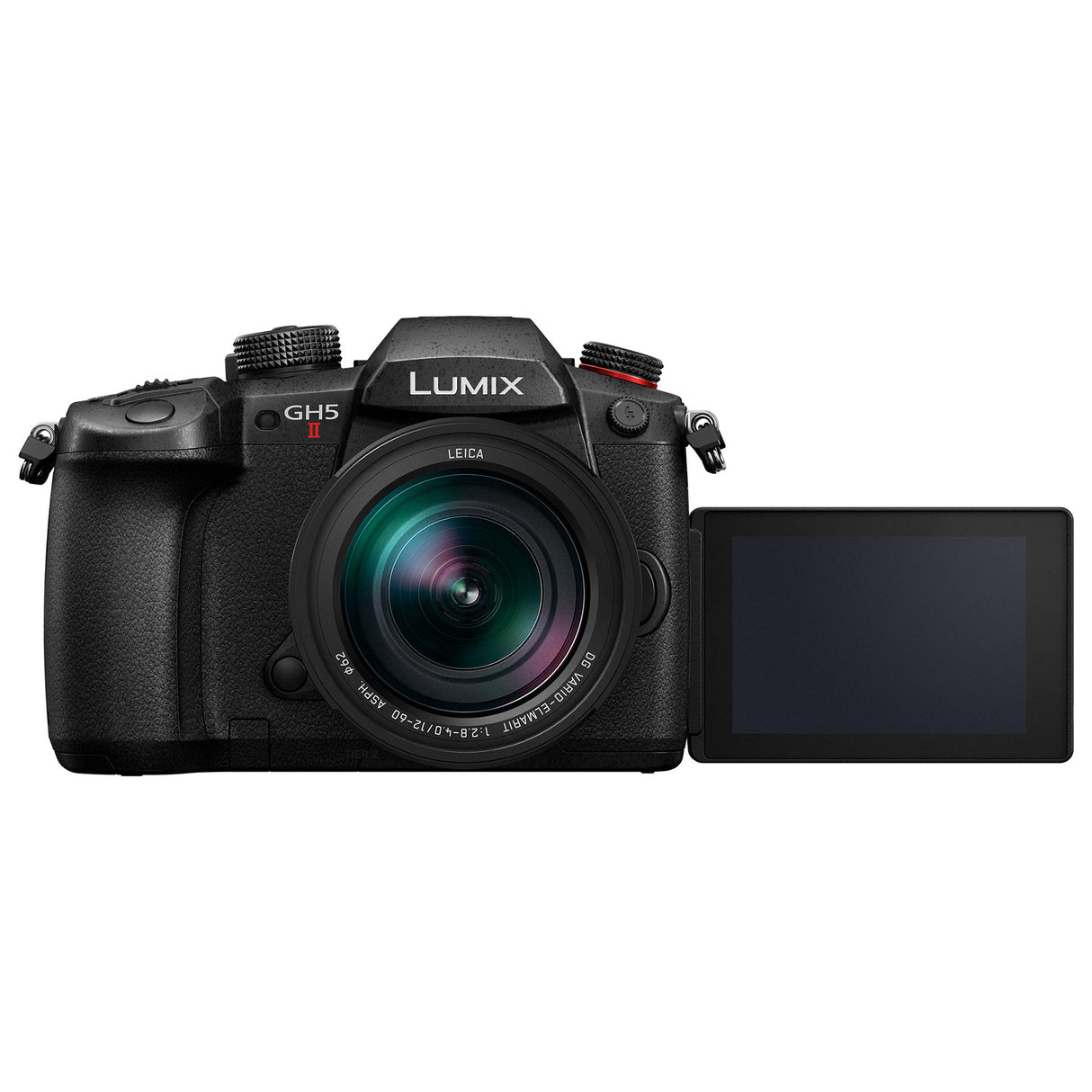

Panasonic Lumix GH5 II Mirrorless Camera with 12-60mm f/2.8-4 Lens and Live Streaming
$1,997.99
$3,217.19
Unit price
/
Unavailable
Couldn't load pickup availability
Product highlights
Product highlights
In the box
In the box
Free standard shipping
Free standard shipping
*Orders placed before 1 PM EST Mon - Thur will ship the same day. Orders placed beyond these hours will be shipped the next business day. Exclusions apply. See shipping policy
Free Local Pickup
Free Local Pickup
Please call for store stock availability. Requests made before 2:30 PM EST can be available for next-day pickup. Learn more
The legendary LUMIX GH5 experience, now with livestreaming! The LUMIX GH5M2 draws from the GH5, an iconic camera for pro photography and videography, adding features to challenge you to your highest levels of creativity.
The GH5M2 is capable of wireless live streaming using the LUMIX Sync smartphone app supported by USB PD outdoors or indoors. With a future firmware update, it will support wired IP streaming. Video can be delivered either as-is, or as log recording for advanced post-production.
The GH5M2 ensures successful shooting with a 20.3MP sensor with Anti-reflective coating, the latest autofocus, and I.S. technologies with the latest Venus Engine. It is capable of unlimited video recording in various settings and can record C4K/4K 60p 4:2:0 10-bit without cropping, with simultaneous output over HDMI during internal recording. V-LogL is pre-installed to deliver a high dynamic range and broad colors, which makes you easy to match the color tone with the footage recorded in V-Log and V-LogL of Panasonic and LUMIX line-up. Cinelike D2 and V2, MonochromeS, and L.ClassicNeo have been added to Photo Style to expand your creativity. For Variable Frame Rate recording, C4K/4K 60fps, Anamorphic 50fps and FHD180fps are available with autofocus function prior to the recording starts.
Tough enough to withstand even heavy field use, the GH5M2 has a magnesium alloy full die-cast front/rear frame. Secure construction and a sealing for every joint, dial, and button make it not only splash and dust resistant** but also freeze resistant down to -10 degrees Celsius (14° F). Equipped with a double SD Memory Card slot compatible with high-speed, high capacity UHS-II for Relay Recording, Backup Recording, or Allocation Recording.
Free Your Creativity. Go Live.
Hybrid mirrorless camera featuring live streaming capability and C4K 60p/50p 10bit video recording.
Cinema, Broadcasting, and Other Pro Applications
Unlimited recording on all settings—C4K and 6K anamorphic mode, 60p/50p 4:2:0 10-bit and C4K/4K 30p/25p/24p 4:2:2 10-bit ALL-Intra 400Mbps recording
Advanced Functions to Support All Your Needs
Pre-installed V-LogL, REC Frame Indicator, Luminance Spot Meter, Zebra Pattern, WFM/Vectorscope, and three display options for Shutter Speed and Gain (Sensitivity): Sec/ISO, Angle/ISO, or Sec/dB.
Wireless Live Streaming / Webcam
Enjoy wireless livestreaming indoors and outdoors via the LUMIX Sync app (Android/iOS). Stream live events anytime, anywhere with GH5-level quality. Connect to a computer using a USB cable for web conferencing.

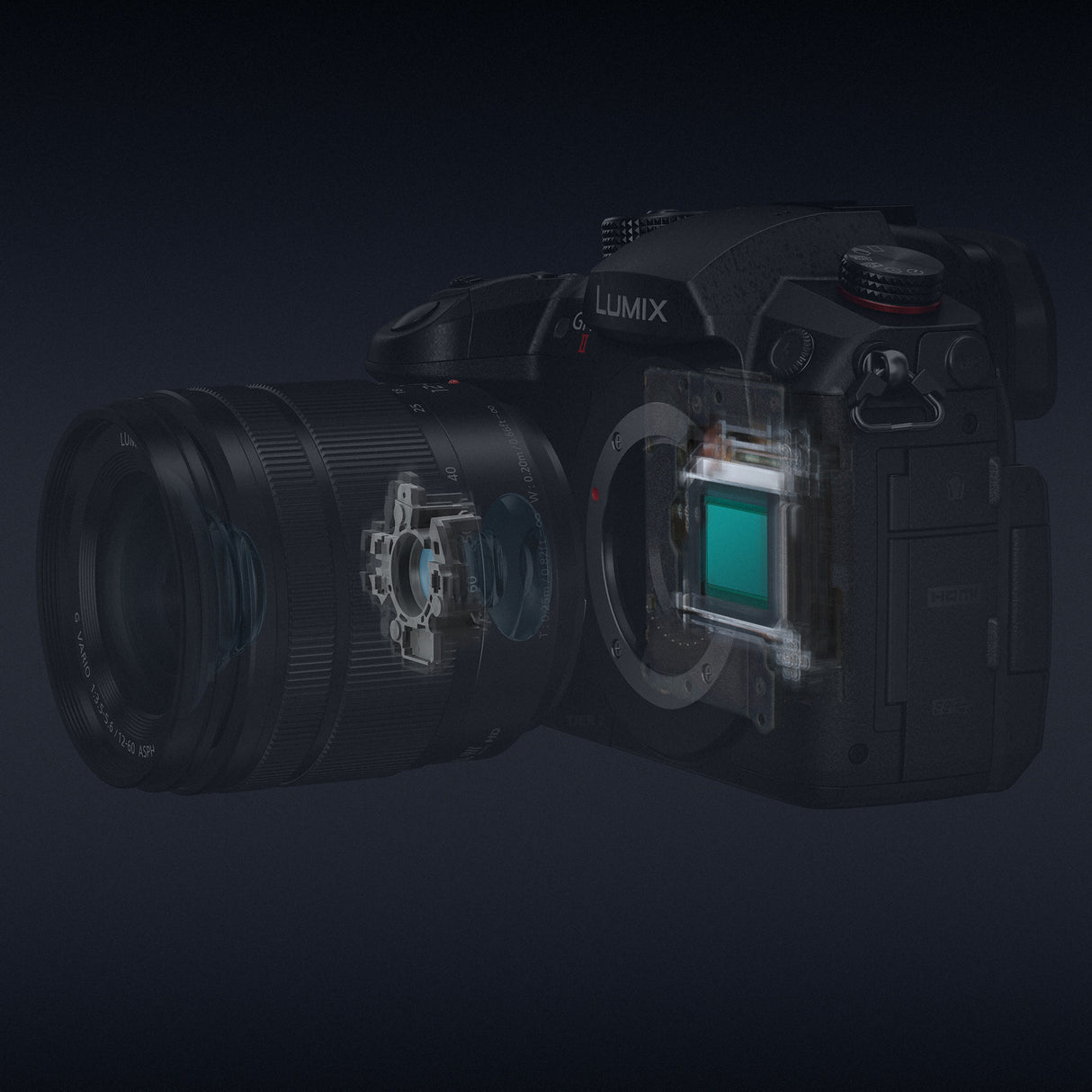

6.5-stop Dual I.S. 2 (Image Stabilizer)
Combines control of the Body I.S. and Lens O.I.S. to offer 6.5 stops’ worth of correction.*
*Based on the CIPA standard [Yaw/Pitch direction: focusing distance f=60mm (35mm camera equivalent f=120mm) when H-ES12060 is used.

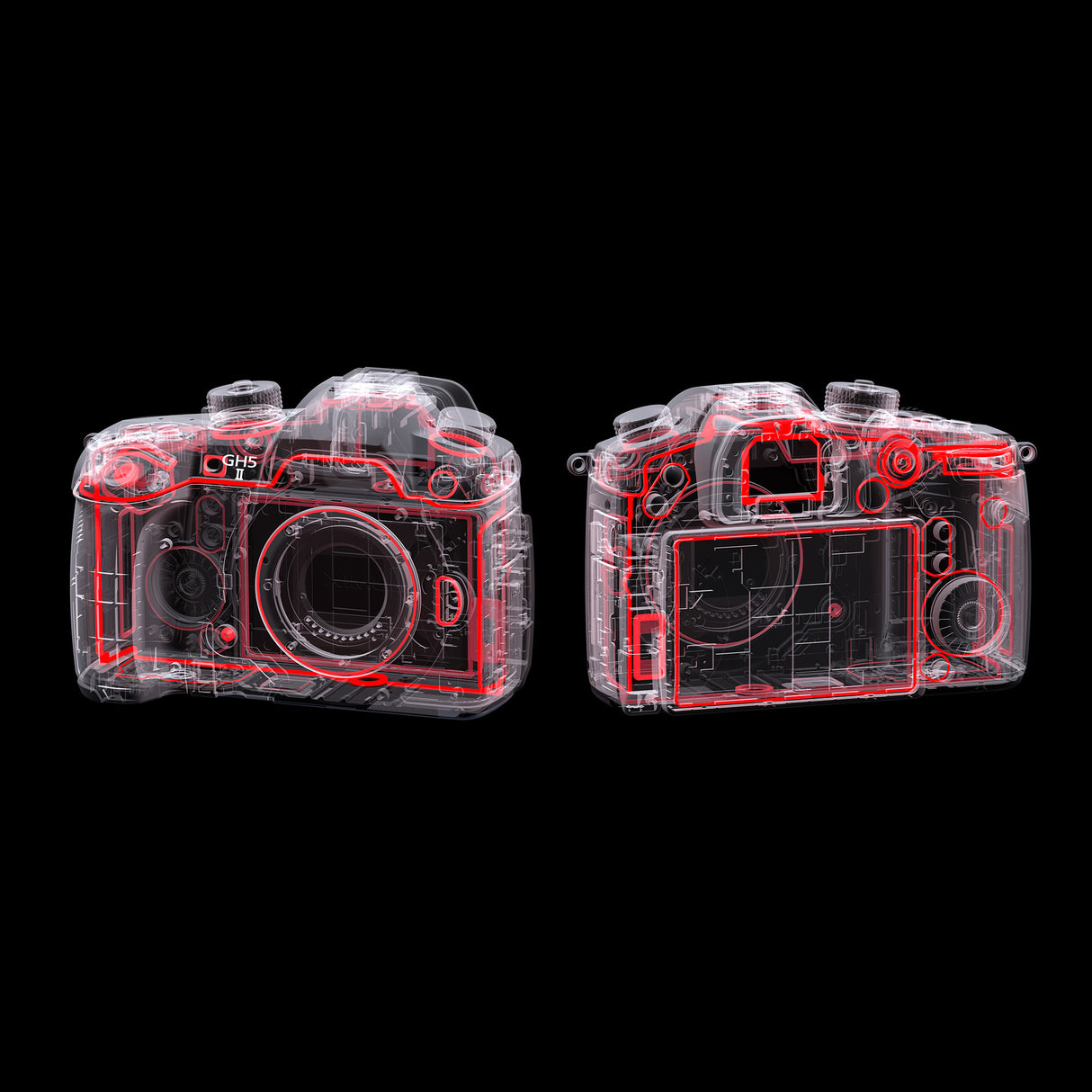

Fully Weather Sealed
Durable magnesium alloy die-cast frame sealed to protect every seam, dial, and button. Dust and splash resistant*; use at temperatures as low as -10°C / 14°F.
Imaging
| Sensor Resolution | 20.3 Megapixels |
| Lens Mount | Micro Four Thirds |
| Maximum Resolution | Not Available |
| Camera Format | Four Thirds |
Exposure Control
| Continuous Shooting | not available |
Video
| Video Resolution | UHD 4K60 Video |
| Live Streaming | Yes |
| Recording Modes | [C4K] 4096x2160: 59.94p, 200Mbps (4:2:0 10-bit LongGOP)* (H.265/HEVC, LPCM, High-Res Audio) *HLG is selectable. 59.94p, 150Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) 29.97p, 400Mbps (4:2:2 10-bit ALL-Intra)* / 150Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) *HLG is selectable. 23.98p, 400Mbps (4:2:2 10-bit ALL-Intra)* / 150Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) *HLG is selectable. [4K] 3840x2160: 59.94p, 200Mbps (4:2:0 10-bit LongGOP)* (H.265/HEVC, LPCM, High-Res Audio) *HLG is selectable. 59.94p, 150Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) 29.97p, 400Mbps (4:2:2 10-bit ALL-Intra)* / 150Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) *HLG is selectable. 23.98p, 400Mbps (4:2:2 10-bit ALL-Intra)* / 150Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) *HLG is selectable. [Anamorphic 6K] 4992x3744: (4:3) 29.97p, 200Mbps (4:2:0 10-bit LongGOP)* (H.265/HEVC, LPCM, High-Res Audio) *HLG is selectable. 23.98p, 200Mbps (4:2:0 10-bit LongGOP)* (H.265/HEVC, LPCM, High-Res Audio) *HLG is selectable. [Anamorphic 4K] 3328x2496: (4:3) 59.94p, 150Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) 29.97p, 400Mbps (4:2:2 10-bit ALL-Intra)* / 150Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) *HLG is selectable. 23.98p, 400Mbps (4:2:2 10-bit ALL-Intra)* / 150Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) *HLG is selectable. [FHD] 1920x1080: 59.94p, 200Mbps (4:2:2 10-bit ALL-Intra)* / 100Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) *HLG is selectable. 29.97p, 200Mbps (4:2:2 10-bit ALL-Intra)* / 100Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) *HLG is selectable. 23.98p, 200Mbps (4:2:2 10-bit ALL-Intra)* / 100Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) *HLG is selectable |
Viewfinder
| Viewfinder Size | not available |
Flash
| Dedicated Flash System | TTL |
Interface
| Wireless | Wi-Fi |
| Memory Card Slot | SDXC |
Physical
| Camera Series | Lumix |
| Camera Model | Panasonic GH5 |
| Configuration | Bundle 1 |
| Color | Black |
| Maximum Tilt Angle | Not Available |
Miscellaneous
| Lens Included | 12-60mm |
Lens
| Focal Length | 12-60mm |
| Maximum Aperture | f/2.8-4.0 |
| Minimum Aperture | f/22 |
| Focus Range | Not Available |
- *Compatible with UHS-I/UHS-II UHS Speed Class 3 standard SDHC/SDXC Memory Cards and UHS-II Video Speed Class 90 standard SDXC Memory Cards.
- 6K PHOTO: MP4 (H.265/HEVC, Audio format: AAC (2ch))
- 4K PHOTO: MP4 (H.264/MPEG-4 AVC, Audio format: AAC (2ch))
- Extracted still images: JPEG (DCF, Exif 2.31)
- 4:3: 5184x3888(L) / 3712x2784(M) / 2624x1968(S) / 4992x3744(6K PHOTO) / 3328x2496(4K PHOTO)
- 3:2: 5184x3456(L) / 3712x2480(M) / 2624x1752(S) / 5184x3456(6K PHOTO) / 3504x2336(4K PHOTO)
- 16:9: 5184x2920(L) / 3840x2160(M) / 1920x1080(S) / 3840x2160(4K PHOTO)
- 1:1: 3888x3888(L) / 2784x2784(M) / 1968x1968(S) / 2880x2880(4K PHOTO)
- MOV: H.264/MPEG-4 AVC, H.265/HEVC (Audio format: LPCM (2ch 48kHz/16-bit, 48kHz/24-bit*, 96kHz/24-bit*)) *When attaching DMW-XLR1 (sold separately).
- MP4: H.264/MPEG-4 AVC, H.265/HEVC (Audio format: AAC (2ch))
- [C4K] 4096x2160:
- 59.94p, 200Mbps (4:2:0 10-bit LongGOP)* (H.265/HEVC, LPCM, High-Res Audio) *HLG is selectable.
- 59.94p, 150Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio)
- 29.97p, 400Mbps (4:2:2 10-bit ALL-Intra)* / 150Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) *HLG is selectable.
- 23.98p, 400Mbps (4:2:2 10-bit ALL-Intra)* / 150Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) *HLG is selectable.
- [4K] 3840x2160:
- 59.94p, 200Mbps (4:2:0 10-bit LongGOP)* (H.265/HEVC, LPCM, High-Res Audio) *HLG is selectable.
- 59.94p, 150Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio)
- 29.97p, 400Mbps (4:2:2 10-bit ALL-Intra)* / 150Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) *HLG is selectable.
- 23.98p, 400Mbps (4:2:2 10-bit ALL-Intra)* / 150Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) *HLG is selectable.
- [Anamorphic 6K] 4992x3744:
- (4:3) 29.97p, 200Mbps (4:2:0 10-bit LongGOP)* (H.265/HEVC, LPCM, High-Res Audio) *HLG is selectable.
- 23.98p, 200Mbps (4:2:0 10-bit LongGOP)* (H.265/HEVC, LPCM, High-Res Audio) *HLG is selectable.
- [Anamorphic 4K] 3328x2496:
- (4:3) 59.94p, 150Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio)
- 29.97p, 400Mbps (4:2:2 10-bit ALL-Intra)* / 150Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) *HLG is selectable.
- 23.98p, 400Mbps (4:2:2 10-bit ALL-Intra)* / 150Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) *HLG is selectable.
- [FHD] 1920x1080:
- 59.94p, 200Mbps (4:2:2 10-bit ALL-Intra)* / 100Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) *HLG is selectable.
- 29.97p, 200Mbps (4:2:2 10-bit ALL-Intra)* / 100Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) *HLG is selectable.
- 23.98p, 200Mbps (4:2:2 10-bit ALL-Intra)* / 100Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) *HLG is selectable
- [FHD] 1920x1080:
- 59.94p, 16Mbps* / 8Mbps (H.264) *Not selectable when RTMPS is set.
- 29.97p, 6Mbps / 3Mbps (H.264)
- [HD] 1280x720
- 59.94p, 6Mbps (H.264)
- 29.97p, 4Mbps (H.26 4)
- PAL (50.00Hz)
- 50.00p, 16Mbps* / 8Mbps (H.264) *Not selectable when RTMPS is set.
- 25.00p, 6Mbps / 3Mbps (H.264)
- 50.00p, 6Mbps (H.264)
- 25.00p, 4Mbps (H.264)
- Still image: Bulb (Max. 30 minutes), 1/8,000 - 60
- Electronic front curtain shutter: Bulb (Max. 30 minutes), 1/2,000 - 60
- Electronic shutter: Bulb (Max. 60 sec), 1/16,000 - 60
- Motion picture: 1/16,000 - 1/25
- Creative Video M mode / MF mode: 1/16,000 - 1/2
- Mechanical shutter / Electronic front curtain shutter:
- AFS/MF: H: 12 frames/sec, M: 7 frames/sec (with Live View), L: 2 frames/sec (with Live View)
- AFC: H: 9 frames/sec (with Live View), M: 7 frames/sec (with Live View), L: 2 frames/sec (with Live View)
- Electronic shutter:
- AFS/MF: H: 12 frames/sec, M: 7 frames/sec (with Live View), L: 2 frames/sec (with Live View)
- AFC: H: 7 frames/sec (with Live View), M: 7 frames/sec (with Live View), L: 2 frames/sec (with Live View)
- RAW / RAW+JPEG: More than 108 images
- JPEG: More than 999 images (When using a card with SD Speed Class with UHS-II UHS Speed Class 3 (U3) inserted into card slot 1.)
- *When recording is performed under the test conditions specified by Panasonic.
- 6K PHOTO: 30 frames/sec
- 4K PHOTO: 60 frames/sec, 30 frames/sec
- Exposure Comp. / Sensitivity / White Balance / Photo Style / Metering Mode / Aspect Ratio / Picture Quality / Picture Size / 1 Shot Spot Metering / Long Exposure NR / Min. Shutter Speed / 1 Shot RAW+JPG / i.Dynamic Range / Filter Effect / One Push AE / Touch AE / Exposure Mode / Synchro Scan / AF Mode / AF Custom Setting(Photo) / AF Custom Setting(Video) / Focus Peaking / Focus Peaking Sensitivity / 1-Area AF Moving Speed / Focus Ring Lock / AE LOCK / AF LOCK / AF/AE LOCK / AF-ON / AF-ON: Near Shift / AF-ON: Far Shift / AF-Point Scope / Focus Area Set / Flash Mode / Flash Adjust. / Wireless Flash Setup / Drive Mode / 1 Shot
- 6K/4K PHOTO / Bracketing / Silent Mode / Image Stabilizer / Shutter Type / Ex. Tele Conv. / Live View Composite / Motion Pic. Rec File Format / Motion Pic. Rec Quality / Motion Pic. Rec Quality (My List) / Variable Frame Rate / Time Code Display / Sound Rec Level Disp. / Mute Sound Input / Sound Rec Level Adj. / Sound Rec Level Limiter / XLR Mic Adaptor Setting / Special Mic. Directivity Adjust / Image Stabilizer / E-Stabilization (Video) / Boost I.S. (Video) / Image Area of Video / Focus Transition / Live Cropping / Q.MENU / Rec/Playback Switch / Video Record / LVF/Monitor Switch / Operation Lock / Dial Operation Switch / Preview / Preview Aperture Effect / Constant Preview / Level Gauge / Histogram / Luminance Spot Meter / Frame Marker / Photo Grid Line / Live View Boost / Monochrome Live View / Night Mode / LVF/Monitor Disp. Set / Video-Priority Display / Zebra Pattern / LUT View Assist (Monitor) / LUT View Assist (HDMI) / LUT Select / HLG View Assist(Monitor) / HLG View Assist (HDMI) / Sheer Overlay / I.S. Status Scope / WFM/Vector Scope / Anamorphic Desqueeze Display / Color Bars / Focus Ring Control/ Zoom Control / Step Zoom / Zoom Speed / Destination Card Slot / Off (Disable Press and Hold) / Restore to Default
- Magnify from AF Point / LUT View Assist (Monitor) / HLG View Assist (Monitor) / Anamorphic Desqueeze Display / RAW Processing / 6K/4K PHOTO Bulk Saving / Delete Single / Protect / Rating 1, 2, 3, 4, 5 / Copy / Rec/Playback Switch / LVF/Monitor Switch / Video Record / Night Mode / Card Slot Change / Wi-Fi / Send Image (Smartphone) / LUT View Assist (HDMI) / HLG View Assist (HDMI) / 6K/4K Photo Play / No Setting / Off (Disable Press and Hold) / Restore to Default
- HDMI:
- HDMI TypeA
- Audio: Stereo
- 4:2:2 10bit (When [Rec Quality] is set to [4:2:2 10bit] or [4:2:0 10bit].)
- 4:2:2 8bit (When [Rec Quality] is set to [4:2:0 8bit].)
- Down Convert: Auto / 4K / 1080p / 1080i / OFF
- 59.94Hz: Auto / C4K/60p / C4K/30p / 4K/60p / 4K/30p / 1080p / 1080i / 720p / 480p
- 50.00Hz: Auto / C4K/50p / C4K/25p / 4K/50p / 4K/25p / 1080p / 1080i / 720p / 576p
- 24.00Hz: Auto / C4K/24p / 4K/24p / 1080p
- 2.4GHz (STA/AP) (IEEE802.11b/g/n)
- 5GHz (STA) (IEEE 802.11a/n/ac) *5GHz Wi-Fi is not available in some countries.
- Please refer to Wi-Fi Sheet
- Bluetooth® v4.2 (Bluetooth Low Energy (BLE))
- Li-ion Battery Pack (7.2V, 2200mAh, 16Wh) (bundled)
- USB power supply, USB power charging, USB power delivery
- Approx. 400 images, 1200 images (Power Save LVF mode*) with H-ES12060 / DMW-BLK22
- Approx. 410 images, 1200 images (Power Save LVF mode*) with H-FS12060 / DMW-BLK22
- *Under the test conditions specified by Panasonic based on CIPA standard. When the time to get in the sleep mode is set to 1 sec.
- MP4 [4K/60p]: Approx. 120 min with H-ES12060 / H-FS12060
- MP4 [FHD/60p]: Approx. 140 min with H-ES12060 / H-FS12060
- MP4 [4K/60p]: Approx. 60 min with H-ES12060 / H-FS12060
- MP4 [FHD/60p]: Approx. 70 min with H-ES12060 / H-FS12060
- Approx. 727g / 1.60 lb (SD Memory Card x 1, Battery, Body)
- Approx. 647g / 1.43 lb (Body only)
- Recording
- LUMIX Sync
- This software is used to control a Panasonic digital camera from a smartphone. Check the site below to download and install the software.
- https://panasonic.jp/support/global/cs/dsc/ (For Android™ / iOS)
- LUMIX Network Setting Software
- This software is used to write in streaming destination setting information into an SD card from a computer. Check the site below to download and install the software.
- https://panasonic.jp/support/global/cs/dsc/ (For Windows / Mac)
- LUMIX Tether
- This software is used to control a Panasonic digital camera from a computer. It allows you to change various settings of the camera, perform remote recording, and save remotely recorded images to the PC. Check the site below to download and install the software.
- http://panasonic.jp/support/global/cs/soft/download/d_lumixtether.html (For Windows / Mac)
- Playback / Editing
- The software to process RAW file on computer is not bundled with this camera. To do this, SILKYPIX Developer Studio is available for download at Ichikawa Soft Laboratory's website using computer connected to the Internet.
- http://www.isl.co.jp/SILKYPIX/english/p/ (For Windows / Mac)
- DC-GH5M2 Kit:
- Body Cap, Hot Shoe Cover, Eye Cup, Flash Synchro Socket Cap, Cover for the Battery Grip Connector, Shoulder Strap, Battery Pack, Battery Charger, AC Adaptor, USB Connection Cable (A-C), Cable Holder
- DC-GH5M2L Kit / DC-GH5M2M Kit:
- Body Cap, Hot Shoe Cover, Eye Cup, Flash Synchro Socket Cap, Cover for the Battery Grip Connector, Shoulder Strap, Battery Pack, Battery Charger, AC Adaptor, USB Connection Cable (A-C), Cable Holder, Lens Cap, Lens Hood, Lens Rear Cap
- The Operating Instructions for advanced features is available for downloaded at Panasonic LUMIX Customer Support Site using PC, smartphone or tablet connected to the Internet
Type
| Type | Digital Single Lens Mirrorless camera |
| Recording media | SD Memory Card / SDHC Memory Card* / SDXC Memory Card* |
| Lens mount | Micro Four Thirds mount |
Image Sensor
| Type | Live MOS sensor (17.3 x 13.0 mm) |
| Camera effective pixels / Total pixels | 20.33 megapixels / 21.77 megapixels |
| Anti Reflection coating | Yes |
| Aspect ratio / Color filter | 4:3 / Primary color filter |
| Dust reduction system | Image sensor shift type |
Latitude
| 12 stops (V-Log L) |
Still Image
| Recording file format | |
| Still image | JPEG (DCF, Exif 2.31), RAW |
| 6K PHOTO (*1) / 4K PHOTO (*1) | |
| Aspect ratio | 4:3 / 3:2 / 16:9 / 1:1 |
| File size (Pixels) | |
| Image quality | RAW / RAW+Fine / RAW+Standard / Fine / Standard |
| Color space | sRGB, AdobeRGB |
Motion Picture
| Recording file format | |
| System frequency | 59.94Hz / 50.00Hz / 24.00Hz |
| Image area of video | Full / Pixel by Pixel |
| MOV (*1) - High-res audio is selectable only when using the DMW-XLR1 (sold separately). | |
| 59.94Hz | |
Streaming
| Protocol | RTMP / RTMPS |
| NTSC (59.94Hz) | |
| Streaming quality | |
| [FHD] 1920x1080 | |
| [HD] 1280x720 | |
Viewfinder
| Type | OLED Live View Finder |
| Pixels | Approx. 3.68 million dots |
| Field of view / Magnification | Approx. 100% / Approx. 1.52x / 0.76x (35mm camera equivalent) with 50 mm lens at infinity; -1.0 m-1, when the aspect ratio is set to 4:3 |
| Eye point / Diopter adjustment | Approx. 21 mm at infinity; -1.0 m-1 / -4.0 - +3.0 (dpt) |
| Eye sensor | Yes |
| Display speed | 120fps / 60fps |
Rear Monitor
| Type | TFT LCD monitor with static touch control |
| Monitor size | Free-angle, 3.0-inch (7.5cm), 3:2 aspect |
| Pixels | Approx. 1.84 million dots |
| Field of view | Approx. 100% |
Focus
| Type | Contrast AF system |
| DFD technology | Yes |
| Focus mode | AFS (Single) / AFC (Continuous) / MF |
| AF mode | Auto Detection (Face, Eye, Body, Animal) / Tracking / 225-Area / Zone (Vertical/Horizontal) / Zone (Square) / Zone (Oval) / 1-Area+ / 1-Area / Pinpoint / Custom 1, 2, 3 |
| (Full area touch is available) (Scalable AF frame size and flexible AF position) | |
| AF detective range | EV -4 - 18 (F2.0, ISO100 equivalent, AFS) |
| AF custom setting | AF Sensitivity, AF Area Switching Sensitivity, Moving Object Prediction |
| AF assist light | Yes |
| AF lock | Set the Fn button in custom menu to AF lock |
| Post Focus / Focus Stacking | Yes / Yes |
| Focus Ring Control | Nonlinear / Linear *When a compatible lens is attached. |
| Others | Focus Peaking, 1-Area AF Moving Speed, AF-ON, AF-ON: Near Shift, AF-ON: Far Shift, Focus/Shutter Priority, Focus Switching for Vert/Hor, AF/AE Lock Hold, AF+MF, MF Assist, MF Guide, Focus Ring Lock, Show/Hide AF Mode, AF-Point Scope, Shutter AF, Half Press Release, Quick AF, Continuous AF (during motion picture recording), Eye Sensor AF, Loop Focus Frame, AFC Start Point (225-Area), Touch Shutter, Touch AF/AE Function, Touch Pad AF, Lens Focus Resume |
Exposure Control
| Light metering system | 1,728-zone multi-pattern sensing system |
| Light metering mode | Multiple / Center Weighted / Spot / Highlight Weighted |
| Metering range | EV0-18 (F2.0 lens, ISO100 equivalent) |
| Recording mode | Program AE / Aperture Priority AE / Shutter Priority AE / Manual Exposure / Creative Video / Custom 1, 2, 3, 4 / Intelligent Aut |
| ISO sensitivity (Standard output sensitivity) | |
| Still image | Auto / 100 (Extended) / 200 / 400 / 800 / 1600 / 3200 / 6400 / 12800 / 25600 (Changeable to 1/3 EV step) |
| Creative Video Mode | Auto / 100 (Extended) / 200 / 400 / 800 / 1600 / 3200 / 6400 / 12800 (Changeable to 1/3 EV step) |
| Exposure compensation | 1/3 EV step ±5EV (±3EV for motion picture) |
| AE lock | Set the Fn button in custom menu to AE lock |
Image Stabilization System
| Image sensor shift type (5-axis / 6.5-stop*) | |
| *Based on the CIPA standard [Yaw/Pitch direction | focusing distance f=60mm (35mm camera equivalent f=120mm) when H-ES12060 is used. |
| Dual I.S. (6.5-stop* Dual I.S. 2 compatible) | |
| *Based on the CIPA standard [Yaw/Pitch direction | focusing distance f=140mm (35mm camera equivalent f=280mm) when H-FS14140 is used. |
White Balance
| White balance | AWB / AWBc / AWBw / Daylight / Cloudy / Shade / Incandescent / Flash / White Set 1, 2, 3, 4 / Color temperature setting 1, 2, 3, 4 |
| White balance adjustment | Blue/Amber bias, Magenta/Green bias |
| Color temperature setting | 2500-10000K in 100K |
Shutter
| Type | Focal-plane shutter |
| Shutter speed | |
| Self timer | 10sec, 3 images / 2sec / 10sec / Custom Time |
| Remote control | Remote control by DMW-RS2 (sold separately) |
| Silent mode / Shutter type | Yes / Yes (Auto / Mechanical / Electronic front curtain / Electronic / Electronic+NR) |
Bracket
| AE bracket | 3, 5, 7 images in 1/3, 2/3 or 1 EV step, max. ±3 EV, single/burst |
| Aperture bracket | 3, 5 or all positions |
| Focus bracket | 1 to 999 images, focus steps can be set in 10 levels |
| White balance bracket | 3 images in blue/amber axis or in magenta/green axis, color temperature setting |
Burst Shooting
| Burst speed | |
| Number of recordable images |
6K Photo(*1) / 4K Photo (*1)
| Burst speed | |
| Exif information | Yes (Each JPEG image cropped out of the 6K/4K burst file complies with EXIF.) |
Time Lapse Shot
| Yes |
Stop Motion Animation
| Yes |
Flash
| Flash type | TTL External Flash (sold separately) |
| Flash mode | Auto* / Auto/Red-eye Reduction* / Forced On / Forced On/Red-eye Reduction / Slow Sync. / Slow Sync./Red-eye Reduction / Forced Off *For iA only. |
| Flash synchronization | 1st Curtain Sync, 2nd Curtain Sync. |
| Flash output adjustment | 1/3EV step ±3EV |
| Synchronization speed | Less than 1/250 second |
| Wireless control | Yes (When using DMW-FL200L / FL360L / FL580L (sold separately)), Wireless Channel: 1ch/2ch/3ch/4ch |
| Flash sync socket | Yes |
Extra Tele Conversion
2.0x (EX S), 1.4x (EX M) *Only for still image recording.
Photo Style
| Photo Style | Standard / Vivid / Natural / L. Classic Neo / Flat / Landscape / Portrait / Monochrome / L. Monochrome / L. Monochrome D / L. Monochrome S / Cinelike D2 / Cinelike V2 / Like709 / V-Log L / Hybrid Log Gamma / My Photo Style 1-10 |
| Picture adjustment | Contrast / Highlight / Shadow / Saturation / Color Tone / Hue / Filter Effect / Grain Effect / Color Noise / Sharpness / Noise Reduction / ISO / WB |
| *Adjustable settings vary depending on the Photo Style mode. |
Filter
| Expressive / Retro / Old Days / High Key / Low Key / Sepia / Monochrome / Dynamic Monochrome / Rough Monochrome* / Silky Monochrome* / Impressive Art / High Dynamic / Cross Process / Toy Effect / Toy Pop / Bleach Bypass / Miniature Effect / Soft Focus* / Fantasy / Star Filter* / One Point Color / Sunshine* | |
| *For photos only. |
Motion Picture Function
| Master pedestal level | 31 steps |
| Luminance level | |
| 8-bit | 0-255 / 16-235 / 16-255 |
| 10-bit | 0‒1023 / 64‒940 / 64‒1023 |
| Wave form monitor / Vectorscope | Selectable |
| LUT view assist | Monitor / HDMI |
| HLG view assist | Monitor (MODE1 / MODE2 / OFF) / HDMI (AUTO / MODE1 / MODE2 / OFF) |
| Anamorphic desqueeze display | 2.0x / 1.8x / 1.5x / 1.33x / 1.30x / OFF |
| Synchro scan | Yes |
| Time code | Count Up: Rec Run/Free Run selectable, Time Code Mode: Drop frame/Non-drop frame selectable (When NTSC (59.94Hz) is selected.) |
| SS/Gain operation | Shutter Duration/ISO / Angle/ISO / Shutter Duration/dB |
| Color bars / 1kHz test tone | Yes (SMPTE / EBU / ARIB) / Yes |
| Knee control | Yes (in Like709 mode) |
| Other functions | Red REC Frame Indicator, Streaming Blue Frame Indicator, |
Vertical Position Information
| Still image / Motion picture (ON/OFF) |
Level Gauge
| Yes |
Function Button
| REC | |
| PLAY |
OSD Language
| Please refer to OSD Sheet |
| PictBridge compatible |
Interface
| USB | SuperSpeed USB 3.1 Gen1 Type-C |
| HDMI (*2) | |
| Monitor-through | |
| Playback | |
| Remote input | φ2.5mm |
| Microphone | Stereo, Wind Noise Canceller: OFF / Low* / Standard / High *When attaching DMW-MS2 (sold separately). |
| External microphone / external audio device input | φ3.5mm for external microphone / external audio device |
| MIC (Plug-in Power) / MIC / LINE is selectable. | |
| Stereo/Lens Auto/Shotgun/Super Shotgun/Manual is selectable when attaching DMW-MS2 (sold separately). | |
| XLR microphone | Yes with DMW-XLR1 (sold separately) |
| Speaker | Monaural |
| Headphone output | φ3.5mm |
| SD card slot | Slot 1, Slot 2 |
Wireless
| Wi-Fi | |
| Bluetooth | |
Dust and Splash Resistant
| Yes. | |
| *Dust and Splash Resistant does not guarantee that damage will not occur if this camera is subjected to direct contact with dust and water. |
Power
| Battery | |
| Battery life (CIPA standard) | |
| Continuous recordable time (Motion picture) (*1) | |
| Actual recordable time (Motion picture) (*1) | |
| Battery grip | DMW-BGGH5 (sold separately) |
Dimensions/ Weight
| Dimensions (W x H x D) | Approx. 138.5 x 98.1 x 87.4 mm / 5.45 x 3.86 x 3.44 inch (excluding protrusions) |
| Weight |
Operating Environment
| Operating temperature (*3) | -10oC to 40oC (14oF to 104oF) |
| Operating humidity | 10%RH to 80％RH |
Standard Acces
| Software | |
| Standard accessories | |
Shipping & Returns
Frequently Asked Questions
How do I return an item?
How do I return an item?
Returns are incredibly simple. Please log into your account, find your item you wish to return and follow the prompts to make a return. If you do not have an account, click here to find your order and make a return.
Will I receive a full refund when I return an item?
Will I receive a full refund when I return an item?
You will receive a full refund when you return an item in its original manufacturer’s packaging, undamaged and unmarked. If the item you are returning is priced at less than $35, you will be charged a 15% restocking fee. Please note you will not be refunded any shipping charges.
How many days do I have to make a return?
How many days do I have to make a return?
You have 30 days to make a return. During the holiday season, from November 1 to December 31, we extend the return window to 60 days.
My item was damaged in transit. How do I place a return?
My item was damaged in transit. How do I place a return?
If your order has been noticeably damaged in transit, we strongly recommend that you refuse delivery and notify us immediately. Claims for missing items or items damaged in transit must be made within 48 hours of delivery. If there is carrier damage, please contact support@focuscamera.com with your order number and a description of the damage.
There’s an issue with my order, what should I do?
There’s an issue with my order, what should I do?
Oh no! Please contact our customer service team so we can resolve the issue immediately. You can call us on 1.800.221.0828, email us at support@focuscamera.com, or send us a message here.
Can I exchange an item?
Can I exchange an item?
We do not currently offer exchanges. Please return the item you purchased within 30 days and order what you’d like instead.
If I ordered a kit, do I have to return all the items?
If I ordered a kit, do I have to return all the items?
If you ordered a kit, you must return all components and accessories to receive a full refund.
I ordered a product that included a free item. I’d like to return it, do I need to return the free item as well?
I ordered a product that included a free item. I’d like to return it, do I need to return the free item as well?
If you ordered a product that included a free item, you must include the free item with your return. If not, your return will not be accepted and you will not receive a full refund.
Do you offer repairs?
Do you offer repairs?
We currently only offer camera repairs at our Brooklyn store. The item must be dropped off and collected in person as we do not accept shipped items for repair. For more information, please call our Brooklyn store on 1.718.431.7900.
What is your return policy?
What is your return policy?
Most items can be returned within 30 days for a full refund. Click here to read our full return policy.
