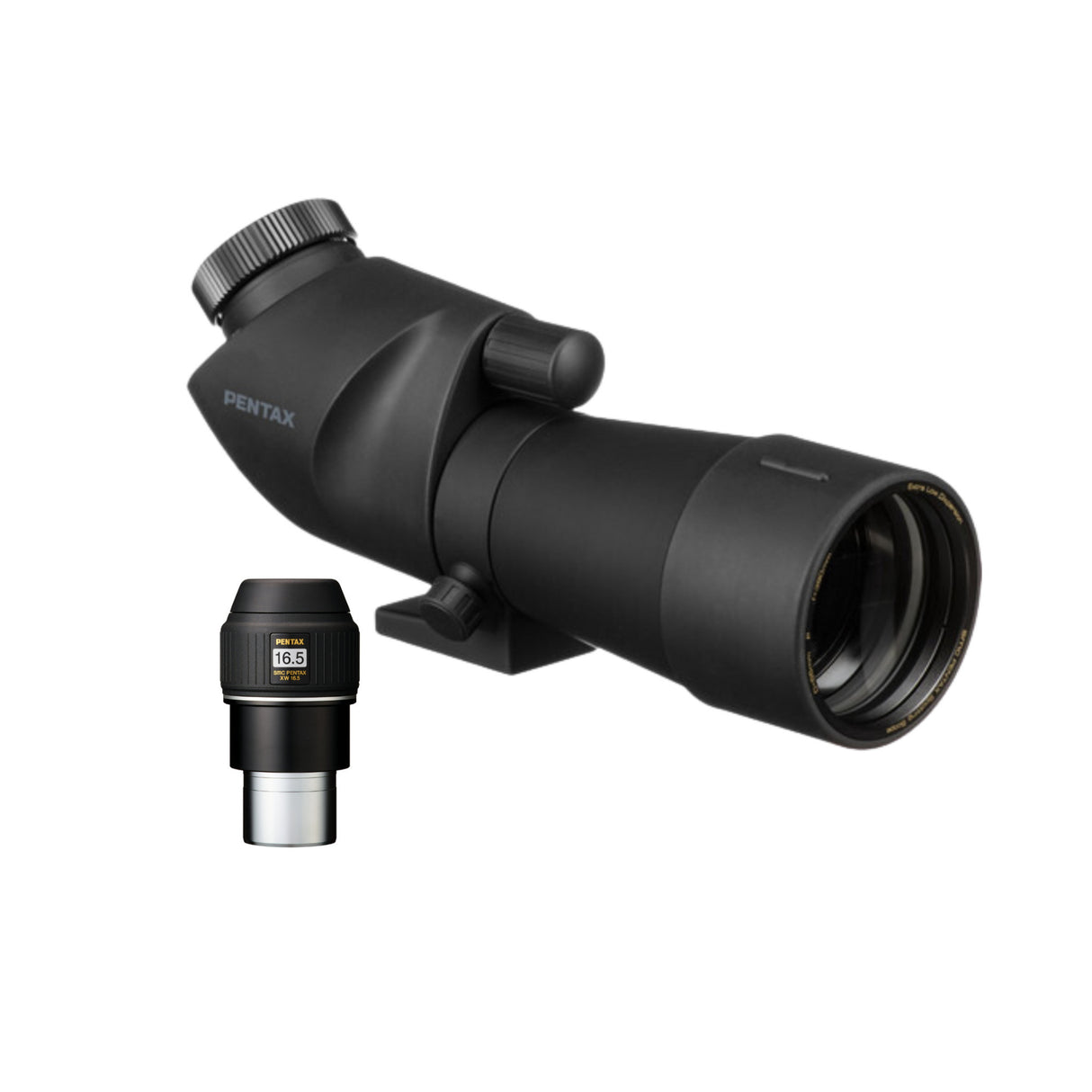

Pentax PF-65EDA II 65mm Spotting Scope (Angled Viewing) with SMC XW 16.5mm Eyepiece (2')

  • mfr: 70967_K3
  • SKU: ARIC70967K3
In Stock

Available options:

  • Free standard shipping

    *Orders placed before 3 PM EST Mon - Thur will ship the same day. Orders placed beyond these hours will be shipped the next business day. Exclusions apply. See shipping policy

  • Free Local Pickup

    Please call for store stock availability.

    Requests made before 2:30 PM EST can be available for next-day pickup. Learn more

Additional options:

Product highlights

  • Durable, shock-proof rubber housing
  • JIS Class 6 waterproof construction
  • Nitrogen-filled body to prevent fogging
  • Easy-to-access focus ring positioned at the top of the lens barrel
  • Collet-type eyepiece receptacle for smooth installation
  • Sight line on the lens hood for easy targeting of the subject
  • Tripod receptacle with a click-stop rotation mechanism

Pentax PF-65EDA II 65mm Spotting Scope (Angled Viewing) with SMC XW 16.5mm Eyepiece (2')

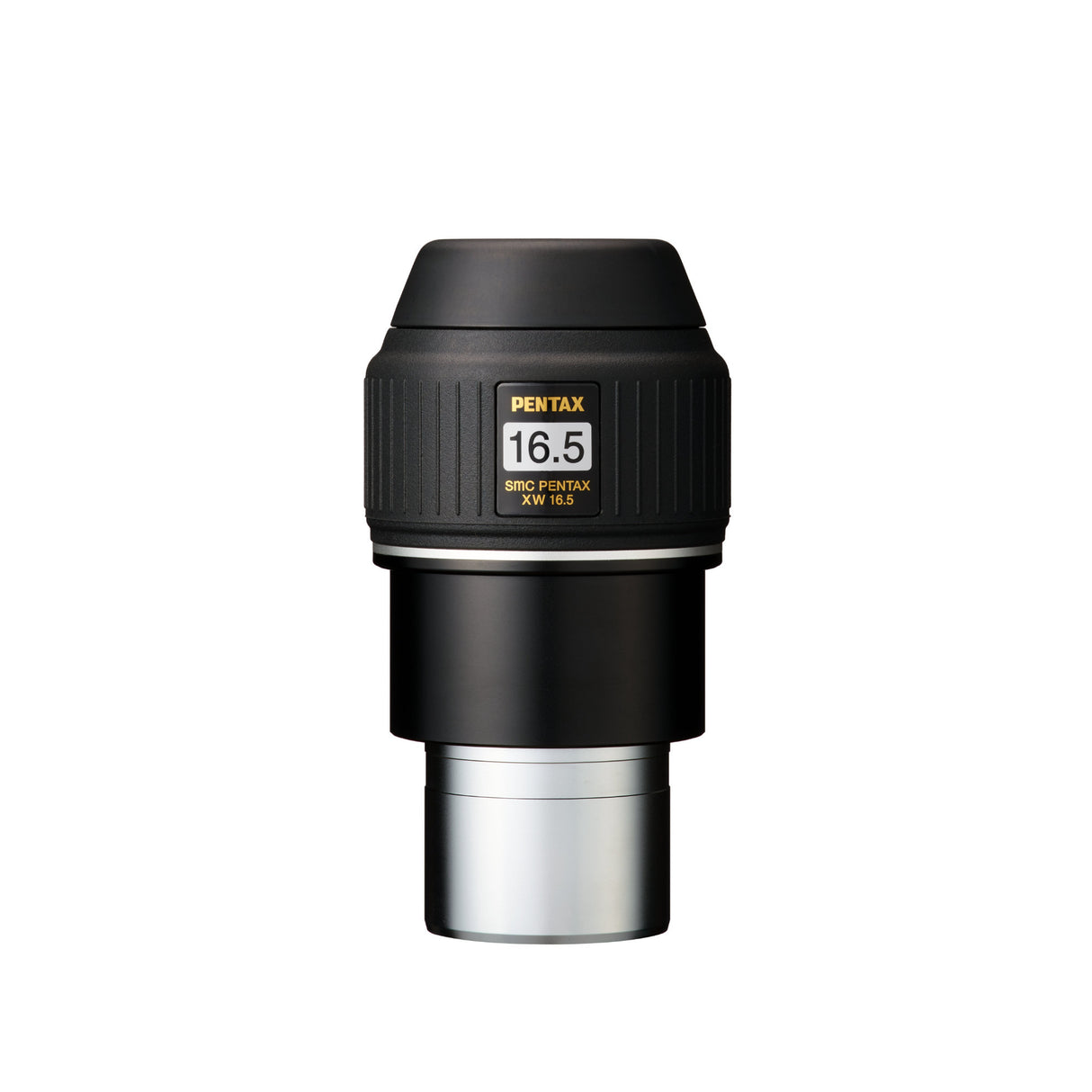

Ricoh Pentax SMC XW 16.5mm Eyepiece for Spotting Scopes and Astronomical Telescopes (2-Inch)

The Ricoh Pentax XW 16.5mm Eyepiece is used with high-grade spotting scopes. It offers high performance and clear wide-angle. The latest addition to the successful SMC Pentax XW series, it features an 85-degree apparent angle of view and 20mm eye relief to deliver comfortable and clear viewing.

Top Quality for Stunning Images

By incorporating high-refraction, extra-low-dispersion lanthanum glass elements, the XW 16.5 produces stunning images having minimal aberrations. It compensates for the spherical aberration of the pupil to reduce the disturbing blackout effect.

Efficient Light Transmission with Pentax-Original Multi-Layer

The lens surfaces that come in contact with air are specially treated with the Pentax-original multi-layer coating, and the laminated surfaces are treated with innovative partial coating. This treatment allows efficient transmission of light (up to 90 percent, and 96 percent at 550nm) over the visible light spectrum.

Advanced Light-Shielding Technology Delivers Better Image Contrast

The XW 16.5 features a light-shielding diaphragm at the most effective position. Pentax’s advanced computer simulation technology reduces internal reflections to produce high-contrast images.

Durable and Weatherproof Construction

With a JIS Class 4 weatherproof construction, the XW 16.5 can be used under drizzle or under night dew. However, it is not designed for underwater use, and submerging it underwater should be avoided.

Sleeve Size and Design of Eyecup

This eyepiece has a sleeve size of 50.8mm (installment diameter) and if you remove the screw-on eyecup, you can find the screw thread with a 43mm diameter and a 0.75 pitch.

Versatile Pieces for Every Purpose

Alongside the XW 16.5 Eyepiece, the XW series features versatile eyepieces that can be used for star-gazing to planet observation.

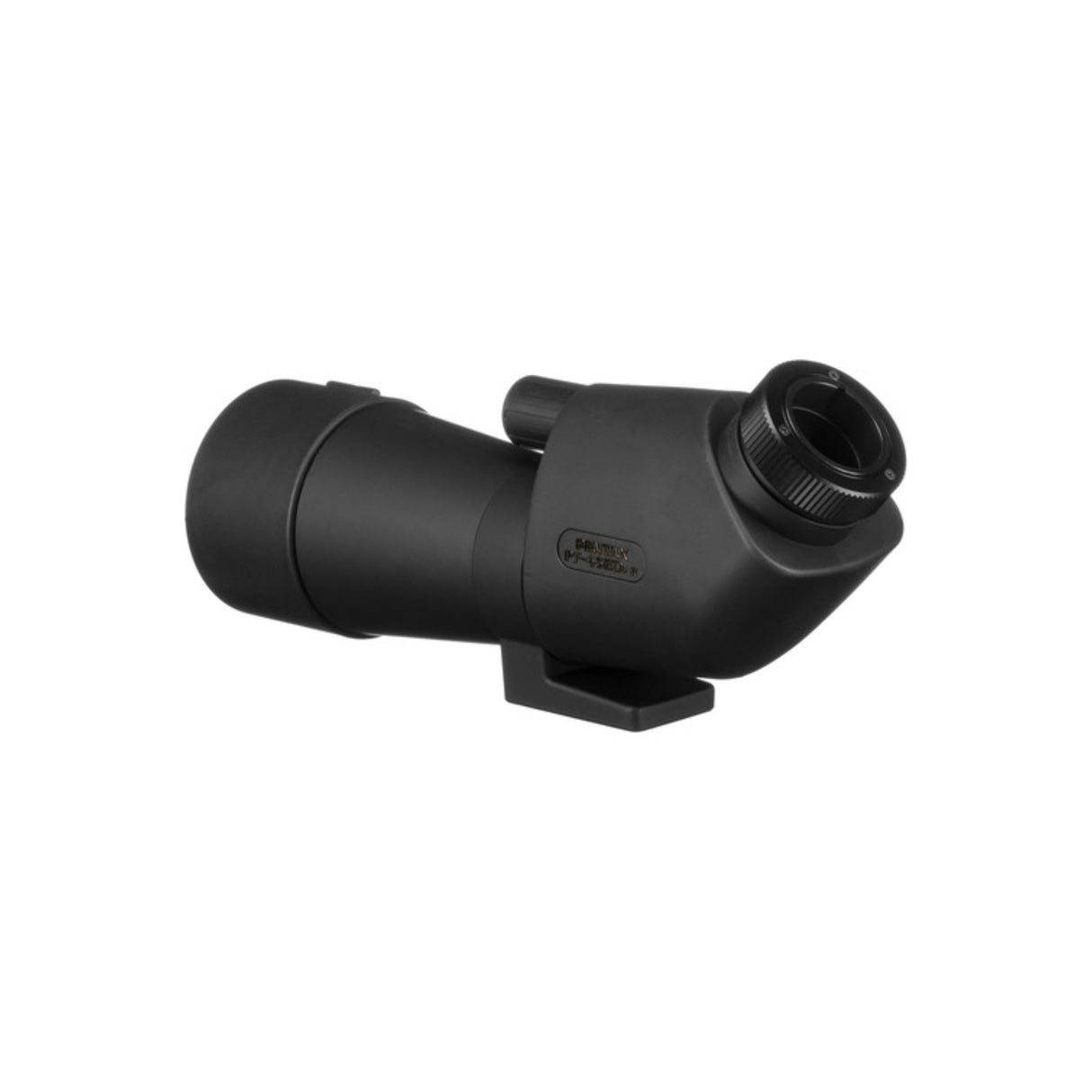

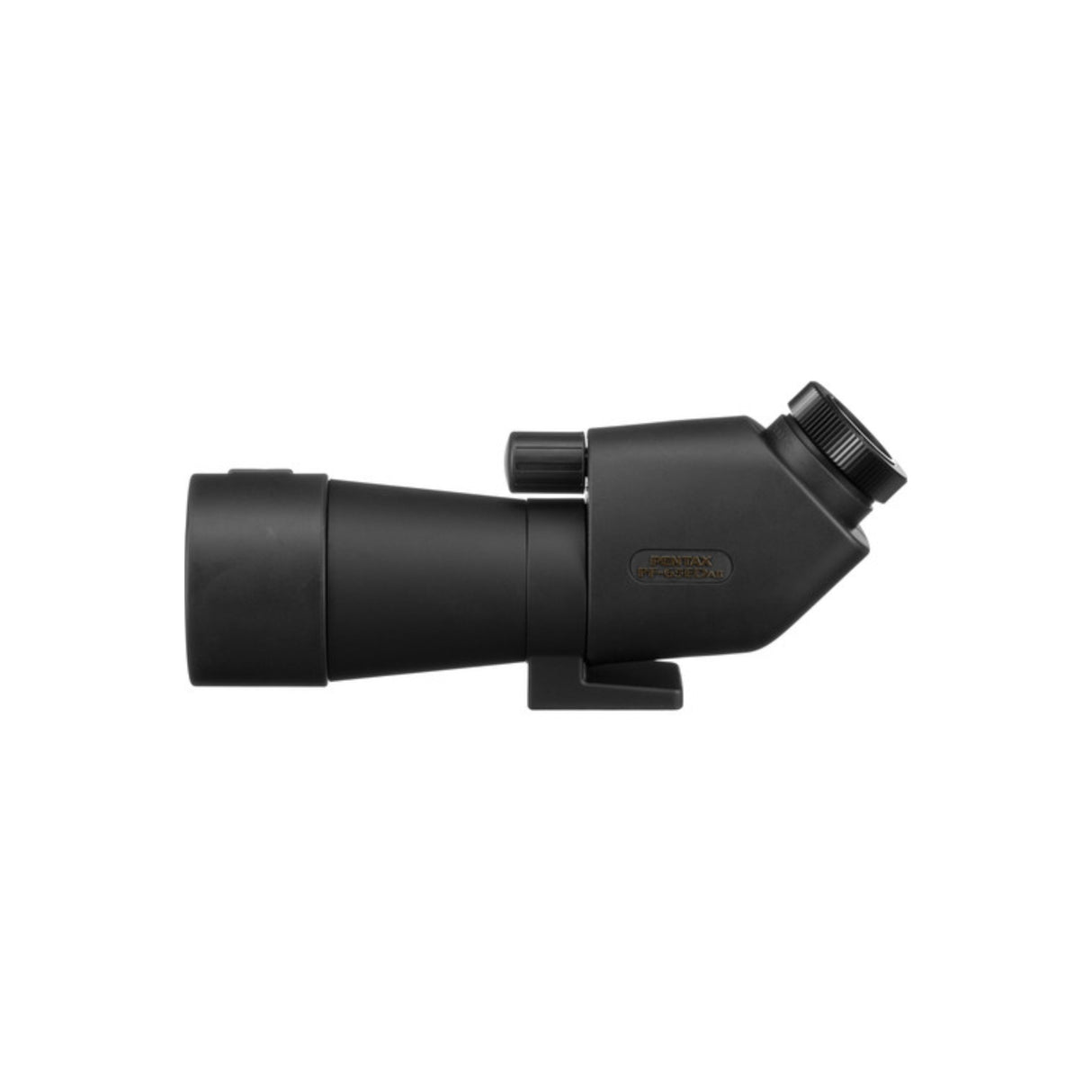

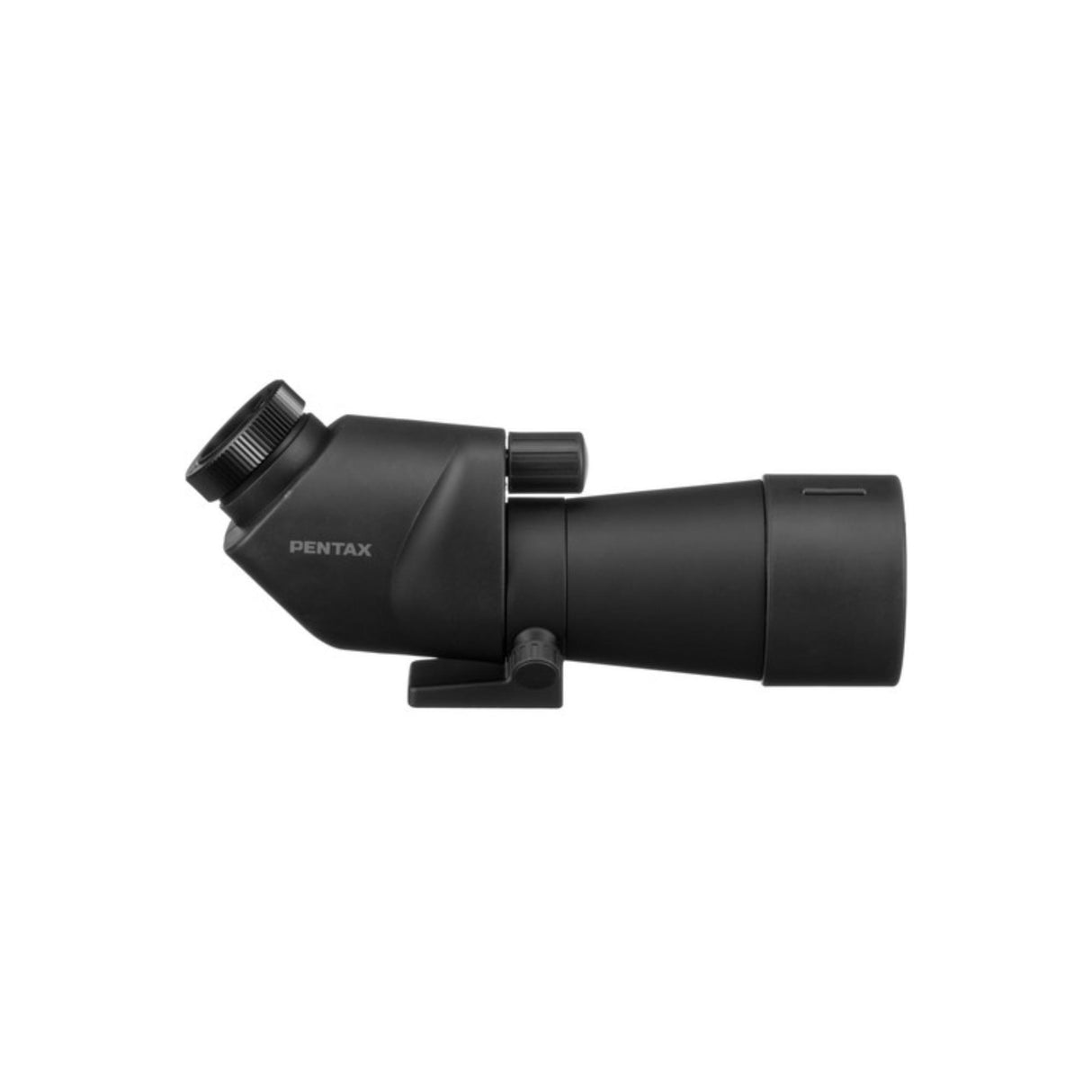

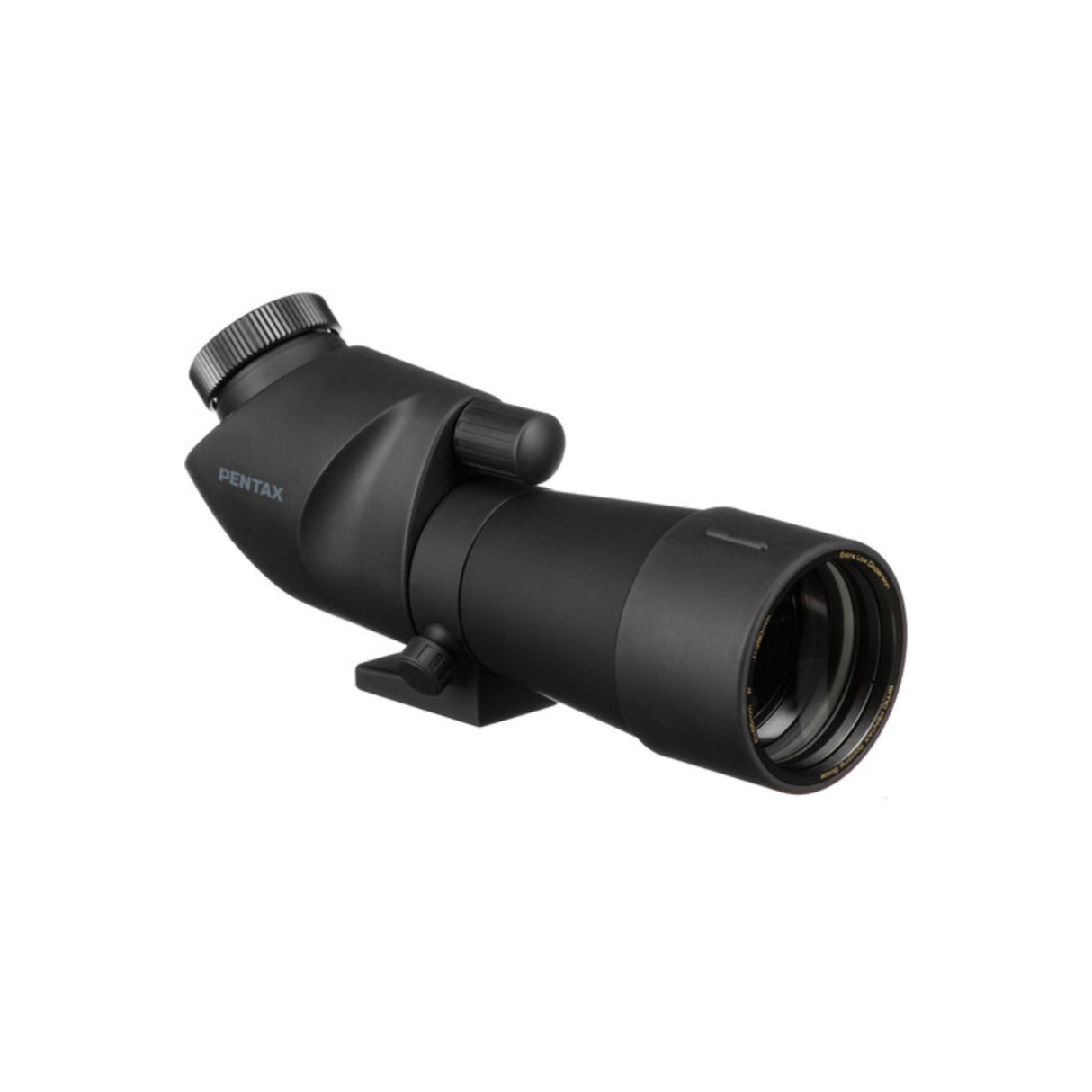

Pentax PF-65EDA II 65mm Spotting Scope (Angled Viewing, Eyepiece Required)

The Pentax PF-65EDA II 65mm Spotting Scope is the ideal companion for hunters, shooters, birders, and nature enthusiasts of every stripe, delivering bright and sharp high-contrast images with true-to-life color and crisp clarity. To optimize the PF-65EDAII’s optical performance, Pentax made a thorough review of the optical designs utilized in its previous spotting-scope models. It then made improvements to every optical element during the PF-65EDAII’s development, including the incorporation of high-resolution ED (Extra-low Dispersion) optical elements in the objective lens. As a result, the PF-65EDAII offers a clear, bright image field in all types of observations and assures outstanding image quality in high-magnification digital photography using a digital camera. It requires an eyepiece for proper use.

Portable Design

The PF-65EDAII features a compact, lightweight body with a 65mm objective lens to assure outstanding portability and maneuverability in the field.

Slanted Barrel for Superb Viewing Comfort

The PF-65EDAII’s barrel is slanted 45 degrees upwards towards the eyepiece end to assure the most comfortable viewing position, even when the subject is at the top of a tree or high in the air.

High-Resolution ED Elements for Clear Image

The PF-65EDAII’s 65mm objective lens incorporates ED (Extra-low Dispersion) glass elements to deliver a sharp, high-resolution image with minimal chromatic aberrations.

Designed Exclusively for the 65mm Spotting Scope

The PF-65EDAII accepts any of the three SMC Pentax XF-series eyepieces: two unifocal models with a long eye relief, and one zoom model (all optional). By removing the screw-on-type eyecup, you can mount an eyepiece on either of the PF-65EDAII’s two eyepiece receptacles (one for the unifocal models with 30.5mm in diameter and 0.5mm in thread pitch, and another for the zoom model with 43mm in diameter and 0.75mm in thread pitch). In addition to XF-series eyepieces, the PF-65EDAII also accepts any of the five high-performance XW-series eyepieces (four unifocal models and one zoom model) designed for astronomical observation, assuring greater flexibility in the choice of an eyepiece that best accommodates specific user requirements.


Ricoh Pentax SMC XW 16.5mm Eyepiece for Spotting Scopes and Astronomical Telescopes (2-Inch)

Configuration Core
Focal Length 16.5mm
Color Black/Silver

Pentax PF-65EDA II 65mm Spotting Scope (Angled Viewing, Eyepiece Required)

Objective Lens Diameter 65mm

Pentax PF-65EDA II 65mm Spotting Scope (Angled Viewing, Eyepiece Required)

Water-Resistant Yes
Fogproof Yes

Pentax PF-65EDA II 65mm Spotting Scope (Angled Viewing, Eyepiece Required)

Weight 37.7oz
