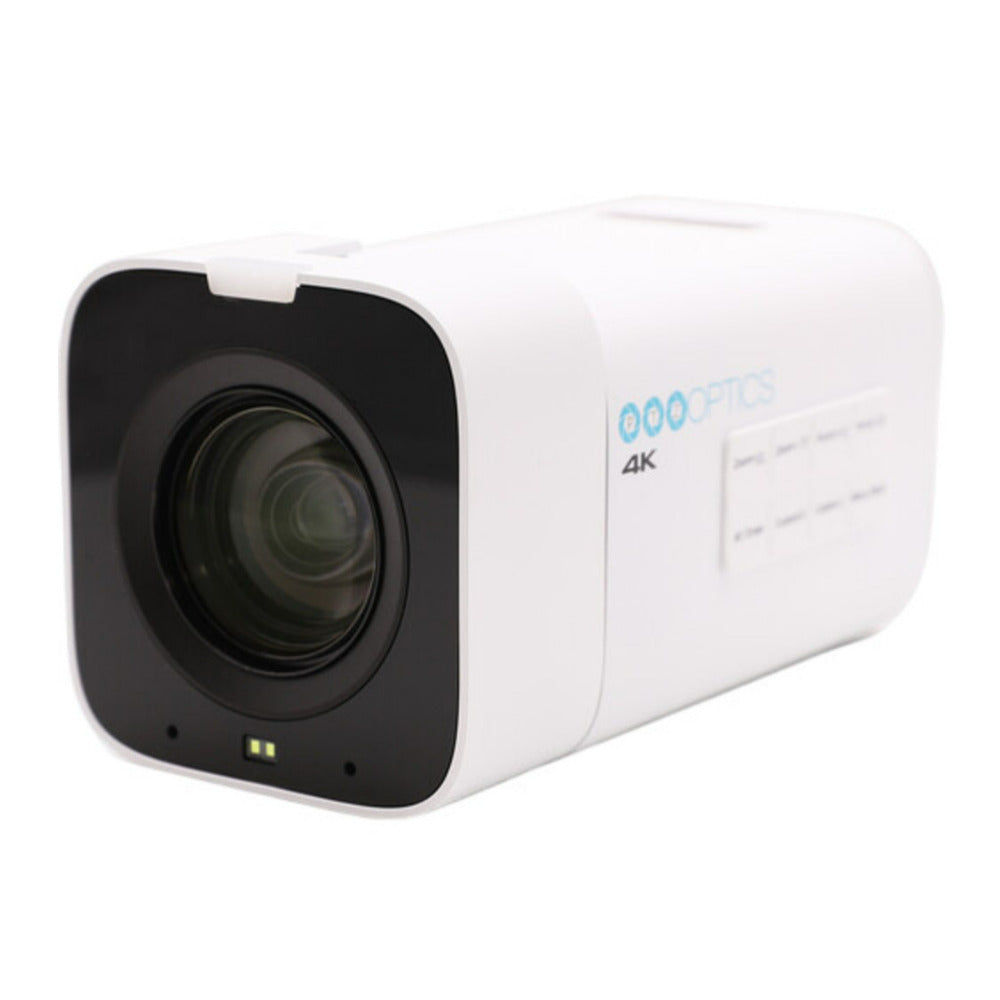

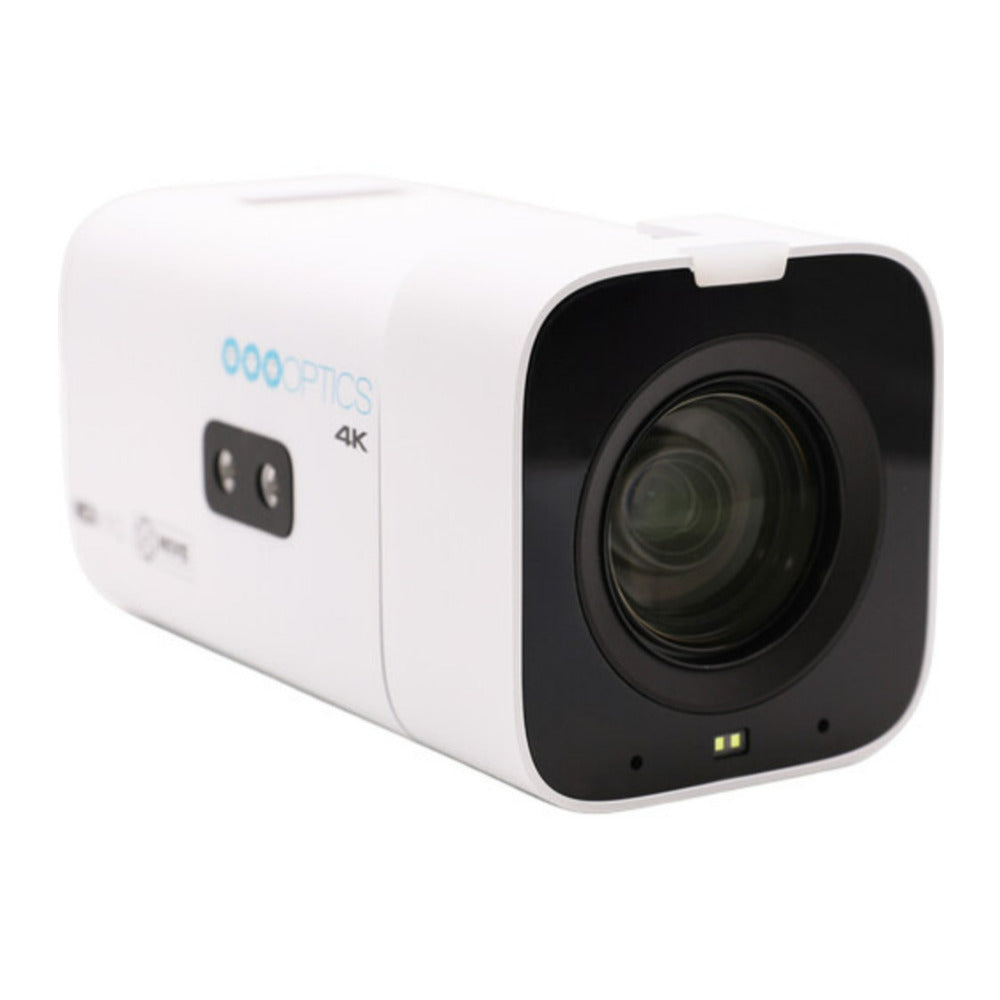

PTZOptics Studio 4K Camera with 20x Zoom, NDI HX2 Connectivity, and 16x Digital Zoom (White)
Couldn't load pickup availability
Product highlights
Product highlights
In the box
In the box
Free standard shipping
Free standard shipping
*Orders placed before 1 PM EST Mon - Thur will ship the same day. Orders placed beyond these hours will be shipped the next business day. Exclusions apply. See shipping policy
Free Local Pickup
Free Local Pickup
Please call for store stock availability. Requests made before 2:30 PM EST can be available for next-day pickup. Learn more
PTZOptics Studio 4K Camera with 20x Zoom, NDI HX2 Connectivity, and...
Whether as a standalone camera or an addition to a larger studio setup, the PTZOptics Studio 4K Camera in White provides crystal-clear 4K resolution, 20x zoom, and conveniently Hive-Linked to PTZOptics’ easy-to-use online platform, Hive Studio, delivering future-ready connectivity and control from anywhere.
Connect, Point, Produce
The Studio 4K features SDI, HDMI, USB, and IP output and comes native with NDI HX2, allowing for seamless integration into various video production setups, connecting directly to a live production switcher, streaming over a network, or recording through an SDI interface. Built-in connectivity links to Hive Studio automatically.
Zoom In with Power and Endurance
The Studio 4K is your perfect entry into the world of 4K videography, offering powerful zoom capabilities and reliable performance. Capture a head-and-shoulders shot of your subject from up to 90 feet away with zoom strengths of 20x, ideal for large spaces. Designed for utility and endurance, its unobtrusive design, continuous operation, and a variety of mounting options, the Studio 4K will be your new video system workhorse.
A Multitude of Applications
The Studio 4K is the perfect companion to a Move SE or Move 4K multi-camera setup, enhancing your production capabilities with an additional fixed-camera option that complements your PTZ cameras. The Studio 4K’s high-quality construction and discreet profile makes it the perfect choice for streaming municipal meetings, worship services, sports, and security applications. In addition, as a fixed camera the Studio 4K is courtroom friendly.
Future-Friendly Performance
To accommodate ever-evolving productions, the Studio 4K is Hive-Linked, PTZOptics proprietary built-in automatic connection to Hive Studio, allowing centralized multi-camera control and management from anywhere within the comfort of a web browser. With just a few clicks, you will have centralized management of all your cameras from anywhere with just a web connection, enabling controlling and configuring multiple cameras from a single interface - no need for complex multi-software setups.
Free Software for PTZOptics Users
PTZOptics cameras are compatible with a wide range of free software solutions, including: Camera Management Platform (CMP) for camera management, control, color correction, auto-tracking. It is compatible with control apps for desktop and mobile devices, plugins and integrations for popular platforms, including OBS, camera configuration and management tools, support and testing utilities, and many more.
Imaging
| Sensor Resolution | 8 Megapixels |
| Sensor Type | CMOS |
| Sensor Size | 1/2.8 inch |
| Megapixels | 8.00 |
Exposure Control
| Shutter Speed | 1/30x ~ 1/10000s |
Video
| Video Resolution | 4K |
| Recording Modes | HDMI: 3840x2160p-60/59.94/50/30/29.97/25, 1920x1080p-60/59.94/50/30/29.97/25, 1920x1080i-60/59.94/50, 1280x720p-60/59.94 SDI: 1920x1080p-60/59.94/50/30/29.97/25, 1920x1080i-60/59.94/50, 1280x720p-60/59.94/50 |
Physical
| Configuration | Core |
| Color | White |
Lens
| Optical Zoom | 20x |
| Focal Length | 4.7-94mm |
| Zoom | 16x |
- HDMI: 3840x2160p-60/59.94/50/30/29.97/25, 1920x1080p-60/59.94/50/30/29.97/25, 1920x1080i-60/59.94/50, 1280x720p-60/59.94
- SDI: 1920x1080p-60/59.94/50/30/29.97/25, 1920x1080i-60/59.94/50, 1280x720p-60/59.94/50

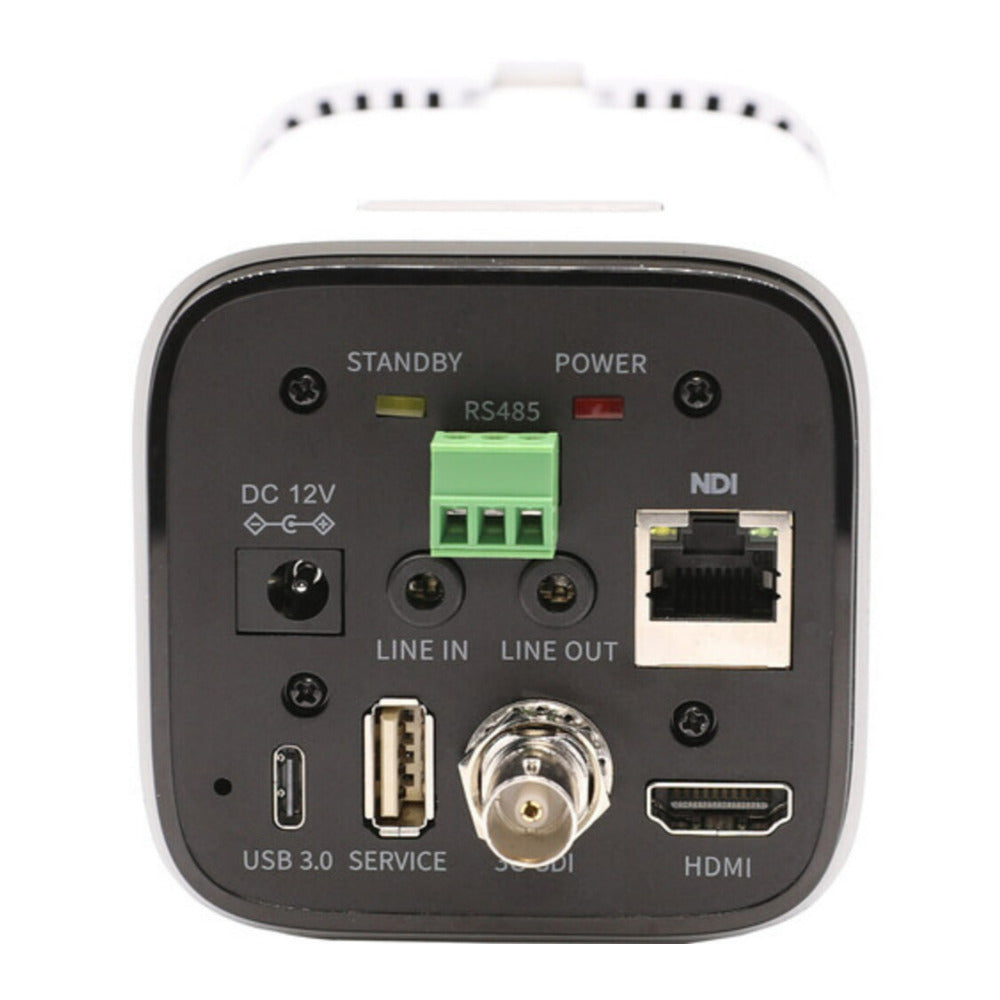

- 1x RJ45: 10/100/1000M adaptive ethernet port (NDI HX2 enabled)
- 1x HDMI: Version 2.0
- 1x USB: 3.0 Type C
- 1x 3G-SDI: BNC type, 300mVP-p, 75 ohm, along to SMPTE 424M
- 1x 3.5mm line level input
- 1x 3.5mm line level output
- YUY2: Max resolution 1920x1080p at 30fps
- MJPEG: Max resolution 3840x2160p at 30fps
- H.264 AVC and SVC: Max resolution 3840x2160p at 30fps
- H.265: Max resolution 3840x2160p at 60fps
PTZOptics Studio 4K Camera with 20x Zoom, NDI HX2 Connectivity, and 16x Digital Zoom

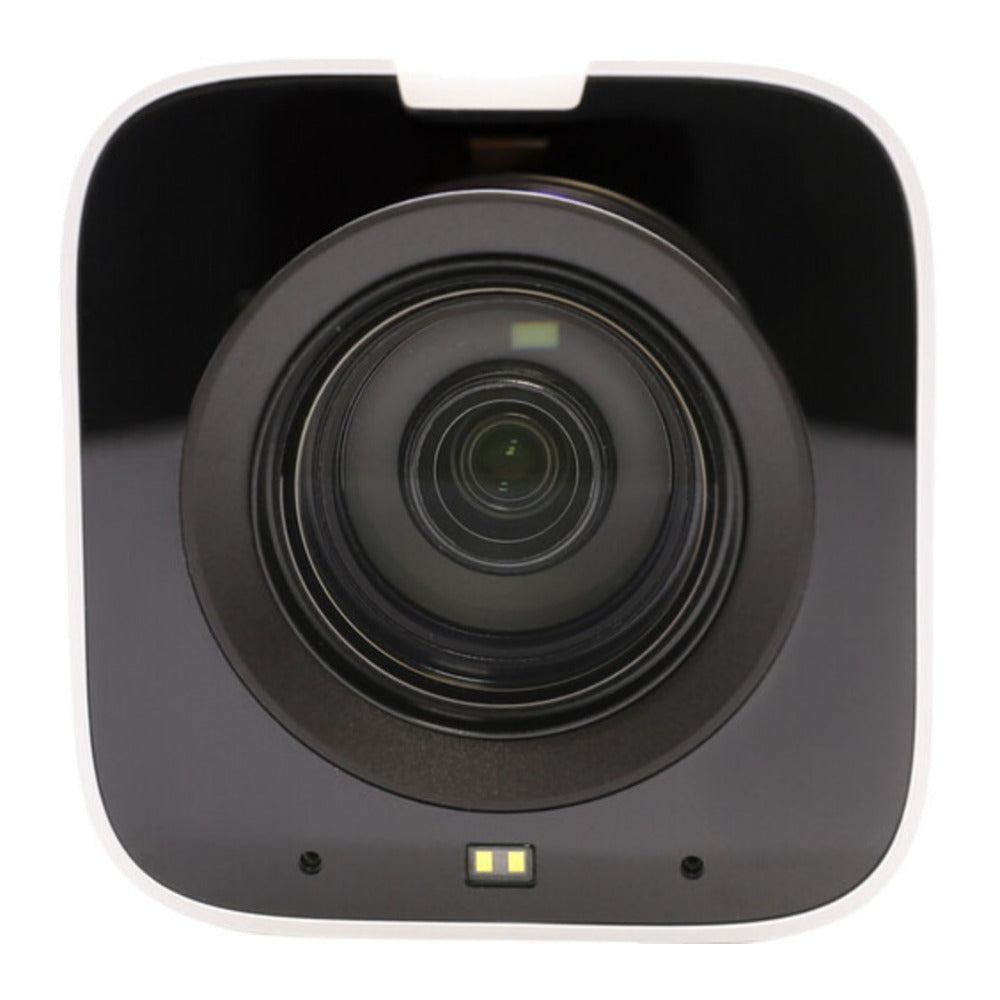

Camera and Lens
| Image Sensor and Lens | 1/2.8-inch CMOS, 8MP (8.4M effective pixels) |
| Digital Zoom | 16x |
| Resolution and Frame Rate | |
| Optical Lens Focal Length (Zoom) | f equals 4.7mm approximately equals to 94mm, F1.6 approximately equals to F3.6 |
| Optical Lens Field of View, Horizontal and Vertical | H 3.5-degree approximately equals to 60.7-degree (V 1.9-degree approximately equals to 34.1-degree) |
| Display Field of View | 67.8-degree |
| Min Lux | 0.5 Lux at (F1.8, AGC ON) |
| Shutter | 1/30x approximately equals to 1/10000s |
| Presets | 255 |
| Presets Accuracy | 0.1-degree |
| Image Flip | Supported |
| Image Mirror | Supported |
| Image Freeze | Supported |
Physical Specifications
| Material | Aluminum, plastic |
| Color | White |
| Dimensions (L x W x H) | 5.7 x 2.99 x 3.09 inch (145 x 76 x 78.5 mm) |
| Weight | 1.4 lbs (0.64 kg) |
| Working Environment | Indoor |
| Humidity Range | 10 to 80 percent |
| Operating Temperature | 14 to 104-degree F (minus 10 to 40-degree C) |
| Storage Temperature | Minus 40 to 140-degree F (minus 40 to 60-degree C) |
Connections
| HD Video Output | |
| Audio Interface | |
Video Formats
| USB | |
| RTSP and NDI HX2 Only | |
| Compression Standards | H.264, H.265, MJPEG, YUY2 (H.265 HEVC via RTSP or NDI HX2 only) |
| UVC Version Supported | UVC 1.1 approximately equals to 1.5 |
| Supported Protocols | TCP/IP, UDP, HTTP, RTSP, RTMP/RTMPS, ONVIF, NDI HX2, SRT, Multicast, etc. |

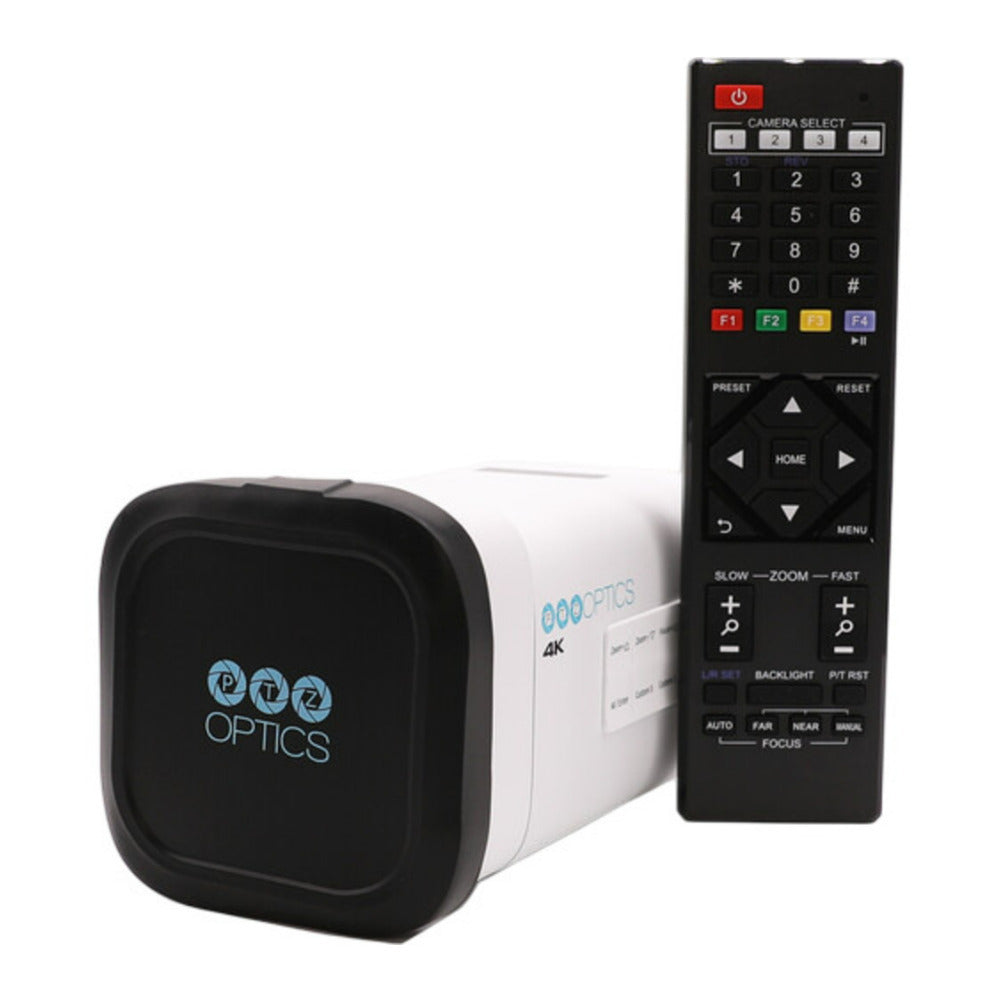

| IR | 4x IR addresses, max distance 30 feet (9m) |
| Power Supply | JEITA type (DC IN 12V) or PoE plus (802.3at) |
| Current Consumption | Max 2A |
| Power Consumption | Max 18W |
