Xenarc Technologies 12.1-inch IP67 IK08 Optically Bonded Touchscreen LCD Monitor
Couldn't load pickup availability
Product highlights
Product highlights
In the box
In the box
Free standard shipping
Free standard shipping
*Orders placed before 1 PM EST Mon - Thur will ship the same day. Orders placed beyond these hours will be shipped the next business day. Exclusions apply. See shipping policy
Free Local Pickup
Free Local Pickup
Please call for store stock availability. Requests made before 2:30 PM EST can be available for next-day pickup. Learn more

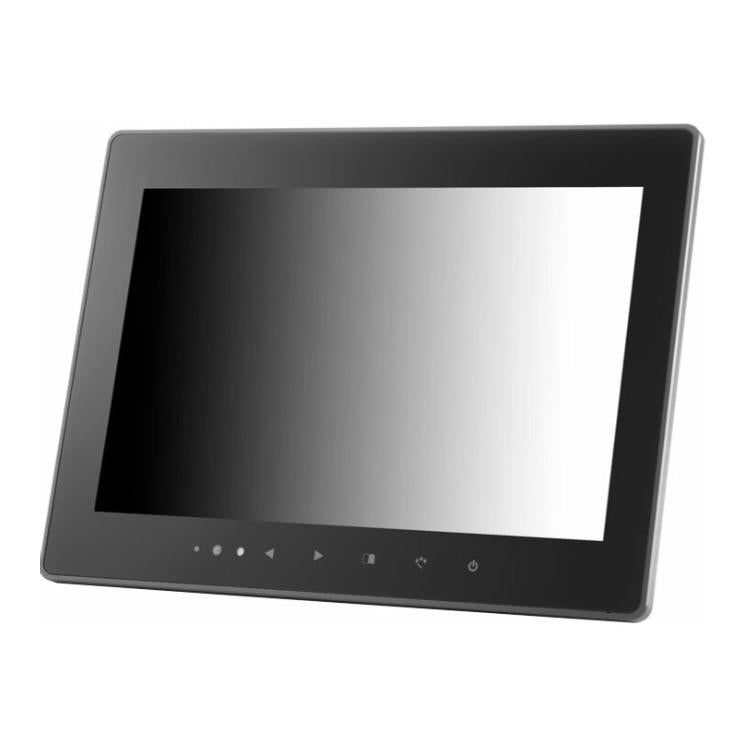

The Xenarc 1219 series 12.1-inch advanced touchscreen display is perhaps the most versatile and all-encompassing 12.1-inch display in Xenarc Technologies’ lineup of products. This 16:9 1000 NIT HMI screen is IP67 and IK08 rated and includes an optically bonded capacitive touchscreen, making it ideal for any harsh rugged industrial environment. The touch panel is optically bonded to the LCD panel, eliminating the air gap between the two, increasing clarity, contrast, and durability.
Features Vivid Display
Further, because the unit is water-tight and air-tight, ambient humidity will not affect the clarity or viewability because of the optical bonding. This LCD monitor outperforms all automotive grade panels with a wider operating temperature range of -30 to 85-degree C (-22 to 185-degree F) and uses an IPS panel (In-Plane-Switching), which provides a wider viewing angle, consistent and accurate colors from all viewing angles, clearer images, and stable response times. A high contrast ratio of 1000:1 provides crisper images and vivid colors, even in direct sunlight.
12.1-inch Capacitive Touch Screen

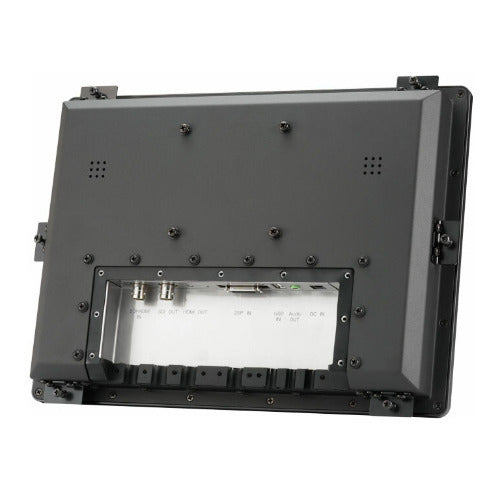

The versatility of the 1219 12.1-inch capacitive touchscreen series extends beyond its usability in many different environments. This monitor unit can video interface through our proprietary 26-pin cable (HDMI, VGA, AV Inputs) as well as SDI and HDMI direct into the monitor. HDMI output and SDI output allow you to chain up a few 1219 series monitors or output to other HDMI or SDI monitors. With the included waterproof cables, the display is IP67 on all sides. Its case is designed to be used as a stand-alone monitor as well as a panel mount monitor. VESA standard mounting holes on the back further provide users with numerous mounting options. The IK08 rating makes this monitor vandal-resistant and shock-resistant.
Certified Rugged
This 12.1-inch Touchscreen LCD Monitor was designed for those looking for a true tested and certified rugged, bright, compact display, usable in just about any environment or application.
High-Grade Components
By utilizing high-grade components, this display is perfect for industrial, in-car computing applications or any other applications where a small, durable, environmentally rugged display is required.
General
| AC Input Power | DC 12V |
Environmental
| Storage Temperature | -30°C to 85°C |
| Operating Temperature | -22 to 185-degree F (-30 to 85-degree C) |
Physical
| Weight | 6.30 |
| Wall Mounting | Not Available |
Video
| Video System | NTSC |
Display
| Resolution | 1920 x 1080 |
| Brightness | 1000 cd/m² |
| TV Screen Size (Diagonal) | 12.1" |
| Variable Frame Rates | Not Available |
| Viewing Angle (H x V) | 178 x 178° |
| Contrast Ratio | 1000:1 |
| Response Time | 25ms |
| Dot Pitch | 3,072,000 (dots) |
Xenarc Technologies 12.1-inch IP67 IK08 Optically Bonded Touchscreen LCD Monitor with VGA HDMI DVI SDI Inputs
| Screen size | Diagonal 12.1-inch (16:9) |
| Physical resolution | 1280 (H) x 800 (V) HD |
| Supported resolution | 640 x 480 to 1920 x 1080 |
| Dot resolution | 3840 x 800 = 3,072,000 (dots) |
| Brightness | 1000 cd/m² |
| Contrast ratio | 1000:1 |
| Viewing angle | 178-degree Horizontal, 178-degree Vertical |
| Response time (Tr+Tf) | 25ms (Typ.) |
| Touch screen interface | USB port |
| Operating voltage range | DC 9V ~ 36V |
| Power supply | DC 12V |
| Power consumption | ≤ 20W |
| Operating temperature | -22 to 185-degree F (-30 to 85-degree C) |
| Storage temperature | -22 to 185-degree F (-30 to 85-degree C) |
| Vibration | Operating Random Vibration Test (5-500Hz, 1.0Grms), IEC 60068-2-64 standard |
| Shock | Operating Shock Test, 10G peak acceleration (11ms duration), IEC 60068-2-27 standard |
| MTBF (Mean time between Failures) | > 55,000 Hours or > 6.2 Years of continuous operation |
| Dimension (mm) | 312W x 230H x 44.2D |
| Weight (lb) | 6.30 |
