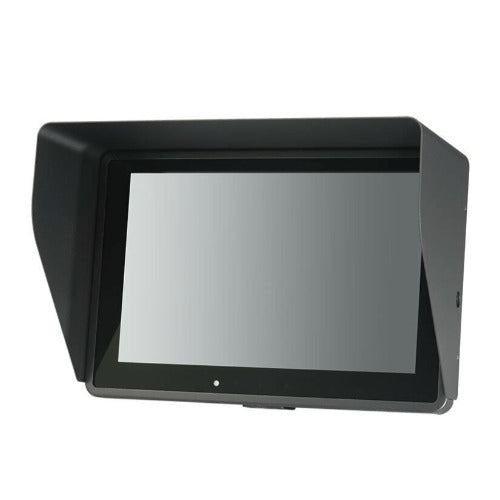

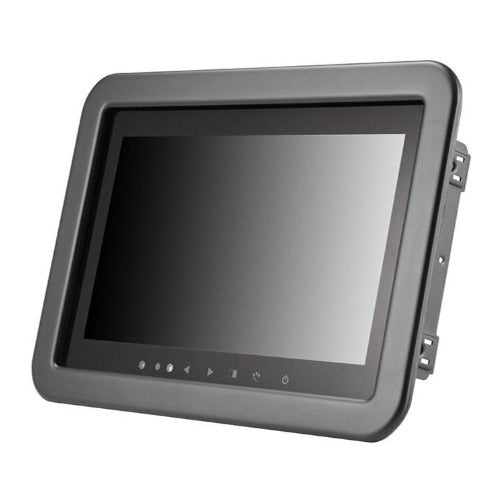

Xenarc Technologies 10-inch IP65 Water-Resistant Sunlight Readable Touchscreen LCD Monitor
Couldn't load pickup availability
Product highlights
Product highlights
In the box
In the box
Free standard shipping
Free standard shipping
*Orders placed before 1 PM EST Mon - Thur will ship the same day. Orders placed beyond these hours will be shipped the next business day. Exclusions apply. See shipping policy
Free Local Pickup
Free Local Pickup
Please call for store stock availability. Requests made before 2:30 PM EST can be available for next-day pickup. Learn more

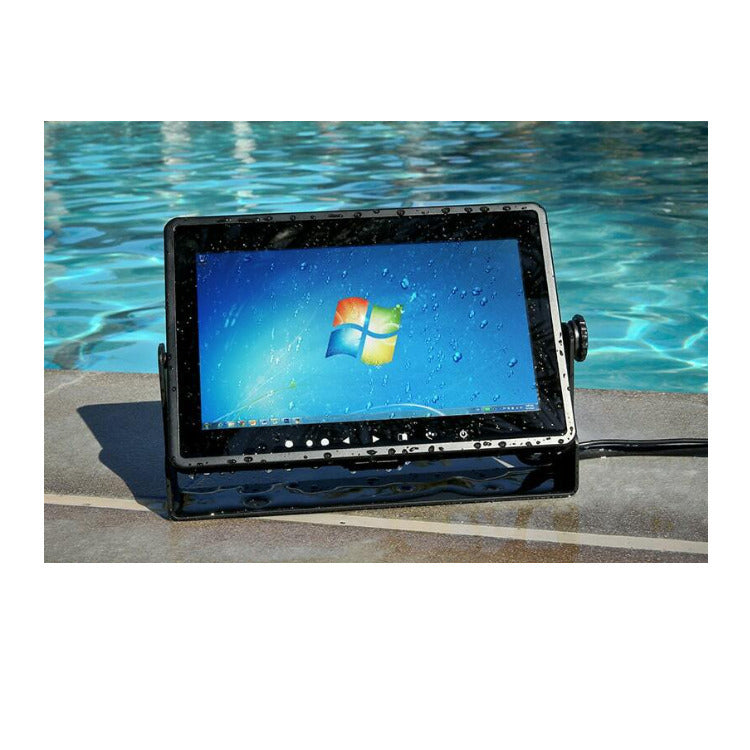

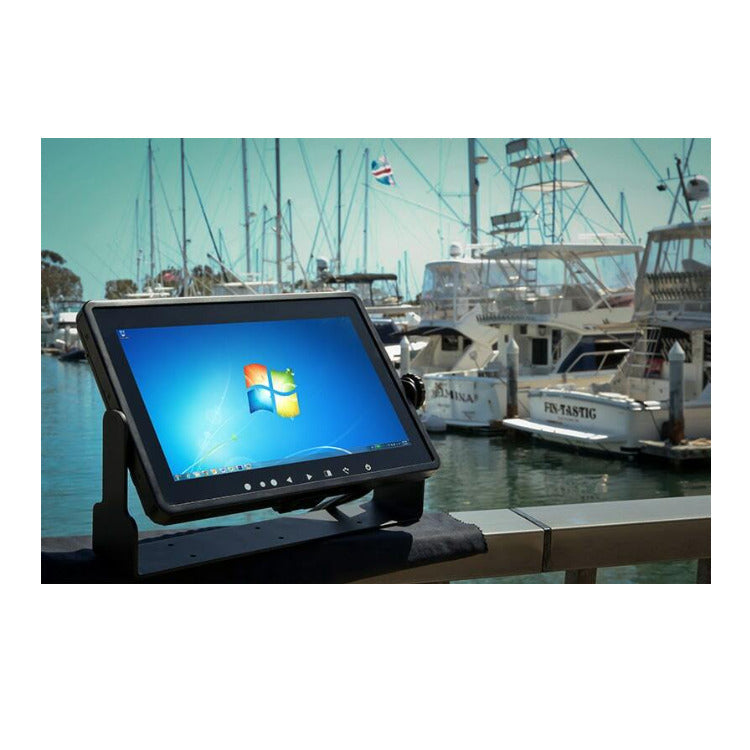

Expanding its product line into previously uncharted territories, Xenarc Technologies presents the first in its class 10.1-inch direct sunlight readable, IP65 dust/splash proof, capacitive touchscreen display monitor with built-in waterproof speakers. The 1,000NIT brightness of this water and dust-resistant 10.1-inch industrial display makes it ideal for tough outdoor applications under direct sunlight, and also protects from environmental hazards with its IP65 certified casing.

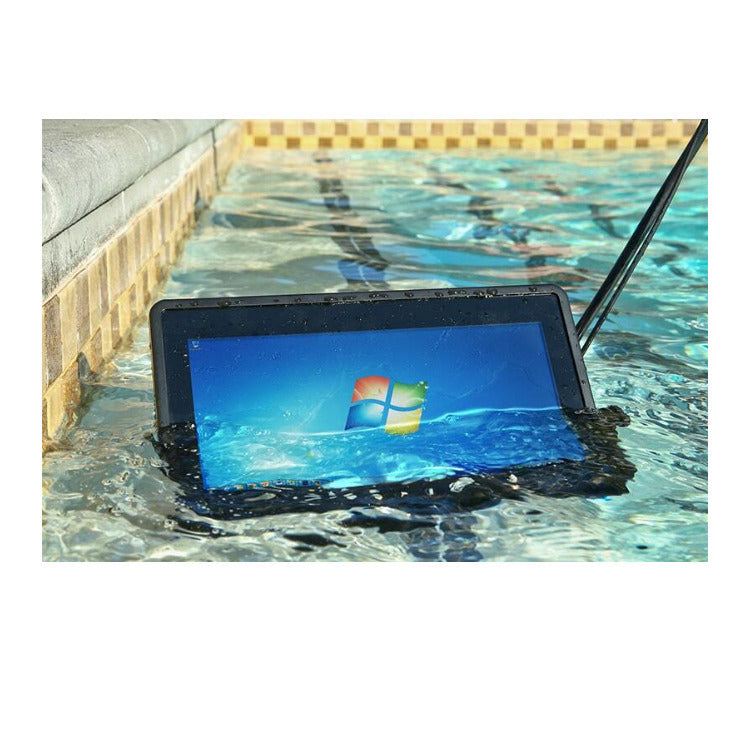

IP65 Water-Resistant
This display offers all of the innovation and inputs as the 1020 series models along with a capacitive touchscreen panel. Capacitive sensing provides a more responsive touch interface than resistive touch. It achieves this by using the capacitance of human skin to detect the proximity or position of the input. Proximity sensing allows the touch interaction to work even if protective glass or coating is used over the display. The IP65 rating on the 10.1-inch industrial display provides for protection against solid objects and liquids. This 10.1-inch industrial display monitor is guaranteed to prevent any amount of dust from entering the device, making it completely dustproof. Further, it is guaranteed to protect from water projected from a nozzle from having any harmful effect.
High-Grade Components
By utilizing high-grade components, this display is perfect for industrial and in-vehicle applications or any other applications where a small, durable, environmentally rugged display is required.
General
| AC Input Power | DC 12V |
Environmental
| Operating Temperature | -4 to 158-degree F (-20-degree C to 70-degree C) |
Physical
| Weight | 3.64 |
| Wall Mounting | Not Available |
Video
| Video System | NTSC |
Display
| Resolution | 1920 x 1080 |
| Brightness | 1200 cd/m² |
| TV Screen Size (Diagonal) | 10.1" |
| Variable Frame Rates | Not Available |
| Viewing Angle (H x V) | 170 x 170° |
| Contrast Ratio | 800:1 |
| Dot Pitch | 1,843,200 (dots) |
Xenarc Technologies 10-inch IP65 Water-Resistant Sunlight Readable Touchscreen LCD Monitor
| Screen size | Diagonal 10.1-inch (16:9) |
| Physical resolution | 1280 (H) x 800 (V) HD |
| Supported resolution | 640 x 480 to 1920 x 1080 |
| Dot resolution | 3072 x 600 = 1,843,200 (dots) |
| Brightness | 1200 cd/m² |
| Contrast ratio | 800:1 |
| Viewing angle | 170-degree Horizontal, 170-degree Vertical |
| Response time (Tr/Tf) | 10/15ms (Typ.) |
| Touch screen interface | USB port |
| Operating voltage range | DC 9V to 36V |
| Power supply | DC 12V |
| Power consumption | ≤ 20W |
| Operating emperature | -4 to 158-degree F (-20-degree C to 70-degree C) |
| Storage temperature | -22 to 176-degree F (-30-degree C to 80-degree C) |
| Vibration | Operating Random Vibration Test (5-500Hz, 1.0Grms), IEC 60068-2-64 standard |
| Shock | Operating Shock Test, 10G peak acceleration (11ms duration), IEC 60068-2-27 standard |
| MTBF (Mean time between failures) | > 55,000 Hours or > 6.2 Years of continuous operation |
| Dimension (mm) | 265.7W x 178.2H x 32.2D |
| Weight (lb) | 3.64 |
