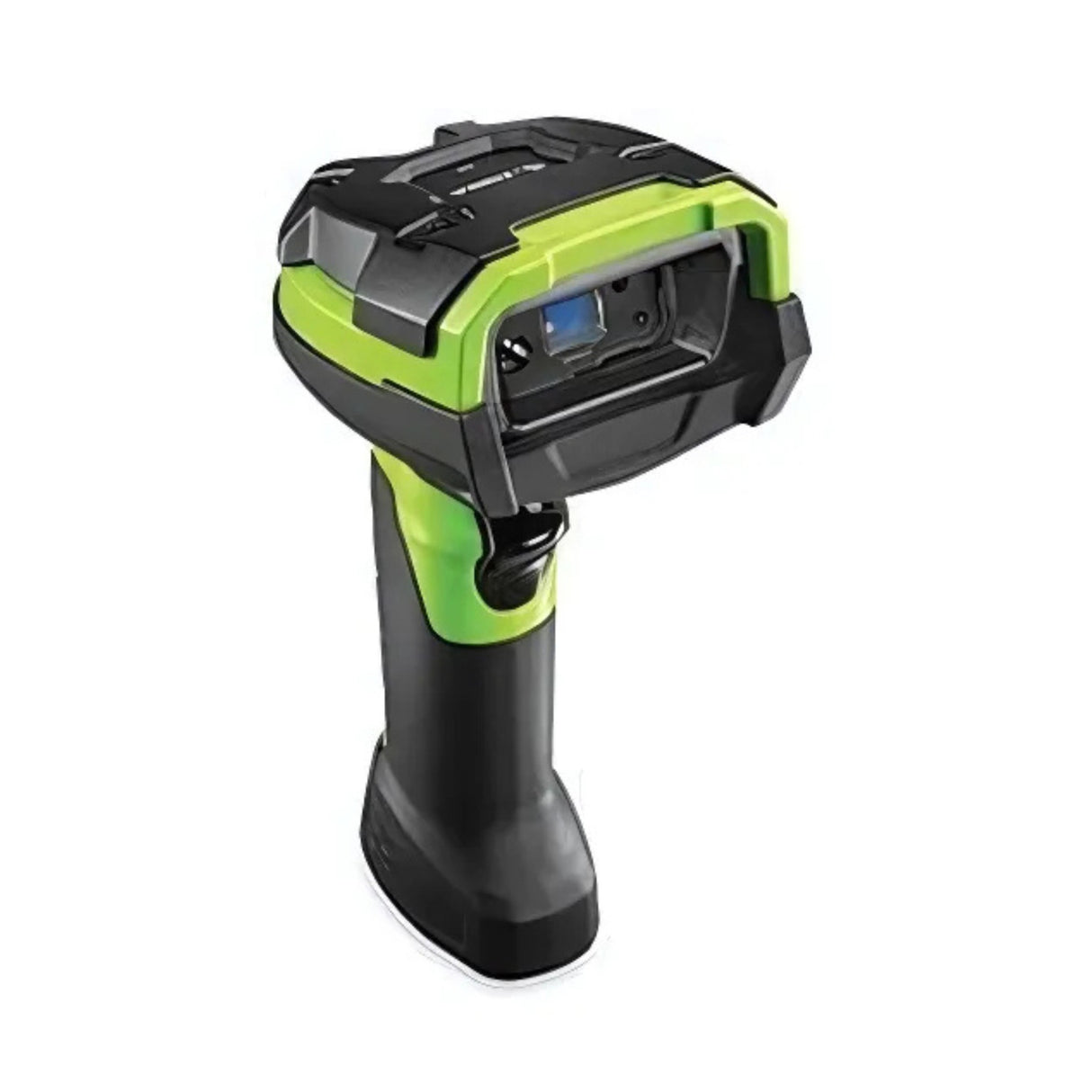

Zebra DS3678-SR Cordless Ultra-Rugged 1D/2D Bluetooth Wireless Barcode Scanner with Long Range Scanning and Waterproof
The Zebra DS3678-SR is a cordless barcode scanner designed for reliable 1D and 2D barcode capture at standard ranges. Built for tough environments, it delivers consistent scanning performance and durability needed in warehouses and manufacturing floors.
Standard Range Barcode Capture
The scanner reads 1D and 2D barcodes from near contact to nearly 5 feet away. This allows workers to scan items quickly without repositioning or delays, improving productivity.
Ultra-Rugged Design
Built to withstand drops up to 8 feet and over 7,000 tumbles, the DS3678-SR is resistant to dust, water, and sprays with an IP67 rating. This durability reduces downtime and replacement costs in demanding workplaces.
Cordless Bluetooth Connectivity
Equipped with Bluetooth 4.0 low energy, the scanner connects quickly and maintains wireless stability. Zebra’s Wi-Fi Friendly Mode prevents interference with existing Wi-Fi networks, ensuring reliable communication.
Long Battery Life with Smart Monitoring
The PowerPrecision+ battery provides over 100,000 scans per charge. It includes a battery health monitor and charge gauge, helping to avoid unexpected downtime and plan battery replacements efficiently.
Multi-Barcode Capture
The scanner can capture up to 20 barcodes at once and format data for backend systems automatically. This speeds up processing and reduces manual input errors.
Main
| Configuration | Core |
| Color | Green |
- Corded: 7.3 in. H x 3.0 in. W x 5.2 in. D
- 18.5 cm H x 7.6 cm W x 13.2 cm D
- Cordless: 7.3 in. H x 3.0 in. W x 5.6 in. D
- 18.5 cm H x 7.6 cm W x 14.2 cm D
- Corded: 10.76 oz./305 g
- Cordless: 14.34 oz./407 g
- Host powered: 4.5 VDC min., 5.5 VDC max.
- External power supply: 11.4 VDC min., 12.6 VDC max.
- Supported Host Interfaces
- USB, RS232, Keyboard Wedge
- Industrial Ethernet: EtherNet/IP, Profinet, Modbus
- TCP & Std TCP/IP
- Skew: # 60°
- Pitch: #60°
- Roll: + 360°
- Corded: -22° F to 122° F/-30° C to 50° C
- Cordless: -4° F to 122° Fl-20° C to 50° C
- Scanner: IP65 and IP67
- FLB cradle: IP65
- EU Safety: EN 60950-1: 2006 + A11: 2009 + Al: 2010 + A12: 2011+ AC 2011+ A2: 2013
- International Safety: IEC 60950-1: 2005 + A1: 2009 + A2: 2013
- US/Canada Safety: UL 60950-1, second edition, CAN/CSA-C22.2 No. 60950-1-07
- IT Emissions: EN 55022: 2010/AC: 2011 (Class B)
- IT Immunity: EN 55024: 201
- Heavy Industrial: EN 61000-6-2: 2005/AC:200
- Harmonic Current Emissions: EN 61000-3-2: 2006 + A1: 2009 + A2: 2009 (Class B
- Voltage Fluctuation and Flicker: EN 61000-3-3: 2013
- Medical Electrical Equipment: EN 60601-1-2:2007/AC: 2010, IEC 60601-1-2: 2007 (Modified)
- Radio Frequency Devices: 47 CER Part 15, Subpart B, Class B
- Digital Apparatus: ICES-003 Issue 5, Class B
- PRZM Intelligent Imaging
- Preferred Symbol
- Multi-code Data Formatting
- Wi-Fi'™ Friendly Mode
- 123Scan
- PowerPrecision+
- Remote Management
- Remote Diagnostics
- ScanSpeed Analytics
- Scanner Control Application
- Software Development Kit
- Scan-to-Connect
Zebra DS3678-SR Cordless Ultra-Rugged 1D/2D Bluetooth Wireless Barcode Scanner with Long Range Scanning and Waterproof
PHYSICAL CHARACTERISTICS
| Dimensions | |
| Weight | |
| Input Voltage Range | |
| Operating Current | DS3608-SR (corded): 360 mA (RMS typical) |
| Standby Current | DS3608-SR (corded): 100 mA (RMS typical) |
| Color | Industrial Green |
| Battery | PowerPrecision+ 3100 mAh Li-lon rechargeable battery |
| User Indicators | Direct decode indicator; LEDs; beeper; vibration |
PERFORMANCE CHARACTERISTICS
| Scans per Full Charge | 100,000+ |
| Image Capture | Basic |
| Illumination | One (1) 660 nm LED |
| Aimer | 610 nm LED |
| Imager Field of View | Horizontal: 42°, Vertical: 28° |
| Image Sensor | 1,280 x 800 pixels |
| Minimum Print Contrast | 15% minimum reflective difference |
| Skew/Pitch/Roll |
DECODE CAPABILITIES
| 1D | Code 39, Code 128, Code 93, Codabar/NW7, Code 11, MSI Plessey, UPC/EAN, 12 of 5, Korean 3 of 5, GS1 DataBar, Base 32 (Italian Pharma) |
| 2D | PDF417, Micro PDF417, Composite Codes, TLC-39, Aztec, DataMatrix, MaxiCode, QR Code, Micro QR, Chinese Sensible (Han Xin), Postal Codes, DotCode |
| Digimarc | Digital watermark technology |
| IUID Support | Supports IUID parsing, the ability to read an eparate IUID fields per application requirement |
USER ENVIRONMENT
| Operating Temp. | |
| Storage Temp. | -40° F to 158° FI-40° C to 70° C |
| Humidity | 5% to 95% non-condensing |
| Drop Specification | Withstands multiple 8.0 ft./2.4 m drops to concrete |
| Tumble Specification | 5,000 tumbles @ 3.3 ft. (1m) |
| Sealing | |
| ESD | Per EN61000-4-2, +25 KV air discharge, #10 KV direct discharge, +10 KV indirect discharge |
UTILITIES AND MAINTENANCE
| 123Scan | Programs scanner parameters, upgrades firmware, provides scanned barcode data and prints reports. |
| For more information, visit www.zebra.com/123Scan | |
| Scanner SDK | Generates a fully-featured scanner application, including documentation, drivers, test utilities and sample source code. For more information, visit www.zebra.com/windowsSDK |
| Scanner Management Service (SMS) | Remotely manages your Zebra scanner and queries its asset information. For more information, visit www.zebra.com/sms |
| Network Connect | Seamlessly connects 3600 Series scanners directly to your Industrial Ethernet network without any third party conversion equipment. For more information, visit www.zebra.com/NetworkConnect |
WIRELESS CONNECTIVITY
| Bluetooth Radio | Bluetooth Class 1, Version 4.0 (LE), serial port and HID profiles |
| Data Rate | 3 Mbit/s (2.1 Mbit/s) for Classic Bluetooth |
| 1 Mbit/s (0.27 Mbit/s) for Low Energy | |
| Radio Range | Direct line of sight in open air: Class 1: Minimum 300 ft. (100.0 m); Class 2: Minimum 30 ft. (10.0 m) |
REGULATORY
| Environmental | ROHS EN 50581: 2012 |
| Electrical Safety | |
| LED Safety | International LED Safety: IEC 62471: 2006 (Ed.1.0); EN 62471: 2008 (LED) |
| EMI/RFI | |
DATACAPTURE DNA
| PRODUCTIVITY TOOLS | |
| MANAGEMENT TOOLS | |
| VISIBILITY TOOLS | |
| DEVELOPMENT TOOLS | |
